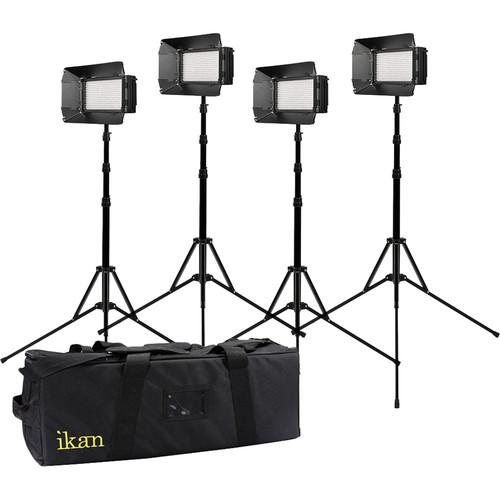

User Manual for ikan Mylo Mini Bi-Color 4-Point Light Kit with 4 MB4 LED Lights

• Product category: LED Lights ikan
• Brand: ikan
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ikan LED Lights

Product description

• Mylo MB4-TK Mini Bi-Color Portable Field LED Light Travel Kit with Barndoors
  • Mylo Mini Bi-Color Portable Field LED Light | Ikan Tech Corner
  • Mylo LED Lights - Extremely Portable
  The ikan Mylo MB4-TK Mini Bi-Color Portable Field LED Light Travel Kit with Barndoors includes the MB4 fixture, removable barndoors, a neutral density filter, two batteries, a dual charger, and a hard-sided carrying case. The fixture is a compact battery-powered daylight/tungsten-balanced lighting unit that you can mount on a camera. It features a continuously variable color temperature between tungsten and daylight, and incorporates a built-in variable dimmer that can dim the light's output from 100 to 10%. Built into the light is an LCD display panel that shows a digital readout of the brightness level and color temperature, and features a battery gauge so you know how much power you have left.

  The light produces a 50° beam angle and includes both a removable four-leaf barndoors and diffusion gel. The light features slots for two Sony L-series type batteries but does not come with any batteries. A 1/4"-20 threaded hole allows you to mount the light to your camera's accessory shoe via the included ball adapter. You can also stack up to four units together using the interlocking fixture. The fixture outputs the approximate equivalent of a 300W incandescent fixture without the heat or power draw. The included barndoors are simple to install and remove, and the ND filter can be used with or without the barndoors.
  Variable Color Temperature & Dimming
  • The MB4 features a total of 420 LEDs, and a single knob that allows you to vary the color temperature of the unit from 3200 to 5600K. A separate knob controls the dimming of the unit, with brightness range of 100 to 10%.
  Digital Display Screen
  • The dimmer and color temperature settings are controlled by analog knobs, but the digital readout on the built-in display screen allows you to match the output of other units or repeat previous setups. The display also incorporates a four-step battery gauge so you know how much battery power you have left.
  Power
  • The light unit features slots for two Sony L-series type batteries of any capacity, and includes two NP-550-type batteries. The light can run on one or two batteries, but you can use the AC adapter that powers the included dual battery charger to power the light instead, via the small power connector on the back of the unit.
  Mounting
  • The light incorporates a 1/4"-20 threaded mounting hole in the bottom of the unit, and an interlocking rail system that allows you to stack up to three units vertically or horizontally, with a maximum of six lights.
  Light Control
  • The included barndoors mount by sliding into a slot on the light fixture. The side leaves incorporate pivoting extensions that allow you to close off the doors and prevent light spill. The ND filter slides into the fixture through its own slot, independent of the barndoors.
  • The hard-sided carry case stores your light fixture and accessories during transport and storage.
  UPC: 847983021055
• Compact Light Stand Version 3 (74") The Compact Light Stand Version 3 from Ikan is a space-saving support that rises to a height of 74" and, thanks to a clever reverse folding leg design, folds down to just 21" in length. The matte black stand boasts extra long legs that ensure it doesn't tip over easily, as well as a 5/8" top stud. UPC: 847983015184

• Mylo MB4 Mini Bi-Color Portable Field LED Light

• Barndoors

• Carry Case

• Dual-Battery Charger

• Neutral Density Filter

• 2 x L-Series Battery

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Padded Kit Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mylo MB4-TK Mini Bi-Color Portable Field LED Light Travel Kit with Barndoors

  Beam Angle	50°
  Color Temperature	3200 to 5600K
  Number of LEDs	420

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Battery Plate	2 x Sony L-Series (NP-F)
  DC Input Power	7.4 to 14.8 VDC
  Max Power Consumption	24 W
  Power Source	AC Adapter, External Battery

  Mount Type	1/4"-20 Female Thread, Cold Shoe
  Dimensions	8 x 5 x 2" / 20.3 x 12.7 x 5.1 cm
  Weight	1.0 lb / 0.5 kg

  Box Dimensions (LxWxH)	15.9 x 10.95 x 3.25"

• Compact Light Stand Version 3 (74")

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	5/8" Stud
  Number of Sections	4
  Maximum Working Height	74" / 188 cm
  Minimum Working Height	23" / 58.4 cm
  Collapsed Height	23" / 58.4 cm
  Leg Shape	Rectangular
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black

  Box Dimensions (LxWxH)	23.75 x 3.5 x 3.5"
