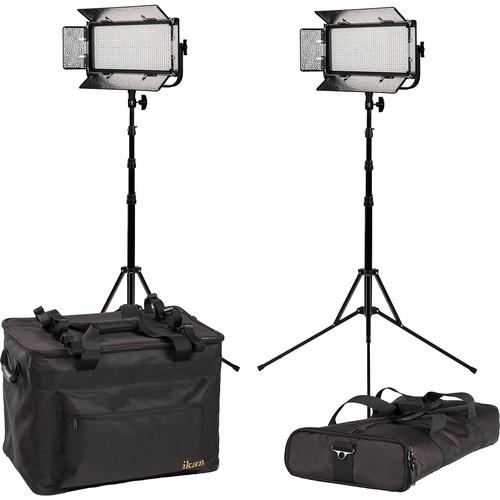

User Manual for ikan Mylo MW8 Half x 1 Daylight LED 2-Point Light Kit Click to enlarge the picture
Contents of the user manual for the ikan Mylo MW8 Half x 1
- Product category: LED Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan LED Lights
 |
User manual for the ikan Mylo MW8 Half x 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

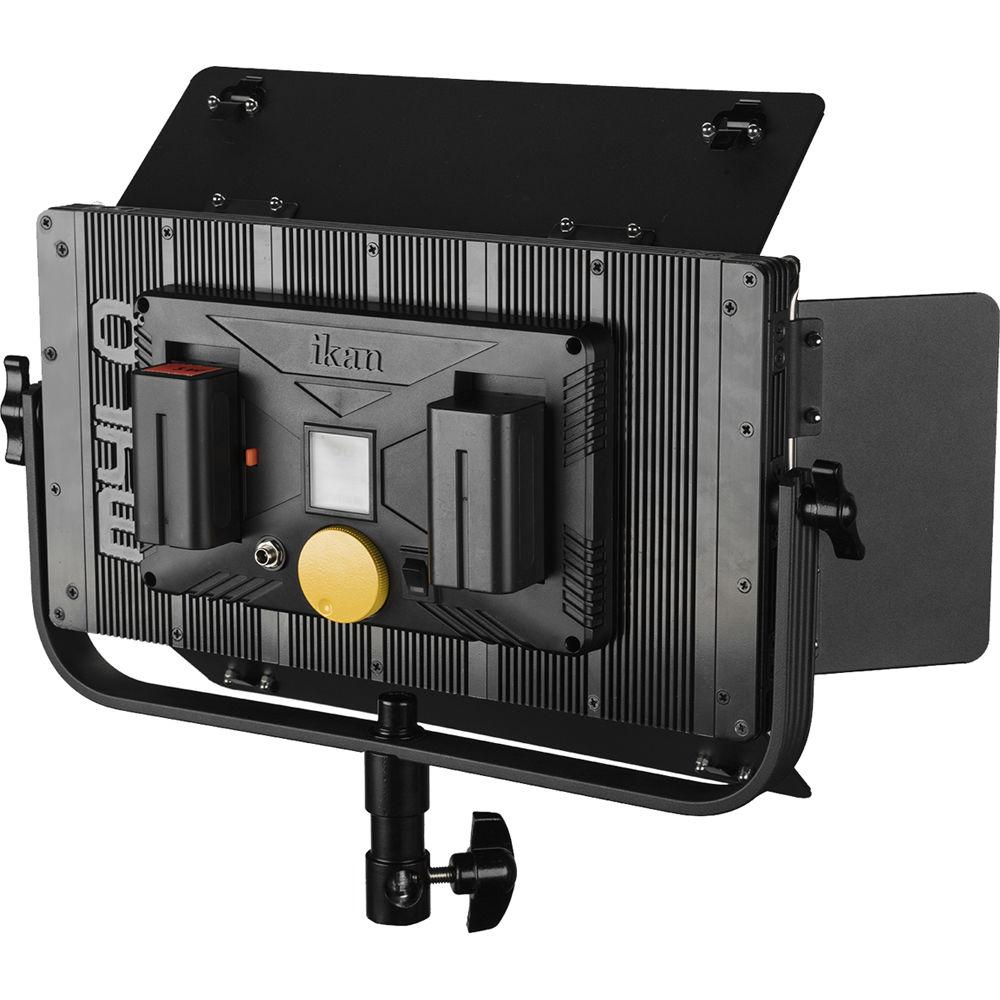

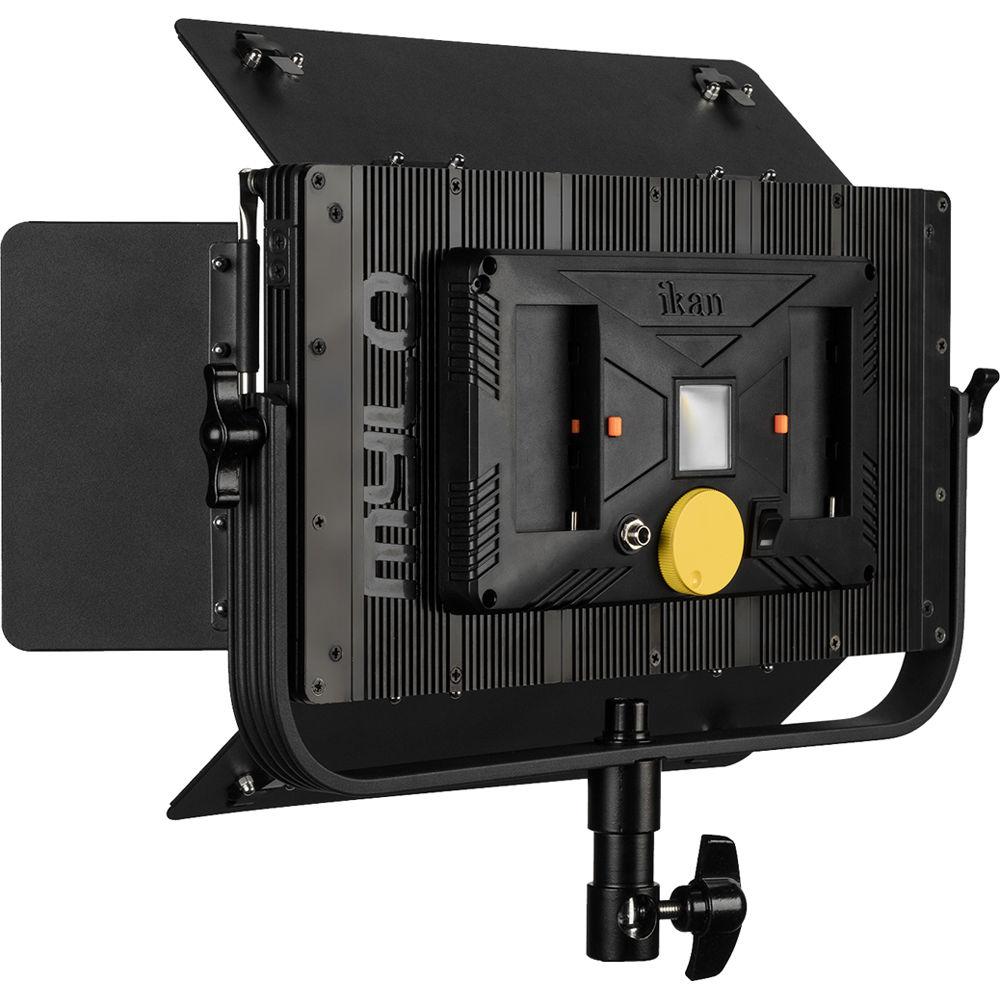

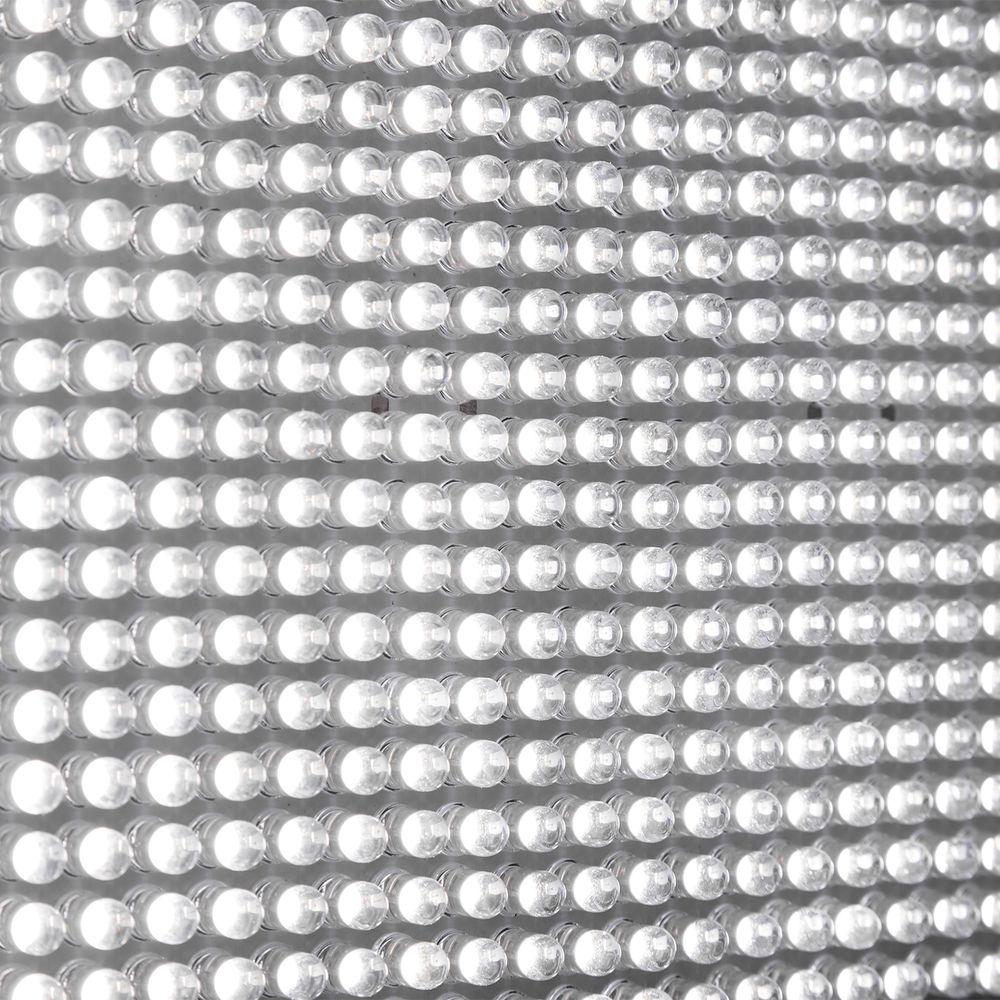

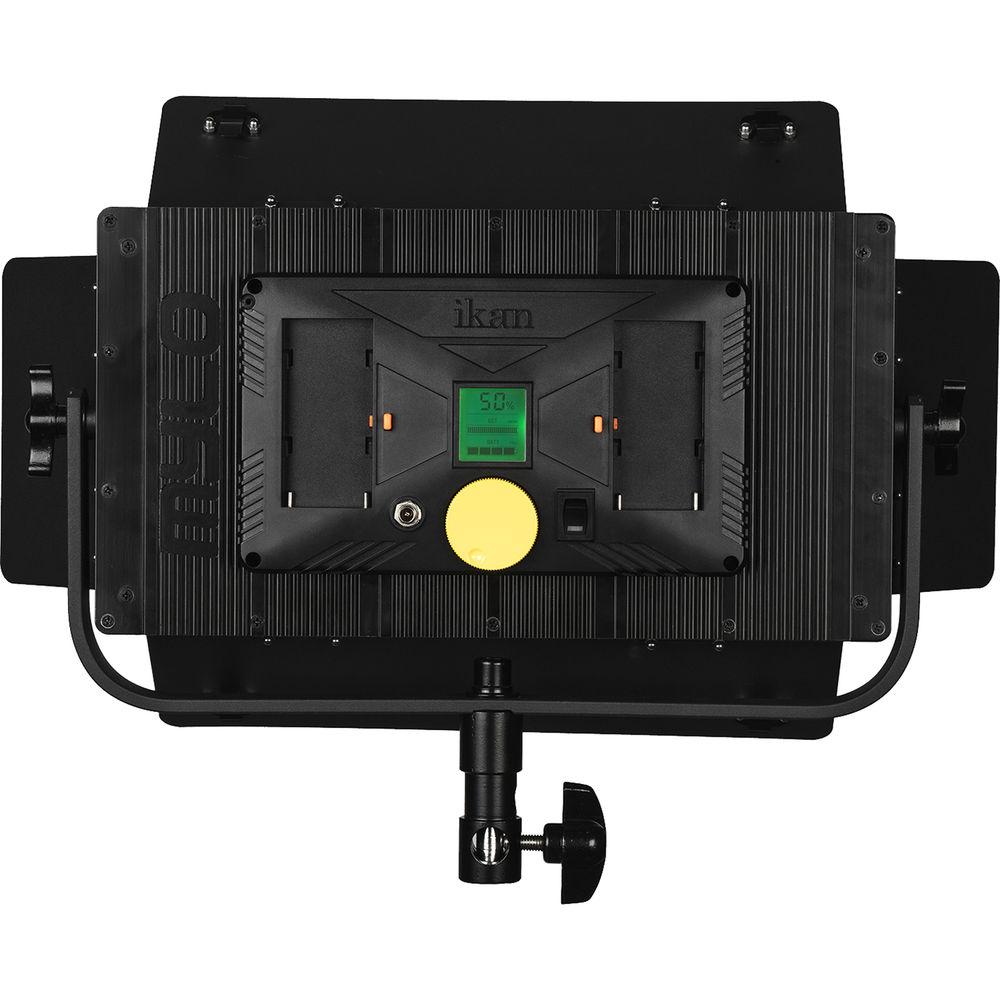

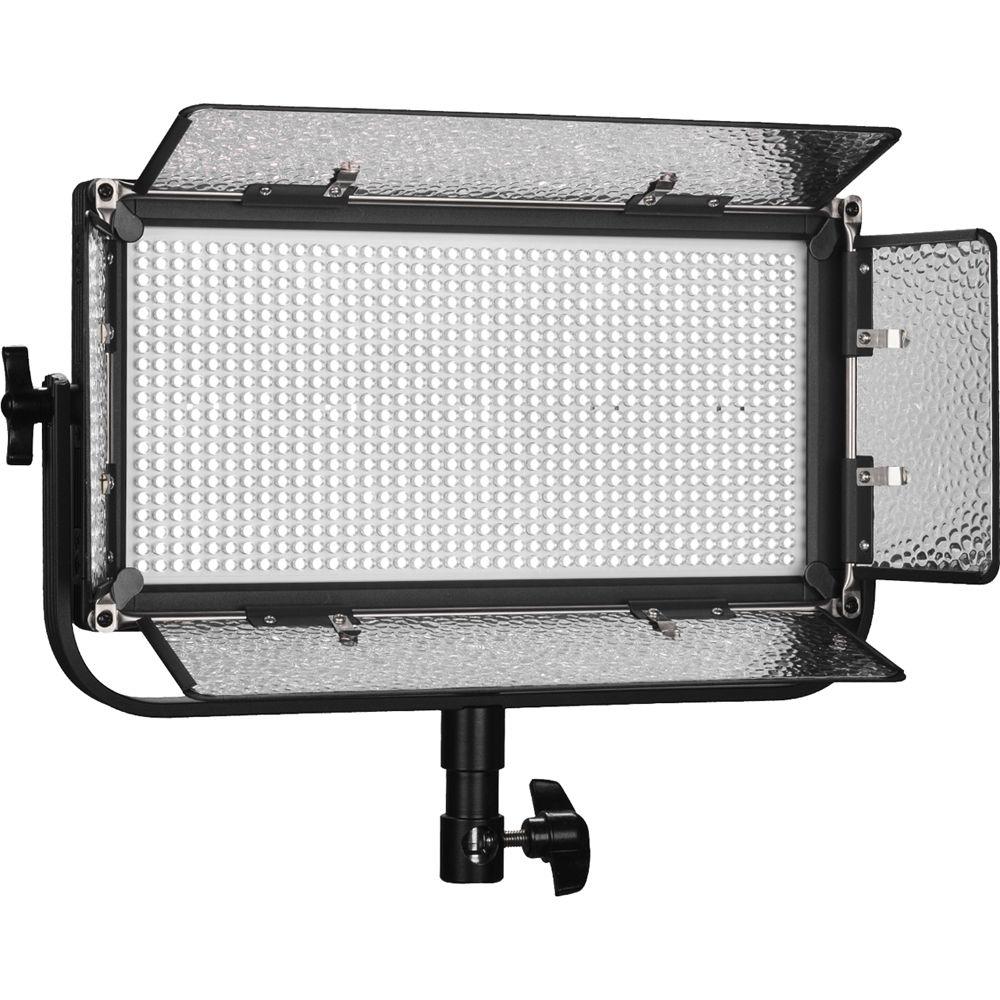

Product description Ready for the road or equally effective in the studio, the Mylo MW8 Half x 1 Daylight LED 2-Point Light Kit from ikan offers photographers and videographers a highly flexible system with multi-voltage AC or battery power options. The kit includes 2 Mylo MW8 Daylight Light Panels, each with an AC power supply 2 Sony L-style batteries, a dual charger, yoke mount, a neutral diffusion filter, and a 6' light stand. Also included are a stand bag and a light kit bag. - Mylo Daylight 5600K Half x 1 Portable Field LED Light The Mylo Daylight 5600K Half x 1 Portable Field LED Light from ikan is a 14 x 7 x 2" LED panel with a color temperature of 5600K that allows you to work outdoors or in environments with lots of windows or daylight-balanced fixtures. The sturdy metal 800 LED fixture outputs the 550W tungsten equivalent while consuming only 24W on the average and running cool to the touch. ikan continues to develop their convenience features. Dimming is easily done via a single knob, and adjustments read out on a bright LED screen. The light runs on 110-240 VAC mains current but can also be powered by the 2 included Sony-type L series batteries. The Mylo's strong steel tension knobs lock the yoke into place while its mount is a combo 5/8" / 1-1/8" pin with right angle access. The Mylo Daylight 5600K Half x 1 comes with a multi-voltage power supply for worldwide use, 2 L batteries, a dual charger, neutral density filter, and yoke.
- Benefits
-
- 95+ CRI LED's
- Daylight-balanced 5600K LEDs
- Beam Angle of 50 degrees
- Baby 5/8" / Junior 1-1/8" combo pin adapter with right angle receiver hole

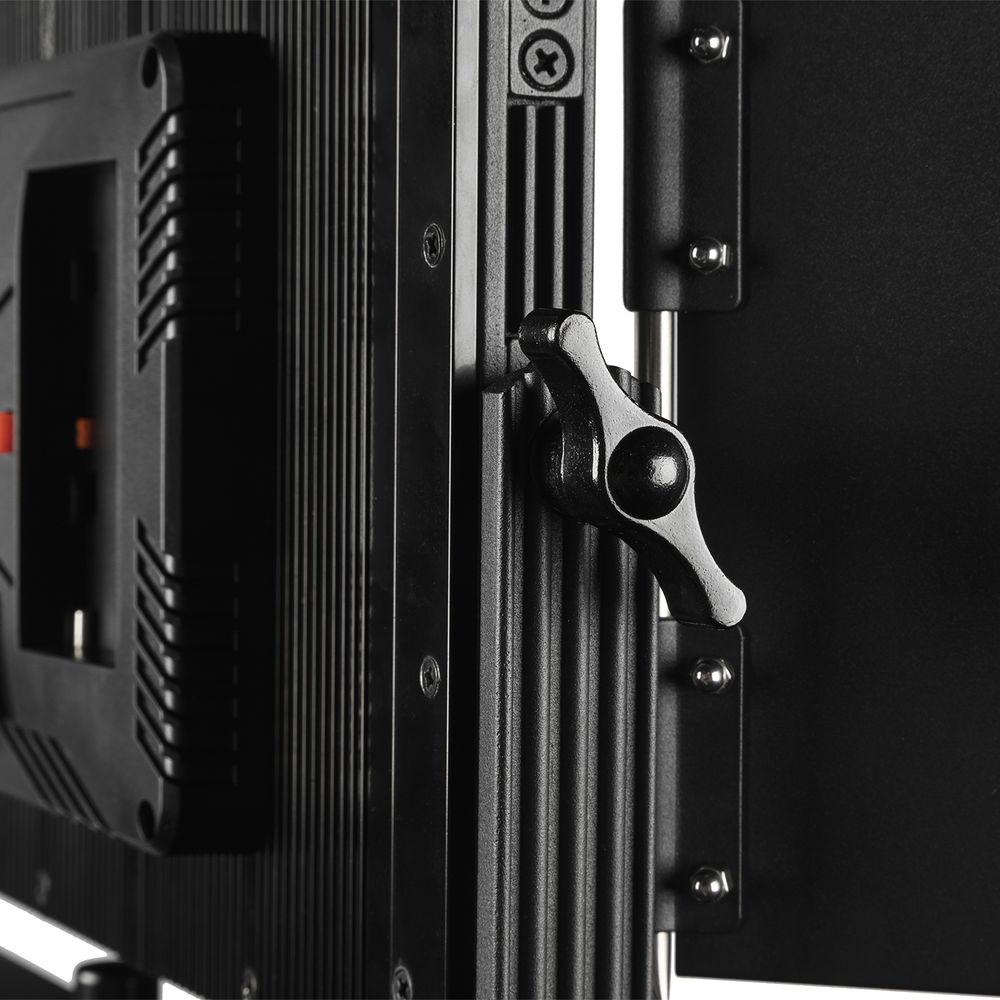

- Strong steel tension knobs for locking the light into place
- Single knob adjustment

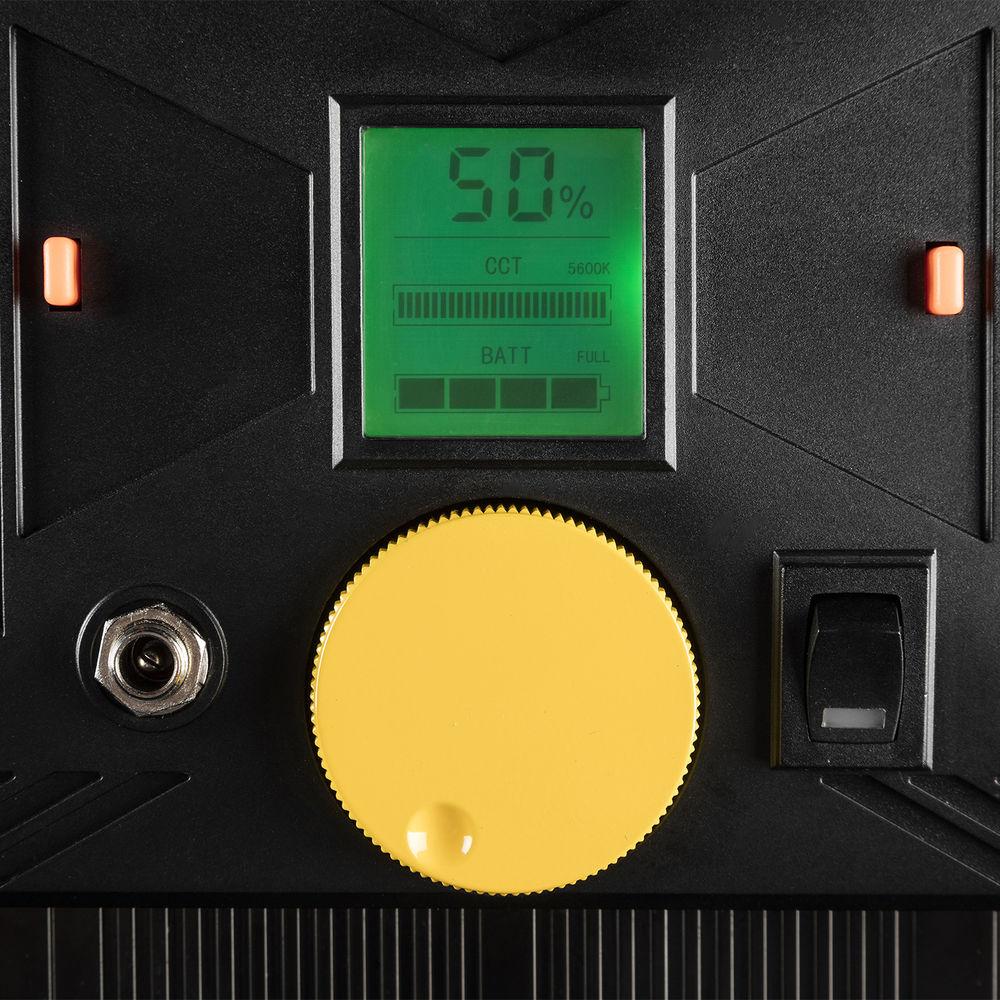

- Bright LED readout screen gives you precise adjustments
- Battery powered by two included Sony style "L" series batteries

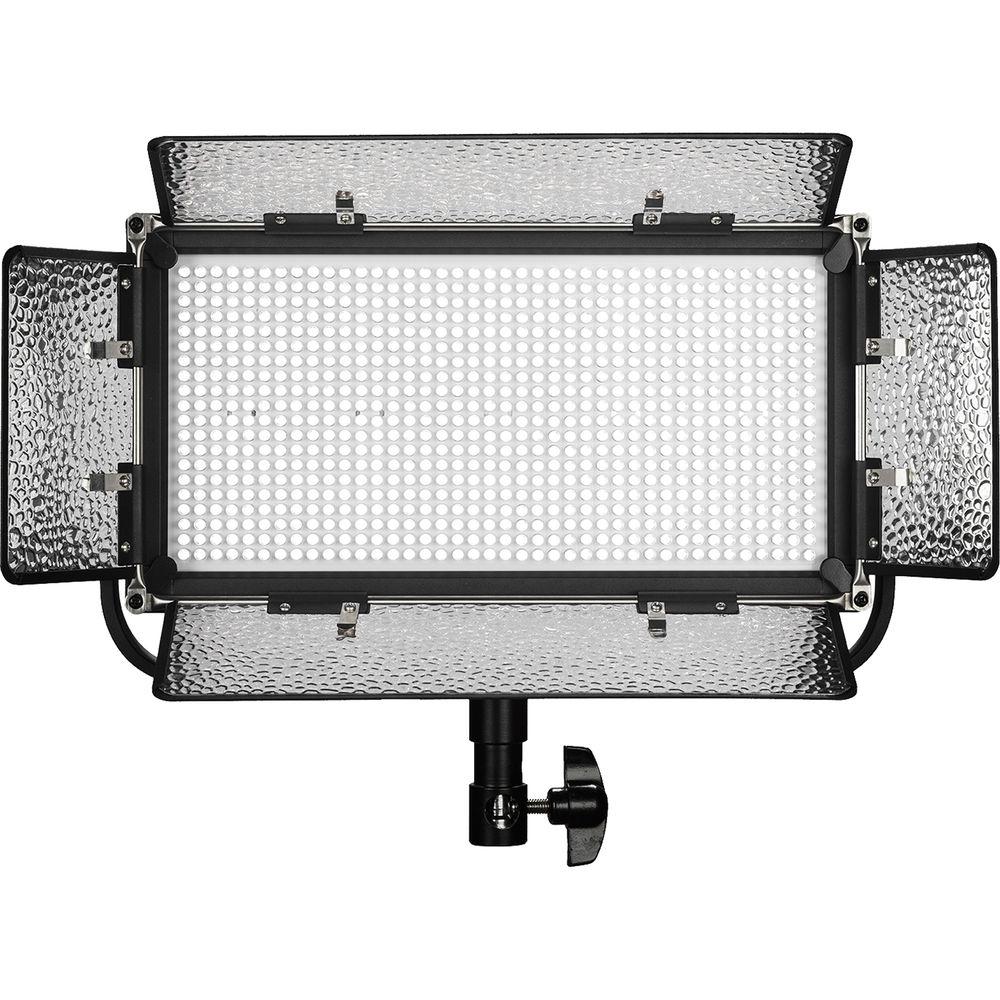

- Included barndoors with intensifiers
- Equivalent to 550W incandescent flood light
- Maximum power draw 50W at 120VAC
UPC: 847983017133 - Compact Light Stand Version 3 (74") The Compact Light Stand Version 3 from Ikan is a space-saving support that rises to a height of 74" and, thanks to a clever reverse folding leg design, folds down to just 21" in length. The matte black stand boasts extra long legs that ensure it doesn't tip over easily, as well as a 5/8" top stud. UPC: 847983015184
In the Box Bundle Items 2 x Mylo Daylight 5600K Half x 1 Portable Field LED Light ytxafruzbayuuu - Dual Charger with Power Supply
- 2 x Sony L-Series Battery
2 x Compact Light Stand Version 3 (74")
Also Includes Quick start Guide PDF 3.4mbytxafruzbayuuu Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Mylo MW8 Half x 1 Daylight LED 2-Point Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Mylo Daylight 5600K Half x 1 Portable Field LED Light
| | | Beam Angle | 50° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes | | Display | None | | Housing Material | Metal | | Number of LEDs | 800 | | Fixture Dimensions | 14.0 x 7.0 x 2.0" / 36.0 x 18.0 x 5.0 cm | | Fixture Weight | 6 lb / 2.7 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 7.4 to 14.8 VDC | | Power Source | AC Adapter, External Battery | | Consumption Per LED | 0.06 W | | Max Power Consumption | 50 W | | Power Supply Output | 12 VDC, 5 A | | | | Box Dimensions (LxWxH) | 18.9 x 14.8 x 5.5" | - Compact Light Stand Version 3 (74")
| Load Capacity | 7 lb / 3.2 kg | | Mounting Options | 5/8" Stud | | Number of Sections | 4 | | Maximum Working Height | 74" / 188 cm | | Minimum Working Height | 23" / 58.4 cm | | Collapsed Height | 23" / 58.4 cm | | Leg Shape | Rectangular | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | Yes | | Finish | Black | | | | Box Dimensions (LxWxH) | 23.75 x 3.5 x 3.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
