Product description

• Mylo Daylight 5600K Half x 1 Portable Field LED Light
  • Mylo Portable LED Lights

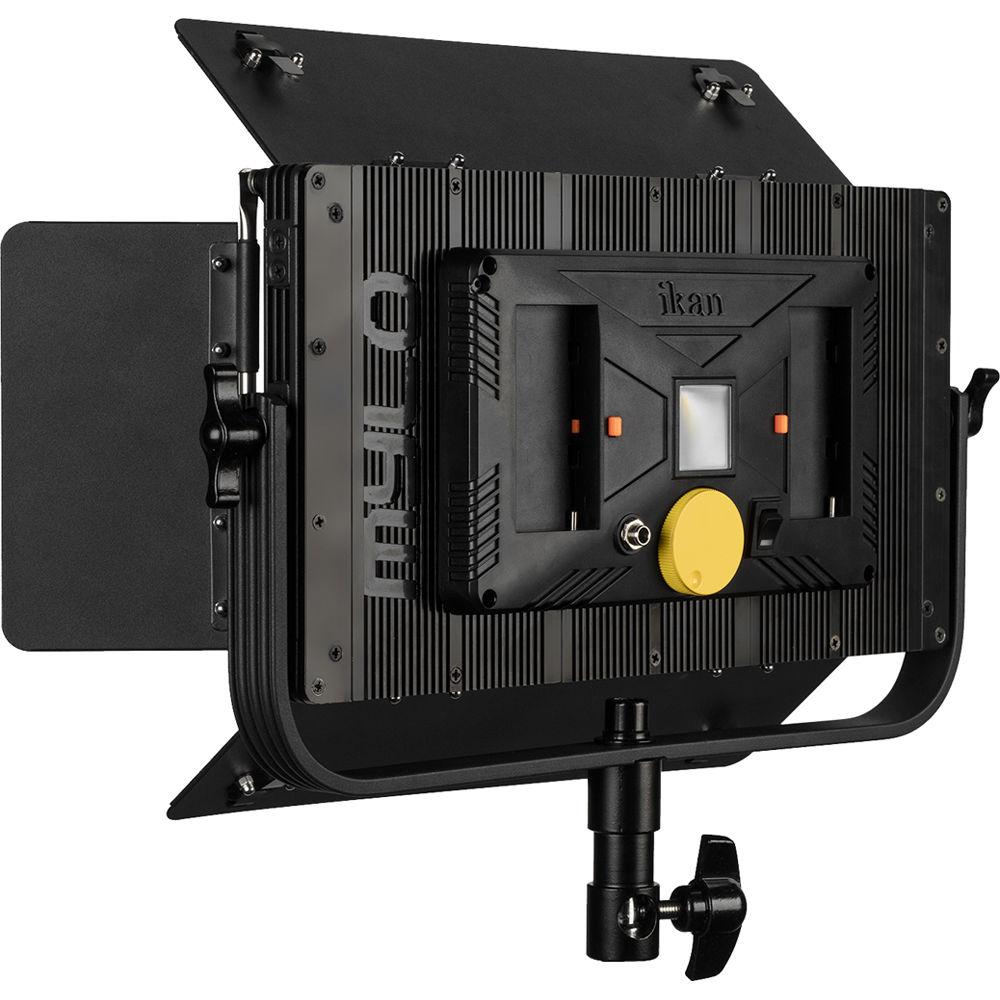

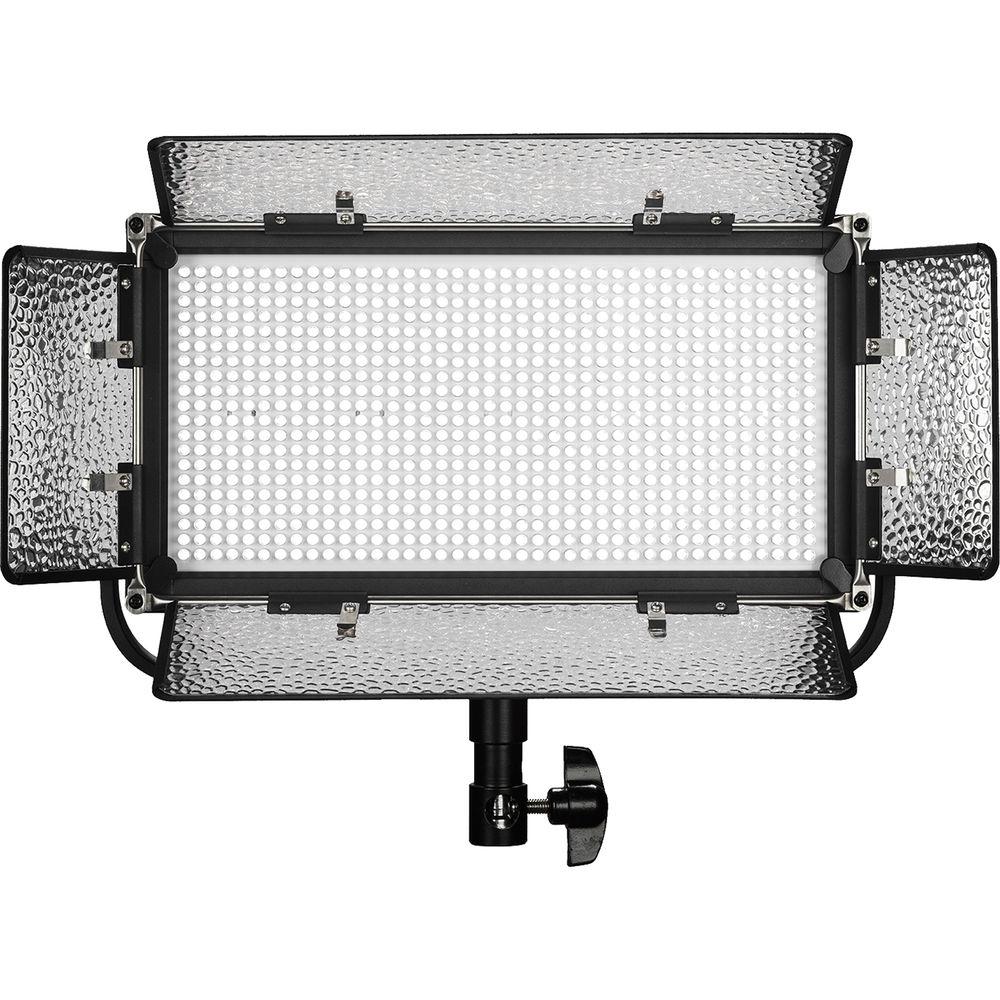

  The Mylo Daylight 5600K Half x 1 Portable Field LED Light from ikan is a 14 x 7 x 2" LED panel with a color temperature of 5600K that allows you to work outdoors or in environments with lots of windows or daylight-balanced fixtures. The sturdy metal 800 LED fixture outputs the 550W tungsten equivalent while consuming only 24W on the average and running cool to the touch. ikan continues to develop their convenience features. Dimming is easily done via a single knob, and adjustments read out on a bright LED screen. The light runs on 110-240 VAC mains current but can also be powered by the 2 included Sony-type L series batteries. The Mylo's strong steel tension knobs lock the yoke into place while its mount is a combo 5/8" / 1-1/8" pin with right angle access. The Mylo Daylight 5600K Half x 1 comes with a multi-voltage power supply for worldwide use, 2 L batteries, a dual charger, neutral density filter, and yoke.
  Benefits
  • 95+ CRI LED's
  • Daylight-balanced 5600K LEDs
  • Beam Angle of 50 degrees
  • Baby 5/8" / Junior 1-1/8" combo pin adapter with right angle receiver hole

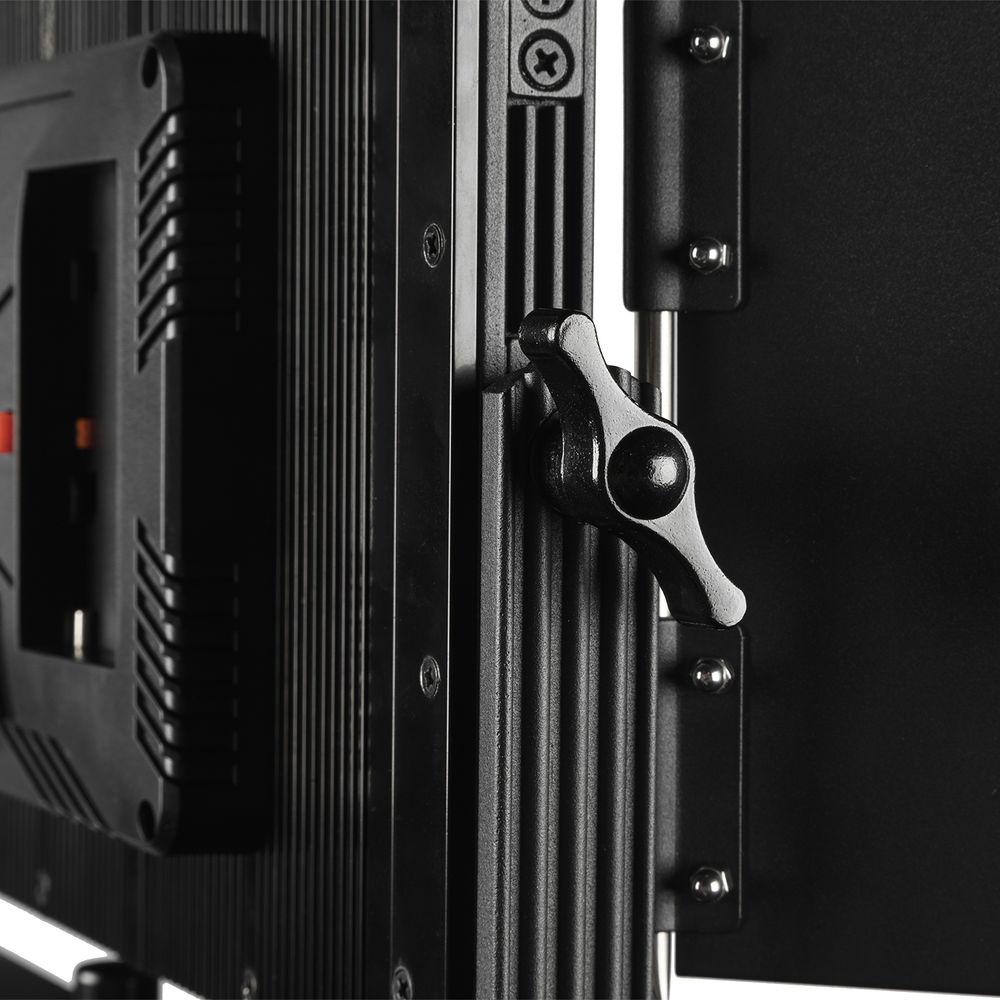

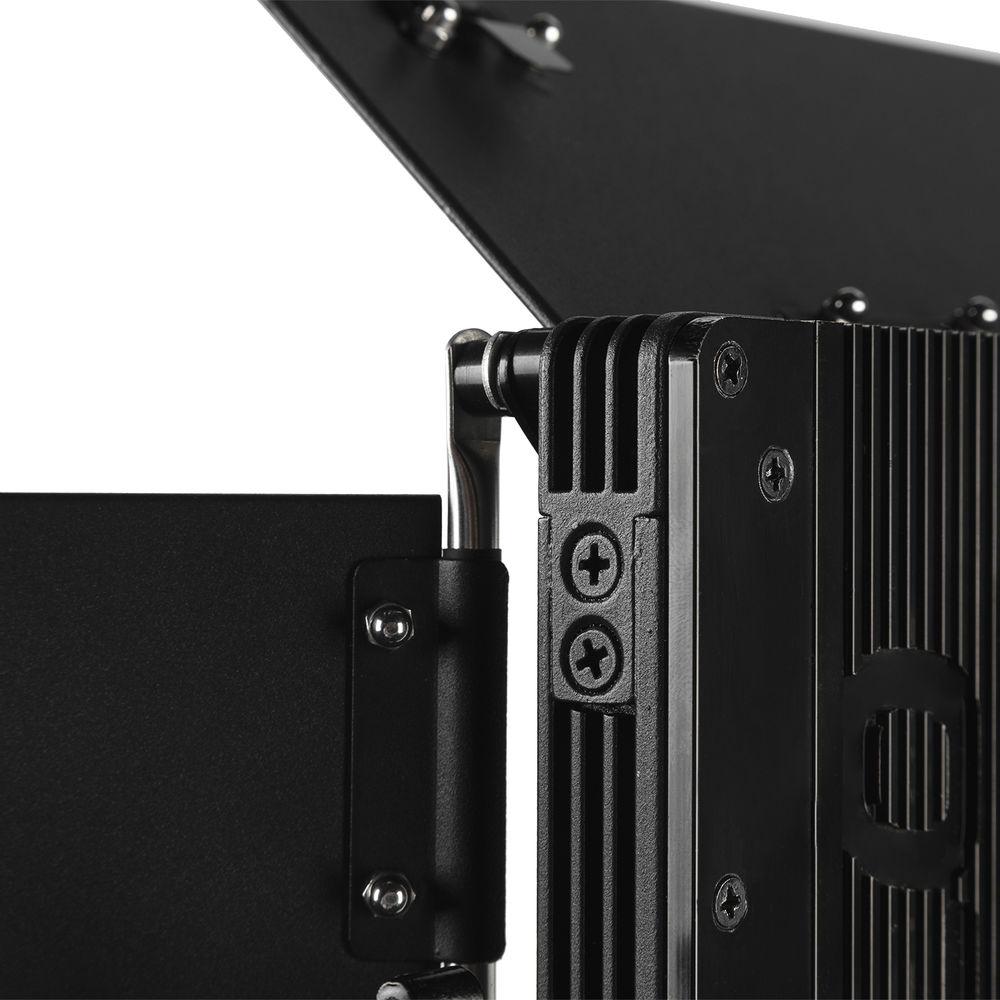

  • Strong steel tension knobs for locking the light into place
  • Single knob adjustment

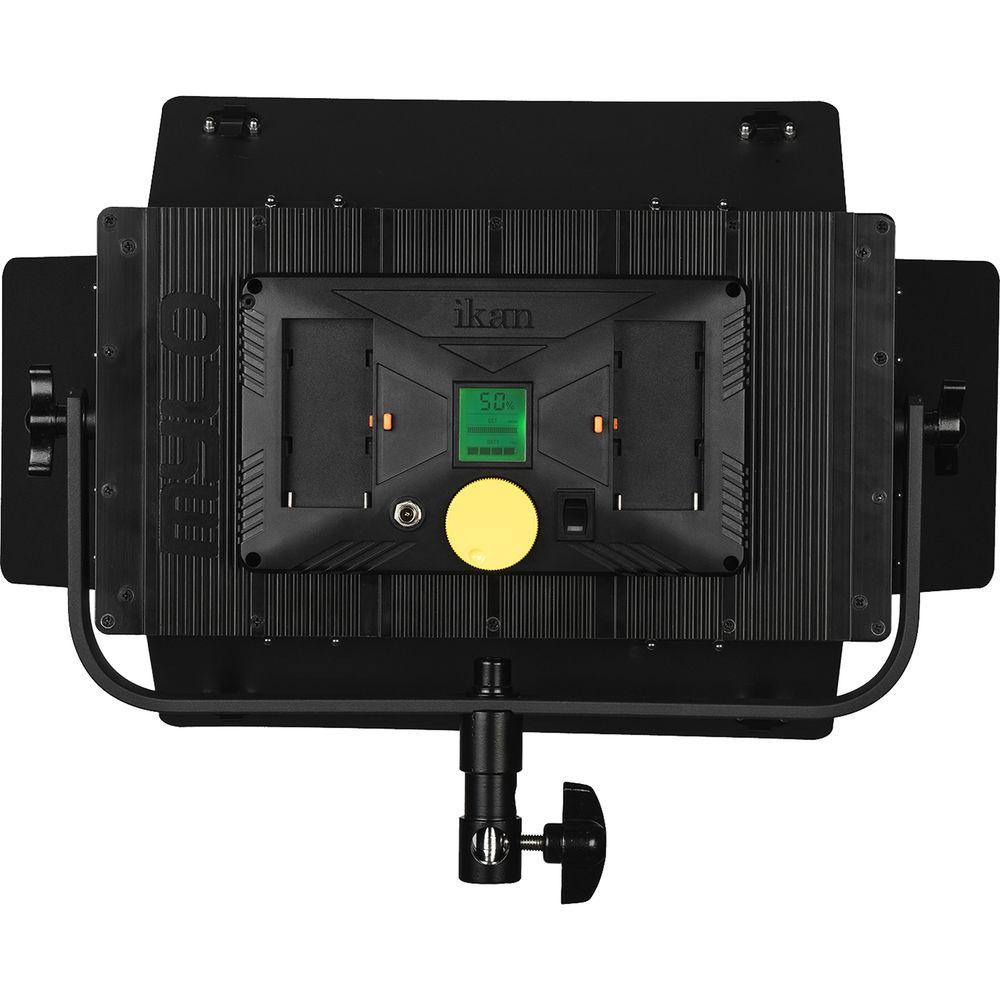

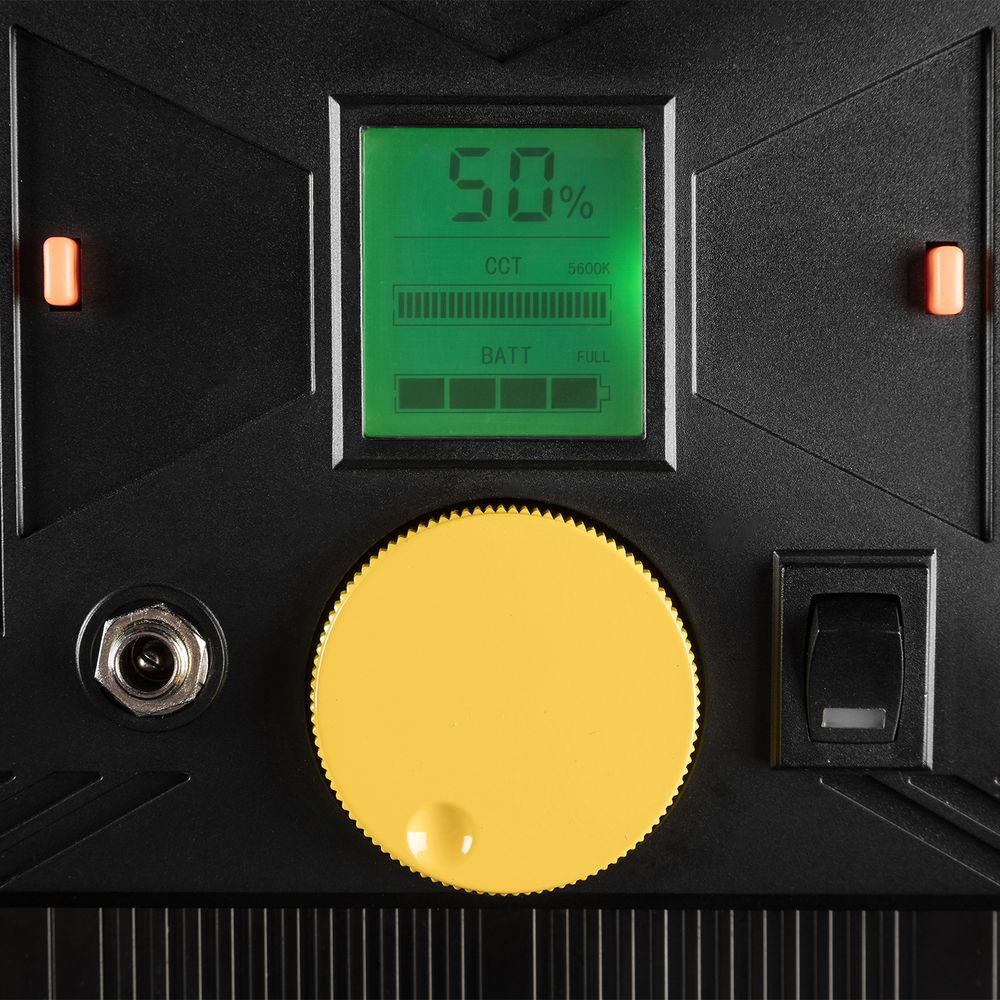

  • Bright LED readout screen gives you precise adjustments

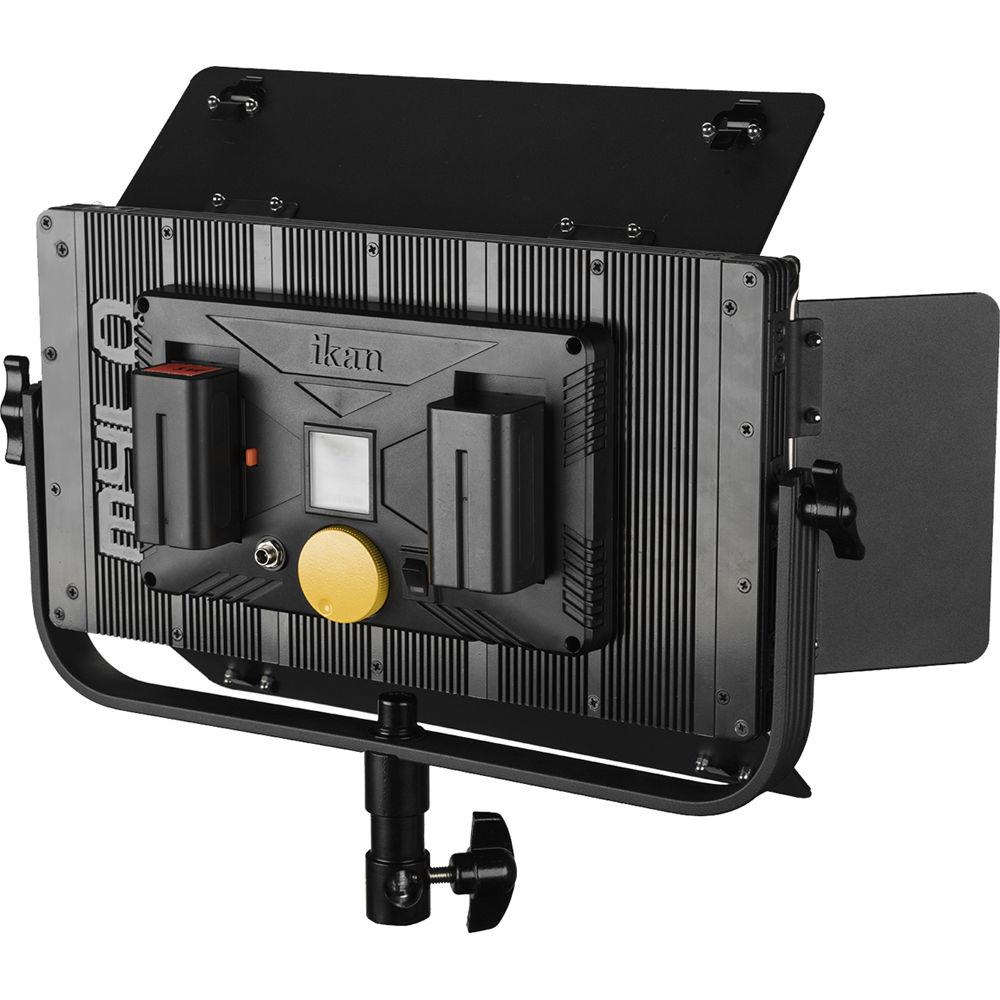

  • Battery powered by two included Sony style "L" series batteries

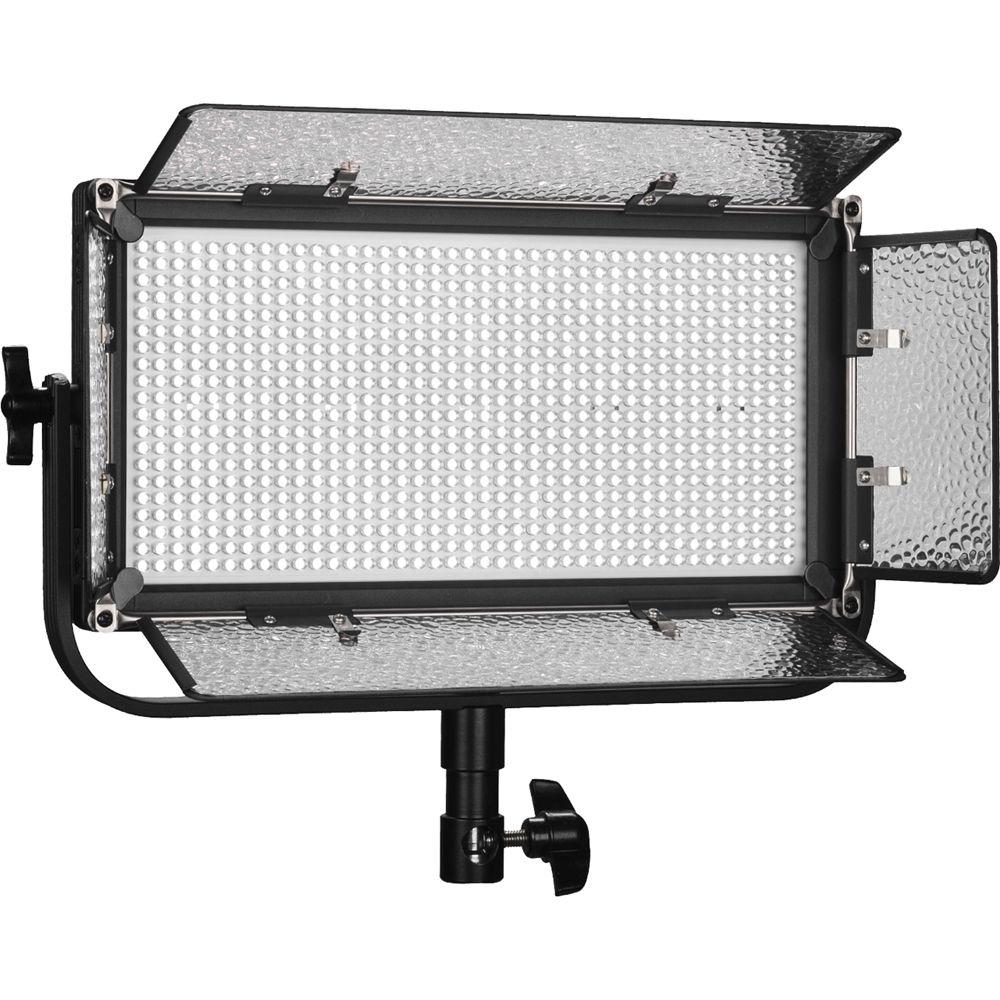

  • Included barndoors with intensifiers
  • Equivalent to 550W incandescent flood light
  • Maximum power draw 50W at 120VAC
  UPC: 847983017133
• Compact Light Stand Version 3 (74") The Compact Light Stand Version 3 from Ikan is a space-saving support that rises to a height of 74" and, thanks to a clever reverse folding leg design, folds down to just 21" in length. The matte black stand boasts extra long legs that ensure it doesn't tip over easily, as well as a 5/8" top stud. UPC: 847983015184

• Dual Charger with Power Supply

• 2 x Sony L-Series Battery

• Neutral Density Filter

• Power Supply with Cable

• Yoke Mount

• Limited 1-Year Warranty

• Limited 1-Year Warranty

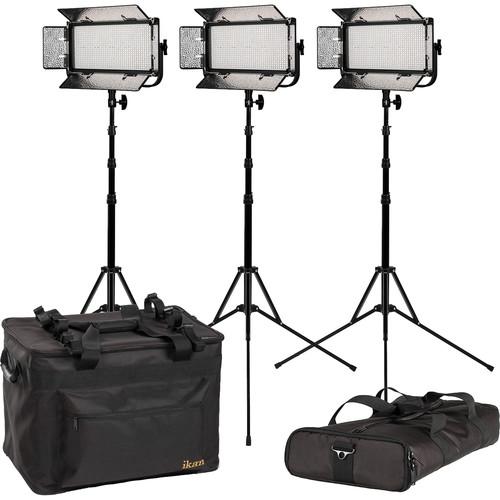

Also Includes

• Stand Bag
• Kit Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mylo Daylight 5600K Half x 1 Portable Field LED Light

  Beam Angle	50°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95
  Cooling System	Passive
  Dimming	Yes
  Display	None
  Housing Material	Metal

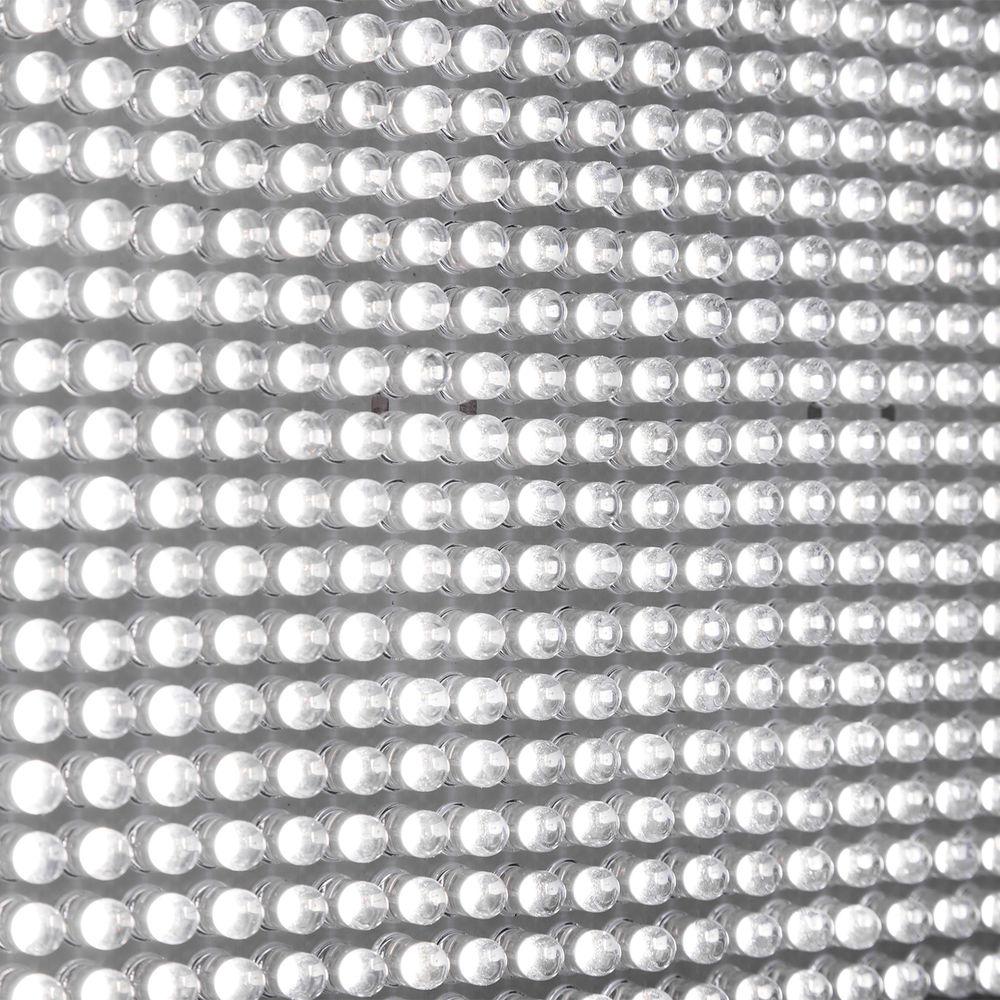

  Number of LEDs	800
  Fixture Dimensions	14.0 x 7.0 x 2.0" / 36.0 x 18.0 x 5.0 cm
  Fixture Weight	6 lb / 2.7 kg

  Battery Plate	2 x Sony L-Series (NP-F)

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver
  Accessory Mount	None

  AC Input Power	110 to 240 VAC, 50 / 60 Hz
  DC Input Power	7.4 to 14.8 VDC
  Power Source	AC Adapter, External Battery
  Consumption Per LED	0.06 W
  Max Power Consumption	50 W
  Power Supply Output	12 VDC, 5 A

  IP Rating	IP20

  Box Dimensions (LxWxH)	18.9 x 14.8 x 5.5"

• Compact Light Stand Version 3 (74")

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	5/8" Stud
  Number of Sections	4
  Maximum Working Height	74" / 188 cm
  Minimum Working Height	23" / 58.4 cm
  Collapsed Height	23" / 58.4 cm
  Leg Shape	Rectangular
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black

  Box Dimensions (LxWxH)	23.75 x 3.5 x 3.5"
