User manual
ikan Mylo Soft Bi-Color LED 2-Point

User Manual for ikan Mylo Soft Bi-Color LED 2-Point Light Kit

• Product category: LED Lights ikan
• Brand: ikan
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ikan LED Lights

Product description

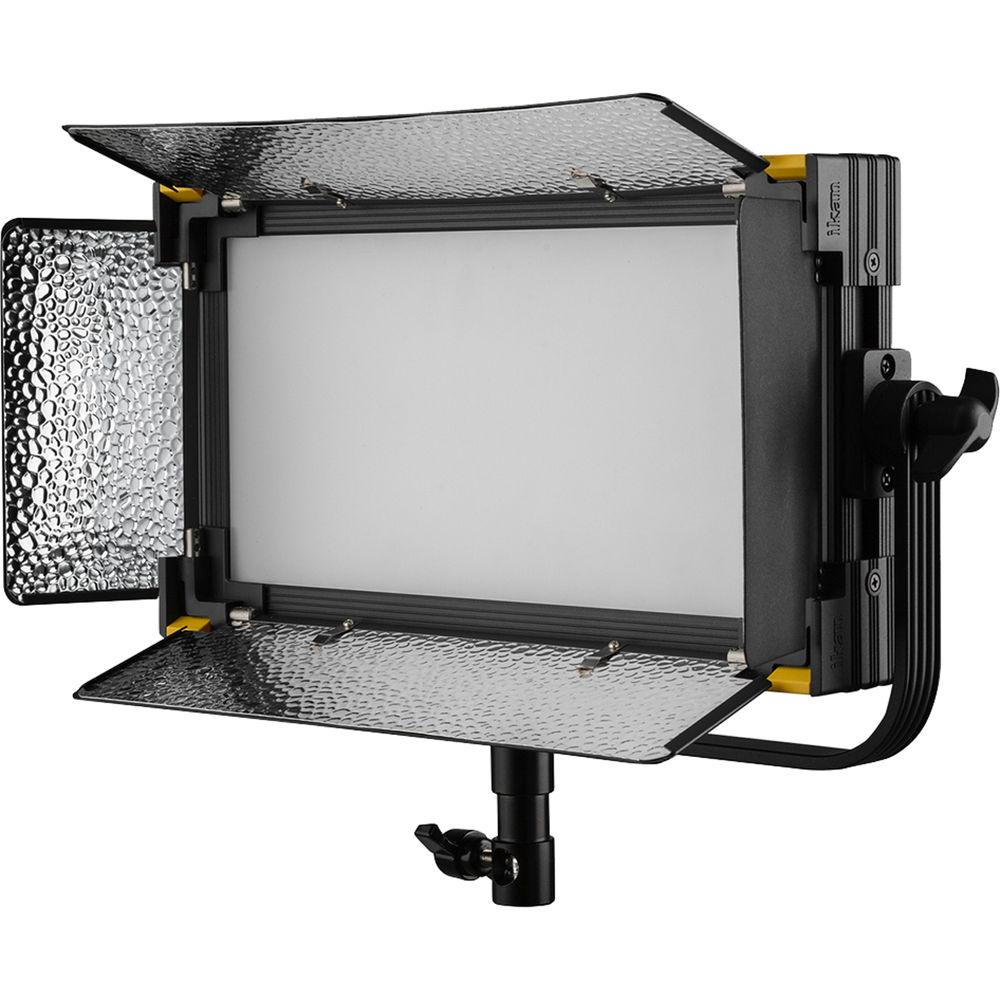

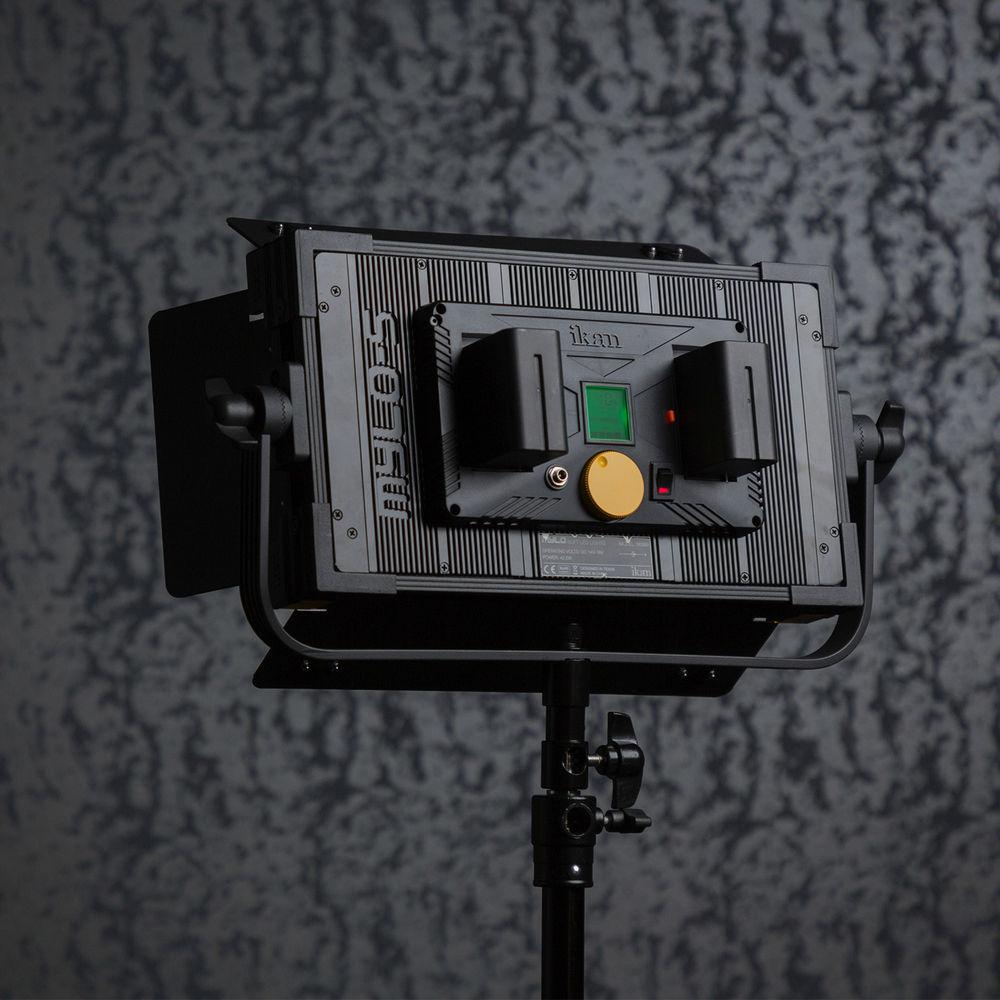

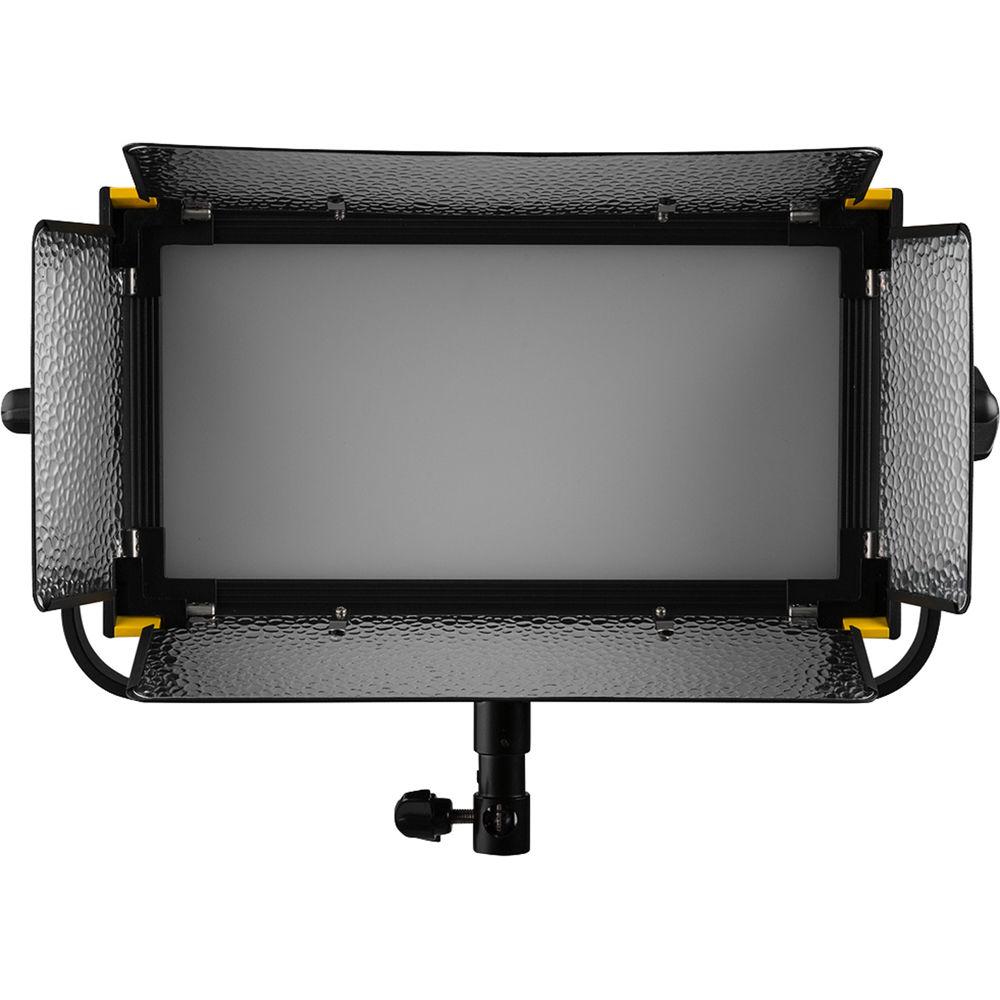

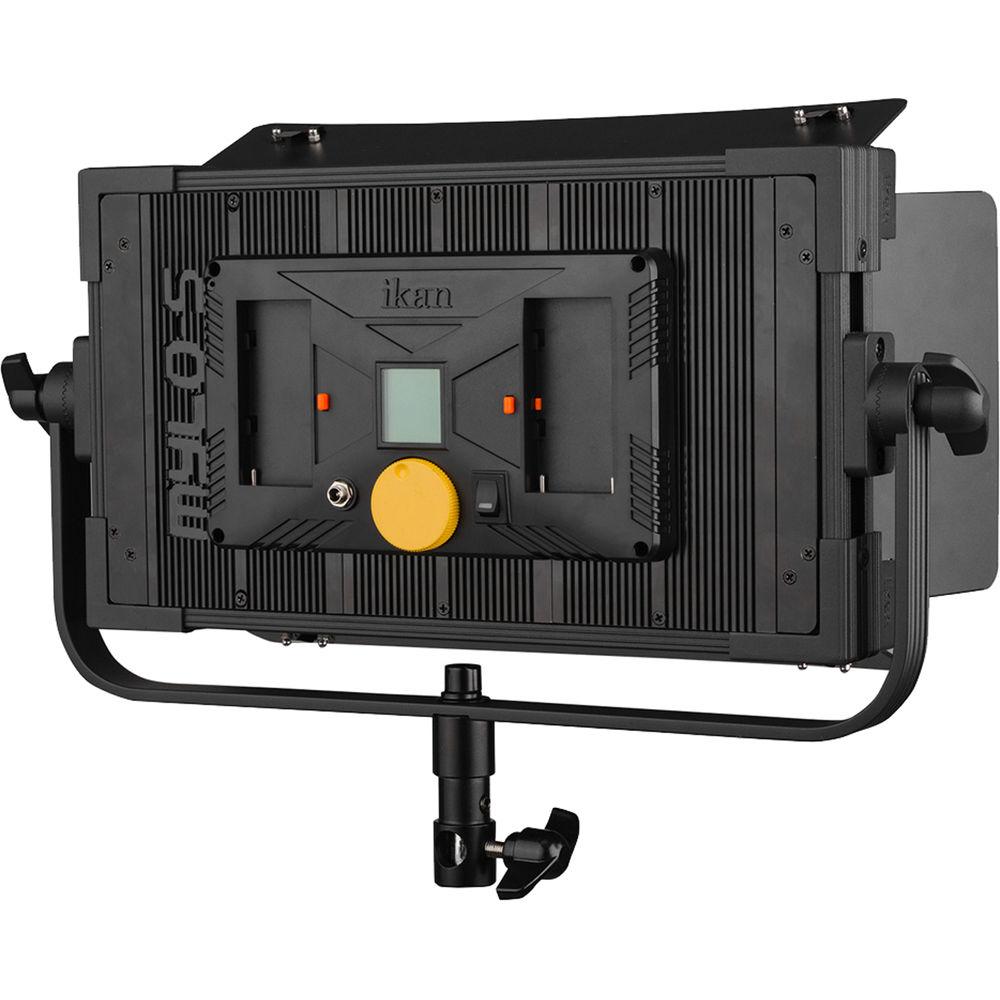

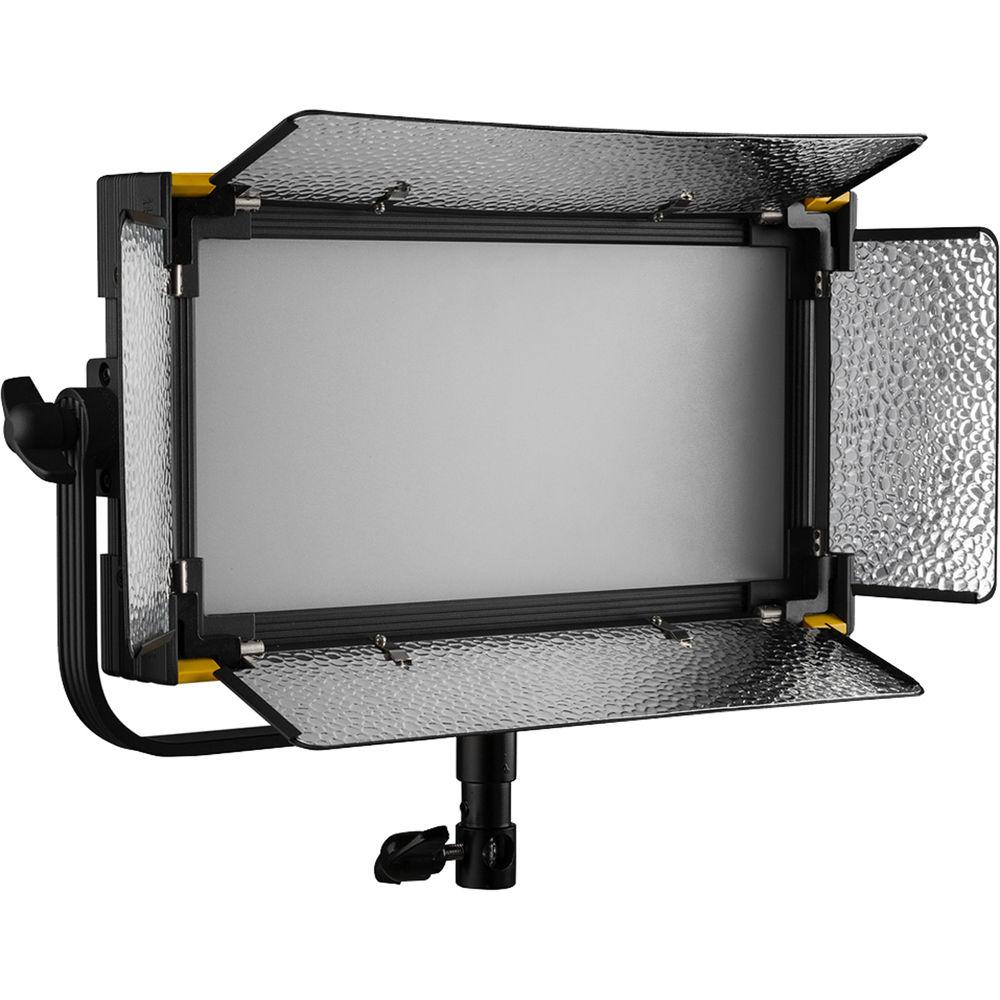

• Mylo Soft Bi-Color Half x 1 Field LED Light The Mylo Soft Bi-Color Half x 1 Field LED Light from ikan is a compact 19 x 13 x 3.5" panel with color temperature that's variable from 3200 to 5600K or anywhere in between to match other fixtures or ambient light conditions. The light is fully dimmable; color and light intensity adjustments are made via a simple intuitive knob. The fixture gets its name from the 1/2 stop diffusion panel that's installed to take the edge off the LEDs' illumination and provide a soft, flattering quality of light with the incandescent equivalent of a 450W flood.The Mylo Soft Bi-Color Half x 1 has a 110-degree beam angle for wide coverage that can be controlled or tweaked with the high-output, textured silver 4-way barndoors. The light ships with a 100-240 VAC power supply for worldwide use. For image makers who shoot far afield without access to mains current, ikan includes 2 NP-F750L batteries and a dual charger to power them. UPC: 847983021864
• Compact Light Stand Version 3 (74") The Compact Light Stand Version 3 from Ikan is a space-saving support that rises to a height of 74" and, thanks to a clever reverse folding leg design, folds down to just 21" in length. The matte black stand boasts extra long legs that ensure it doesn't tip over easily, as well as a 5/8" top stud. UPC: 847983015184
• IBG-1000-3L Light Kit Bag The ikan IBG-1000-3L Light Kit Bag features a mesh pocket for included accessories and adequately fits 3 ID1000 lights and the adjustable padded inserts can be configured to fit the video professional’s needs. Its strong, durable nylon design protects and secures each individual light in the bag and keeps them scratch free. This bag is equipped with dual zippers and a snap-on strap for added security. Also, the IBG-1000-3L bag’s non-skid rubber feet provide a stable foundation for the lights. The plastic-padded side handles and heavy-duty padded shoulder strap provide multiple transportation options for one’s convenience.
  • Features adjustable, heavy-duty padded shoulder strap and inserts
  • Mesh accessory compartment
  • Made from sturdy, breathable, vinyl material
  • Snap-on clip for added security
  • Durable dual zippers
  • Non-skid rubber feet
  Compatibility
  • IFD1024-A 2-Point Light Kit with Anton Bauer Battery Plates
  • IFD1024-A 3-Point Light Kit with Anton Bauer Battery Plates
  • IFD1024-S 2-Point Light Kit with V-Mount Battery Plates
  • IFD1024-S 3-Point Light Kit with V-Mount Battery Plates
  • IFD1024 Featherweight Daylight LED Light with AB Battery Plate
  • IFD1024 Featherweight Daylight LED Light with V-Mount Battery Plate
• Ikan Compact Stand Bag (Black) Store, protect, and transport up to three compact stands or other gear, with the black ikan Compact Stand Bag from Tilta. The bag is designed to be compatible with CP-STND and CP-STND-V3 stands, among others. This nylon-constructed bag features zipper closure and dual, connecting, top strap handles. Rings at either end of the bag provide attachment points for an optional, user-supplied shoulder strap. Non-skid rubber feet help keep the bag stationary. UPC: 847983022625

• Dual Sony L-Series Compatible Battery Charger

2 x
• NP-F750 L-Series Compatible Battery (7.4V, 5800 mAh)

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Adjustable Shoulder Strap & Inserts

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• 2 x Yoke
• 2 x Barndoors
• 2 x Power Supply with Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mylo Soft Bi-Color Half x 1 Field LED Light

  Beam Angle	110°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95
  Cooling System	Passive
  Display	None
  Housing Material	Metal
  Fixture Dimensions	19.0 x 13.0 x 3.5" / 48.2 x 33.0 x 9.0 cm
  Fixture Weight	8.0 lb / 3.6 kg

  Battery Plate	2 x Sony L-Series (NP-F)

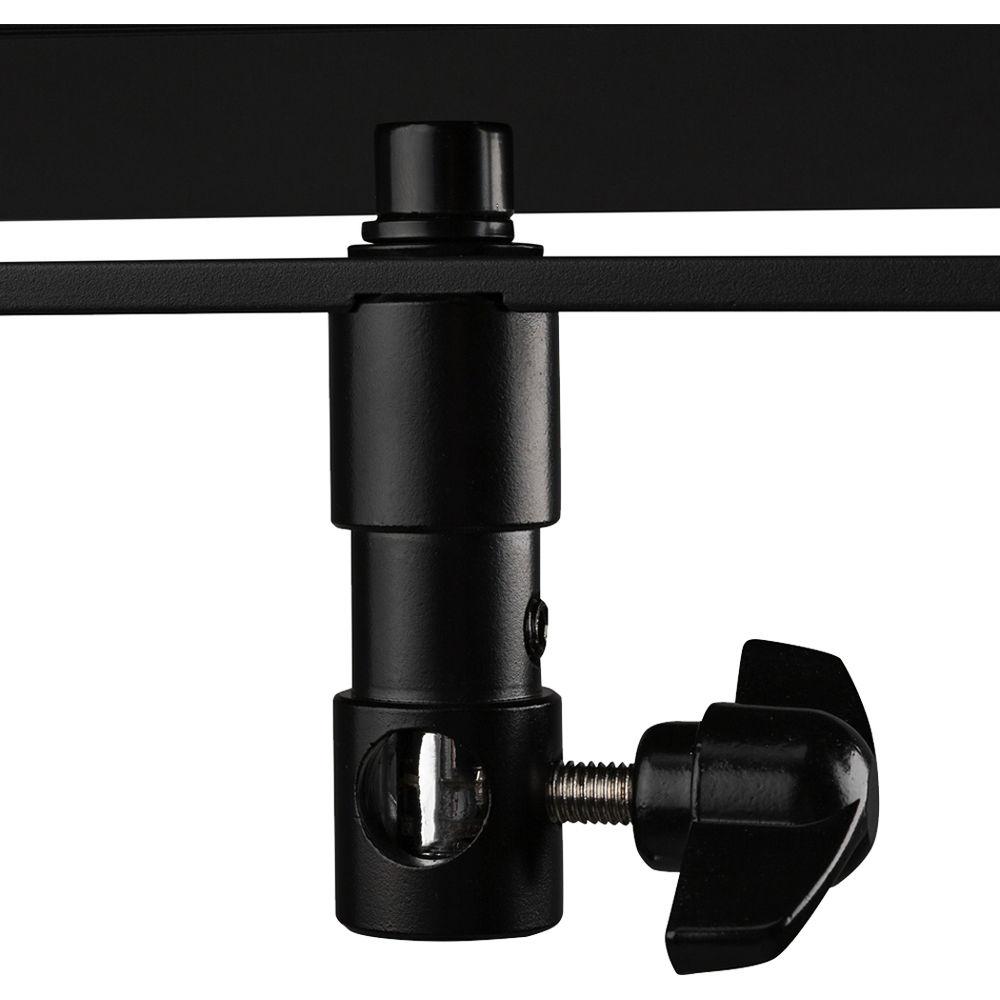

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver
  Accessory Mount	None

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	12 VDC at 5 A
  Power Source	AC Adapter, External Battery

  IP Rating	IP20

  Box Dimensions (LxWxH)	21.3 x 17.9 x 5.9"

• Compact Light Stand Version 3 (74")

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	5/8" Stud
  Number of Sections	4
  Maximum Working Height	74" / 188 cm
  Minimum Working Height	23" / 58.4 cm
  Collapsed Height	23" / 58.4 cm
  Leg Shape	Rectangular
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black

  Box Dimensions (LxWxH)	23.75 x 3.5 x 3.5"

• IBG-1000-3L Light Kit Bag

  Dimensions	Internal: 20 x 15 x 16" (508 x 381 x 406.4 mm) External: 21.5 x 17.5 x 17" (546.1 x 444.5 x 431.8 mm)
  Weight	8 lb (3.62 kg)

  Box Dimensions (LxWxH)	21.0 x 17.0 x 7.0"

• Ikan Compact Stand Bag (Black)

  Material	Nylon
  Type of Closure	Zipper
  Carrying/Transport Options	Dual, connecting, top strap handles Rings for optional shoulder strap
  Dimensions	15.0 x 12.0 x 4.0" / 38.1 x 30.5 x 10.2 cm
  Weight	3.0 lb / 1.4 kg

  Box Dimensions (LxWxH)	26.0 x 15.0 x 1.5"
