User Manual for ikan Onyx 120 Bi-Color On-Camera LED Light Click to enlarge the picture
Contents of the user manual for the ikan Onyx 120 Bi-Color On-Camera LED
- Product category: On Camera Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan On Camera Lights
 |
User manual for the ikan Onyx 120 Bi-Color On-Camera LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - Onyx On-Camera LED Panels | Ikan Tech Corner

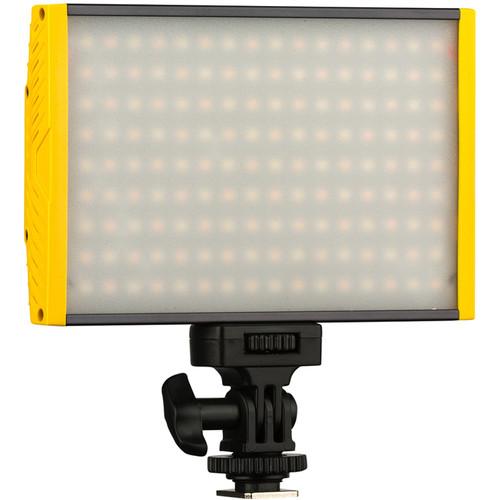

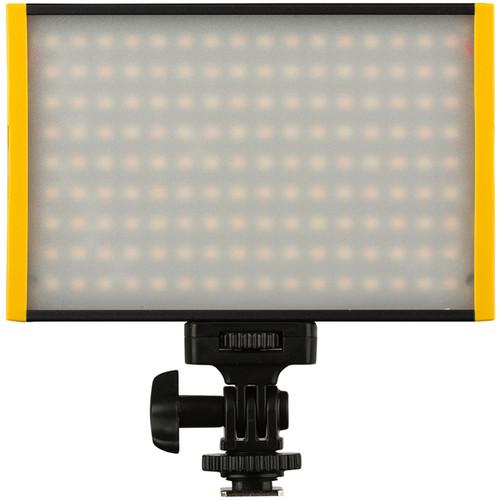

The Onyx 120 Bi-Color On-Camera LED Light from ikan has an output of roughly 100W at full power, yet draws only 15W. It is a bi-color light that enables you to adjust the color temperature of the fixture's output from 3200 to 5600K and features a CRI of 95 and TLCI of 96 in both Tungsten and Daylight. Power on/off, dimming, and color temperature are controlled from the back of the fixture via four buttons. A two-digit LED screen is shared for dimming and color temp, with an indicator light informing you of which characteristic you are controlling.

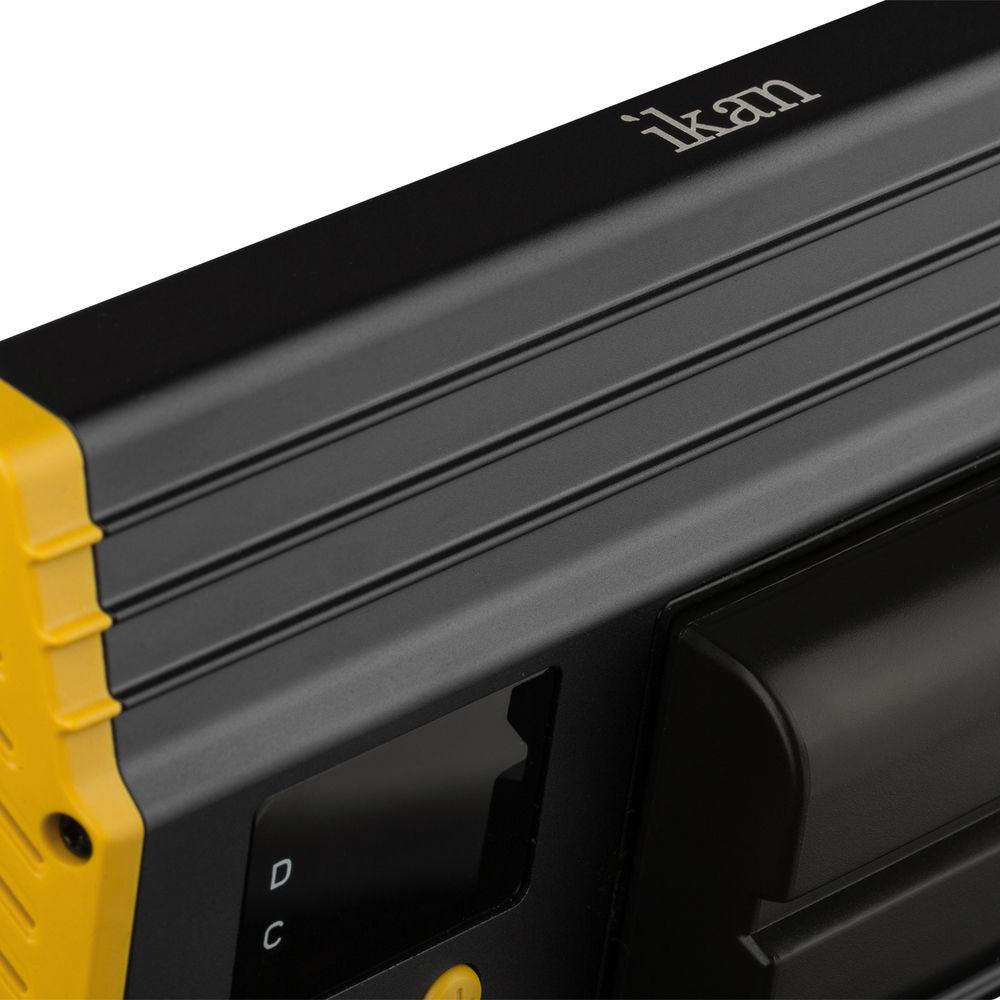

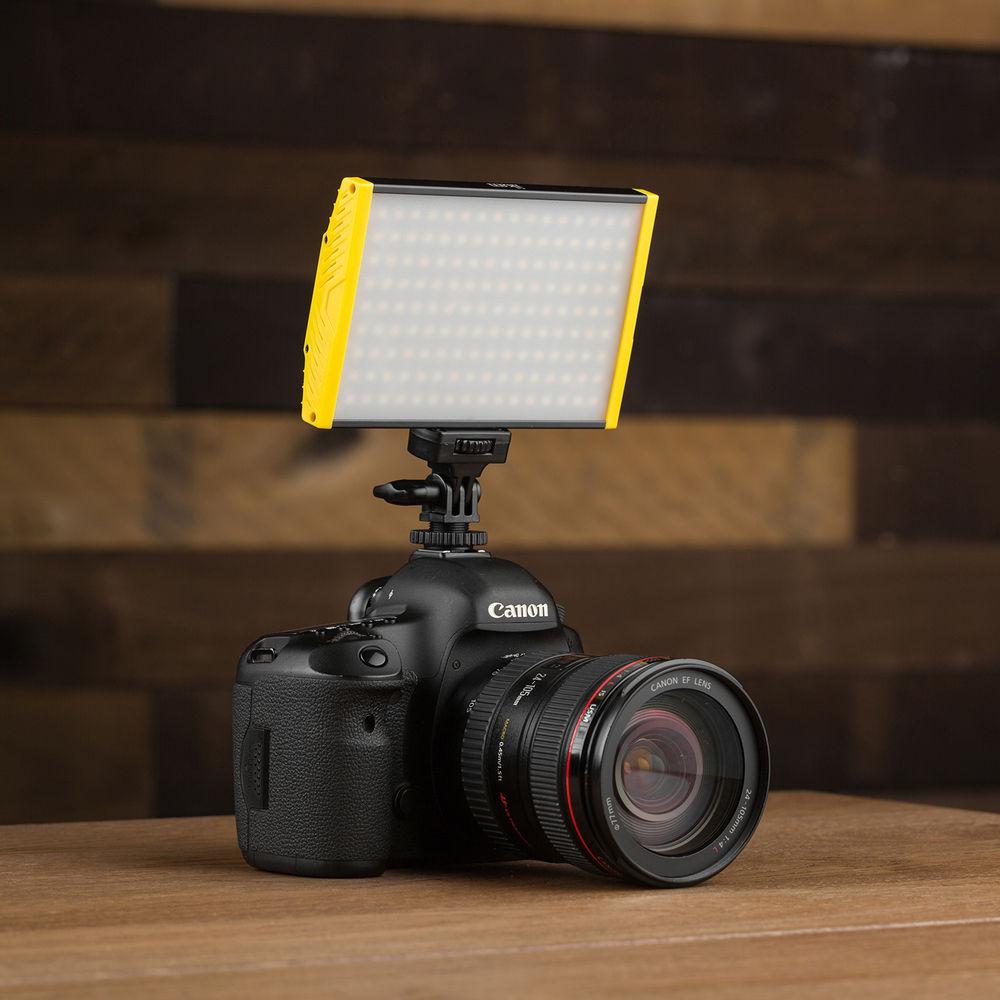

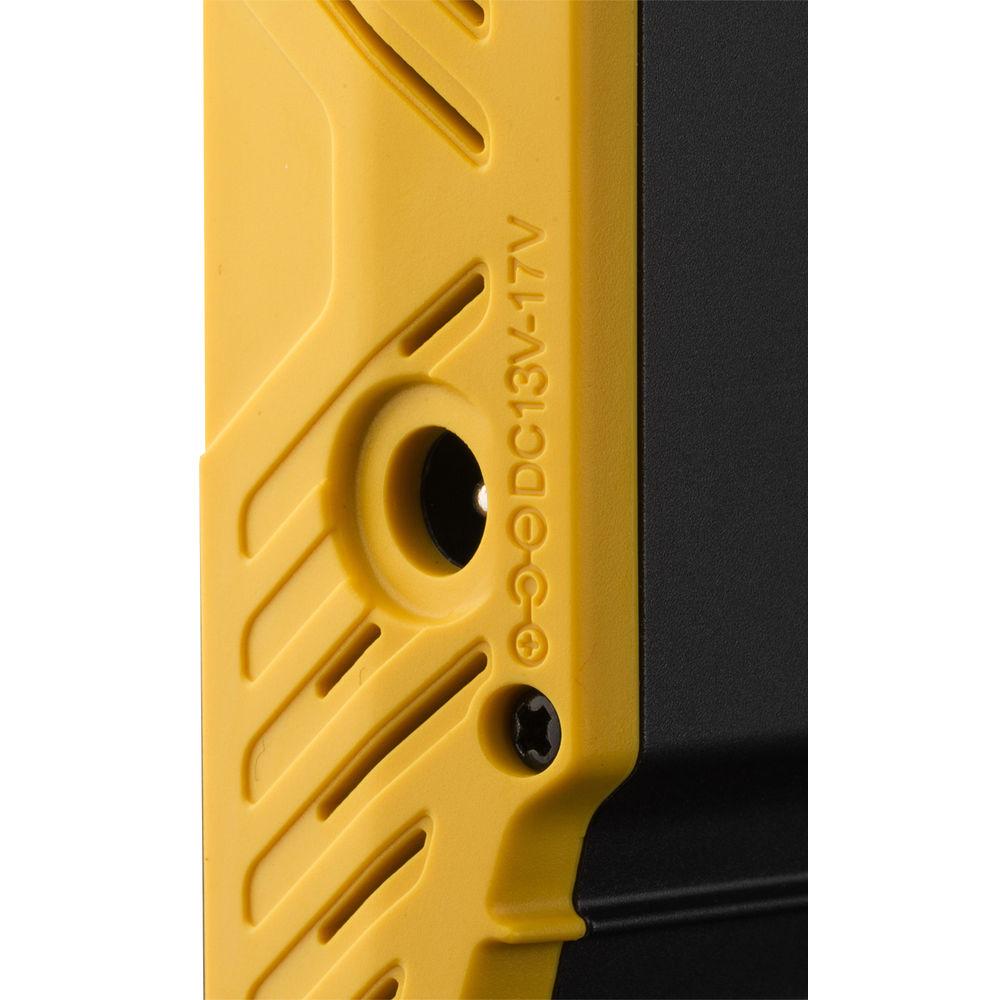

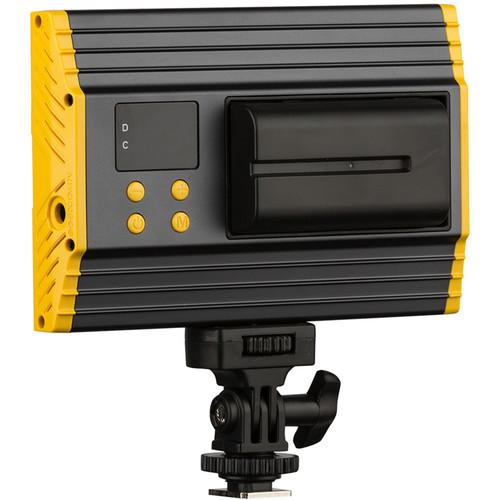

The fixture powers from an L-series battery, and ships with the equivalent of a 550 L-series battery. You can also power the fixture from an optional AC power supply that outputs 13 to 17 VDC. The built-in diffusion helps prevent the effect of multiple cast shadows that afflict some LED array-type lights. A built-in 1/4"-20 threaded mounting hole, and the included cold shoe adapter enable mounting the fixture on your camera. - Control

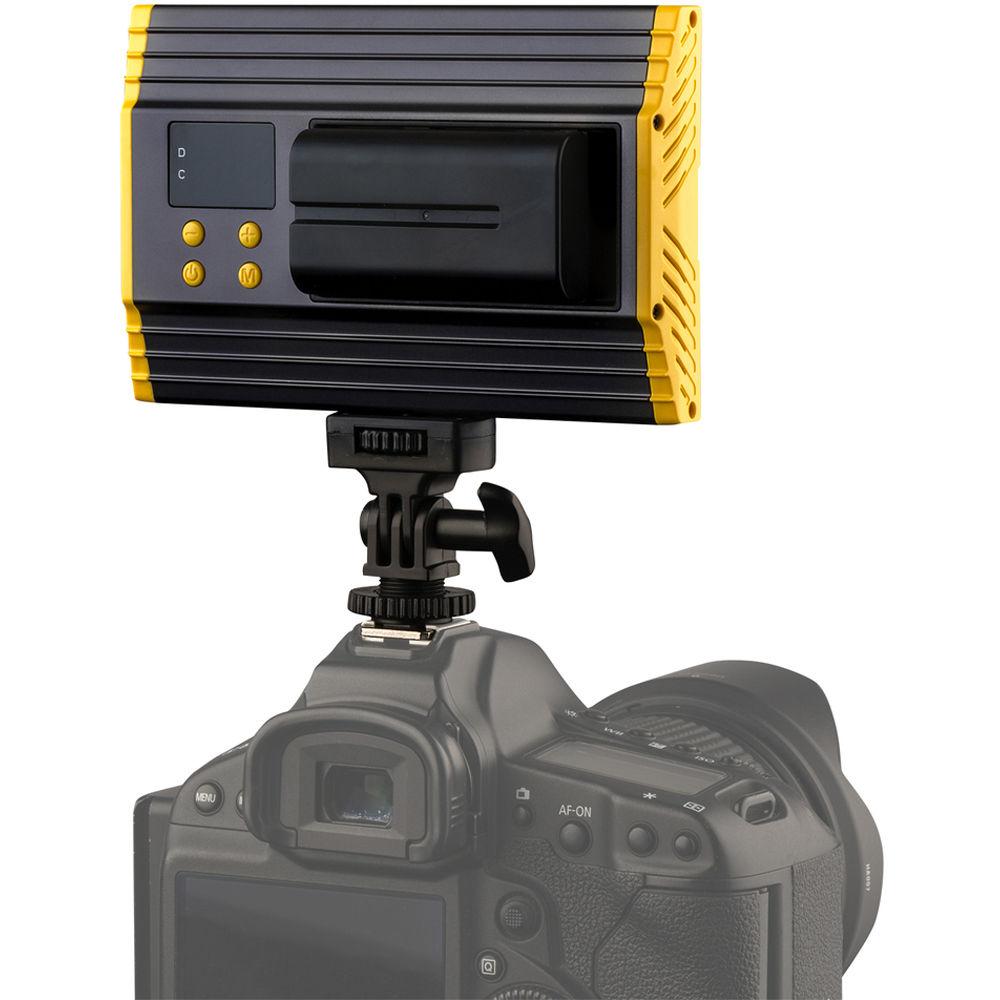

- On the back of the fixture are four buttons:
- Power on/off
- Plus
- Minus
- M - select
The M button enables switching between dimming and color temperature. An LED indicator lights up to indicate which characteristic of the fixture you are controlling. A two digit display screen indicates dimming from 10 to 99% and color temperature from 32 to 56. UPC: 847983021024 In the Box ikan Onyx 120 Bi-Color On-Camera LED Light Battery Charger Series-L 550 Type Battery Accessory Shoe Adapter Limited 1-Year Warranty User Manual PDF 485.9kbsxyxwtewxbadxceccyabdfttdxvqasxcd Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Onyx 120 Bi-Color On-Camera LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan Onyx 120 Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95
TLCI 96 | | Lumens | 4297 (at 3200K)
4749 (at 5600K) | | Dimming | Yes, 10 to 100% | | Number of LEDs | 144 | | | | DC Input Power | 13 to 17 VDC | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 5.6 x 3.7 x 0.8" / 14.2 x 9.4 x 1.9 cm | | Weight | 0.5 lb / 0.2 kg | | | | Package Weight | 1.21 lb | | Box Dimensions (LxWxH) | 7.45 x 5.1 x 2.8" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
