User Manual for ikan Onyx 1x1 Bi-Color LED 3-Point Light Kit Click to enlarge the picture
Contents of the user manual for the ikan Onyx 1x1 Bi-Color LED 3-Point
- Product category: LED Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan LED Lights
 |
User manual for the ikan Onyx 1x1 Bi-Color LED 3-Point contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

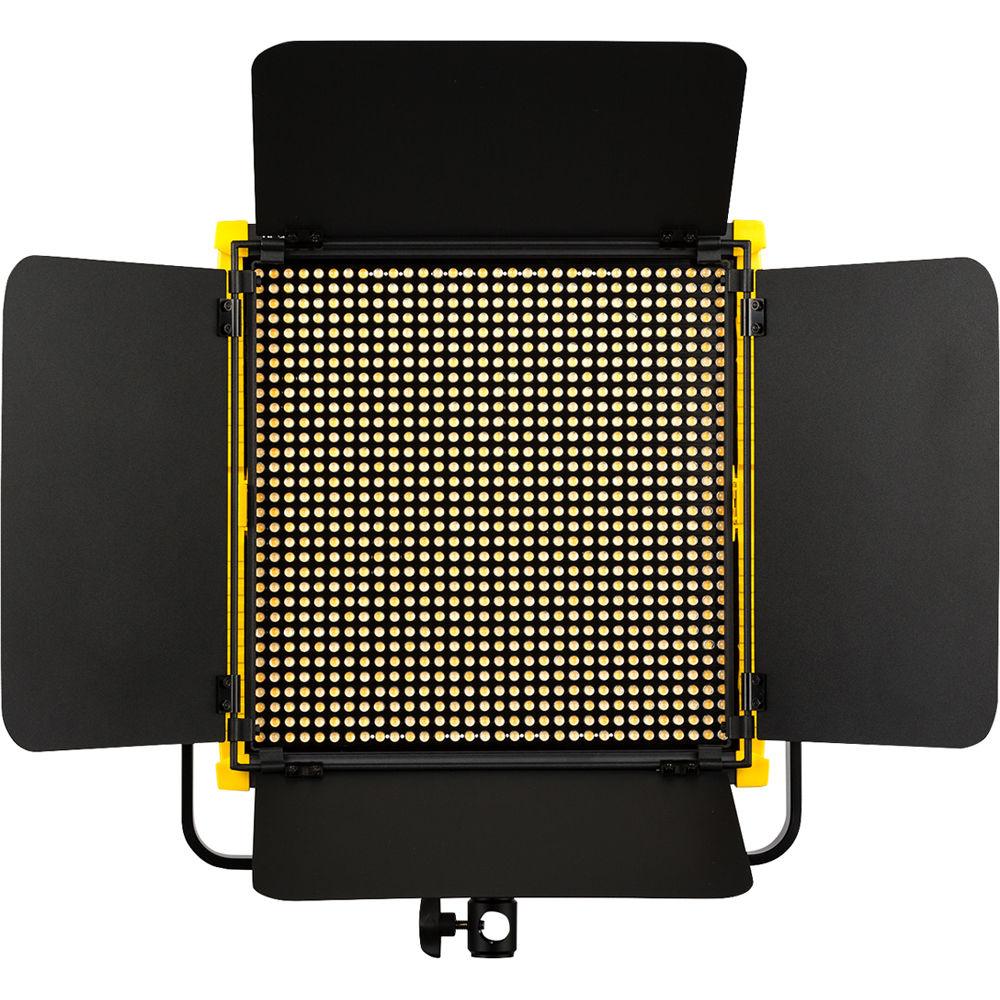

Product description Put together for photographers and videographers who want to take studio quality lighting on the road, the Onyx 1X1 Bi-Color LED 3-Point Light Kit from ikan is built around a fixture with flexible color temperature, light intensity, and power and control options. The kit includes three Onyx 1x1 Bi-Color heads with barndoors. Each DMX compatible light includes a wireless remote control, a light stand, multi-voltage AC power supply, and a V-Mount battery plate for optional battery power. A stand bag is included for the light stands as is a kit case for storing and transporting the lights. The Onyx 1x1 Bi-Color LED Light from ikan is a 16 x 16 x 1.75" LED panel that allows you to select color temperatures from 3200 to 5600K, or anywhere in between, instead of attaching filters to match your light sources or environment. Light intensity is also variable from 10 to 99%, and both color and light intensity can be adjusted locally on the fixture or remotely via DMX and a console. You can also use the included wireless remote at distances up to 150'. The sturdy metal 1024 LED fixture has a high output to power consumption ratio, and runs cool to the touch, keeping the talent comfortable, avoiding hot light hazards, and requiring less AC in the studio which in turn results in a quicker return on investment. ikan continues to develop their convenience features. Dimming and color temperature, for example, are adjusted via a single knob. The light runs on AC current thanks to its included adapter, but can also be powered by optional V-Mount batteries. The Onyx's tension knobs lock the yoke's tilting adjustments into place, while its mount is a 5/8" receiver for light stands. - Aluminum Frame

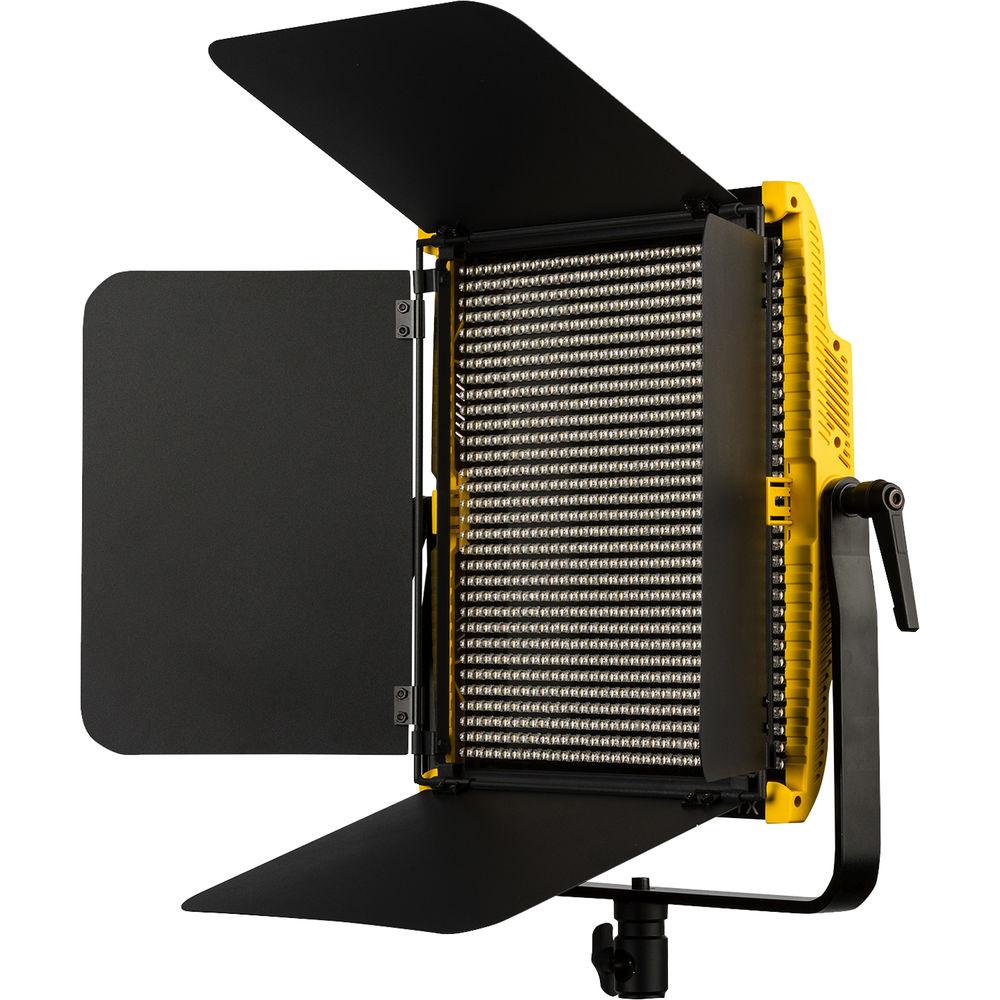

- The Onyx 1x1 LED Light's aluminum body gives it an ideal balance between durability and light weight. The fixture gives off minimal heat due to its aluminum frame, which allows for effective ventilation.
- Variable Color and High CRI of 96+
- The Onyx 1x1 LED Light features a bi-color adjustable color range of 3200-5600K. With 1024 96+ CRI LEDs, the light provides very accurate color rendition and brightness.
- Remote Control

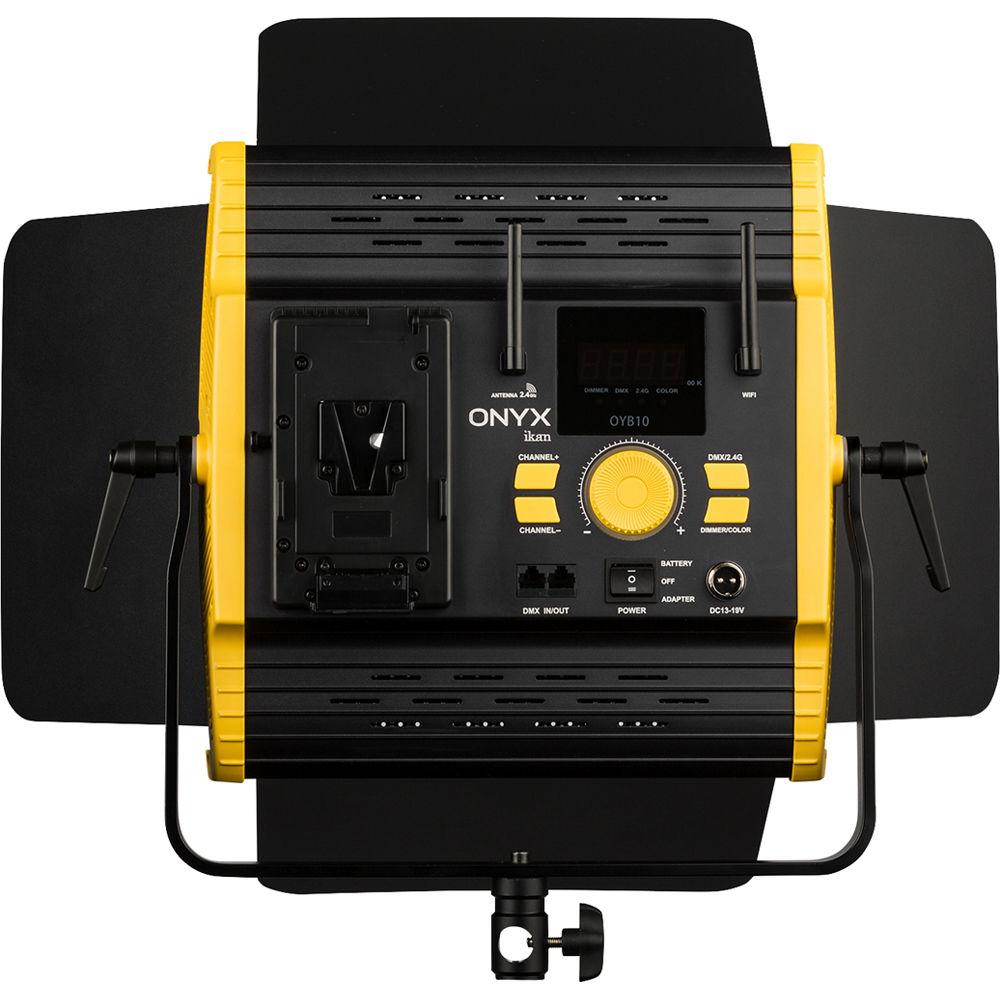

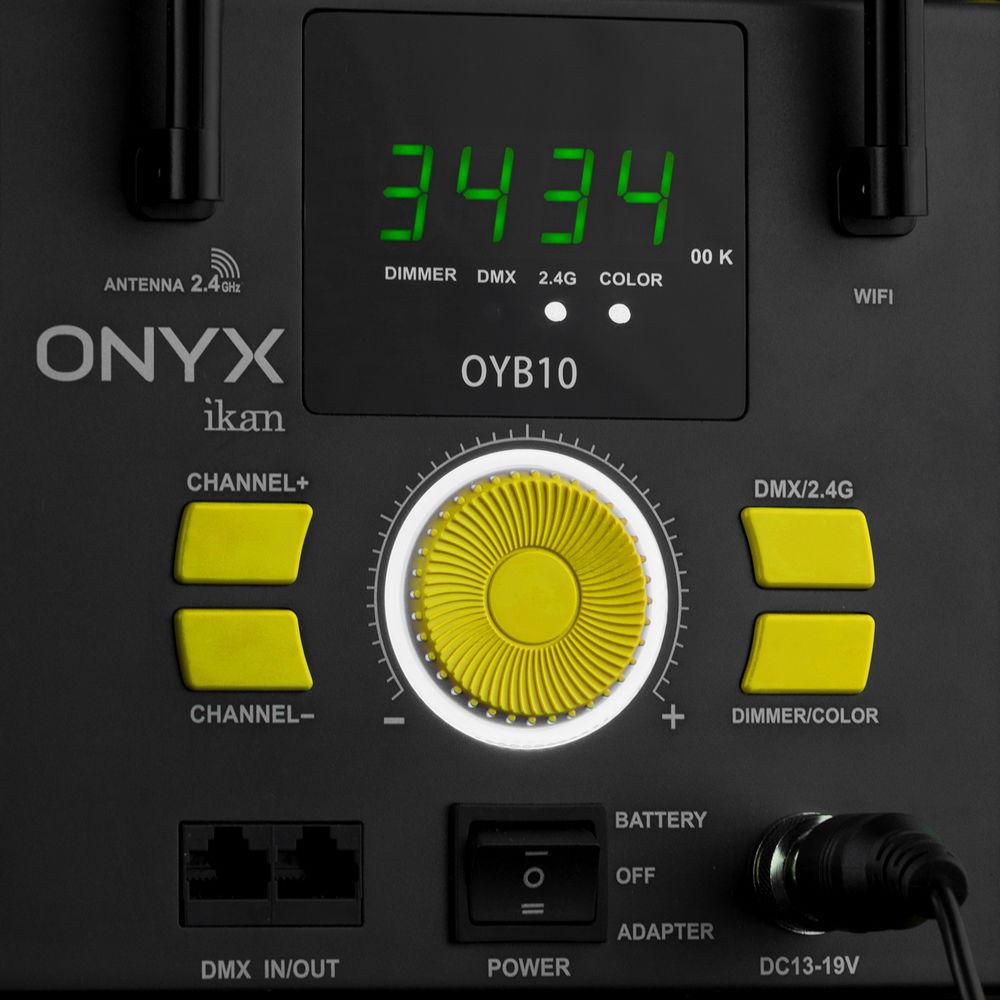

- You can easily control the light from up to 150' away with the included 99-channel wireless remote control. In fact, you can control multiple lights at the press of a button. DMX control is also available through the Ethernet ports.
- Battery Powered
- The Onyx 1x1 can be powered either by the included AC power supply or by optional V-Mount batteries.

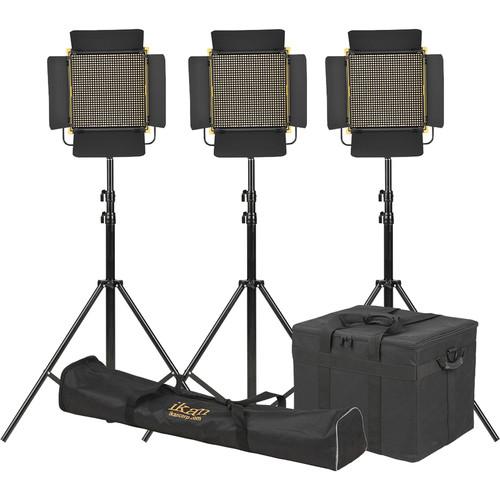

UPC: 847983022458 In the Box ikan Onyx 1x1 Bi-Color LED 3-Point Light Kit 3 x Onyx 1x1 Bi-Color LED Lights 3 x Barndoors 3 x AC Power Adapter with Cord 3 x Dual Battery Chargers 3 x Yokes 3 x Remote Controls 3 x Light Stands Bag for Light Stands Case for Lights Limited 1-Year Warranty One sheet PDF 185kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Onyx 1x1 Bi-Color LED 3-Point Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan OYB10 Specs | Light Source | 1024 LEDs | | Material | Aluminum construction | | Color Range | 3200 to 5600K | | Dimming | 10 - 99% | | Remote Control | Via DMX
With included 99-channel 2.4 GHz remote with 150' (45.7 m) range | | DMX | Yes | | Cooling | Passive | | Operating Voltage | 100 - 240 VAC, 50/60 Hz | | Batteries | Optional V-Mount batteries | | Mount | 5/8" (16 mm) receiver | | Dimensions | 16 x 16 x 1.75" (40.6 x 40.6 x 4.4 cm) | | Weight | 5.0 lb (2.26 kg) | | | | Package Weight | 48.0 lb | | Box Dimensions (LxWxH) | 40.0 x 8.7 x 8.3" |
