Product description

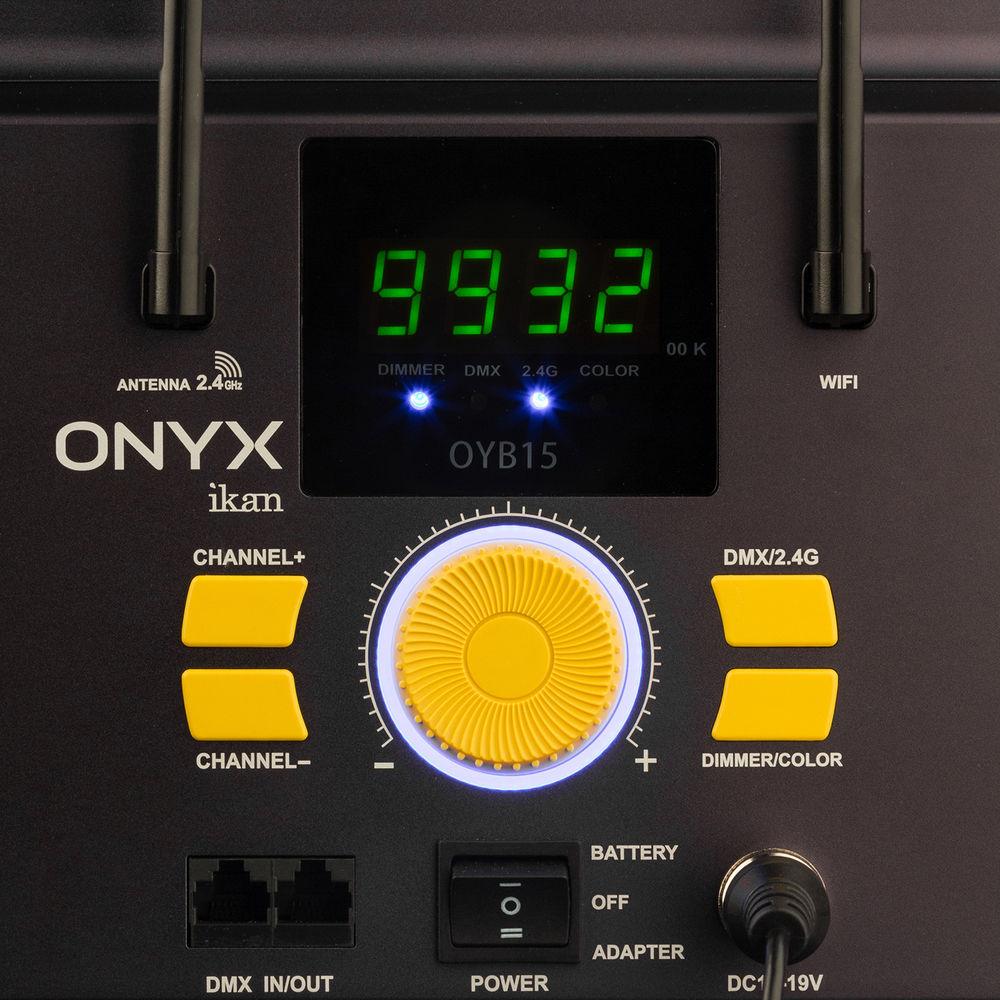

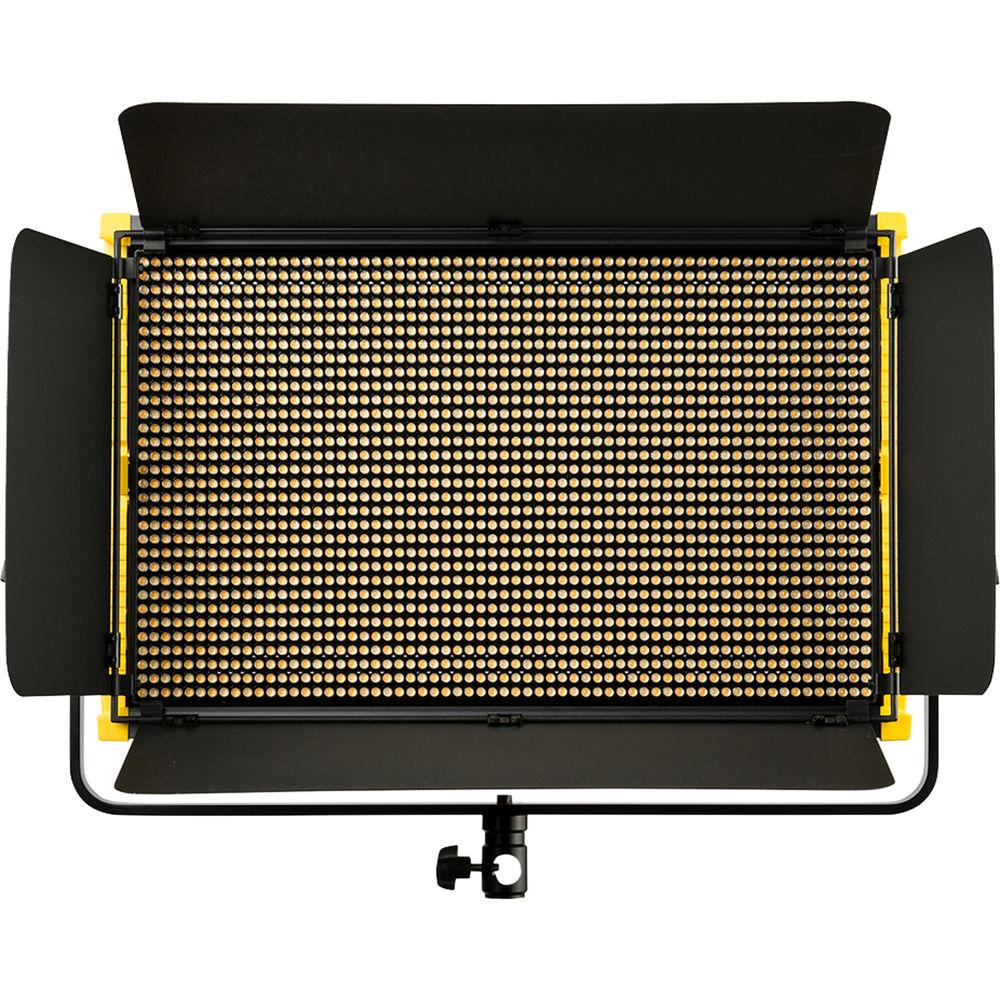

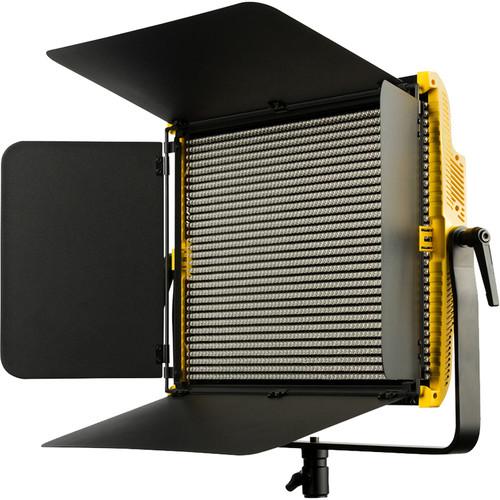

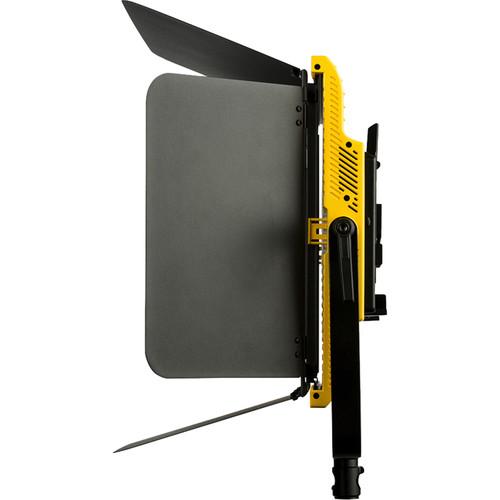

• Onyx 2x1 Bi-Color LED Light The Onyx 2x1 Bi-Color LED Light from ikan is a 22 x 16 x 1.75" LED panel that allows you to select color temperatures from 3200 to 5600K, or anywhere in between, instead of attaching filters to match your light sources or environment. Light intensity is also variable from 10 to 99%, and both color and light intensity can be adjusted locally on the fixture or remotely via DMX and a console. You can also use the included wireless remote at distances up to 150'.The sturdy metal 2016 LED fixture has a high output to power consumption ratio, and runs cool to the touch, keeping the talent comfortable, avoiding hot light hazards, and requiring less AC in the studio which in turn results in a quicker return on investment. ikan continues to develop their convenience features. Dimming and color temperature, for example, are adjusted via a single knob. The light runs on AC current thanks to its included adapter, but can also be powered by optional V-Mount batteries. The Onyx's tension knobs lock the yoke's tilting adjustments into place, while its mount is a 5/8" receiver for light stands. A bag is included with the light for storage and transport.
  Aluminum Frame
  • The Onyx 2x1 LED Light's aluminum body gives it an ideal balance between durability and light weight. The fixture gives off minimal heat due to its aluminum frame, which allows for effective ventilation.
  Variable Color and High CRI of 96+
  • The Onyx 2x1 LED Light features a bi-color adjustable color range of 3200-5600K. With 2016 96+ CRI LEDs, the light provides very accurate color rendition and brightness.
  Remote Control

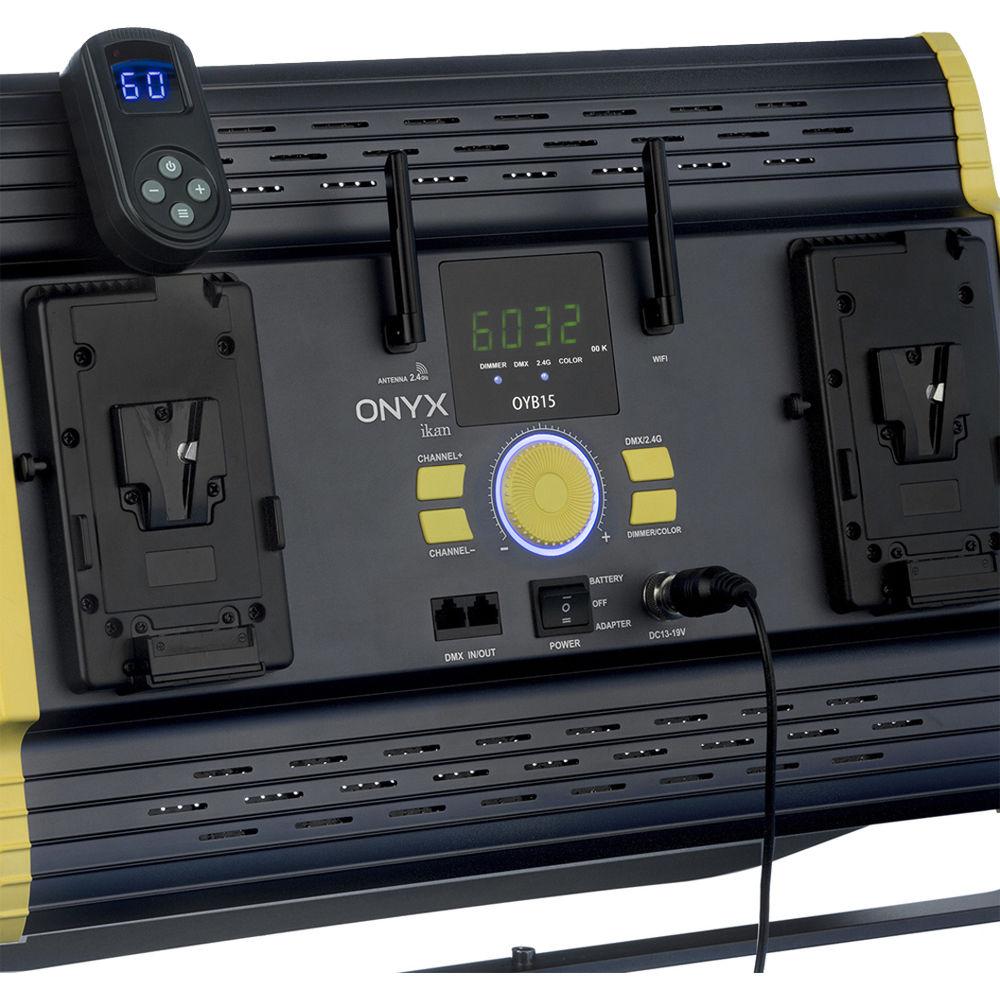

  • You can easily control the light from up to 150' away with the included 99-channel wireless remote control. In fact, you can control multiple lights at the press of a button. DMX control is also available through the Ethernet ports.
  Battery Powered

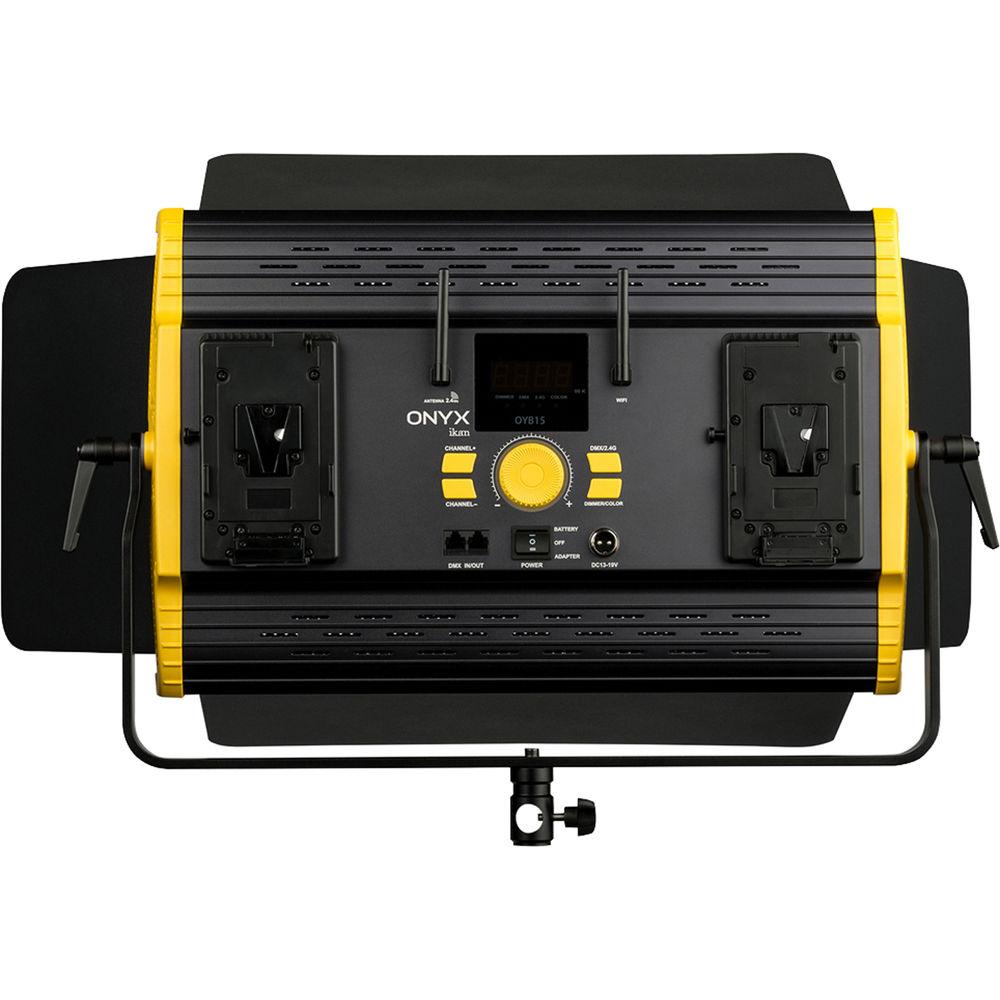

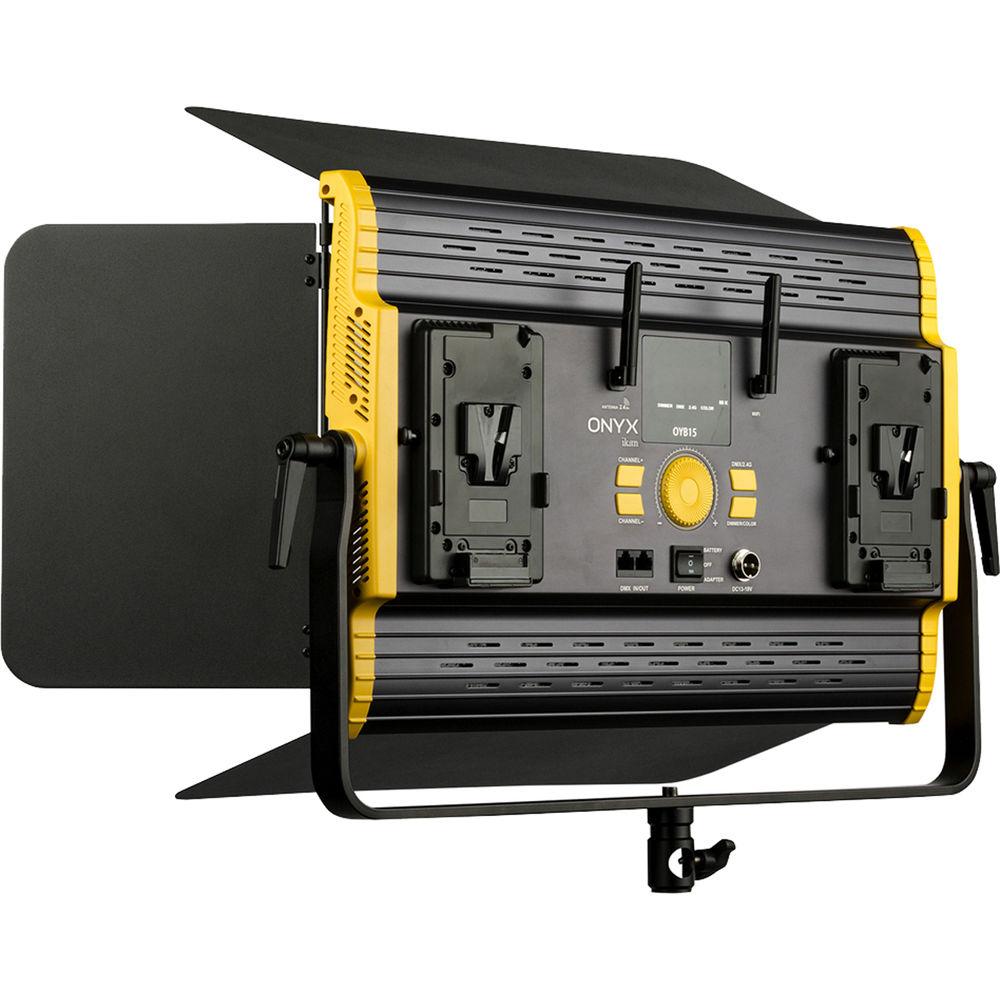

  • The Onyx 2x1 can be powered either by the included AC power supply or by optional V-Mount batteries.
  UPC: 847983021895

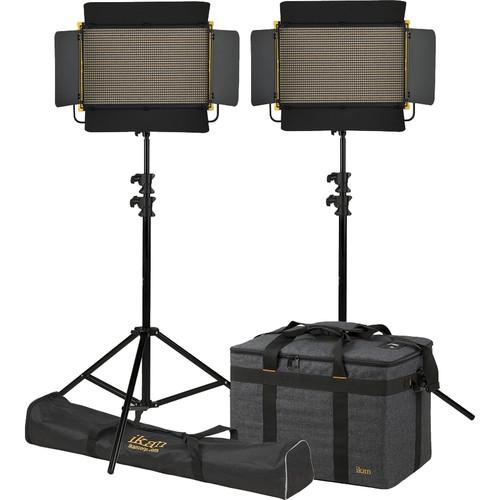

• V2 Heavy Duty Light Stand (8') The V2 Heavy Duty Light Stand from Ikan is a two-riser, three-section, air-cushioned support that rises to a height of 8' and folds down to 36". The stand supports up to 8 lb and has a 5/8" top stud. UPC: 847983019502

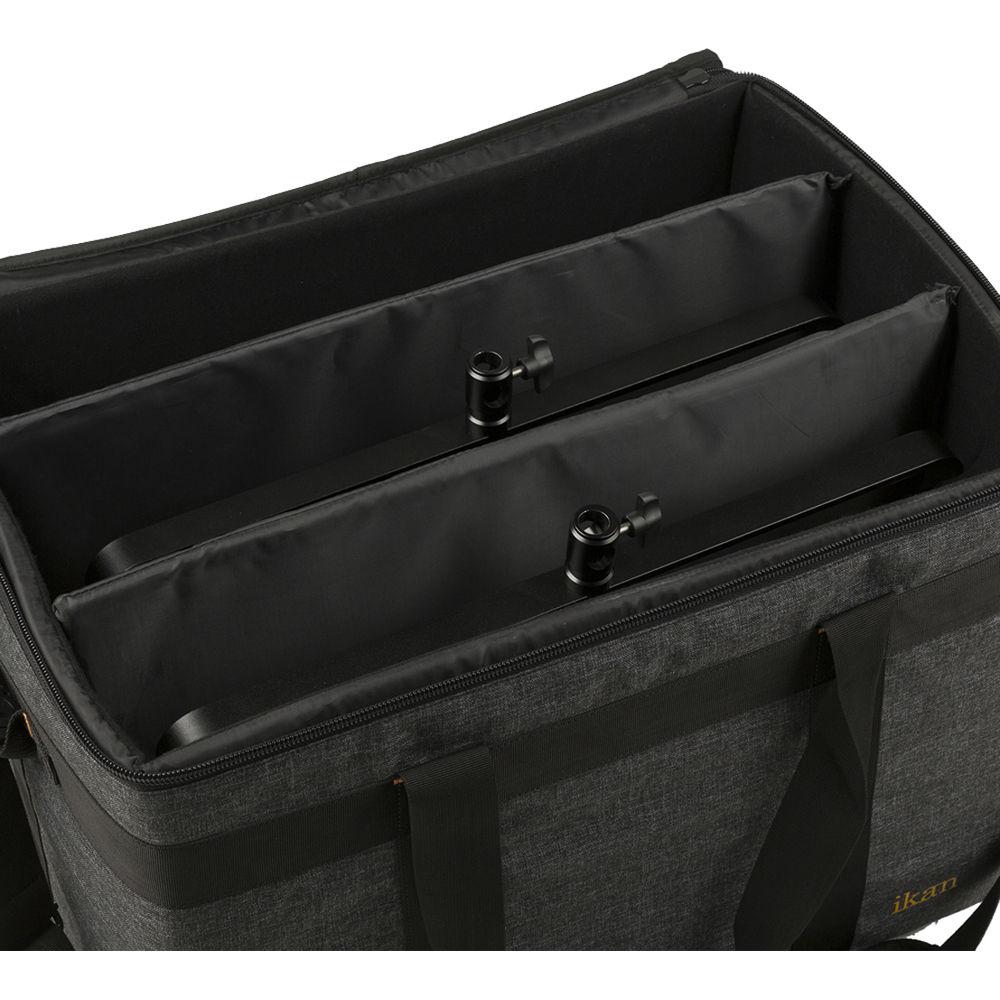

• IBG-1000-3L Light Kit Bag The ikan IBG-1000-3L Light Kit Bag features a mesh pocket for included accessories and adequately fits 3 ID1000 lights and the adjustable padded inserts can be configured to fit the video professional’s needs. Its strong, durable nylon design protects and secures each individual light in the bag and keeps them scratch free. This bag is equipped with dual zippers and a snap-on strap for added security. Also, the IBG-1000-3L bag’s non-skid rubber feet provide a stable foundation for the lights. The plastic-padded side handles and heavy-duty padded shoulder strap provide multiple transportation options for one’s convenience.
  • Features adjustable, heavy-duty padded shoulder strap and inserts
  • Mesh accessory compartment
  • Made from sturdy, breathable, vinyl material
  • Snap-on clip for added security
  • Durable dual zippers
  • Non-skid rubber feet
  Compatibility
  • IFD1024-A 2-Point Light Kit with Anton Bauer Battery Plates
  • IFD1024-A 3-Point Light Kit with Anton Bauer Battery Plates
  • IFD1024-S 2-Point Light Kit with V-Mount Battery Plates
  • IFD1024-S 3-Point Light Kit with V-Mount Battery Plates
  • IFD1024 Featherweight Daylight LED Light with AB Battery Plate
  • IFD1024 Featherweight Daylight LED Light with V-Mount Battery Plate
• IBG-STND Stand Bag The IBG-STND Stand Bag by ikan is a robust storage and transport carry case made of strong, black synthetic material intended for ikan ID500 and ID1000 light stands. The bag features a padded interior with individual compartments for each stand and zippered closures on both the top and side. A webbed strap encircles and reinforces the bag and its 2 handles join together with a padded touch-fastener.
  • Individual interior compartments for each stand
  • Opens from top and side
  • Heavy duty padded interior
  • Padded top strap
  UPC: 847983004881

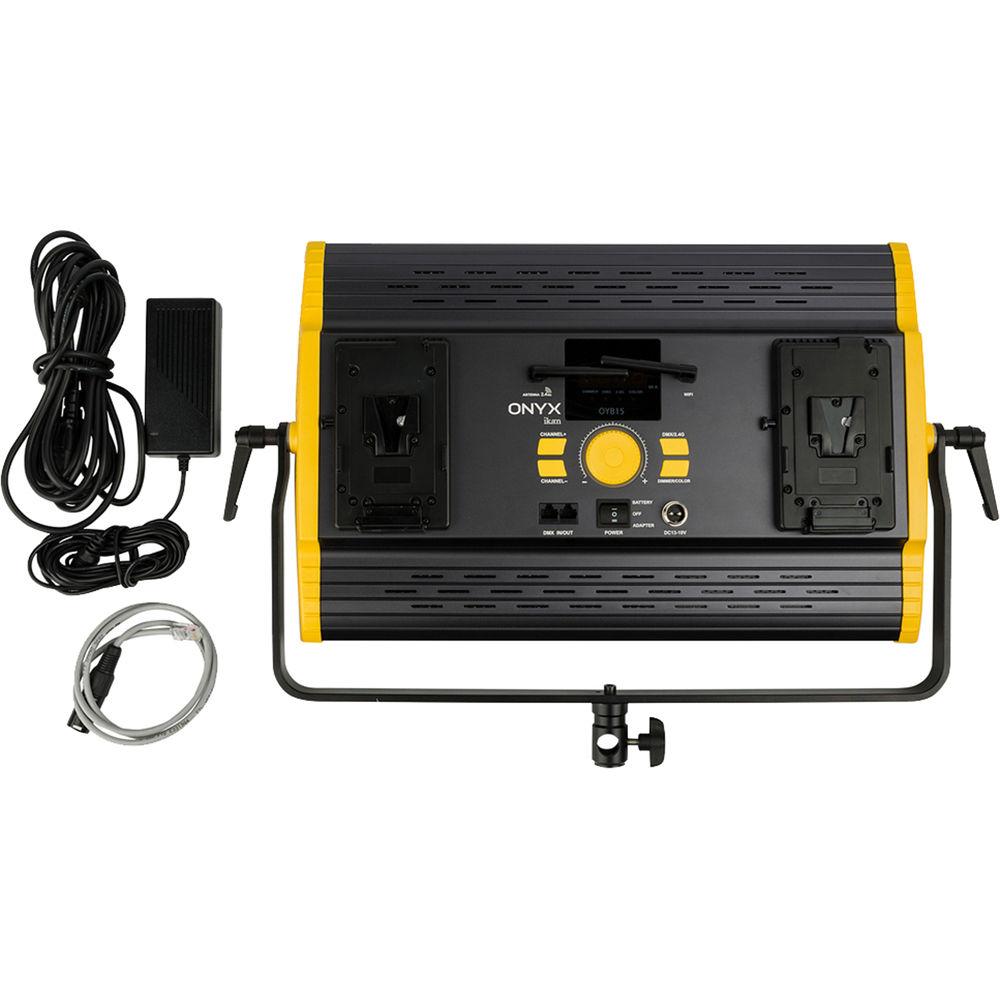

• AC Power Adapter with Cord

• Yoke

• Remote Control

• Light Bag

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Adjustable Shoulder Strap & Inserts

• Limited 1-Year Warranty

• 1 Year Manufacturer's Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Onyx 2x1 Bi-Color LED Light

  Light Source	2016 LEDs
  Material	Aluminum construction
  Color Range	3200 to 5600K
  Dimming	10 - 99%
  Remote Control	Via DMX With included 99-channel 2.4 GHz remote with 150' (45.7 m) range
  DMX	Yes
  Cooling	Passive
  Operating Voltage	100 - 240 VAC, 50/60 Hz
  Batteries	Optional V-Mount batteries
  Mount	5/8" (16 mm) receiver
  Dimensions	22 x 16 x 1.75" (59 x 40.6 x 4.4 cm)
  Weight	7.5 lb (3.4 kg)

  Box Dimensions (LxWxH)	24.6 x 17.8 x 6.0"

• V2 Heavy Duty Light Stand (8')

  Load Capacity	8.0 lb (3.6 kg)
  Maximum Height	95" (241.3 cm)
  Minimum Height	38.5" (97.8 cm)
  Folded Length	36" (91.4 cm)
  Air Cushioned	Yes
  Mount	5/8" (16 mm) stud

  Box Dimensions (LxWxH)	36.5 x 3.7 x 3.7"

• IBG-1000-3L Light Kit Bag

  Dimensions	Internal: 20 x 15 x 16" (508 x 381 x 406.4 mm) External: 21.5 x 17.5 x 17" (546.1 x 444.5 x 431.8 mm)
  Weight	8 lb (3.62 kg)

  Box Dimensions (LxWxH)	21.0 x 17.0 x 7.0"

• IBG-STND Stand Bag

  Material	Synthetic
  Type of Closure	Top and side zippers
  Padded	Yes, handle touch-fastener and interior compartments
  Carrying/Transport Options	Webbed strap with 2 handles joined with padded touch fastener
  Dimensions	Exterior: 39 x 8.0 x 6.5" (99 x 20.3 x 16.5 cm) Interior: 38 x 7.0 x 6.0" (96 x 17.8 x 15.2 cm)
  Weight	2.0 lb (0.9 kg)

  Box Dimensions (LxWxH)	14.6 x 12.2 x 4.4"
