User Manual for ikan Onyx Half x 1 Bi-Color 3-Point LED Light Kit

• Product category: LED Lights ikan
• Brand: ikan
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ikan LED Lights

Product description

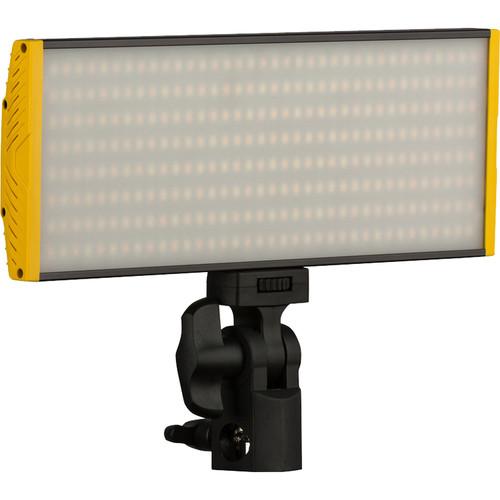

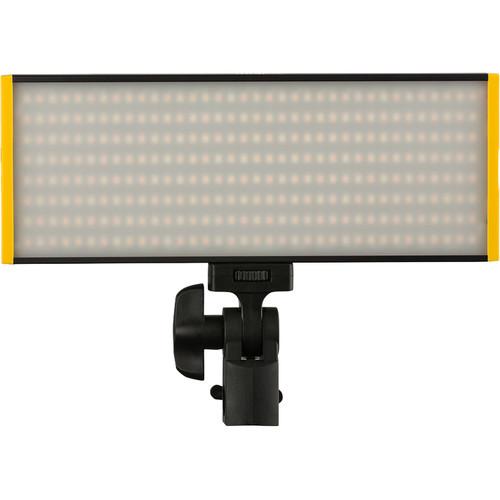

• Onyx 240 Bi-Color On-Camera LED Light The Onyx 240 Bi-Color On-Camera LED Light from ikan has an output of roughly 250W at full power, yet draws only 30W. It is a bi-color light that enables you to adjust the color temperature of the fixture's output from 3200 to 5600K and features a CRI of 95 and TLCI of 96 in both Tungsten and Daylight. Power on/off, dimming, and color temperature are controlled from the back of the fixture via four buttons. A two-digit LED screen is shared for dimming and color temp, with an indicator light informing you of which characteristic you are controlling.

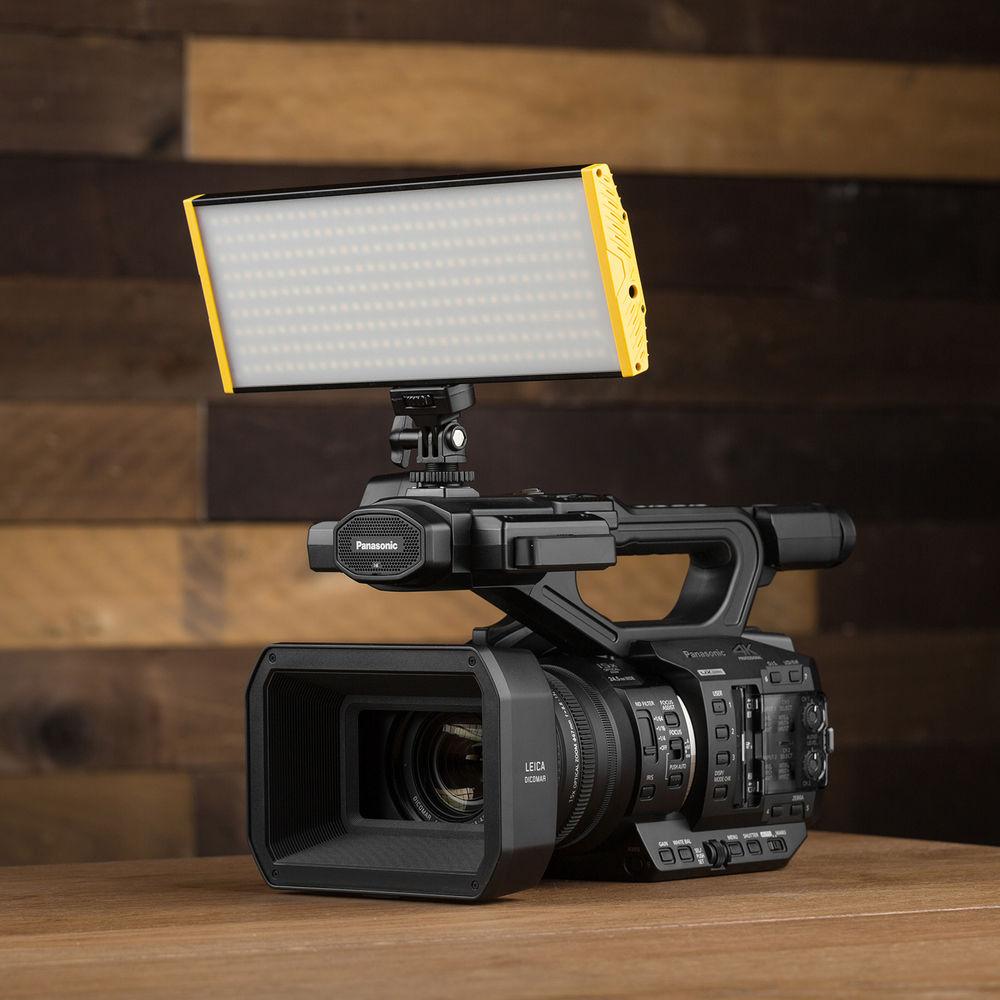

  The fixture requires two L-series batteries, and ships with two batteries that are the equivalent of a 550 L-series battery and a dual battery charger. You can also power the fixture from an optional AC power supply that outputs 13 to 17 VDC. The built-in diffusion helps prevent the effect of multiple cast shadows that afflict some LED array-type lights. A built-in 1/4"-20 threaded mounting hole, and the included cold shoe adapter enable mounting the fixture on your camera. Also included are a removable handle and removable light stand adapter, which mount via the 1/4"-20 threaded mounting hole.
  Control

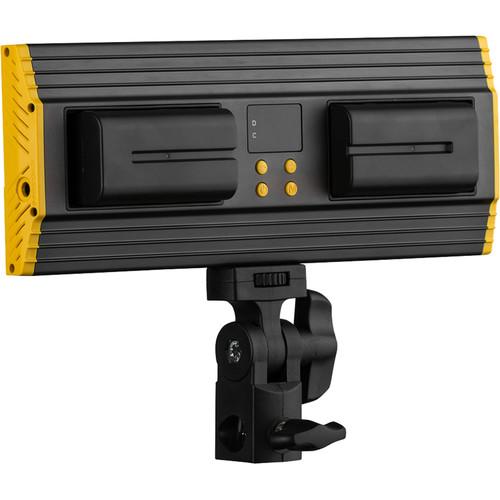

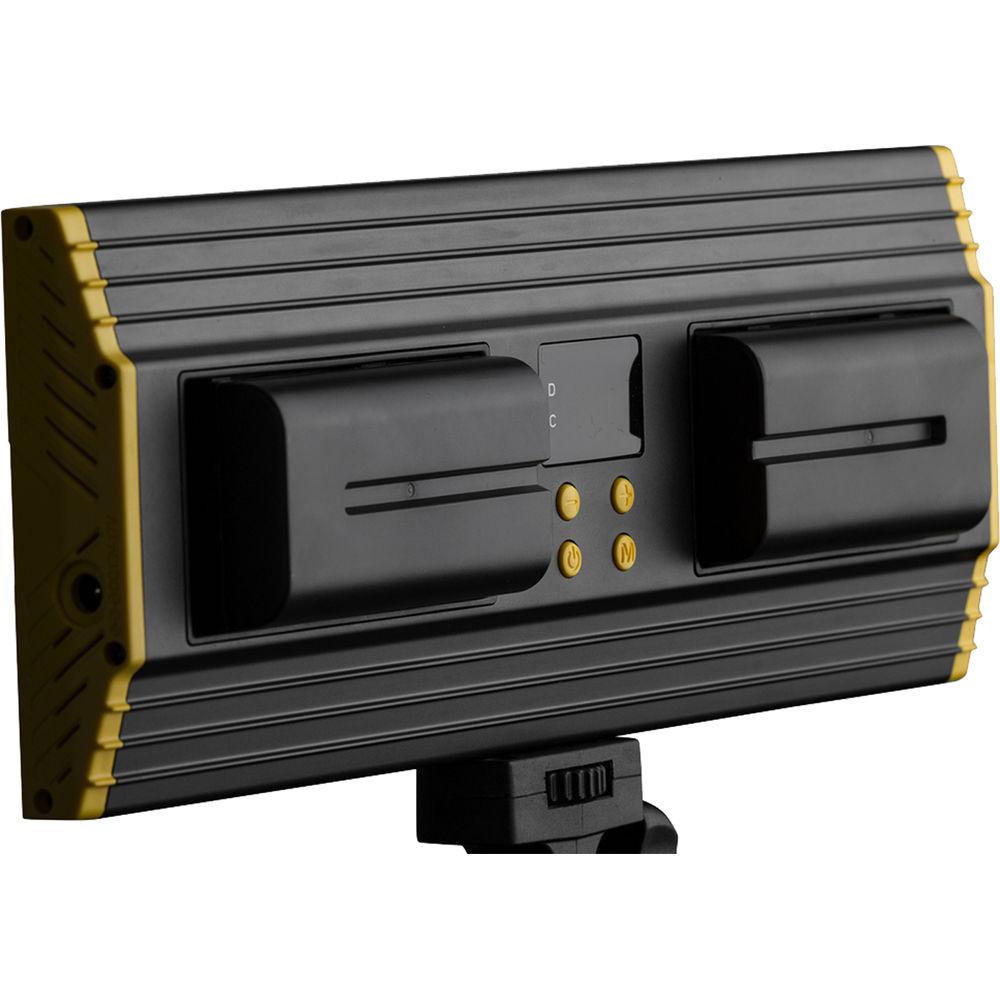

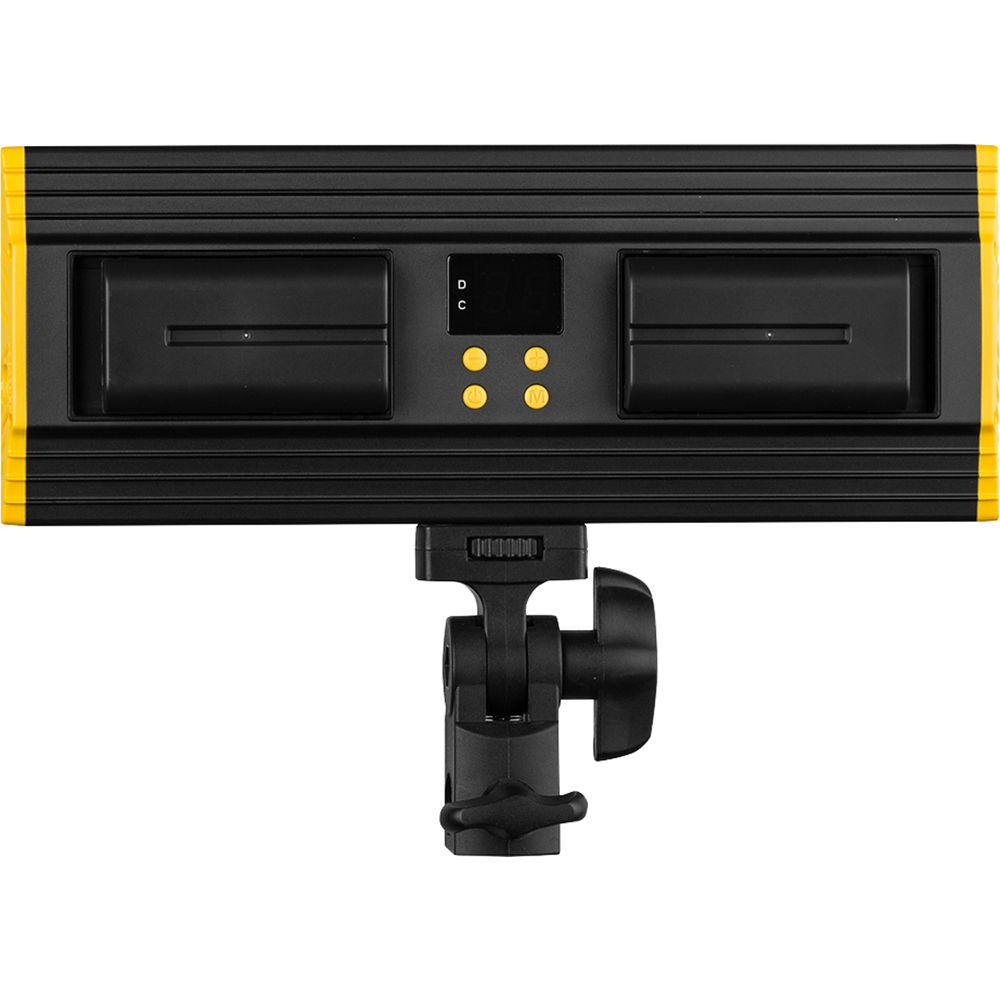

  • On the back of the fixture are four buttons:
  • Power on/off
  • Plus
  • Minus
  • M - select

  The M button enables switching between dimming and color temperature. An LED indicator lights up to indicate which characteristic of the fixture you are controlling. A two digit display screen indicates dimming from 10 to 99% and color temperature from 32 to 56.

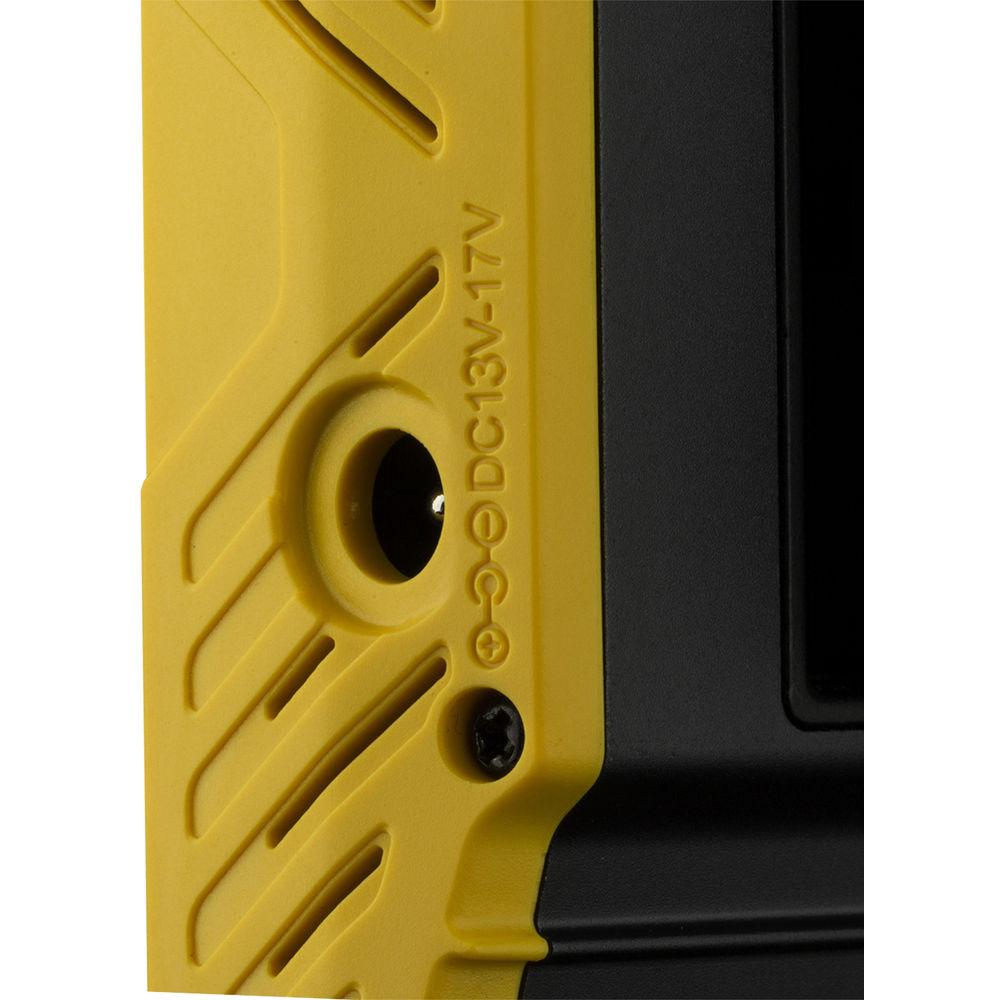

  • The fixture has two slots for L-Series type batteries, as well as a coaxial port for power from an optional AC adapter. When powering from batteries, you must use two batteries to power the fixture, it does not work with only one battery.
  UPC: 847983021031
• V2 Heavy Duty Light Stand (8') The V2 Heavy Duty Light Stand from Ikan is a two-riser, three-section, air-cushioned support that rises to a height of 8' and folds down to 36". The stand supports up to 8 lb and has a 5/8" top stud. UPC: 847983019502
• IBG-STND Stand Bag The IBG-STND Stand Bag by ikan is a robust storage and transport carry case made of strong, black synthetic material intended for ikan ID500 and ID1000 light stands. The bag features a padded interior with individual compartments for each stand and zippered closures on both the top and side. A webbed strap encircles and reinforces the bag and its 2 handles join together with a padded touch-fastener.
  • Individual interior compartments for each stand
  • Opens from top and side
  • Heavy duty padded interior
  • Padded top strap
  UPC: 847983004881
• Multi-Purpose Three-Light Kit Bag Transport and store your lights with the Multi-Purpose Three-Light Kit Bag from ikan. This nylon bag is padded on all sides to protect the equipment, and features adjustable padded dividers that can be configured to suit your needs.The bag can fit up three lights as well as their power supplies. It also features adjustable clips at the top for attaching up to three stands that collapse down to 22" or less. An exterior pocket is available for extra accessories. The dual zippers keep your equipment safe inside the bag, while the nylon strap is used for transportation. The bottom features rubber feet to avoid sliding. This bag is compatible with several ikan lighting kits.
  Features
  • • Fits up to three lights, three stands, and power supplies
    • Padded nylon interior
    • Three padded adjustable compartment dividers
    • Front exterior pocket for accessories
    • Straps to attach to dolly
    • Non-skid rubber feet
  Compatibility
  • • MB8
    • MW8
    • MSB8
    • LB5
    • LW5
    • RB5
    • RW5
  UPC: 847983021376

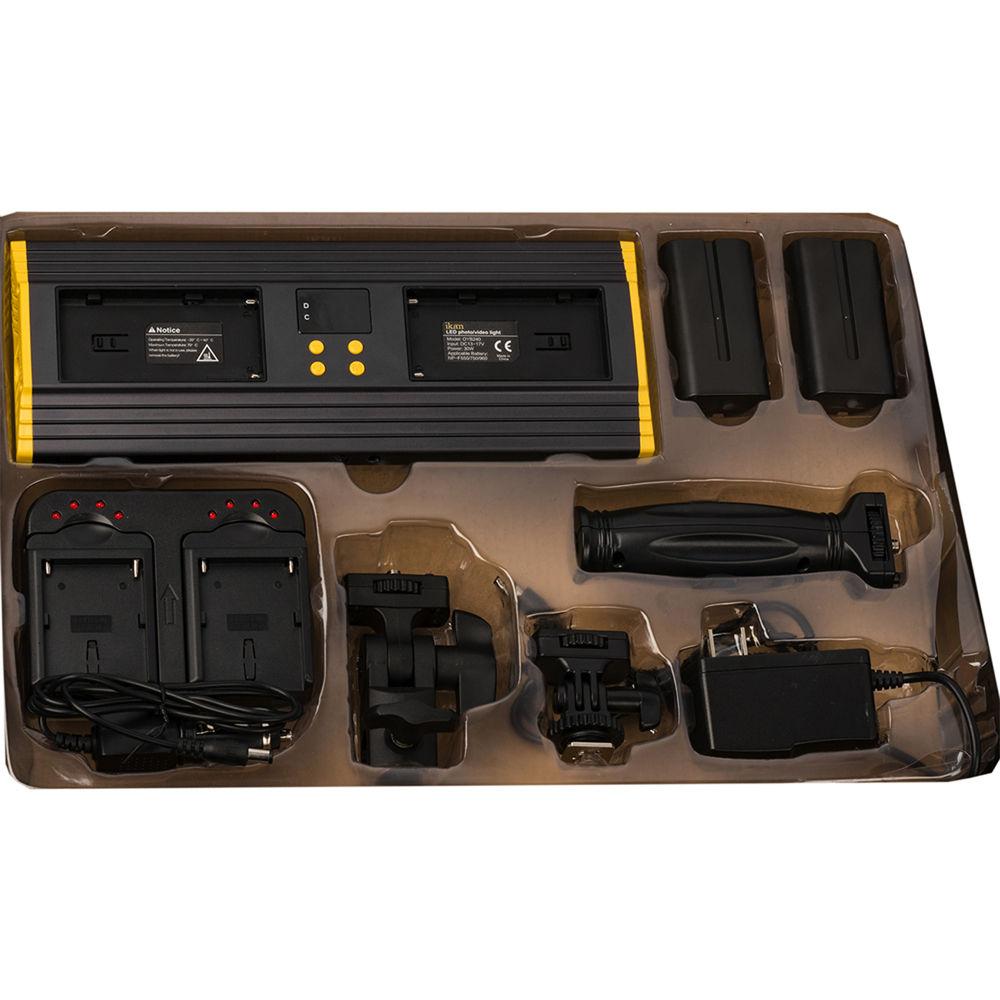

• 15V 2.4A AC/DC Adapter for OYB240 On-Camera LED Light (US)

• Car Charger

• Dual Battery Charger

• 2 x Series-L 550 Type Battery

• Stand Adapter Bracket

• Accessory Shoe Adapter

• Handle

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 1 Year Manufacturer's Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Onyx 240 Bi-Color On-Camera LED Light

  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95 TLCI 96
  Lumens	10291 (at 3200K) 10975 (at 5600K)
  Dimming	Yes, 10 to 100%
  Number of LEDs	288

  DC Input Power	13 to 17 VDC
  Power Source	AC Adapter, External Battery

  Dimensions	11.1 x 3.7 x 0.8" / 28.2 x 9.4 x 1.9 cm
  Weight	0.83 lb / 0.38 kg

  Box Dimensions (LxWxH)	15.6 x 10.4 x 2.75"

• V2 Heavy Duty Light Stand (8')

  Load Capacity	8.0 lb (3.6 kg)
  Maximum Height	95" (241.3 cm)
  Minimum Height	38.5" (97.8 cm)
  Folded Length	36" (91.4 cm)
  Air Cushioned	Yes
  Mount	5/8" (16 mm) stud

  Box Dimensions (LxWxH)	36.5 x 3.7 x 3.7"

• 15V 2.4A AC/DC Adapter for OYB240 On-Camera LED Light (US)

  Box Dimensions (LxWxH)	4.35 x 3.05 x 2.05"

• IBG-STND Stand Bag

  Material	Synthetic
  Type of Closure	Top and side zippers
  Padded	Yes, handle touch-fastener and interior compartments
  Carrying/Transport Options	Webbed strap with 2 handles joined with padded touch fastener
  Dimensions	Exterior: 39 x 8.0 x 6.5" (99 x 20.3 x 16.5 cm) Interior: 38 x 7.0 x 6.0" (96 x 17.8 x 15.2 cm)
  Weight	2.0 lb (0.9 kg)

  Box Dimensions (LxWxH)	14.6 x 12.2 x 4.4"

• Multi-Purpose Three-Light Kit Bag

  Closure Type	Zipper
  Carry and Transport Options	Handle
  Material of Construction	Nylon, Rubber
  Exterior Dimensions (W x H x D)	22 x 16.5 x 15.5" / 55.9 x 41.9 x 39.4 cm
  Weight	9.5 lb / 4.3 kg

  Box Dimensions (LxWxH)	22.0 x 17.0 x 16.0"
