User Manual for ikan Panasonic GH4 Cage Kit Click to enlarge the picture
Contents of the user manual for the ikan Panasonic GH4 Cage Kit
- Product category: DSLR Video Supports & Rigs ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan DSLR Video Supports & Rigs
 |
User manual for the ikan Panasonic GH4 Cage Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - Elements Cage Series for A7S, Black Magic Pocket Cinema Camera, and GH4

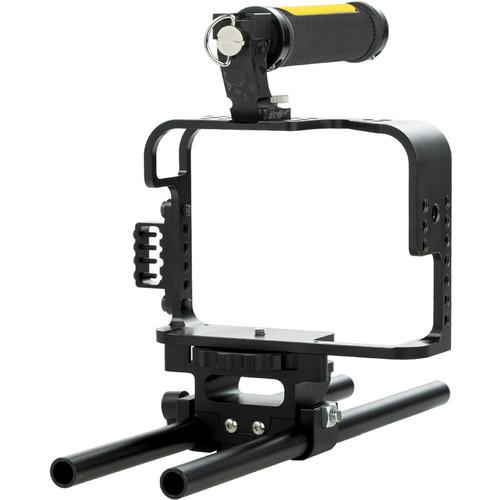

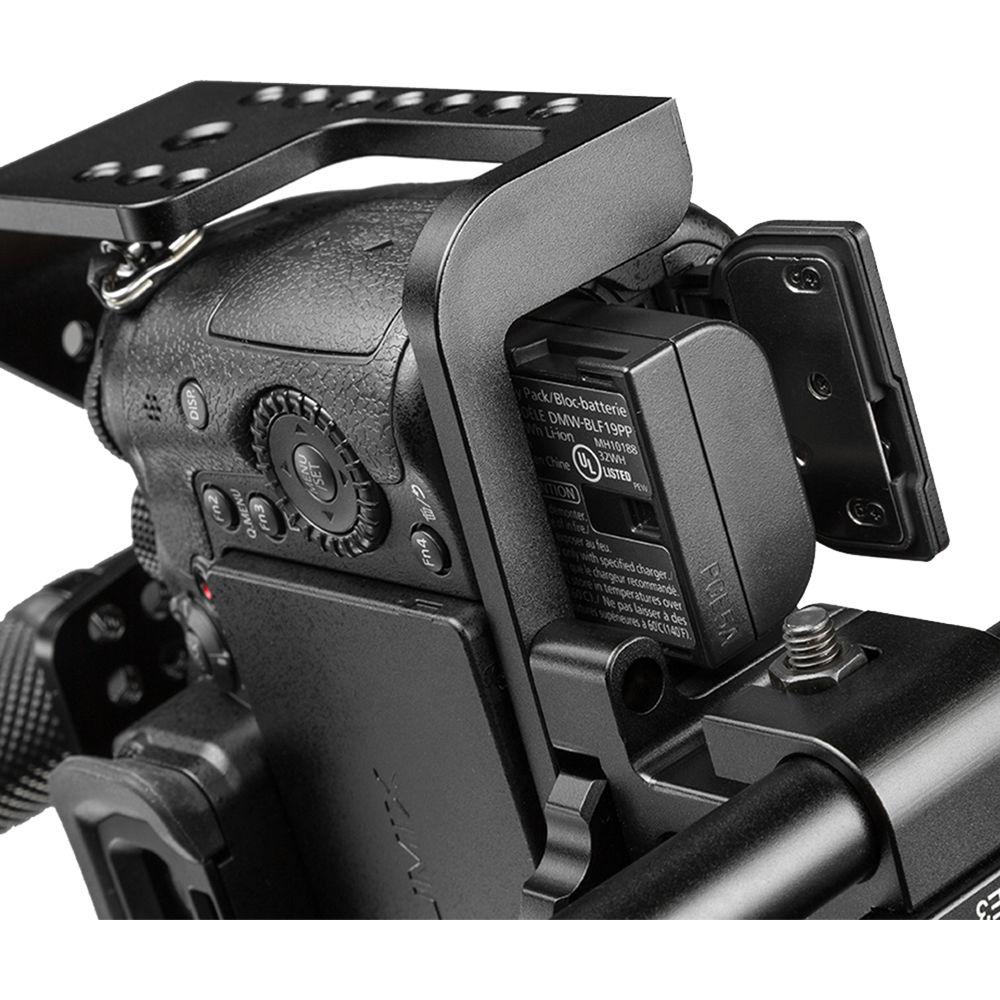

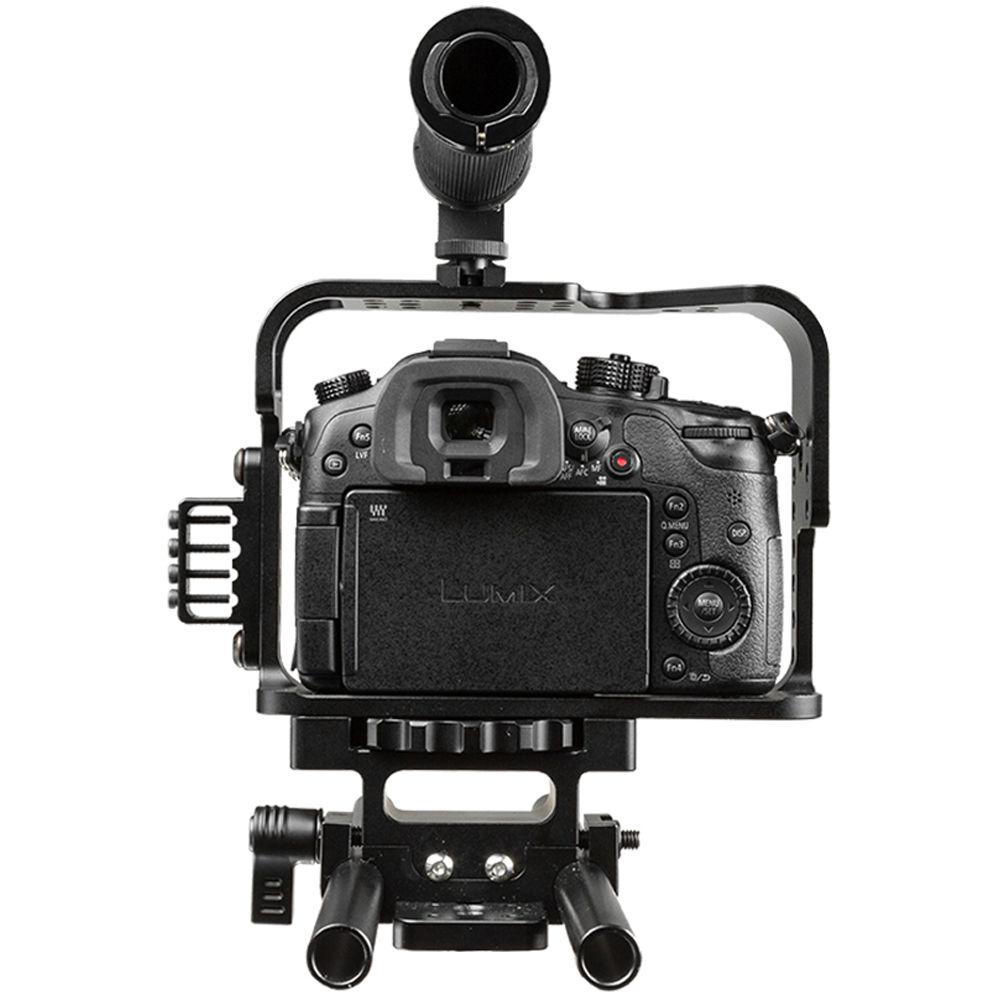

Mounting your camera into the ELE-GH4-C Cage Kit for Panasonic GH4 from ikan without needing to use a screwdriver is one of the strengths of this formfitting black anodized cage and rod system. Built specifically for the Panasonic GH4, it consists of the camera cage, which allows unobstructed access to the camera's features, connectors, battery, and SD card slot and includes a 15mm rod clamp system with rods. The cage provides 1/4"-20 accessory mounting points, so you can mount available accessories without stressing the camera body.

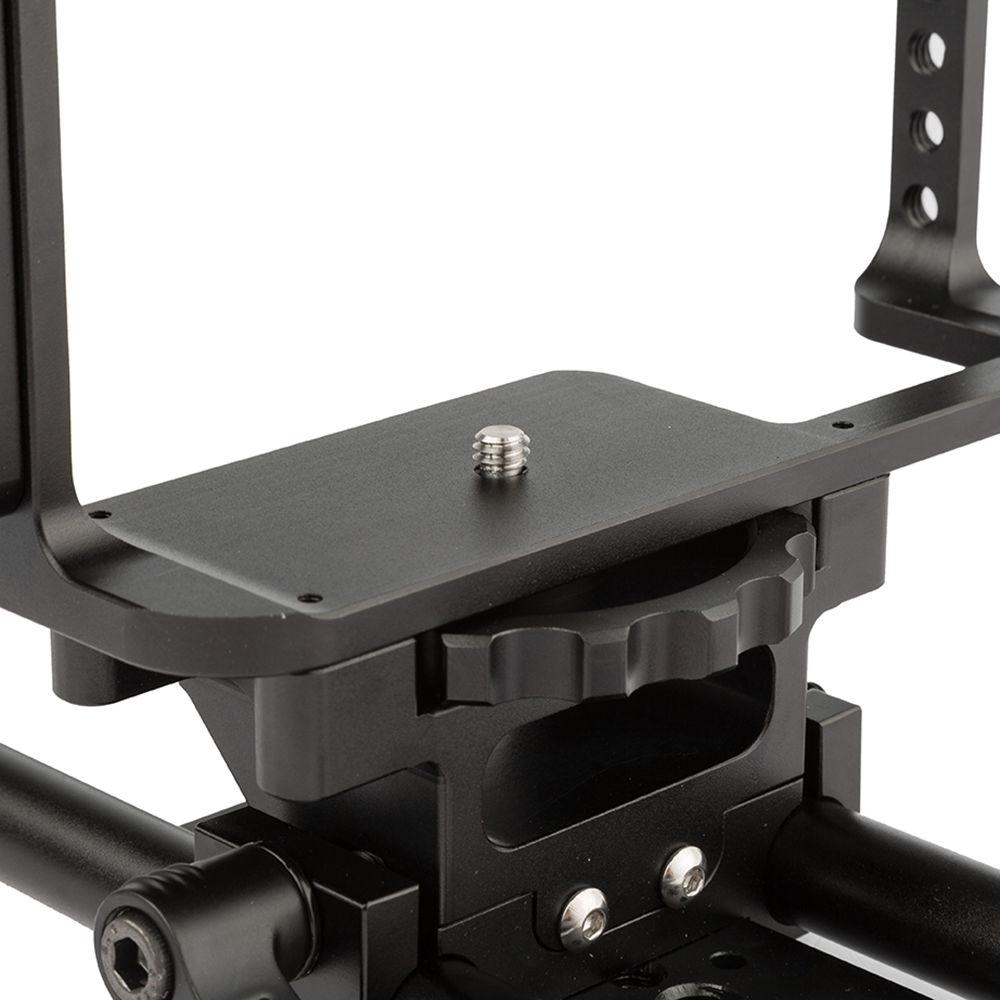

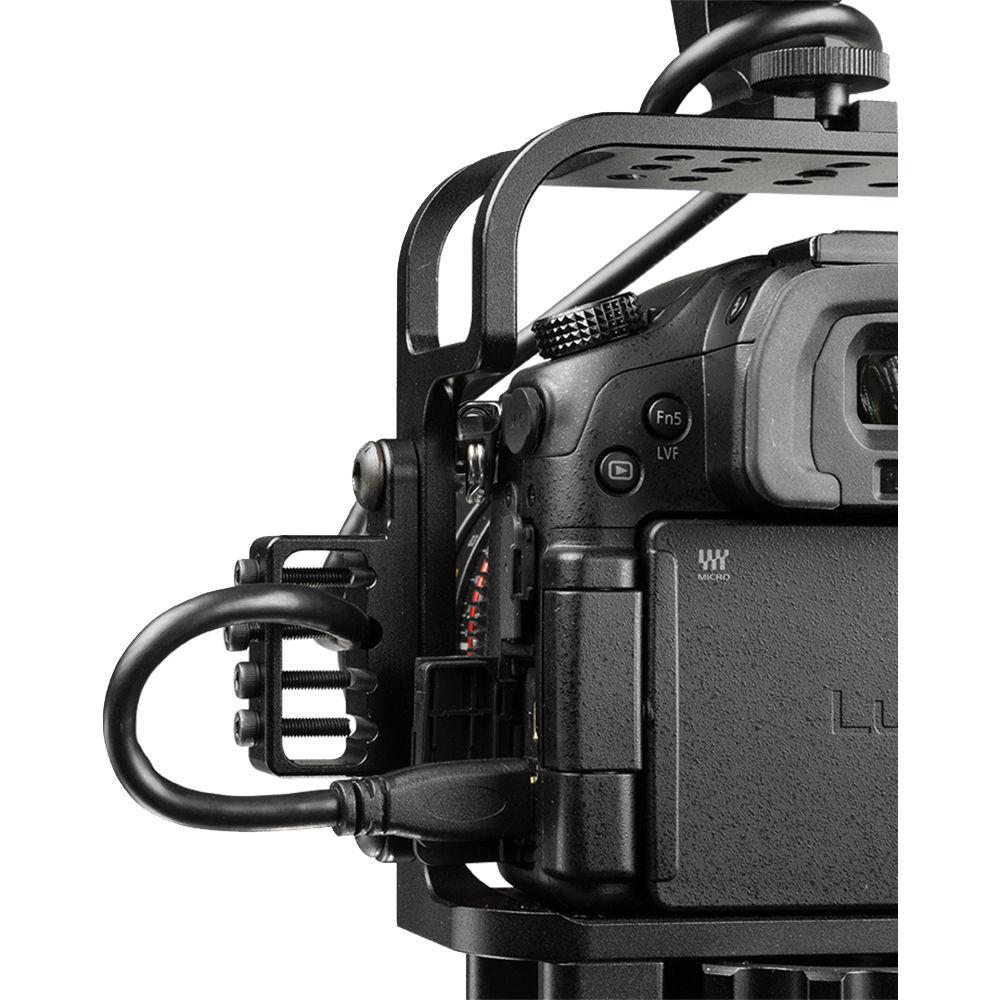

It features a removable top handle that mounts on top of the cage and is secured by a thumbwheel, so again, no tools needed. You can mount the rubberized top handle facing either forward or backwards, and an integrated cold shoe allows you to mount optional accessories. A removable cable clamp block allows you to secure your cables and helps prevent the cables from accidentally falling out. This makes it easier to connect optional HDMI cables, and you don't have to worry about wearing out or damaging your camera's micro HDMI port by repeatedly plugging and re-plugging a Micro HDMI cable into the camera body. Please note that there are no cables included with the kit. The included 15mm rod clamp baseplate features both 1/4"-20 and 3/8"-16 threaded tripod mounting holes. Included with the kit are two 12"-long 15mm aluminum support rods. - Tool-less camera mounting with 1/4"-20 screw
- Fits the Panasonic GH4 Mirrorless Digital Camera
- Precision-machined aluminum alloy single piece cage
- Reversible top handle with cold shoe mount
- Dual 15mm rod clamp baseplate
- Multiple 1/4"-20 and 3/8"-16 threaded holes for mounting accessories
UPC: 847983014132 In the Box ikan Panasonic GH4 Cage Kit 2 x 12" 15mm Rod Reversible Top Handle Top Handle Screw 1/4"-20 Thread D-Ring Screw Limited 1-Year Warranty Quick start Guide PDF 820kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Panasonic GH4 Cage Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan ELE-GH4-C Specs | | | Rod Compatibility | 15 mm | | Rod Spacing | 60 mm (LWS) | | Material | Aluminum | | Configuration | With baseplate | | Threaded Holes | 26 x 1/4"-20
1 x 3/8"-16 | | Tripod Mount Threads | 4 x 1/4"-20
4 x 3/8"-16 | | Dimensions | 7.1 x 6.8 x 3.9" / 180.3 x 172.7 x 99 mm | | Weight | 1.88 lb / 0.85 kg | | | | Type | Standard | | Material | Aluminum | | Thread | Female | | Diameter | 15 mm | | Number of Rods | 2 | | Rod Length | 12" / 304.8 mm | | Weight | 2.24 oz / 63.5 g | | | | Mount | 1 x cold shoe | | Threaded Holes | 1 x 3/8"-16 | | Material | Aluminum | | Length | 5" / 127 mm | | Dimensions | 6.1 x 2 x 1.3" / 154.9 x 50.8 x 33.02 mm | | Weight | 5.4 oz / 154.2 g | | | | Material | Aluminum and rubber | | Weight | 1.88 lb / 0.85 kg | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 15.512 x 8.661 x 4.331" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
