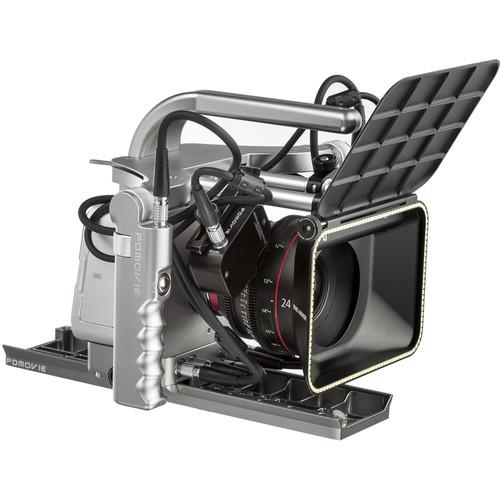

User Manual for ikan PD Movie Blackmagic Armor System Click to enlarge the picture
Contents of the user manual for the ikan PD Movie Blackmagic Armor System
- Product category: Camcorder Supports & Rigs ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Camcorder Supports & Rigs
|
User manual for the ikan PD Movie Blackmagic Armor System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description Designed to provide added functionality and improve upon the utilitarian ergonomics of your Blackmagic Cinema or 4K Production camera, the PD Movie Blackmagic Armor System from ikan provides an all-in one cage, integrated power solution, motorized focus, zoom, or iris control, and sliding baseplate solution for shooting with your Blackmagic Cinema or 4K Production camera. The PD Movie provides protection for your camera and provides attachment positions for the handgrips, which can be mounted above for handheld work or below your camera for operating on a tripod in the classic studio-style position. The handgrips feature integrated thumb wheels that control the motors, and you can select from two different speed modes.
The cage provides a top handle with a baseplate that contains a battery that can run your camera for up to four hours of continuous shooting. Top-mounted support rods allow you to mount the two included motors above your lens, and provide mounting for the included aluminum matte box. The matte box features a flip up cover, which doubles as a top flag, and the leading edge of the matte box is lined with LEDs that act as a ring light. - The PD Movie Blackmagic Armor is crafted from precision-machined aluminum to fit both the Blackmagic 2.5K and 4K Cinema Cameras.
- Controls are conveniently located at the top of the handles and can be set up for focus, zoom, and iris control.
- In the standard mode, the thumbwheel will cover the focus/zoom throw of most cinema-style lenses, which generally have a rotation of between 270 and 300 degrees. The standard setting allows you to focus/zoom throughout the entire range of your cinema-style lens, while maintaining the precision the long focus throws allow. However, when using lenses with a shorter focus or zoom rotation, the feathered or slow mode is more appropriate as it has a shorter rotation.
- The controls may be placed in a handheld position or a studio-style position.
- The handgrips feature a single button that provides one push calibration of the motor to your lens.
- The power supply for the camera is integrated into the baseplate and allows for up to four hours of continuous shooting.
- The aluminum lens hood has an integrated LED ring light and its own onboard battery for power in low light or for eye-light accents.
- The baseplate incorporates individual power buttons with LED indicators. The button on the left provides power to your camera, and the button on the right of the baseplate provides power to the lens drive motors.
- The included charger plugs into the baseplate via the 6-pin Hirose connecter and will charge the camera and motor drive batteries. A full charge requires approximately 10 hours and is indicated when all four blue LEDs on the left side of the baseplate are illuminated.
UPC: 847983014064 In the Box ikan PD Movie Blackmagic Armor System 2 x Multi-Control Handgrip Side-Handgrip Bridge Plate 2 x 15mm Support Rods 2 x Standard Torque Motor 2 x Motor Drive Cable 2 x Control Cables Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan PD Movie Blackmagic Armor System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan PD-BA1-KIT Specs | | | Material of Construction | Aluminum | | Mounting Holes | 7 x 3/8"-16
6 x 1/4"-20 | | Power | 6 x Samsung 4.2 V lithium-ion battery rated capacity 3.00 Ah (six to 12.6 V capacity 6.00 Ah) 75.60Wh | | Dimensions (WxHxD) | 3.7 x 13.7" / 9.4 x 34.9 cm | | Weight | 8.0 lb / 3.6 kg (with two standard torque motors, dovetail plate, top handle) | | | | LEDs | Photometrics
Color Temperature: 5667K
CRI: 85
Brightness: 166 LUX / 15.4 Foot Candles at 3' | | Mount | 15 mm rod clamp | | Lens Opening | 3.5" / 90 mm | | Size | 5.25 x 7.50" / 13.34 x 19.05 cm | | | | Package Weight | 16.45 lb | | Box Dimensions (LxWxH) | 22.3 x 18.3 x 13.1" |
