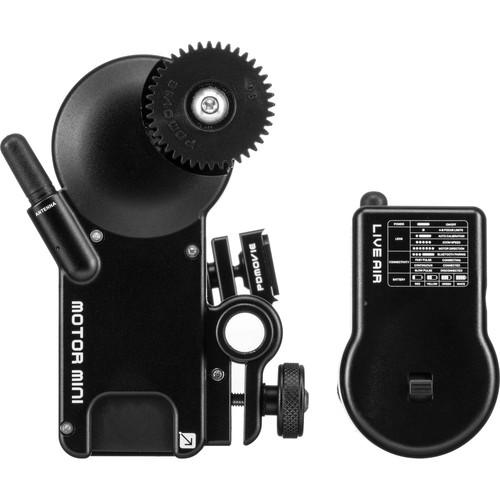

Product description Remotely control your zoom lens over Bluetooth without the hassle of cables with the PD Movie LIVE AIR 1-Channel MOTOR MINI with Zoom Controller Kit from ikan. This kit includes a compact, single-channel MOTOR MINI lens control motor with a 0.8 pitch gear and a LIVE AIR Bluetooth zoom controller.

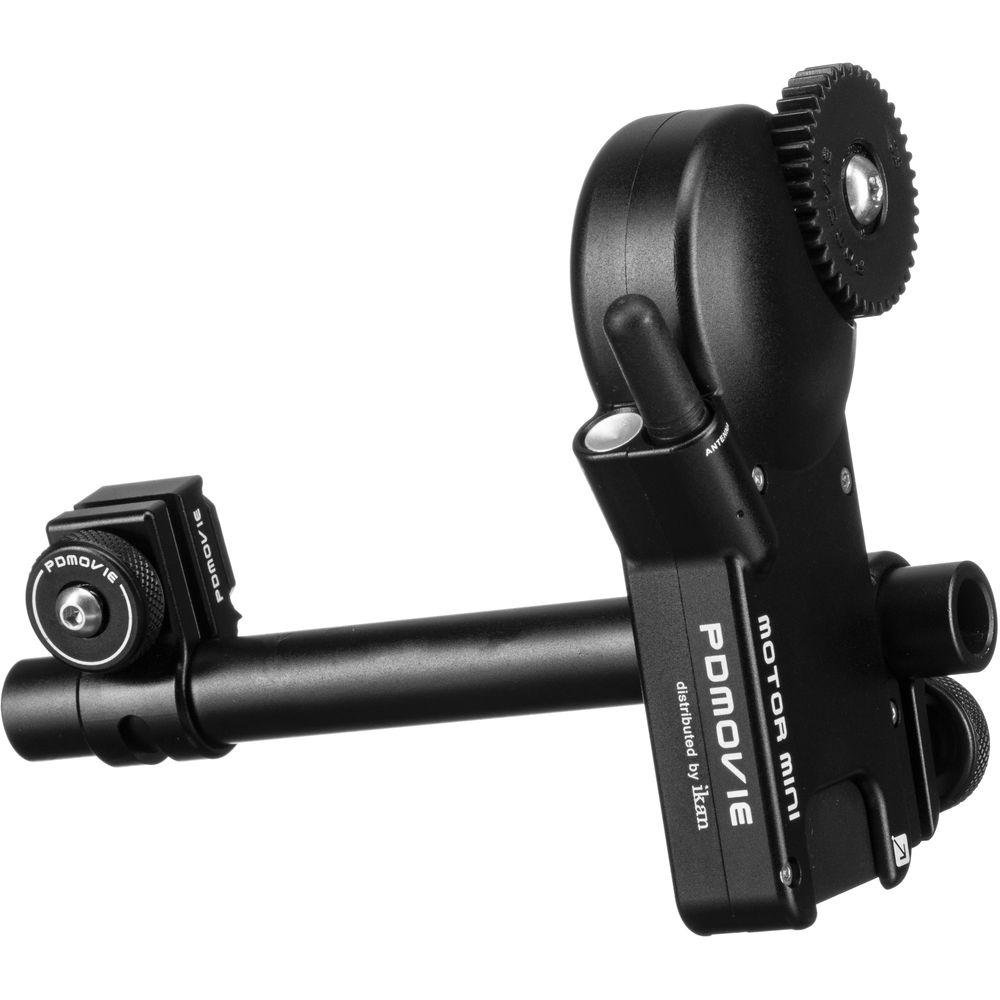

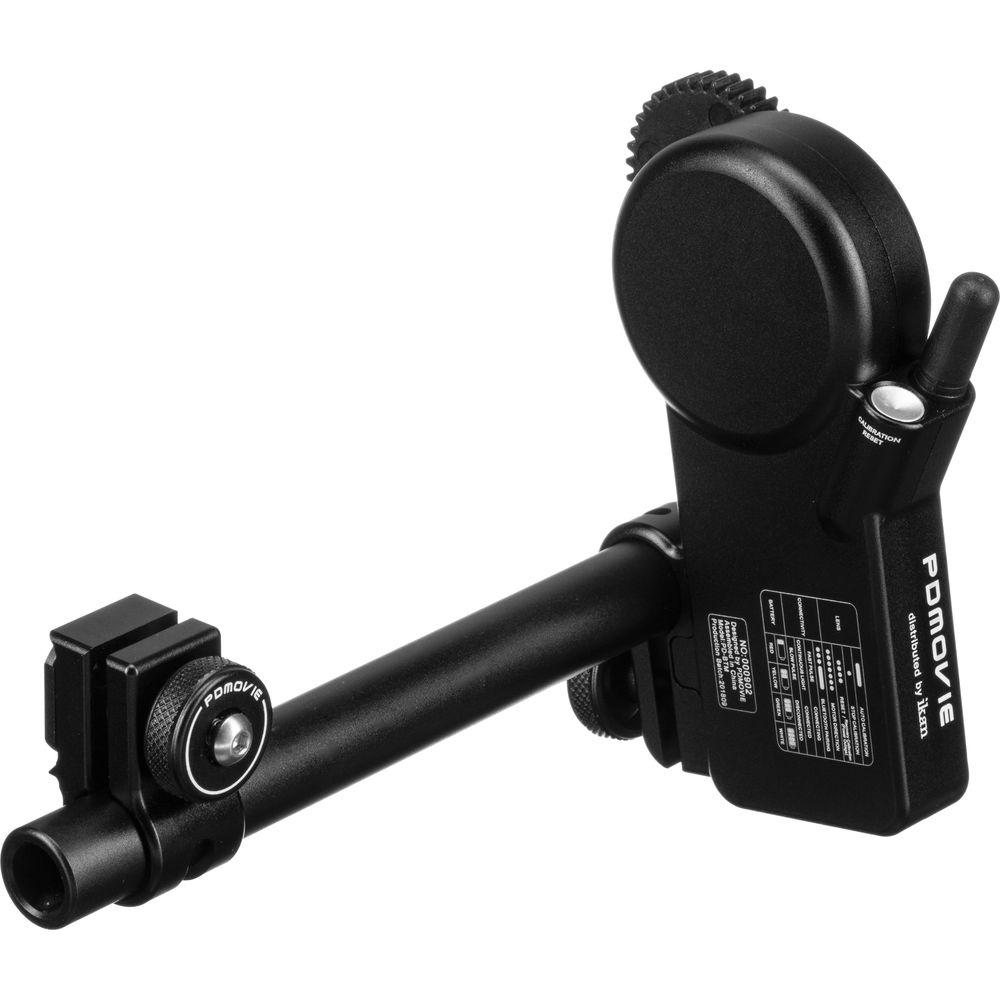

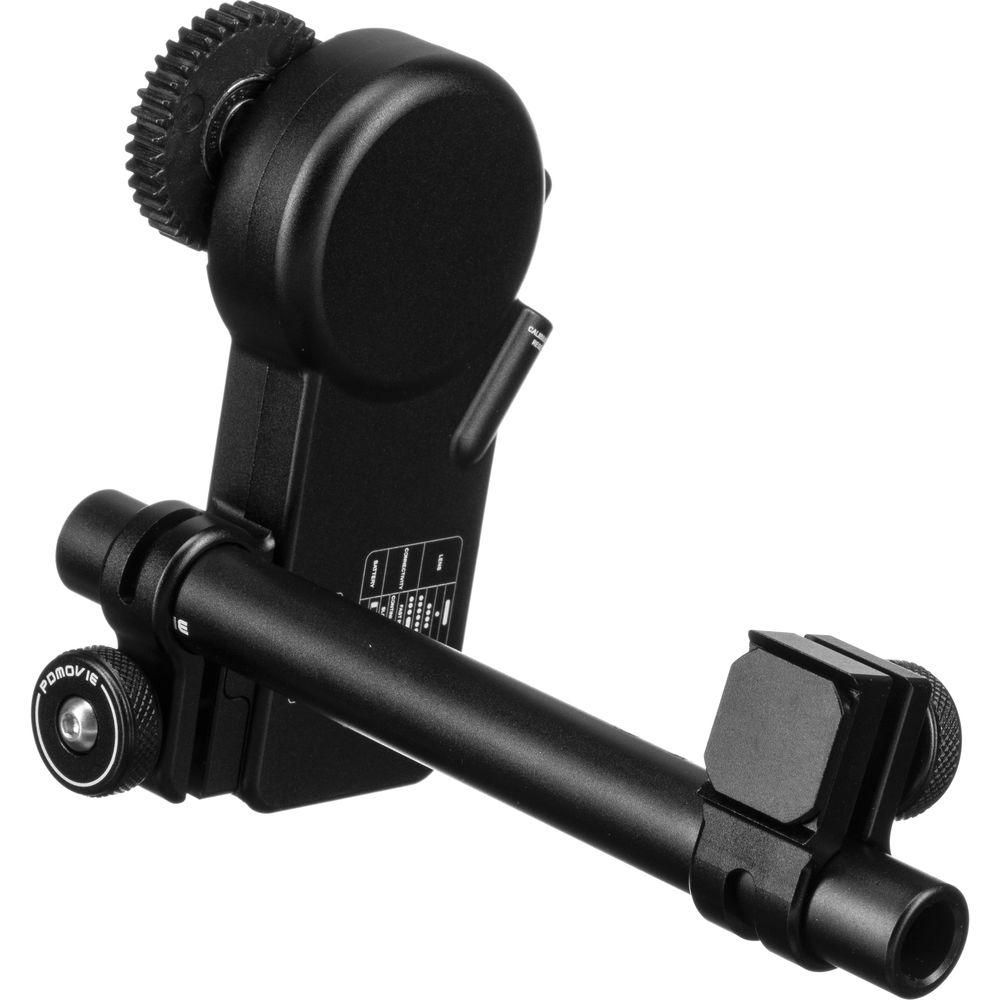

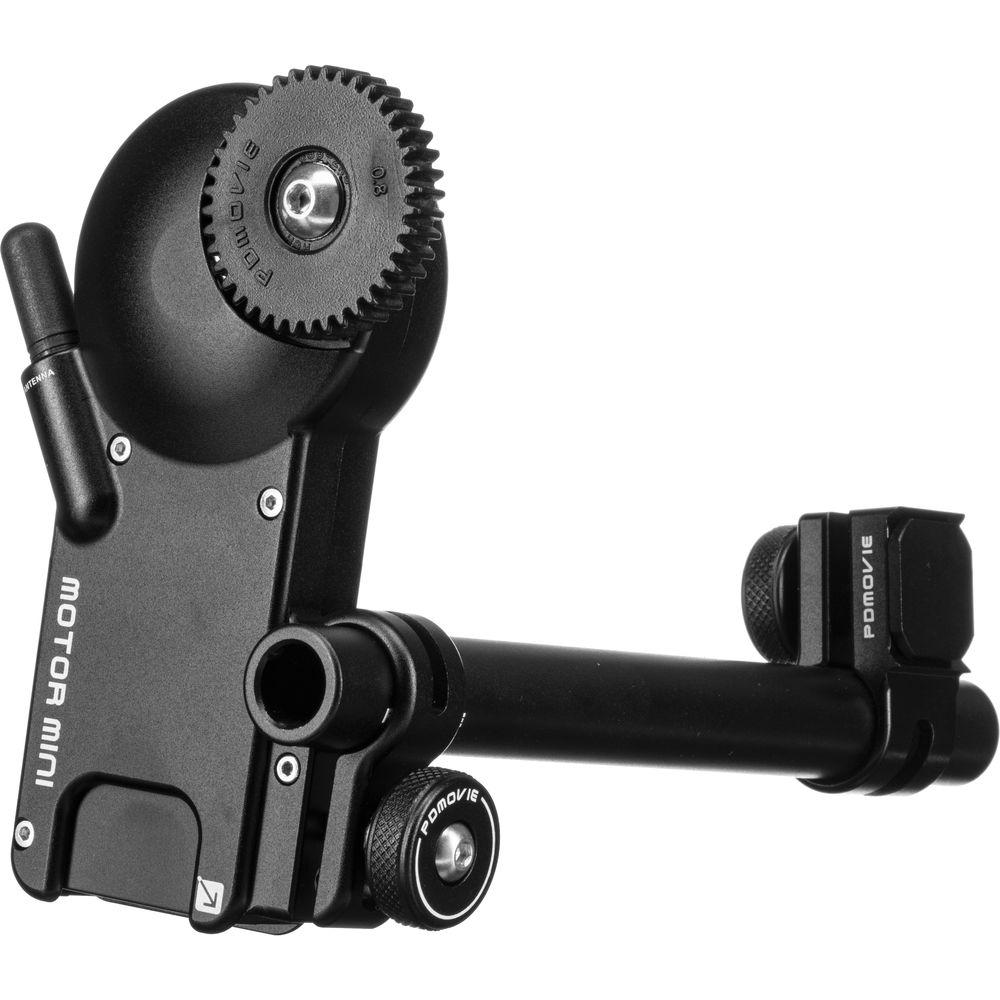

The MOTOR MINI has just one button for setup, automatically calibrates to your lens size, and is compatible with most DSLR or cine lenses on the market. It has a built-in 15mm rod port to mount on standard LWS rod systems, and a 15mm rod is included. It uses a removable 600mAh battery that offers four hours of usage time when its power-saving feature is activated, and an LED light displays battery status by color.

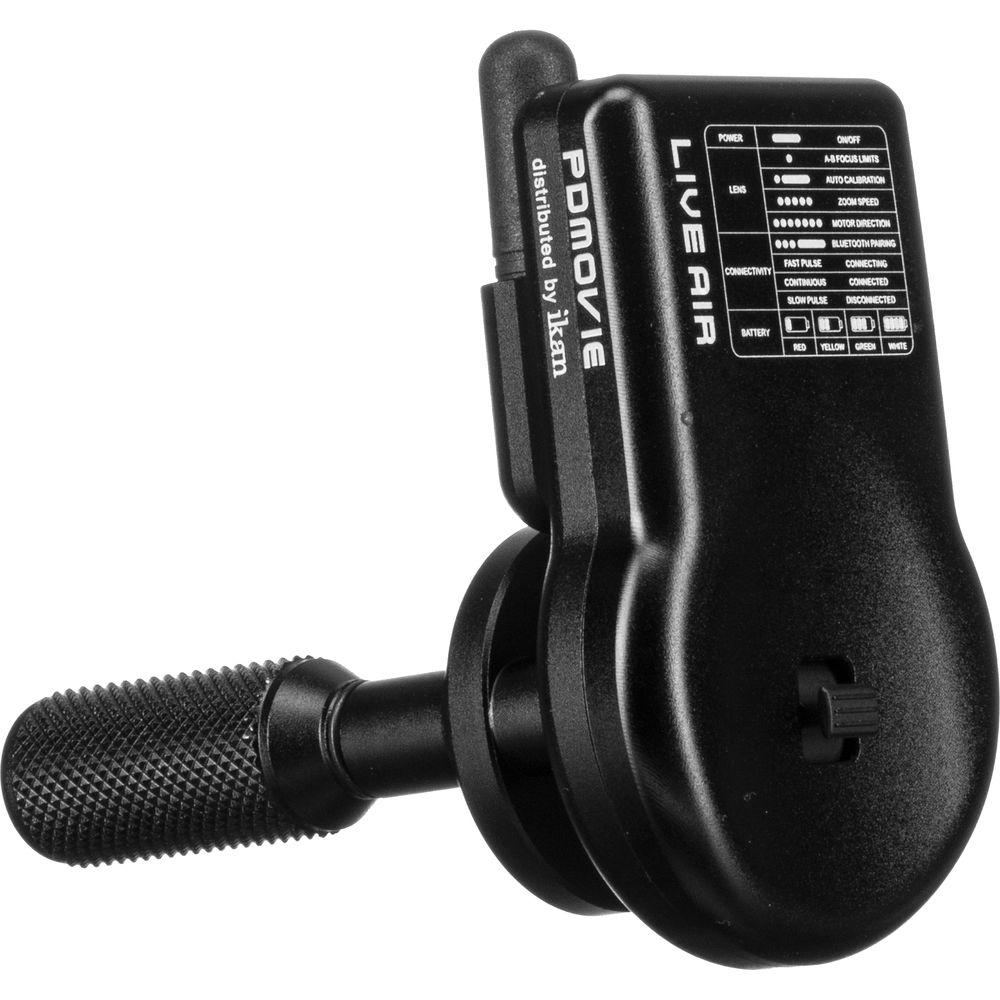

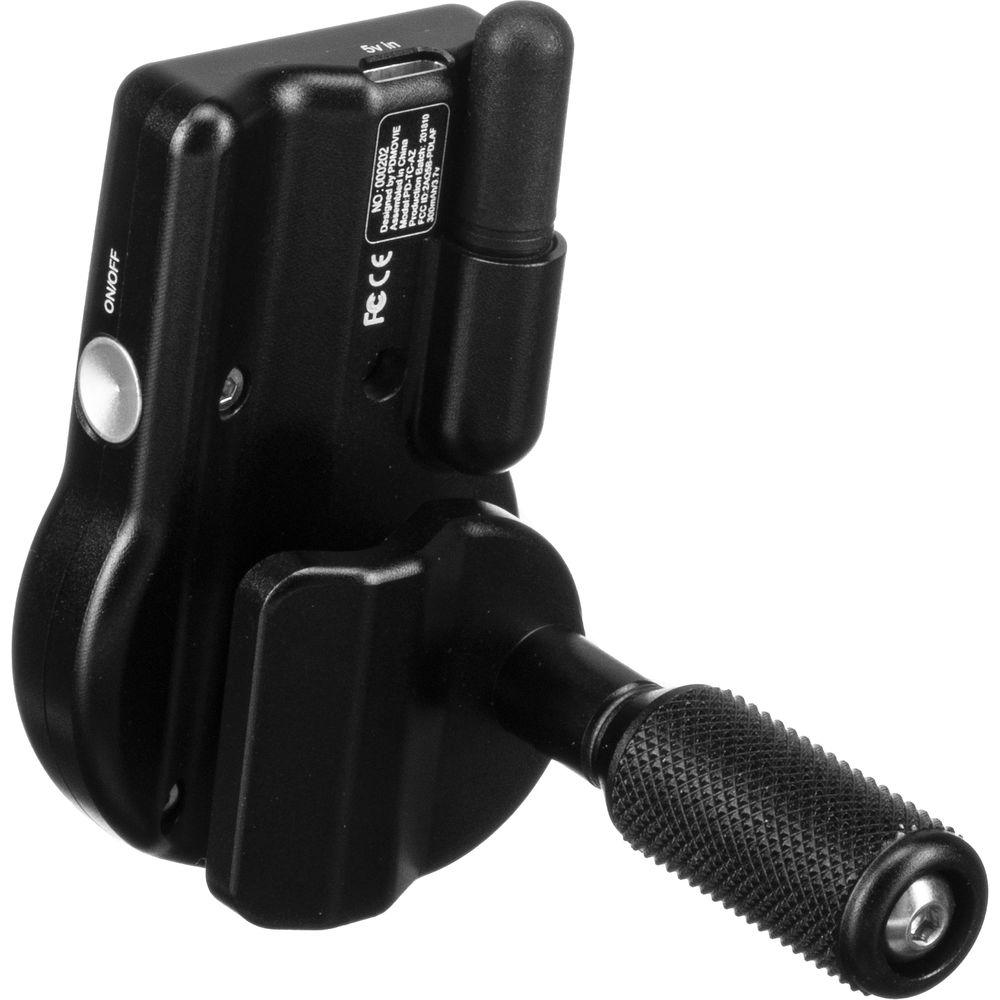

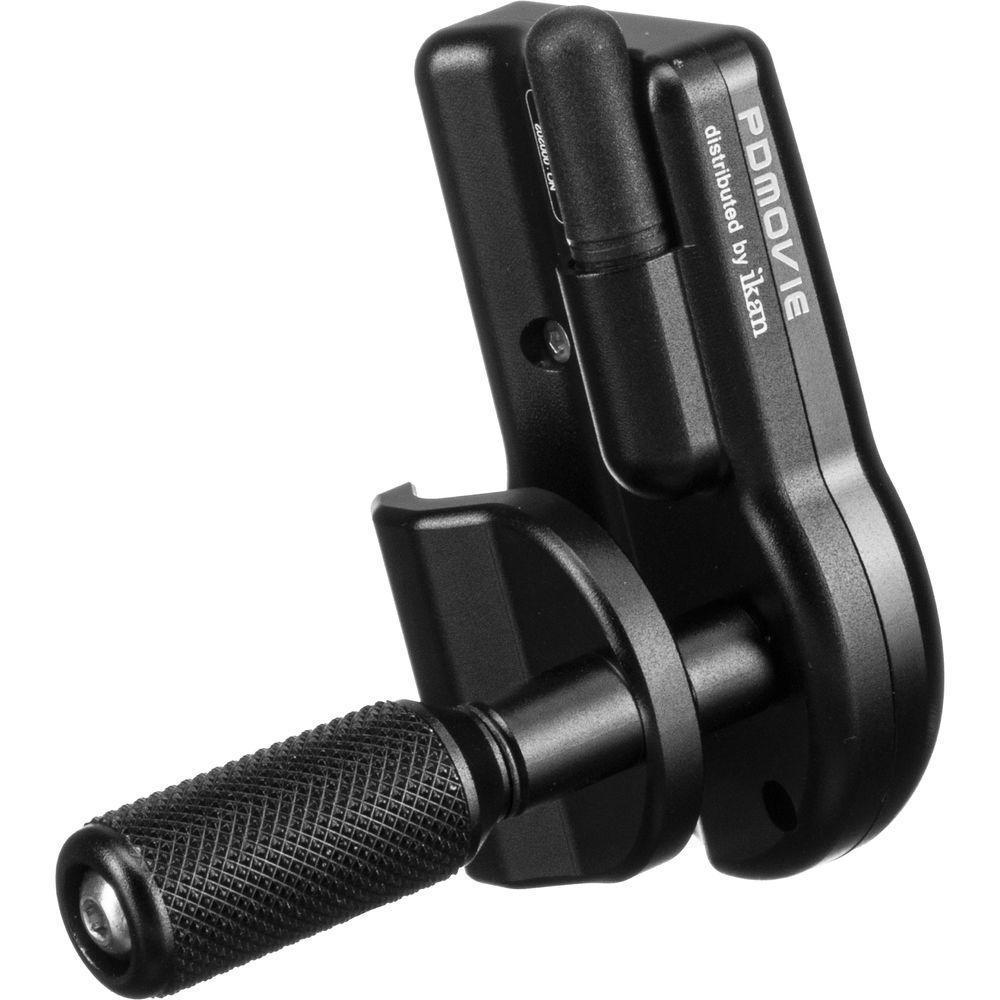

The LIVE AIR controller has a single zoom thumb rocker and a built-in battery which is charged by a micro-USB cable. The battery provides eight hours of usage time and twenty hours in standby mode. The controller can be affixed to any rod or pole up to 1" in diameter.
Both units have a Bluetooth range of 213', and the motor can also be controlled by the REMOTE AIR smartphone app to provide you with your lens information and zoom or focus controls. The motor can also be used with a separately available Bluetooth LIVE AIR focus controller. Two batteries, a battery charger, two micro-USB charging cables, and a camera shoe clamp are included. - Wireless lens motor and zoom controller kit with 213' Bluetooth range
- Automatically calibrates and maps to most cine or DSLR lenses
- One-button setup and operation
- Four hours of battery life on motor with battery-saving feature; eight hours of battery life on controller and up to twenty hours in standby mode
- The motor features a standard 15mm LWS rod port and comes with a 15mm rod; the controller attaches to any rod or pole up to 1" in diameter
- The motor gear has 0.8 pitch, 0.4 Nm torque
- Compatible with the REMOTE AIR smartphone app for focus or zoom control
- The motor is compatible with a separately available Bluetooth focus controller
- Two 600mAh batteries, a battery charger, two micro-USB charging cables, and a camera shoe clamp are included
UPC: 847983027828 In the Box ikan PD Movie LIVE AIR 1-Channel MOTOR MINI with Zoom Controller Kit Motor Mini (PD Movie) awvxurbzecabszecasrsbs PDL-TC-AZ Bluetooth Zoom Controller 15mm Rod Battery Charger 2 x Li-Ion 600mAh Battery 2 x Micro-USB Charging Cable Camera Cold Shoe Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan PD Movie LIVE AIR 1-Channel MOTOR MINI with Zoom Controller Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan PDL-AZ Specs | Material of Construction | CNC-machined magnesium alloy | | Standby Power | Motor Mini: 0.14 W
Bluetooth Controller: Not supplied by manufacturer | | Maximum Operating Power | Motor Mini: 8 W
Bluetooth Controller: Not supplied by manufacturer | | Maximum Current | Motor Mini: 1 A
Bluetooth Controller: Not supplied by manufacturer | | Noise | Motor Mini: ± 28 dB
Bluetooth Controller: Not supplied by manufacturer | | Working Voltage | Motor Mini: 6.4 to 8.4 V
Bluetooth Controller: 3.7 V | | Battery | Motor Mini: LP-E12 600 mAh lithium-ion, 7.2 V input
Bluetooth Controller: Not supplied by manufacturer | | Maximum Battery Life | Motor Mini: 4 hours (with power-saving feature)
Bluetooth Controller: 8 hours usage, 20 hours standby | | Bluetooth Range | 213' / 65 m | | Compatible Rod Diameters | 15 mm | | Gear Pitch | 0.8 pitch | | Maximum Torque | Motor Mini: 0.4 Nm | | Dimensions | Motor Mini: 4.3 x 1.9 x 1" / 10.8 x 4.8 x 2.3 cm
Bluetooth Controller: 2.6 x 1.7 x 1" / 6.6 x 4.3 x 2.3 cm | | Weight | Motor Mini: Not supplied by manufacturer
Bluetooth Controller: 2.8 oz / 79 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 6.4 x 4.9 x 3.3" |
