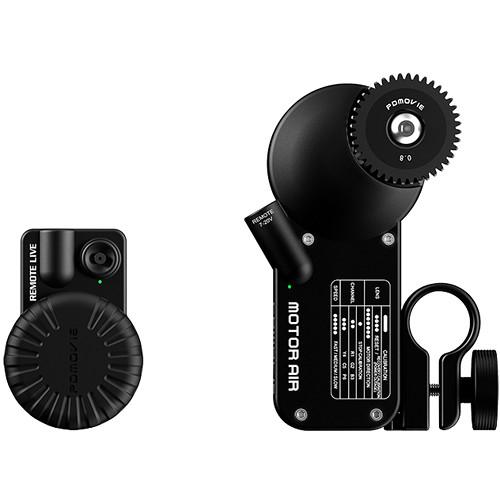

User Manual for ikan PD Movie Remote Live 2 Compact Follow Focus Control Kit Click to enlarge the picture
Contents of the user manual for the ikan PD Movie Remote Live 2
- Product category: Zoom & Focus Controls ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Zoom & Focus Controls
|
User manual for the ikan PD Movie Remote Live 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description Use this PD Movie Remote Live 2 Compact Follow Focus Control Kit from ikan to control the focus function of your lens. Attach the single-channel motor to your lens and let it autocalibrate to your lens size, then tether it to the included focus control thumbwheel with the included 39" LEMO motor drive cable for fine focus adjustments.
The focus control thumbwheel rotates with smooth, precise control and features a single button to change settings quickly. It can also control multiple tethered motors simultaneously. It can mount on a rod or rail up to 1" in diameter.
The PD-MX slave motor uses a 0.8 MOD standard cine gear with 40 teeth and a maximum torque of 0.8 Nm. You can also tether the PD-MX to other control motors to have full FIZ control of your lens. It's powered using the included 28" D-Tap to LEMO power cable or via the connection to other slave units with a separately available motor link cable. The PD-MX attaches to any 19mm rod, or to a 15mm rod using the included bushing. - PD Movie PD-MX REMOTE AIR Slave Motor Use this PD Movie PD-MX REMOTE AIR Slave Motor from ikan with a remote lens controller to control one of the focus, iris, or zoom functions of your lens. Attach the single-channel motor to your lens and tether it to a controller for fine adjustments, or use the included 6-pin motor link cable to tether to another control motor to perform additional functions. You can also tether the PD-MX to the PD-RX wireless receiver and combine with multiple slaves to have full FIZ control of your lens. The motor has a 0.8 MOD gear with 40 teeth and a maximum torque of 0.8 Nm. It's powered by a separately available D-Tap power cable or via the connection to other master/slave units with the 6-pin motor cable. UPC: 847983027736
- 19 to 15mm Rod Adapter Bushing (PD Movie) This 19 to 15mm Rod Adapter Bushing from Ikan fits into the 19mm rod bracket for PD Movie motors, enabling you to mount the motor on a 15mm support rod. The bushing is split, allowing it to compress, so it is easier to fit into the 19mm opening. The bushing's textured finish improves grip, and a contoured lip holds the bushing in place inside the rod clamp when not mounted on a rod.
- Split in bushing allows for compression
- Textured surface reduces slip
- Contoured lip helps prevent bushing from falling out of the mounting bracket when not in use
UPC: 847983012534 - D-Tap Power Cord for PD Movie Remote Air Products The D-Tap Power Cord from Ikan features a D-Tap plug on one end and a four-pin male LEMO connector on the other. It is designed for use with all PD Movie Remote Air systems. UPC: 847983012503
- Motor Drive LEMO Cable for PD Movie Products The Motor Drive LEMO Cable from Ikan is designed for use with the PD Movie systems. It offers a 10-pin male LEMO connector on either end. UPC: 847983012510
In the Box Bundle Items PD Movie PD-MX REMOTE AIR Slave Motor urcbcrqx 19 to 15mm Rod Adapter Bushing (PD Movie) D-Tap Power Cord for PD Movie Remote Air Products Motor Drive LEMO Cable for PD Movie Products
Also Includes - Live Air Focus Controller
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan PD Movie Remote Live 2 Compact Follow Focus Control Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PD Movie PD-MX REMOTE AIR Slave Motor
| Maximum Torque | 0.8 Nm | | Noise | < 28 dB | | Working Voltage | 7 to 20 V | | Cable | 6-pin motor link | | Gear Pitch | 0.8 MOD, 40 teeth | | Rod Compatibility | 15 and 19 mm | | Dimensions | 4.1 x 2.9 x 0.9" / 10.4 x 7.3 x 2.3 cm | | Weight | 7 oz / 196 g | | | | Box Dimensions (LxWxH) | 6.25 x 6.25 x 2.0" | - 19 to 15mm Rod Adapter Bushing (PD Movie)
| Diameter | Outer: 19 mm
Inner: 15 mm (when compressed) | | | | Box Dimensions (LxWxH) | 5.0 x 2.5 x 0.1" | - D-Tap Power Cord for PD Movie Remote Air Products
| Connector Type | D-Tap to four-pin male LEMO | | Cord Length | 22" (56 cm) | | | | Box Dimensions (LxWxH) | 5.2 x 4.8 x 1.15" | - Motor Drive LEMO Cable for PD Movie Products
| Connector Type | 10-Pin male LEMO to 10-pin male LEMO | | Length | 22" (56 cm) | | | | Box Dimensions (LxWxH) | 4.7 x 4.2 x 0.7" |
