Product description The PDL-3CH-FIZ PD Movie Remote Live 2 Compact 3-Channel Focus Iris & Zoom Control Kit from ikan provides hardwired lens control for focus, iris, and zoom on lenses with 0.8 Mod gears. It includes three motors, a two-channel controller, single-channel controller, and necessary cables. The motors mount on 19mm support rods, or on 15mm rods using the included adapter bushings, and the rod clamps allow you to adjust the position of the motor in relation to the lens. The controllers clamp onto your tripod pan handle, square tube, or round tube with a diameter between 0.59 and 1.18".
The motors daisy chain to connect to the controller and power. Controlling each motor requires you to pair motor and controller function by matching channels. Motor channel, speed, and function indication is set locally on each motor. Motor channel, speed, and function indication are set locally on each motor. The motors feature auto lens calibration and mapping; however, your lens must have hard stops or the calibration function will not work. The single-channel controller is nominally used for controlling focus, while the two-channel controller has a push/pull lever for zoom, and a fingerwheel that can be used for focus or iris. - Precise control of the PD3-M motor follows every adjustment you make
- Suitable for applications such as motorized gimbal, jib, and tripod-mounted operation
- Can be installed quickly to most camera setups that incorporate 19 or 15mm mounting rods
- Both the focus and zoom controls can be set to operate numerous motors simultaneously, perfect for setting up elaborate 3D and special effects rigs
- Each motor and controller features an LED indicator that changes as you increment channels on the device
- Make sure that the LED color for the motor matches that of the control you are pairing it with
- Simple one-button-per-channel control makes calibration and changing lenses simple
- The included controllers attach to most square/round handles between 0.59 and 1.18" in diameter
- 0.8 Mod gearing is the standard for cine-style lenses

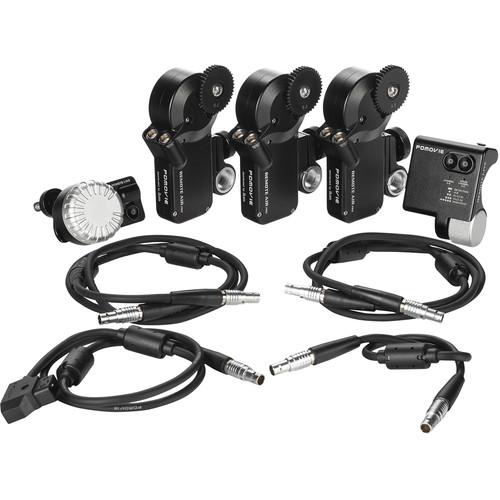

UPC: 847983019540 In the Box ikan PDL-3CH-FIZ PD Movie Remote Live 2 Compact 3-Ch Focus/Iris/Zoom Control Kit 3 x PD3-M Remote Air Pro Slave Motor ebqqdysfatszrfateaff Thumb Controller for PDL-F/PDL-3CH-FIZ PD Movie Control Kit Dual-Channel Controller for PDL-FZ/PDL-3CH-FIZ PD Movie Control Kit D-Tap to Two 6-Pin Lemo Power Cable for PD Movie Follow Focus Motor Control Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan PDL-3CH-FIZ PD Movie Remote Live 2 Compact 3-Ch Focus Iris Zoom Control Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan PDL-3CH-FIZ Specs | Channel | 6 x Assignable channels | | Connection | 6-pin LEMO | | Gear Mod | 0.8 | | Motor Type | Brushless | | Torque | Max: 0.5 Nm | | Noise | <28 dB | | Input Voltage | 12 to 18 VDC | | Mount | Motor: 15 or 19 mm rod
Controller: 0.59 to 1.18" / 15 to 30 mm | | | | Package Weight | 5.85 lb | | Box Dimensions (LxWxH) | 16.2 x 12.3 x 5.0" |
