User Manual for ikan PDL-FZ PD Movie Remote Live 2 Compact 2-Ch Focus Iris Zoom Control Kit Click to enlarge the picture
Contents of the user manual for the ikan PDL-FZ PD Movie Remote Live
- Product category: Zoom & Focus Controls ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Zoom & Focus Controls
 |
User manual for the ikan PDL-FZ PD Movie Remote Live contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description The PDL-FZ PD Movie Remote Live 2 Compact 2-Channel Focus Iris & Zoom Control Kit from ikan provides hardwired lens control for focus, iris, and zoom on lenses with 0.8 Mod gears. It includes two motors, a two-channel controller, and necessary cables. The motors mount on 19mm support rods, or on 15mm rods using the included adapter bushings, and the rod clamps allow you to adjust the position of the motor in relation to the lens. The controller clamps onto your tripod pan handle, square tube, or round tube with a diameter between 0.59 and 1.18".

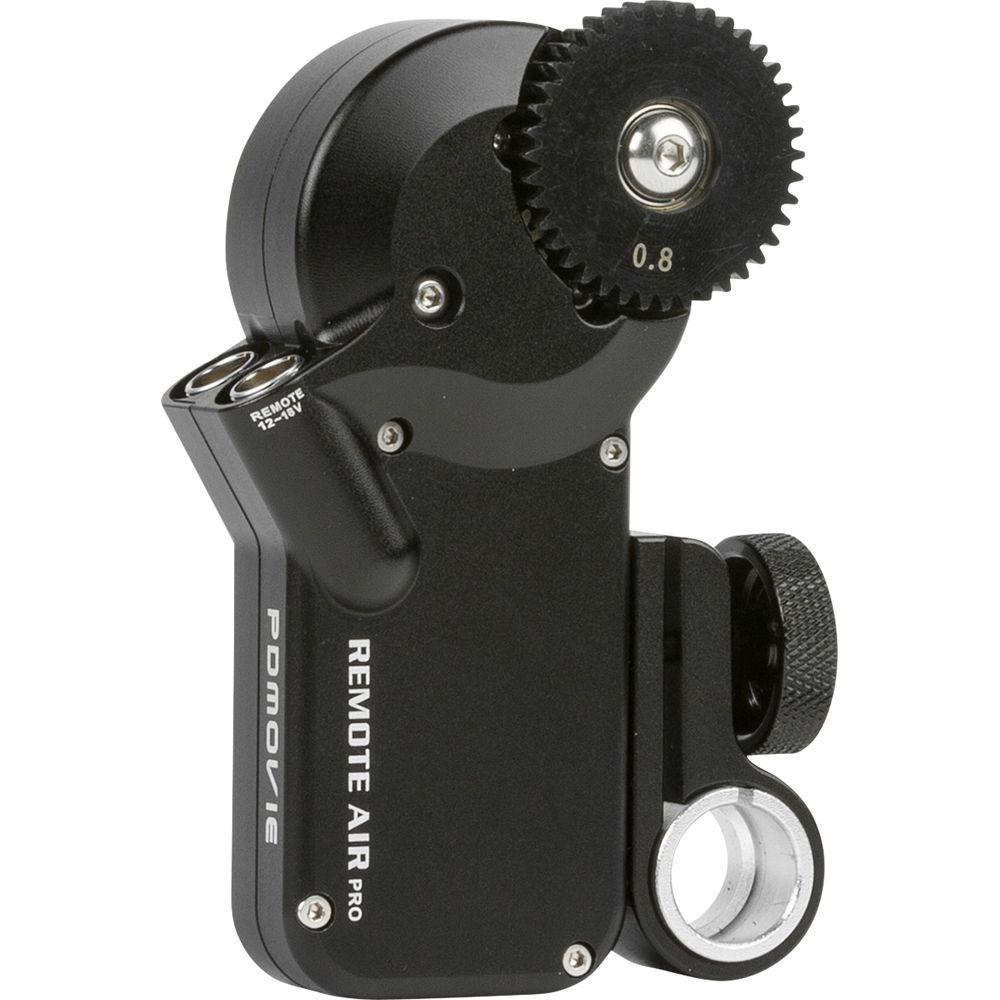

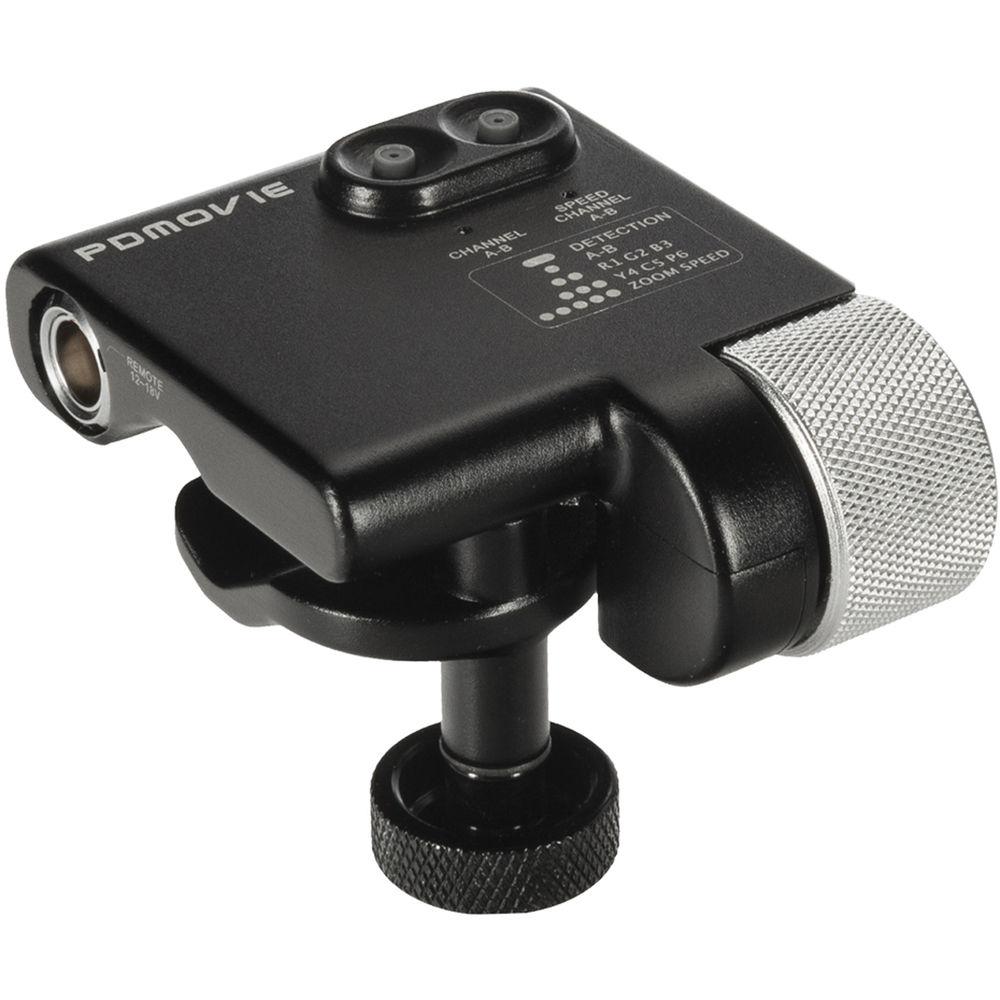

The motors daisy chain to connect to the controller and power. Controlling each motor requires you to pair motor and controller function by matching channels. Motor channel, speed, and function indication is set locally on each motor. Motor channel, speed, and function indication are set locally on each motor. The motors feature auto lens calibration and mapping; however, your lens must have hard stops or the calibration function will not work. The two-channel controller has a push/pull lever for zoom, and a fingerwheel that can be used for focus or iris. - Precise control of the PD3-M motor follows every adjustment you make
- Suitable for applications such as motorized gimbal, jib, and tripod-mounted operation
- Can be installed quickly to most camera setups that incorporate 19 or 15mm mounting rods
- Both the focus and zoom controls can be set to operate numerous motors simultaneously, perfect for setting up elaborate 3D and special effects rigs
- Each motor and controller features an LED indicator that changes as you increment channels on the device
- Make sure that the LED color for the motor matches that of the control you are pairing it with
- Simple one-button-per-channel control makes calibration and changing lenses simple

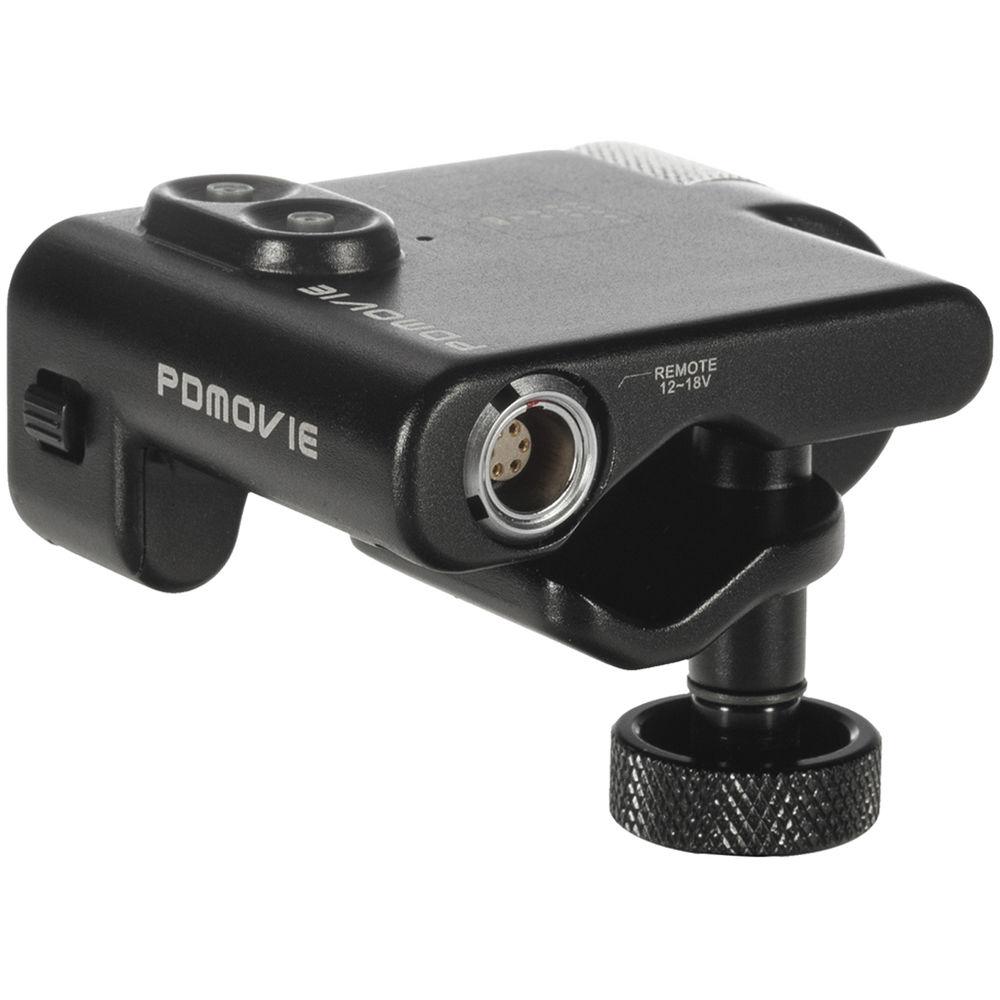

- The included controller attaches to most square/round handles between 0.59 and 1.18" in diameter
- 0.8 Mod gearing is the standard for cine-style lenses

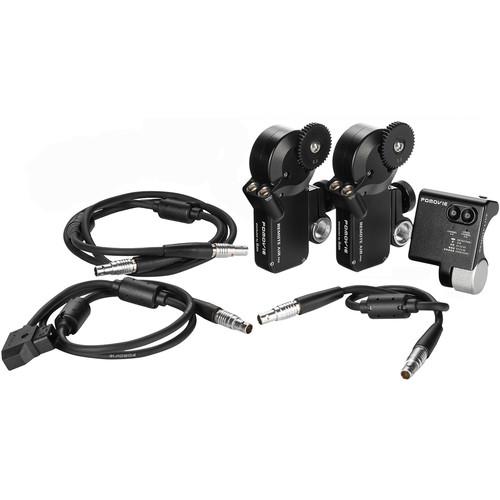

UPC: 847983017850 In the Box ikan PDL-FZ PD Movie Remote Live 2 Compact 2-Ch Focus/Iris/Zoom Control Kit 2 x PD3-M Remote Air Pro Slave Motor Dual-Channel Controller for PDL-FZ/PDL-3CH-FIZ PD Movie Control Kit D-Tap to Two 6-Pin Lemo Power Cable for PD Movie Follow Focus Motor Control Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan PDL-FZ PD Movie Remote Live 2 Compact 2-Ch Focus Iris Zoom Control Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan PDL-FZ Specs | Channel | 6 x Assignable channels | | Connection | 6-pin LEMO | | Gear Mod | 0.8 | | Motor Type | Brushless | | Torque | Max: 0.5 Nm | | Noise | <28 dB | | Input Voltage | 12 to 18 VDC | | Mount | Motor: 15 or 19 mm rod
Controller: 0.59 to 1.18" / 15 to 30 mm | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 7.9 x 7.9 x 3.6" |
