User Manual for ikan Piatto PL90 Accent Light Click to enlarge the picture
Contents of the user manual for the ikan Piatto PL90 Accent Light
- Product category: LED Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan LED Lights
 |
User manual for the ikan Piatto PL90 Accent Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description Hands-On Review: Ikan Piatto Accent Lights Read More - Ikan Piatto Accent Lights: Hands-On Review
- Piatto Accent Lights by ikan

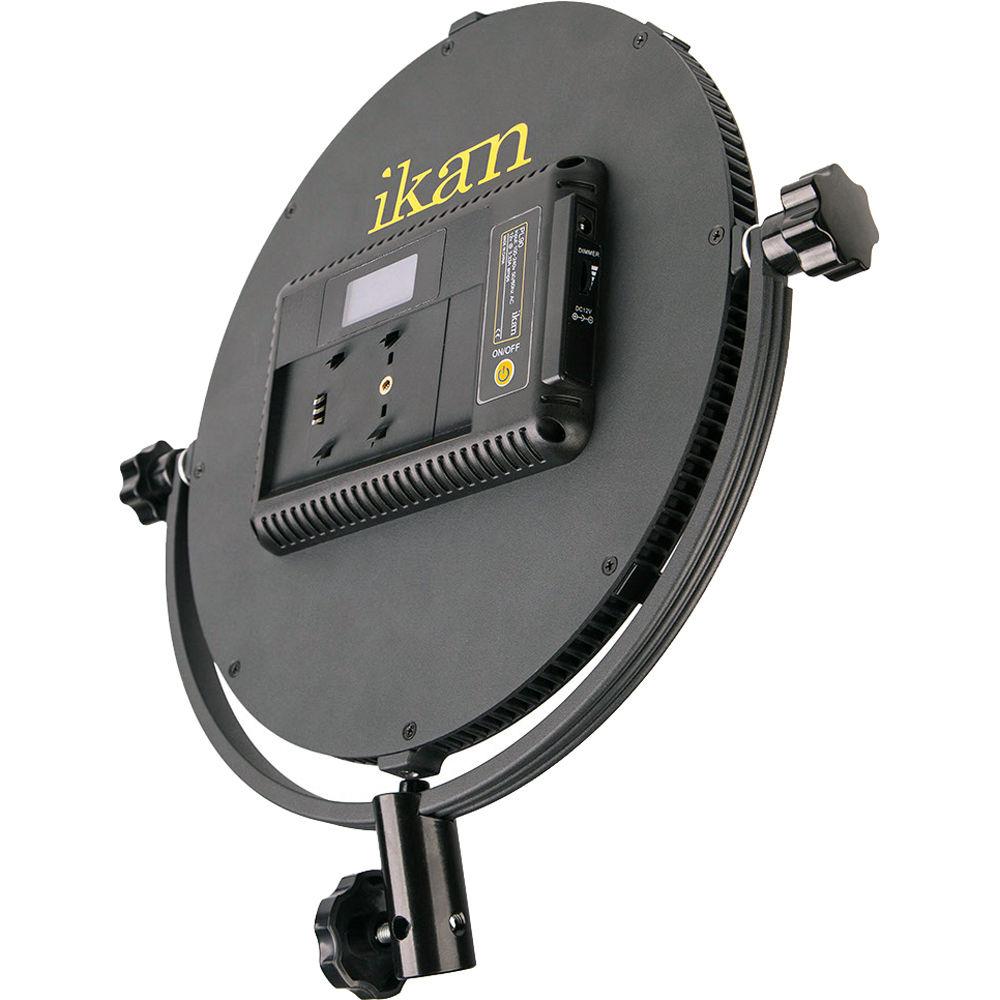

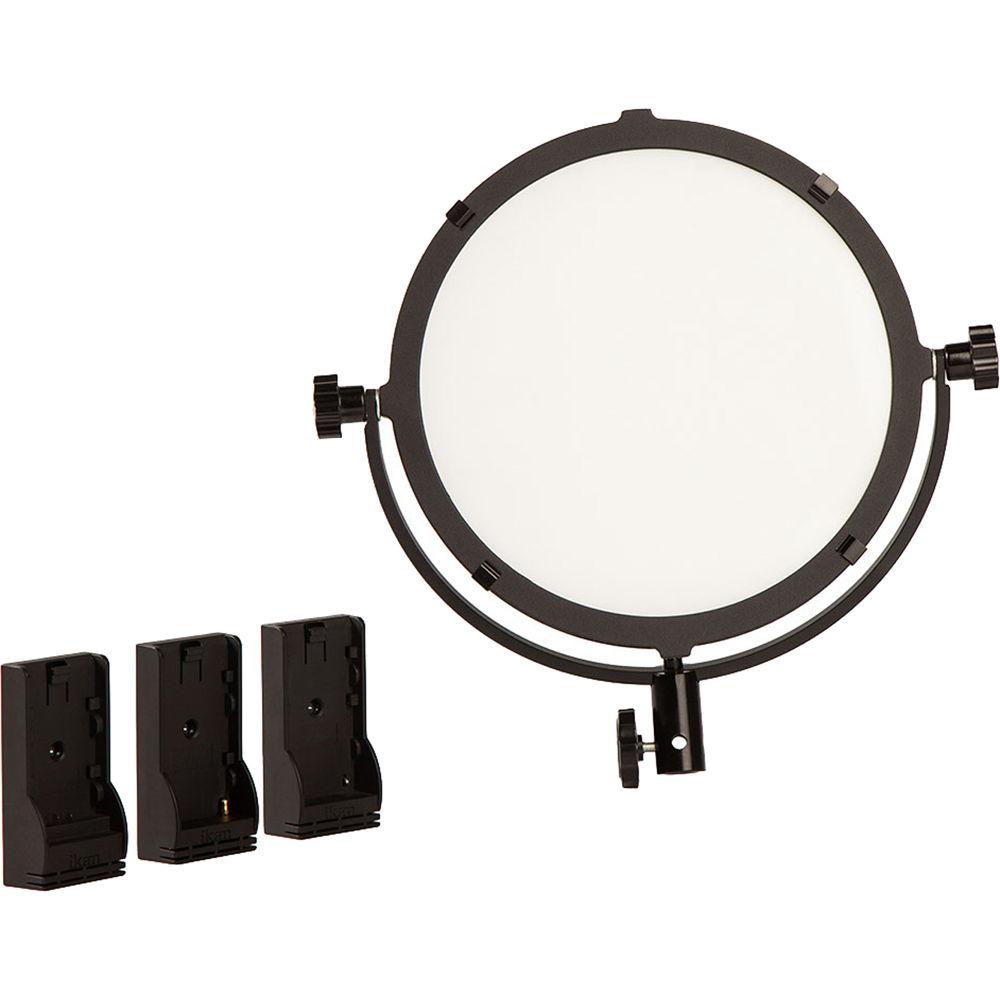

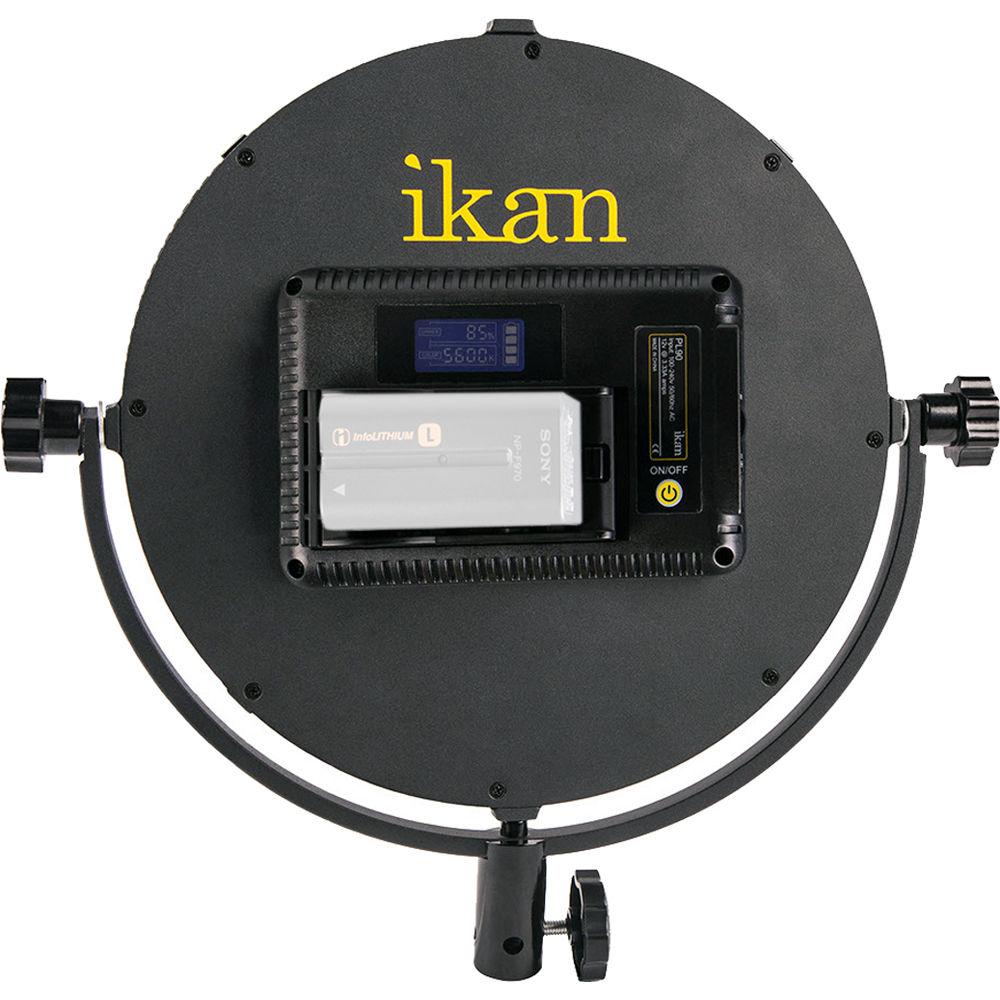

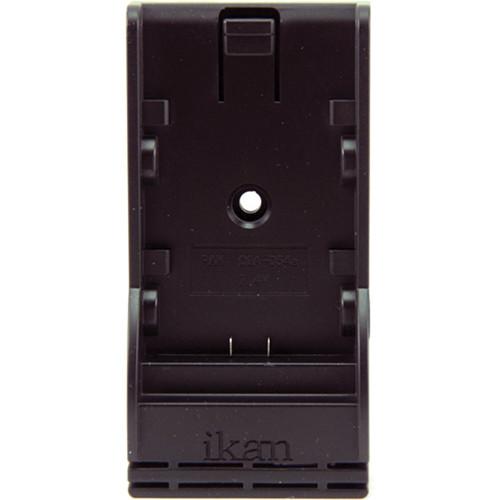

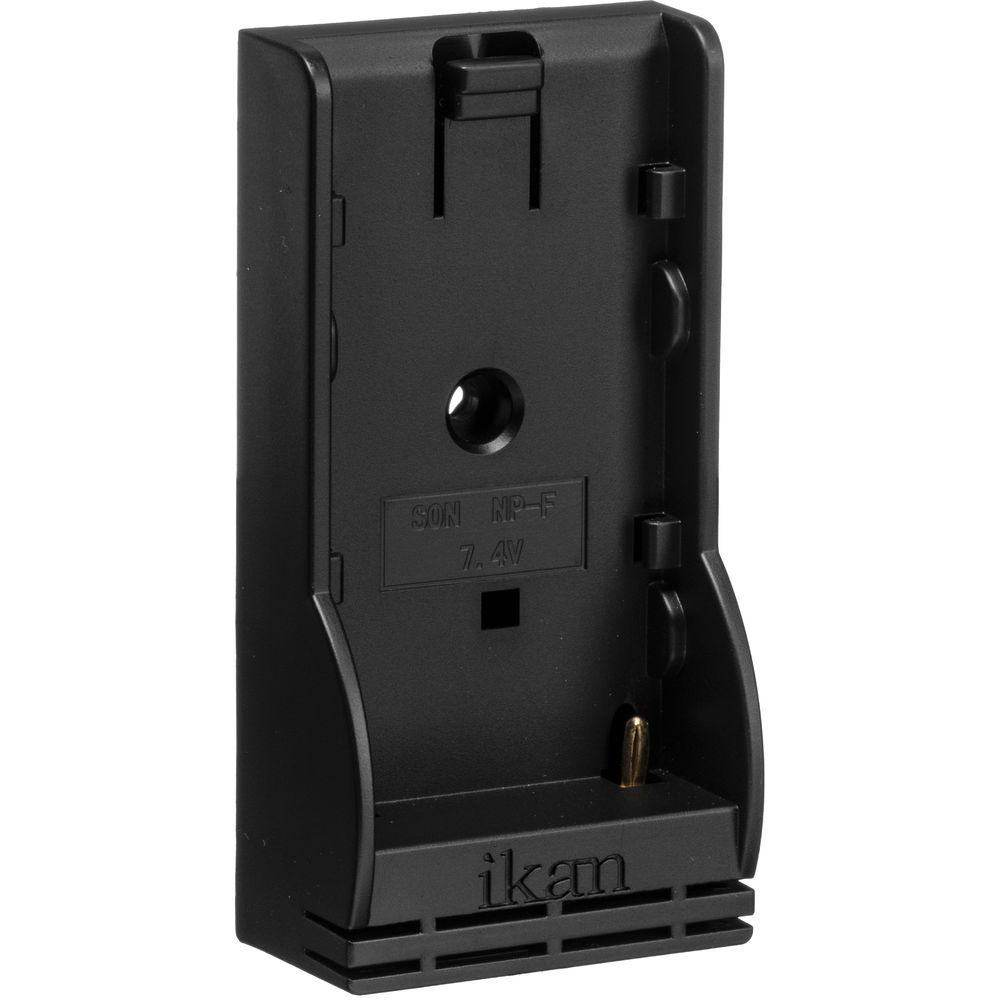

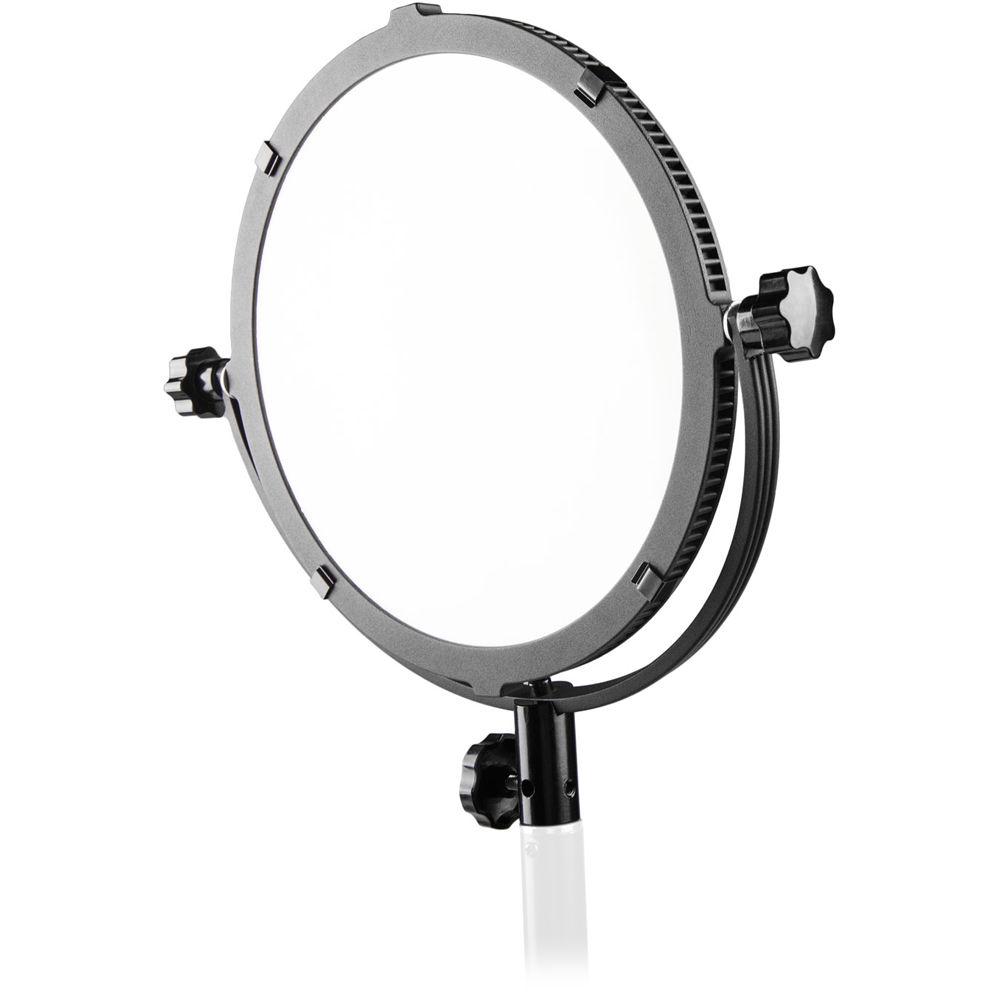

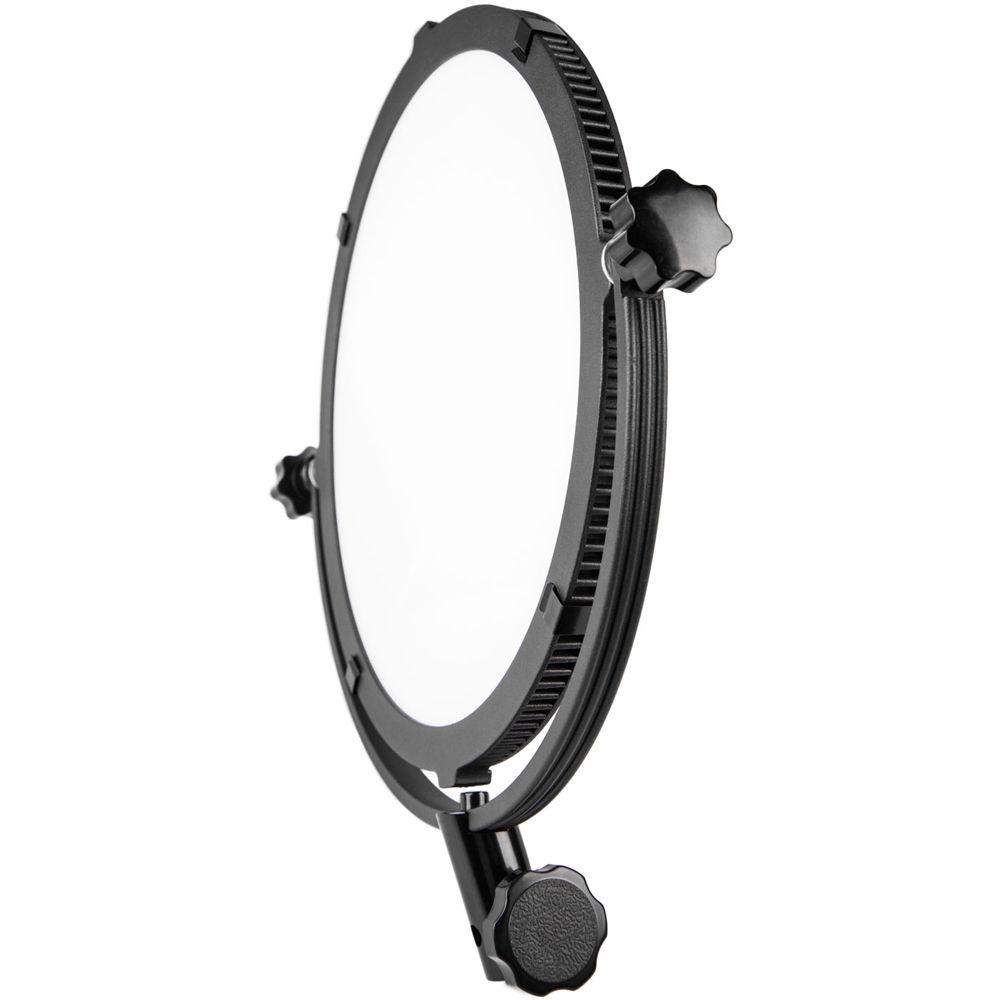

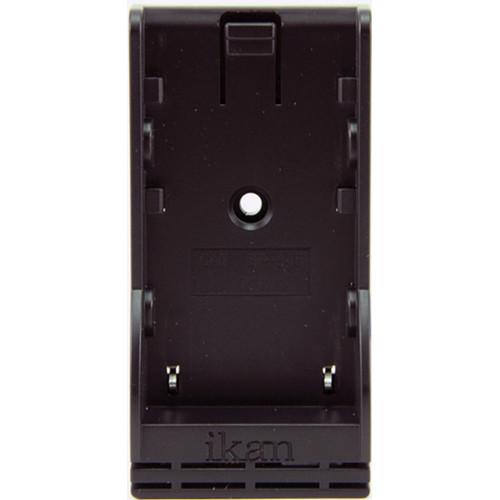

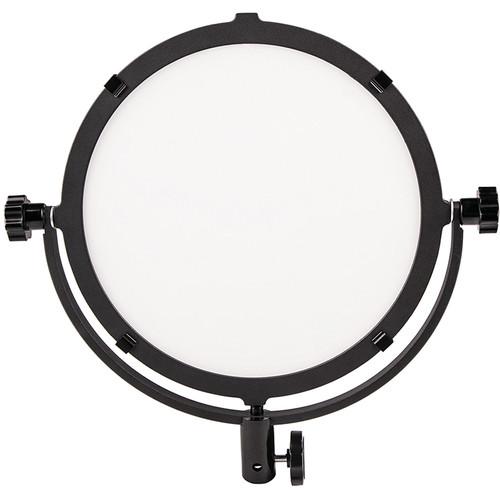

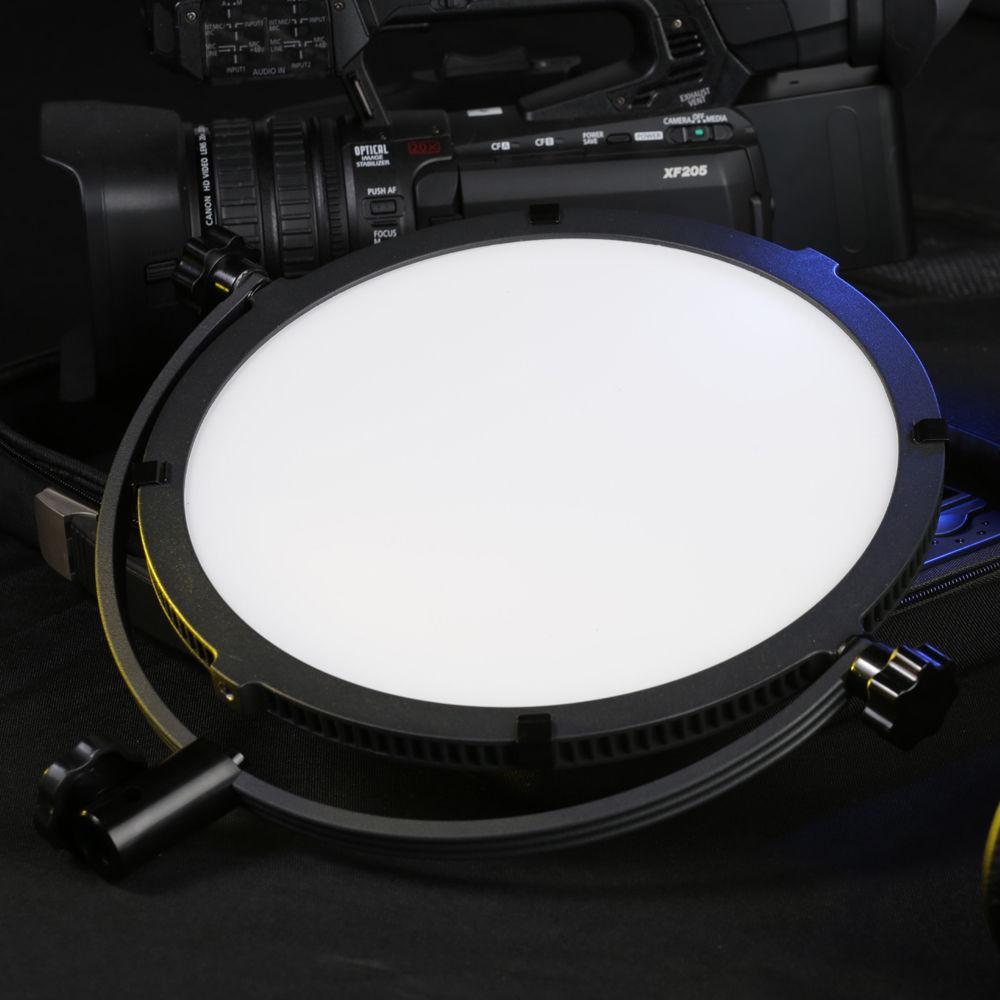

The 9" diameter Piatto PL90 LED Accent Light from ikan is a daylight-balanced beauty or wash light that employs edge light technology for extra soft output. Three-hundred tiny LEDs point inward towards the light's frame where prisms reroute it through diffusion material that remains completely free of LED hot spots.The PL90's slim 1" profile, 2 lb weight and aluminum housing make it an ideal location light for a wide variety of shooting environments. For that reason the AC/DC light comes with Panasonic, Sony, and Canon battery plates, as well as an AC adapter good for use with 120 to 240V. The 5,600K daylight-balanced head dims from 10-100% and has a high CRI of 93 for accurate rendering of colors and subtle hues. An adjustable yoke with 5/8" stand mount supports the PL90. UPC: 847983012435 In the Box ikan Piatto PL90 Accent Light (9") 12V 2A Power Adapter BP2-C Canon 900 DV Battery Plate for ikan Monitors BP2-P Panasonic D54 DV Battery Plate for ikan Monitors BP2-S Sony L DV Battery Plate for ikan Monitors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Piatto PL90 Accent Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan PL90 Specs | | | Beam Angle | 120° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 93 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | Aluminum | | Number of LEDs | 300 | | Fixture Dimensions | 9.0 x 9.0 x 1.0" / 228.0 x 228.0 x 25.4 mm | | Fixture Weight | 2.0 lb / 0.9 kg | | | | Battery Plate | 1 x Sony L-Series (NP-F)
1 x Canon 900
1 x Panasonic CGR-D | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Consumption Per LED | 0.06 W | | Max Power Consumption | 34 W | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 20.7 x 14.6 x 2.7" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
