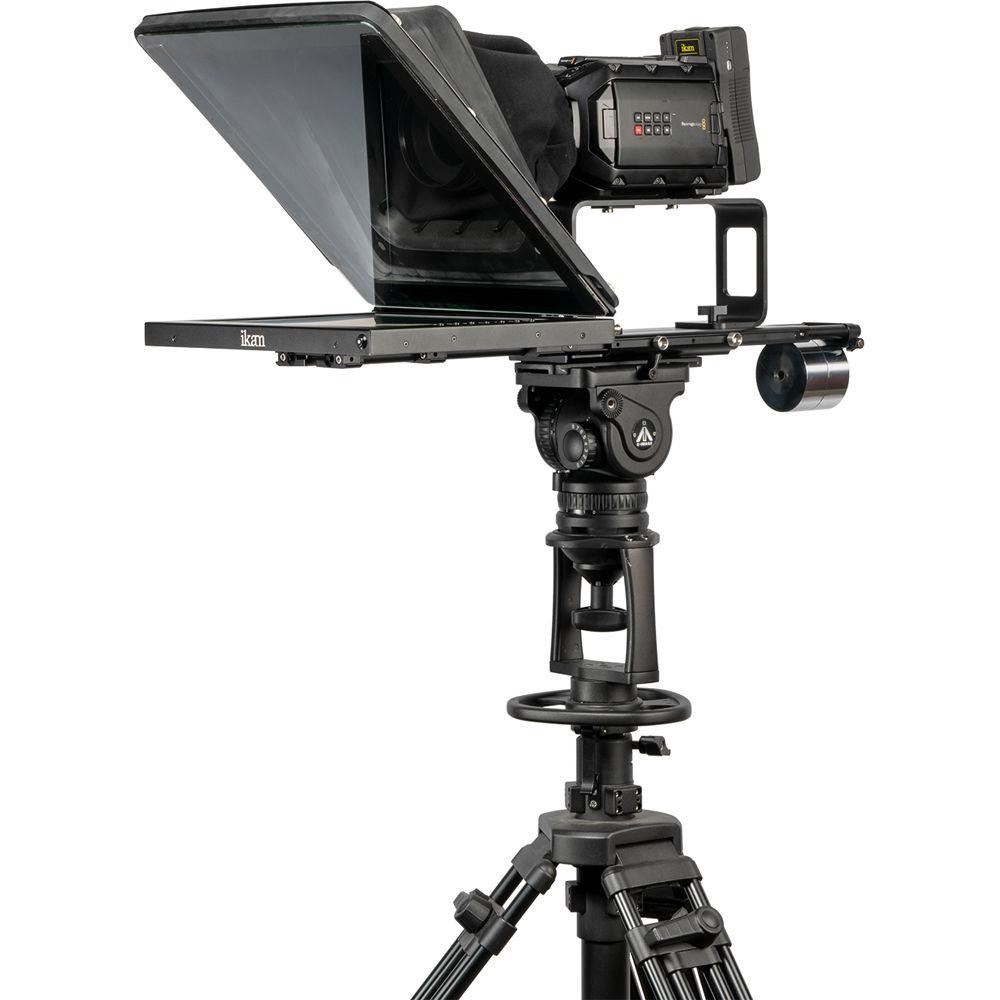

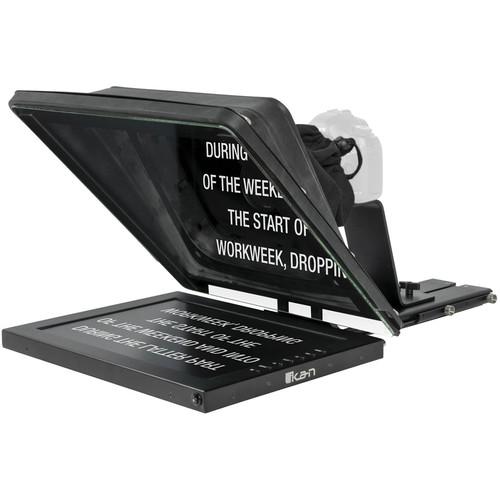

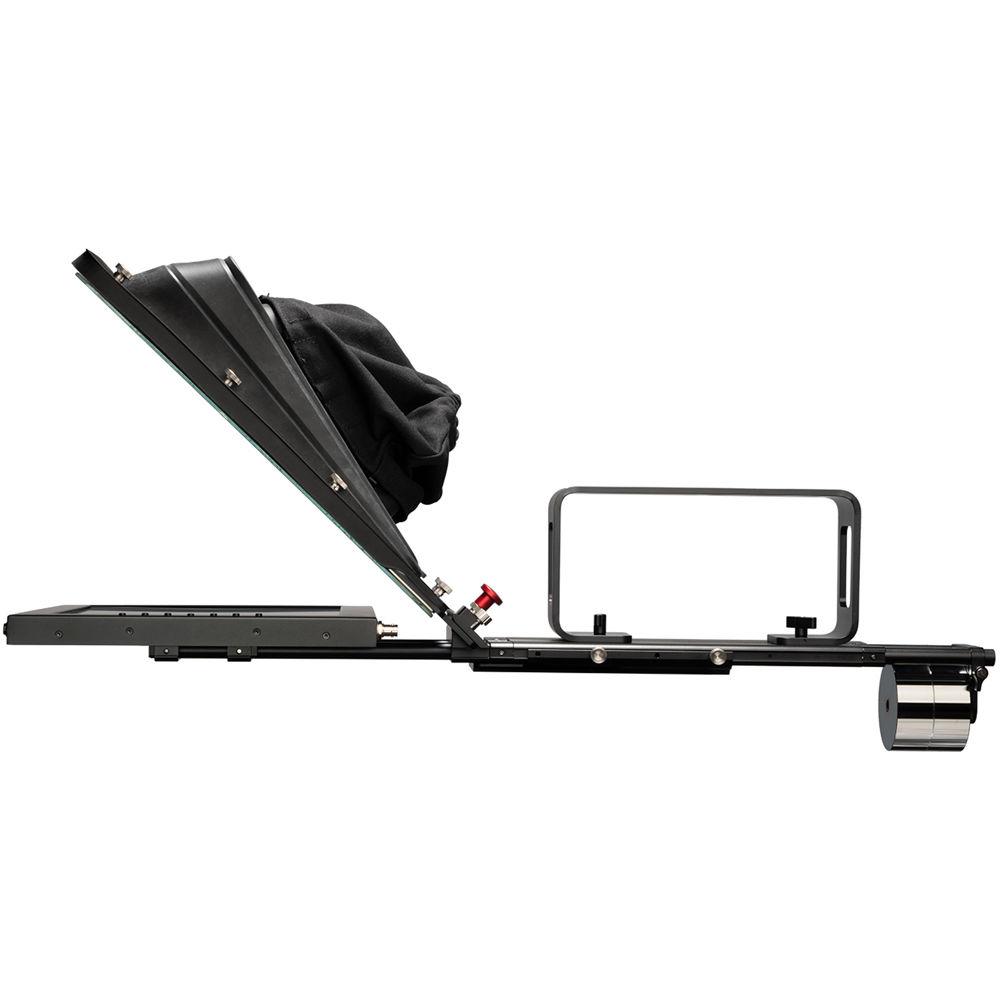

Product description Anatomy of a Teleprompter Read More Make sure your talent can read their lines clearly from up to 17' away with this Professional High Bright Teleprompter from ikan. The durable aluminum teleprompter comes with a 15" LED monitor, 70/30 beamsplitter glass, a collapsible teleprompter hood, and all the mounting hardware you need.

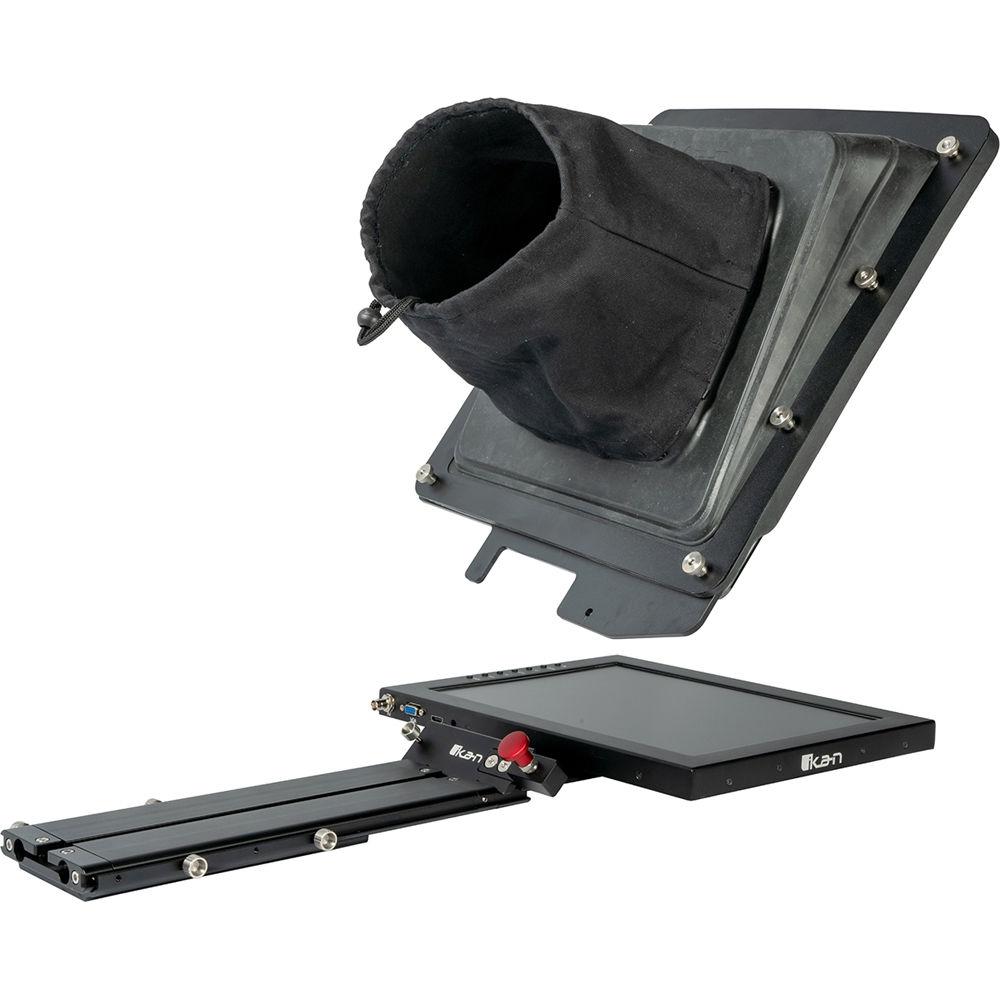

The bright, backlit monitor features 1920 x 1080 resolution, 160/170° viewing angle, 1000 cd/m² brightness, and 4:3 aspect ratio, all which provide crisp, clear reading. The monitor has HDMI, BNC composite, and VGA inputs supporting a wide range of source options. The teleprompter comes with a collapsible hood, which includes an adjustable cloth boot to insert your lens.

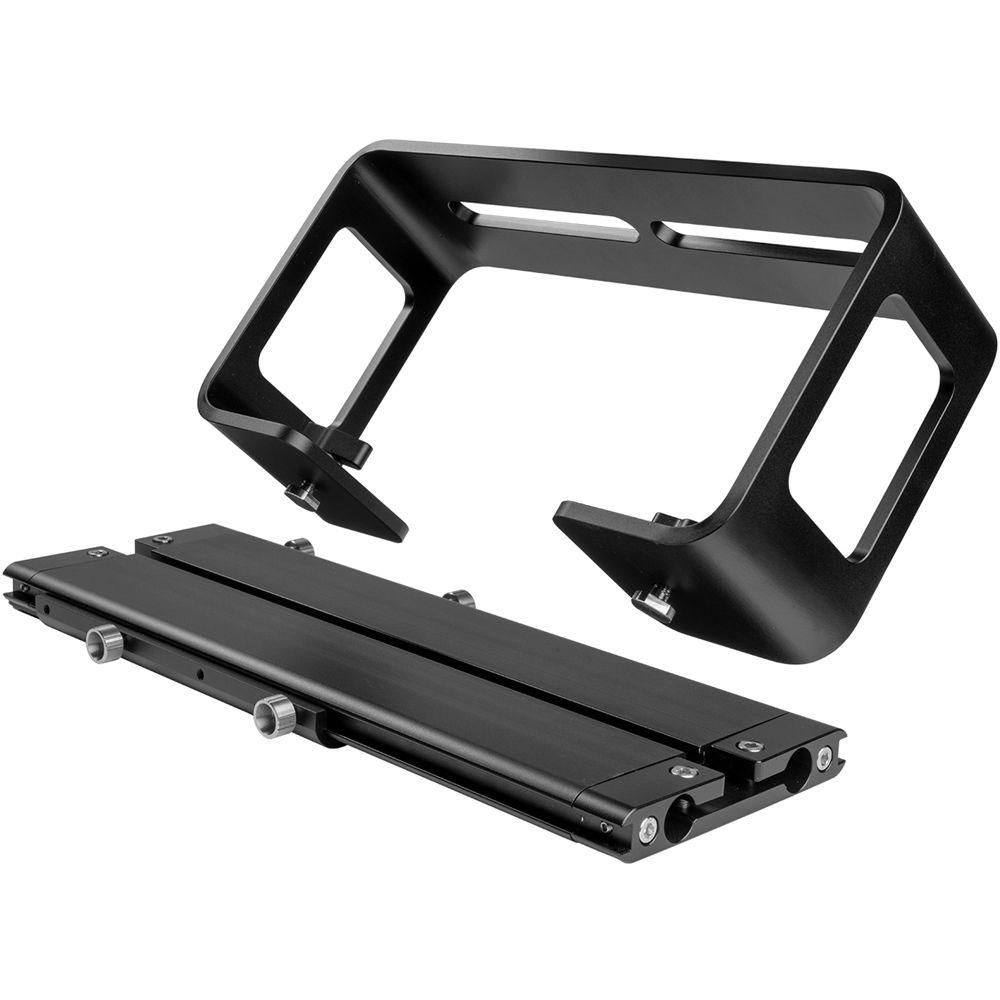

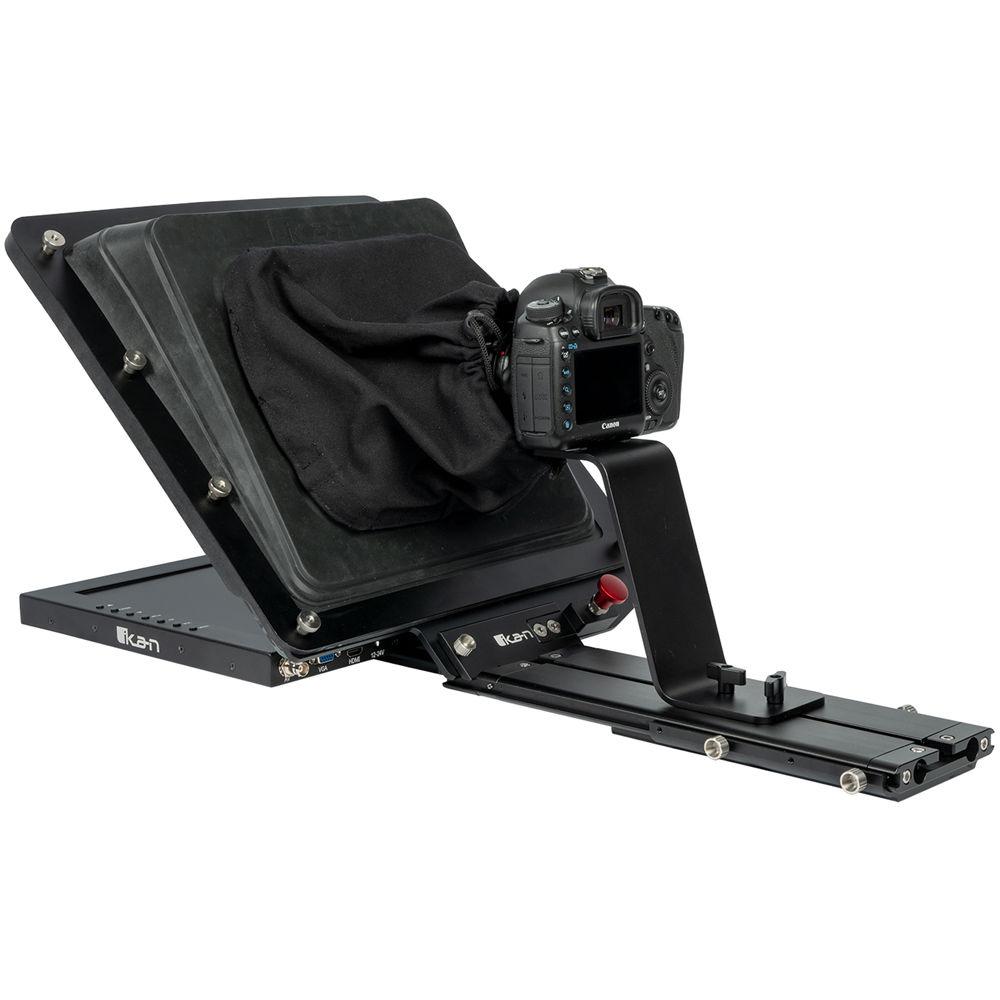

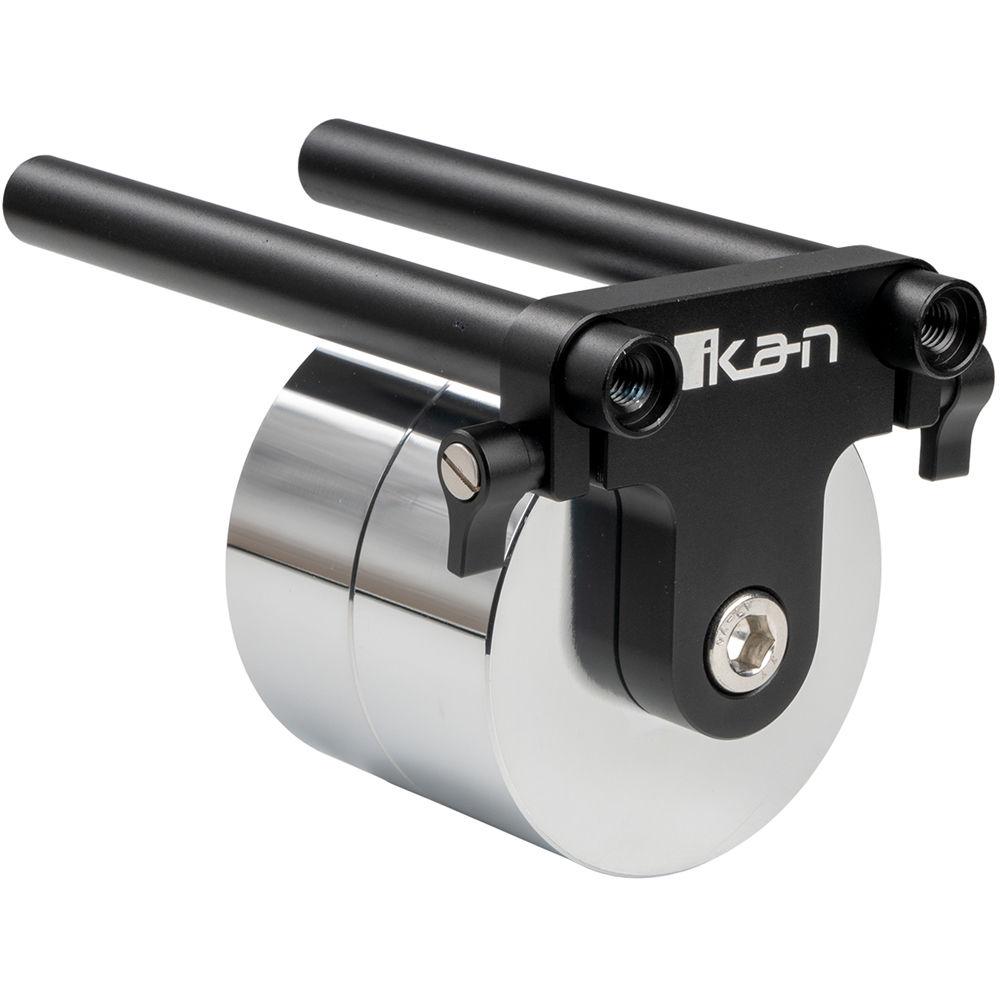

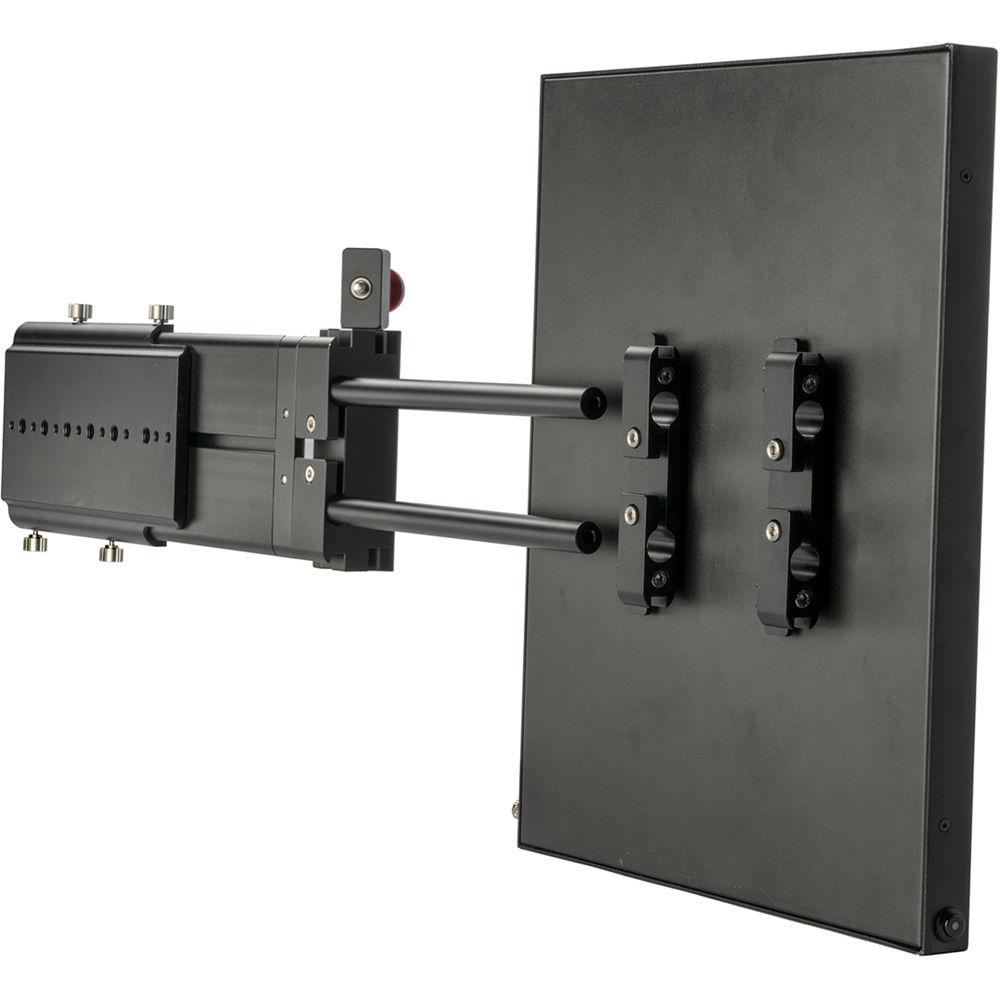

There are multiple 1/4"-20 and 3/8"-16 mounting threads all around the prompter, and it comes with all the hardware needed for assembly and mounting on a tripod or rig. Three risers are included to fit which camera you're using: one for a DSLR or mirrorless camera, one for a larger camcorder, and one to attach a separately available VCT plate for mounting an ENG camera. Counterweights are also included in case the prompter becomes front heavy.
The entire kit comes in a custom-cut foam insert which can be repurposed when you want to transport it in a separately available case. An AC adapter and a copy of PrompterPro teleprompter software for Mac and Windows are also included. - Full teleprompter package with 70/30 beamsplitter glass and 15" monitor
- 1920 x 1080 resolution, 160/170° viewing angle, 4:3 aspect ratio, 1000 cd/m² brightness, LED backlight monitor

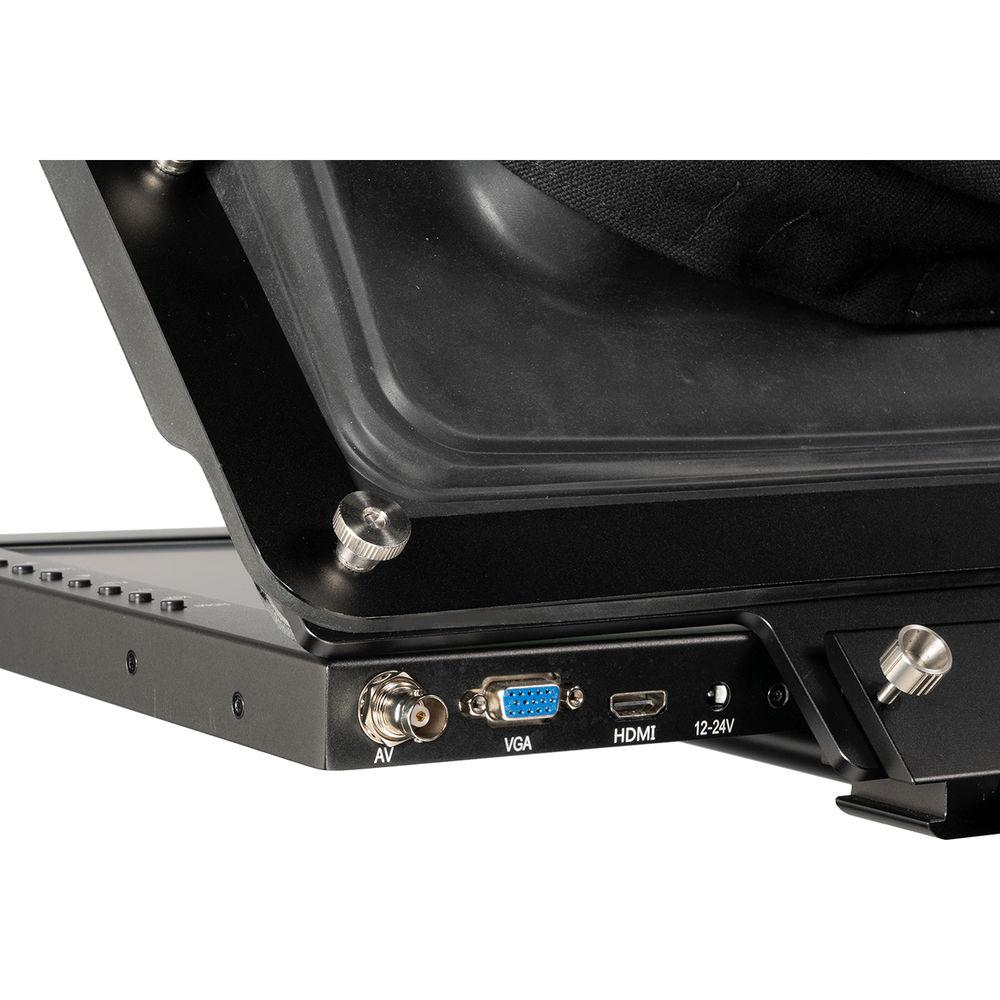

- HDMI, BNC composite, and VGA inputs
- Sturdy aluminum construction, collapsible hood with adjustable cloth lens boot
- AC adapter, teleprompter hood, counterweights, and mounting hardware included; ships with custom-cut foam that can be repurposed to transport in a case
- One riser mount included for DSLR mirrorless size cameras, one for mid-size camcorders, and one for use with VCT plates and ENG cameras
- PrompterPro teleprompter software supports Mac and Windows platforms

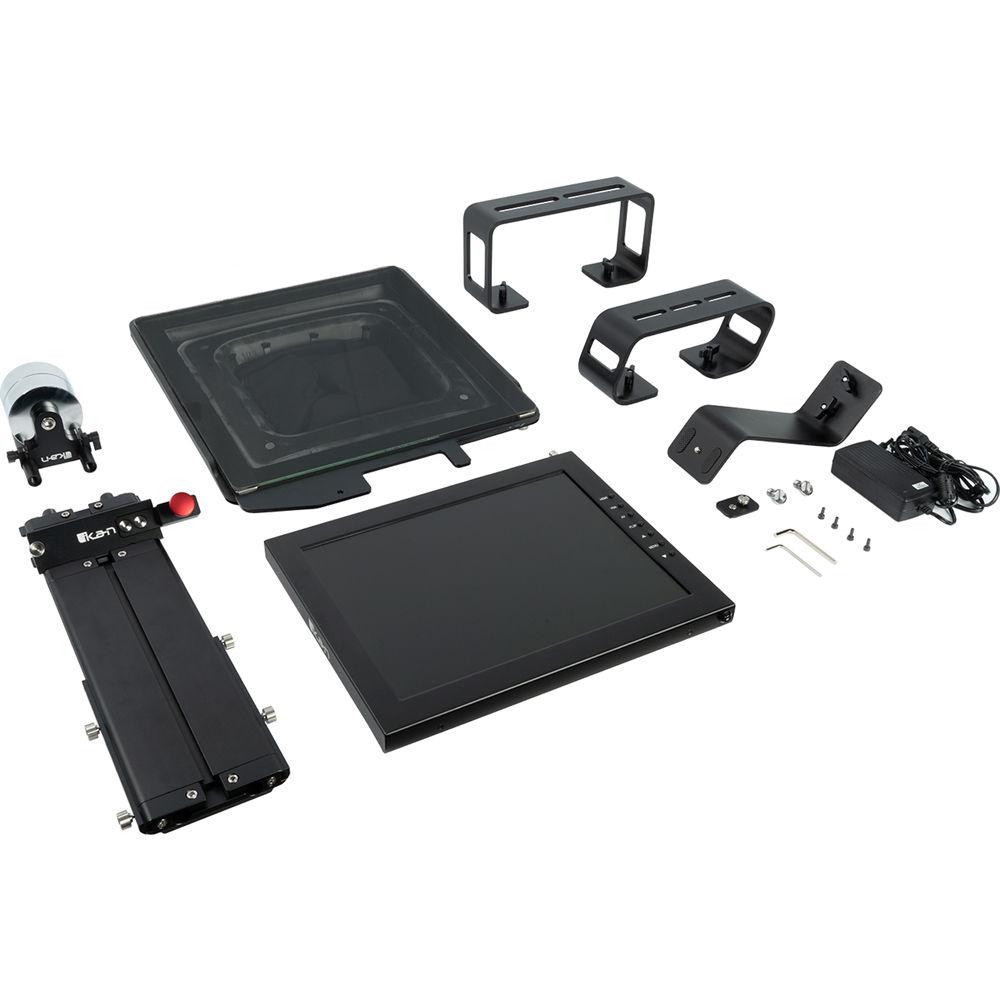

UPC: 847983029228 In the Box ikan Professional High Bright Teleprompter (15") Teleprompter Base Bracket with Beamsplitter Glass Hood with Boot 15" Monitor AC Adapter with Power Cord 2 x Counterweight (2.5 lb) 2 x D-Ring with 1/4"-20 Screw 3 x Height Riser PrompterPro Software 2 x Allen Wrench Mounting Hardware Custom-Cut Foam Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Professional High Bright Teleprompter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan PT4500 Specs | | | Reading Range | 17' / 5.2 m | | Beamsplitter Ratio | 70/30 | | Beamsplitter Shape | Rectangular | | Beamsplitter Material | Glass | | Tripod Mount Type | 1 x 1/4"-20 Female
1 x 3/8"-16 Female | | | | Size (Diagonal) | 15" / 38.1 cm | | Maximum Brightness | 1000 cd/m2 | | Resolution | 1920 x 1080 | | Viewing Angle (H x V) | 160 x 170° | | Input | 1 x Composite (BNC)
1 x VGA
1 x HDMI | | Self Reversing | Yes | | Power Consumption | 10 W | | | | Material of Construction | Aluminum | | Weight | 22 lb / 9.98 kg | | | | Package Weight | 31.86 lb | | Box Dimensions (LxWxH) | 22.4 x 18.1 x 12.7" |
