Product description

• Rayden RW5 Daylight Half x 1 Studio & Field LED Light
  • Ikan Corp: Tech Corner - Rayden LED Lights

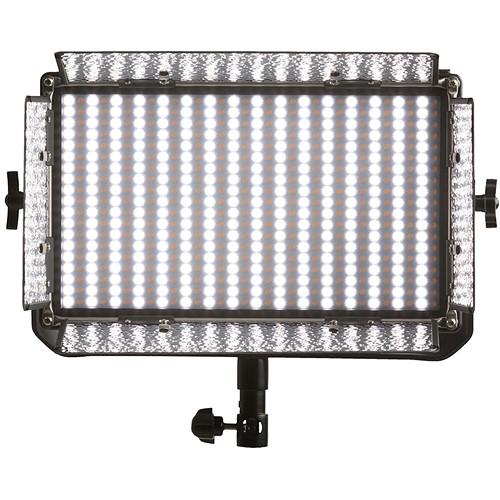

  The Rayden RW5 Daylight Half x 1 Studio & Field LED Light from ikan is built into a heavy-duty molded plastic chassis providing a lightweight yet strong fixture with enhanced features such as 100-10% flicker-free dimming, LCD display, and an included wireless remote. It produces a 50° beam spread and the barndoors feature integrated gel clips.

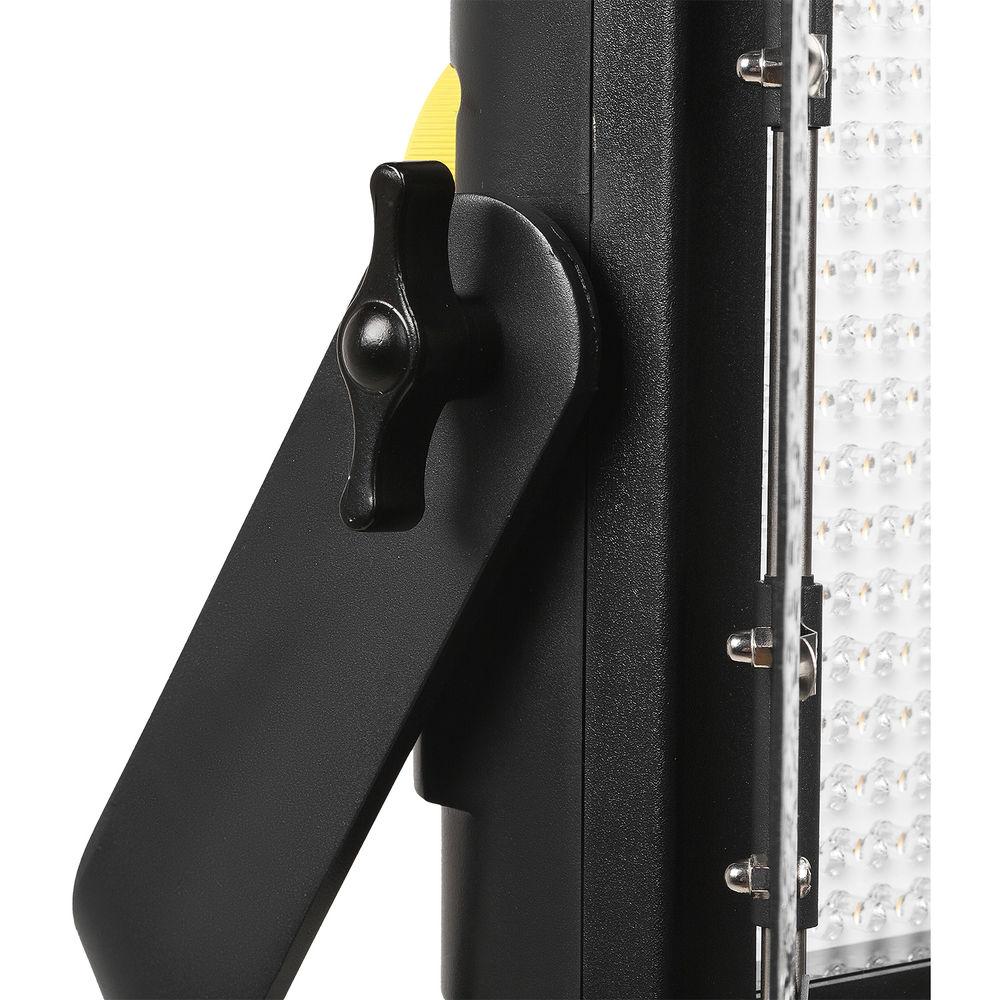

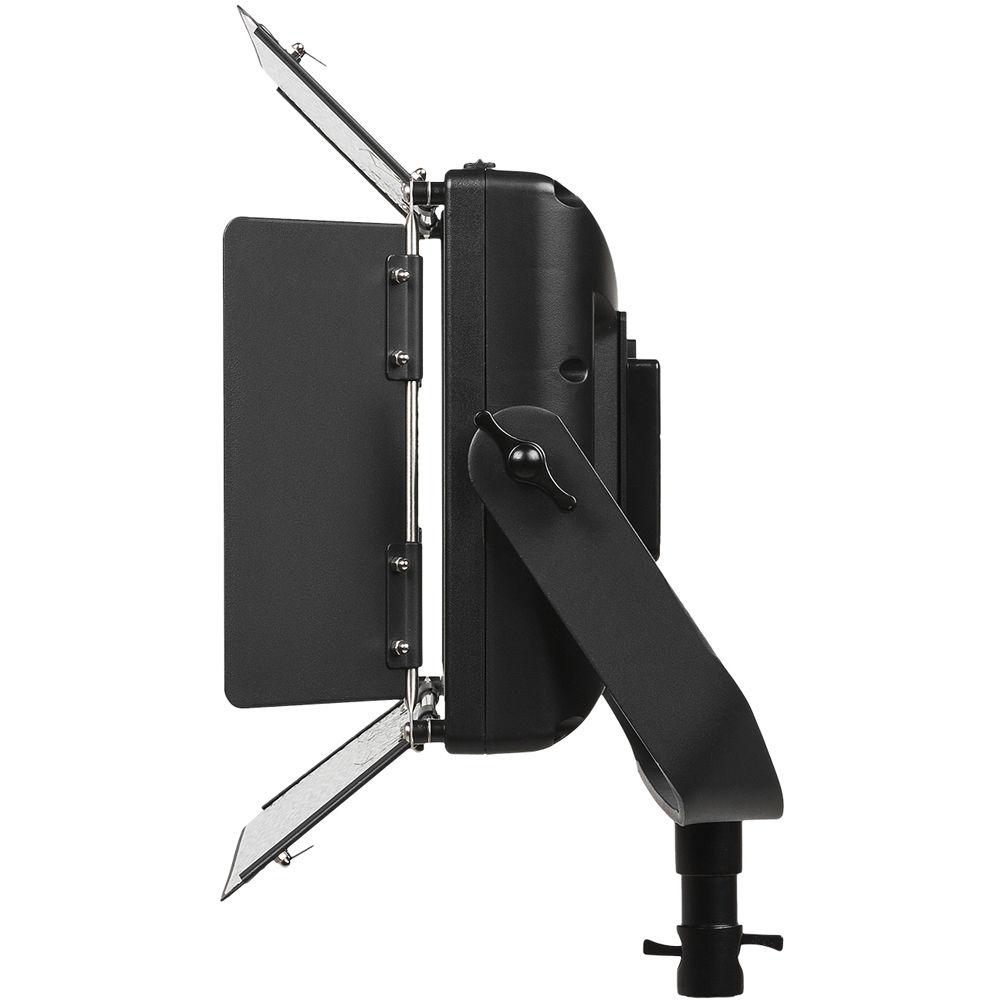

  The fixture is DC powered, incorporating a 4-pin XLR connector and including an AC/DC power supply for mains power. Interchangeable Gold and V-Mount plates are included so no worrying about getting the fixture that matches your battery system. The four-leaf barndoors provide control over light spill, and feature removable light intensifiers to suit your taste. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The yoke has a combo Baby pin/Junior stud so you can mount it on a stand or hang it from a grid with optional clamps.
  Dimming

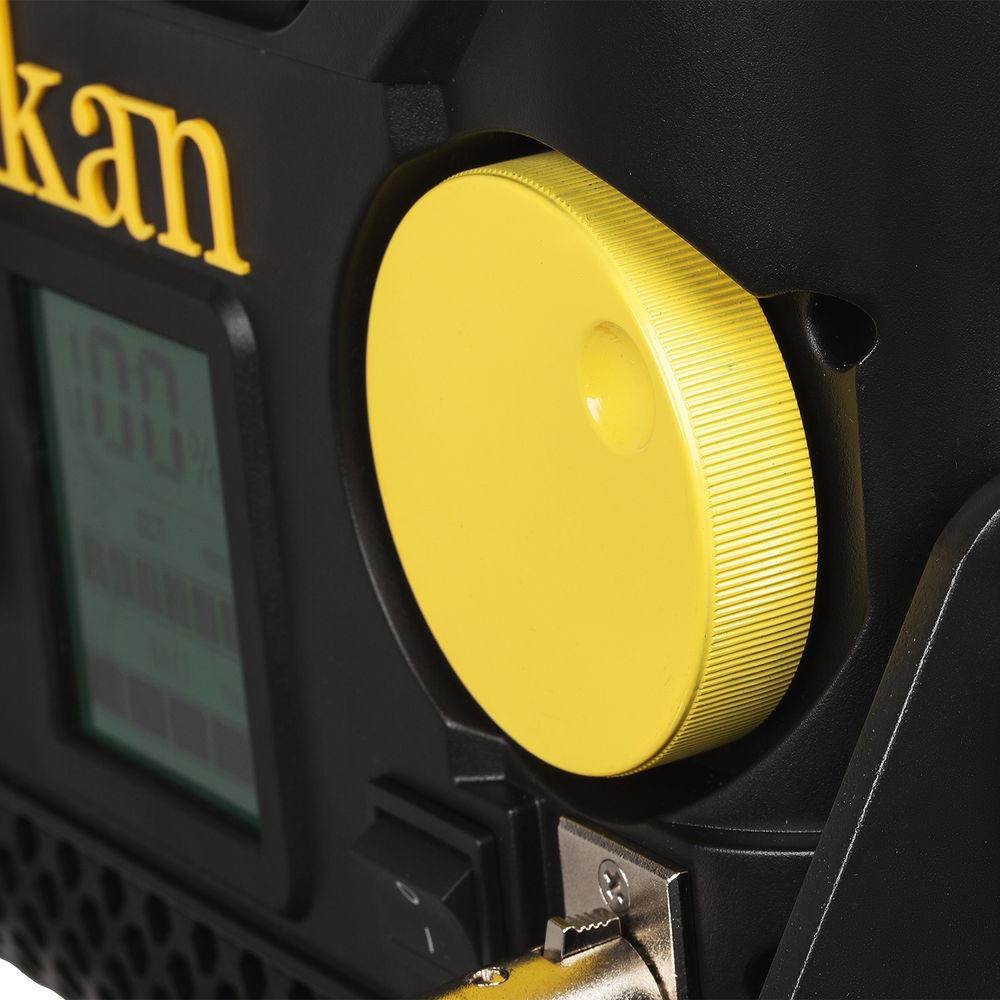

  • The big yellow knob on the back of the unit controls the dimming of the unit. It features an indent for fingertip control and is positioned at the edge of the fixture, which is cut away allowing you to adjust the knob from the side of the unit when the back is difficult to access. You can also use the included wireless remote to control the dimming.
  Removable Intensifiers

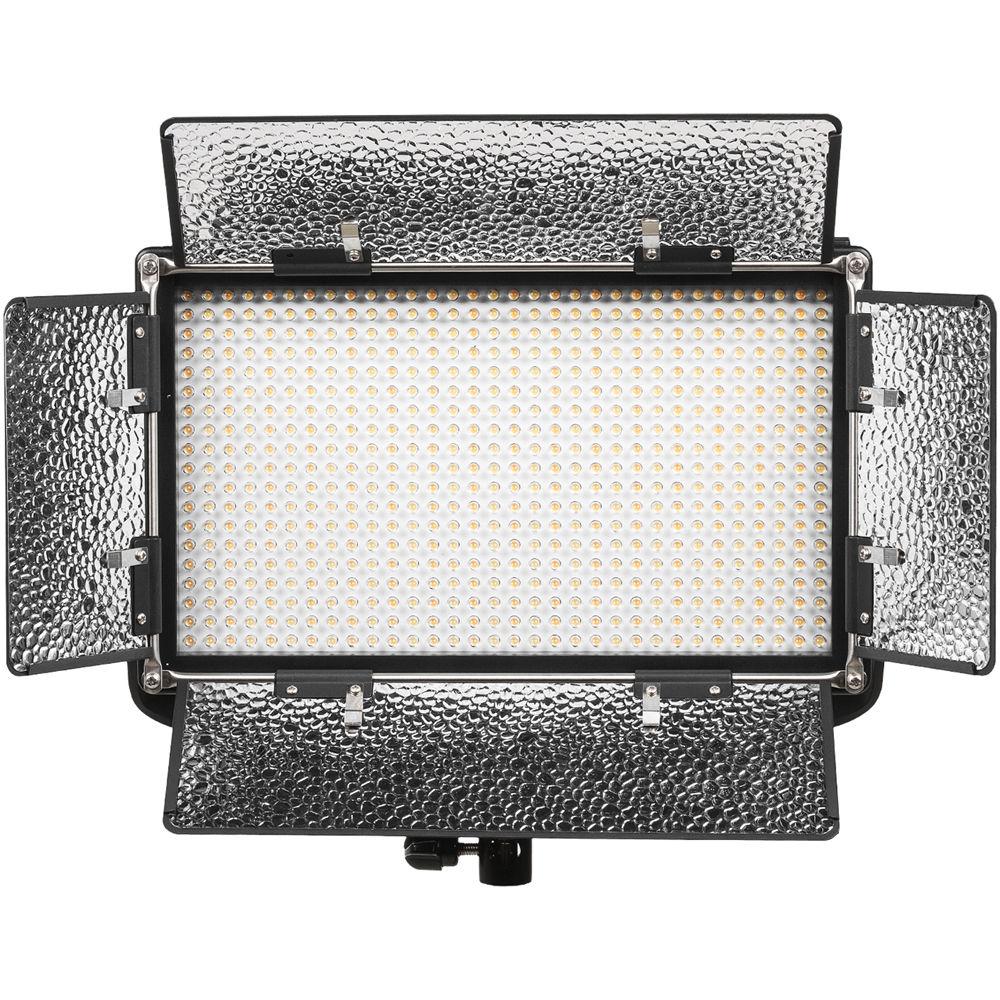

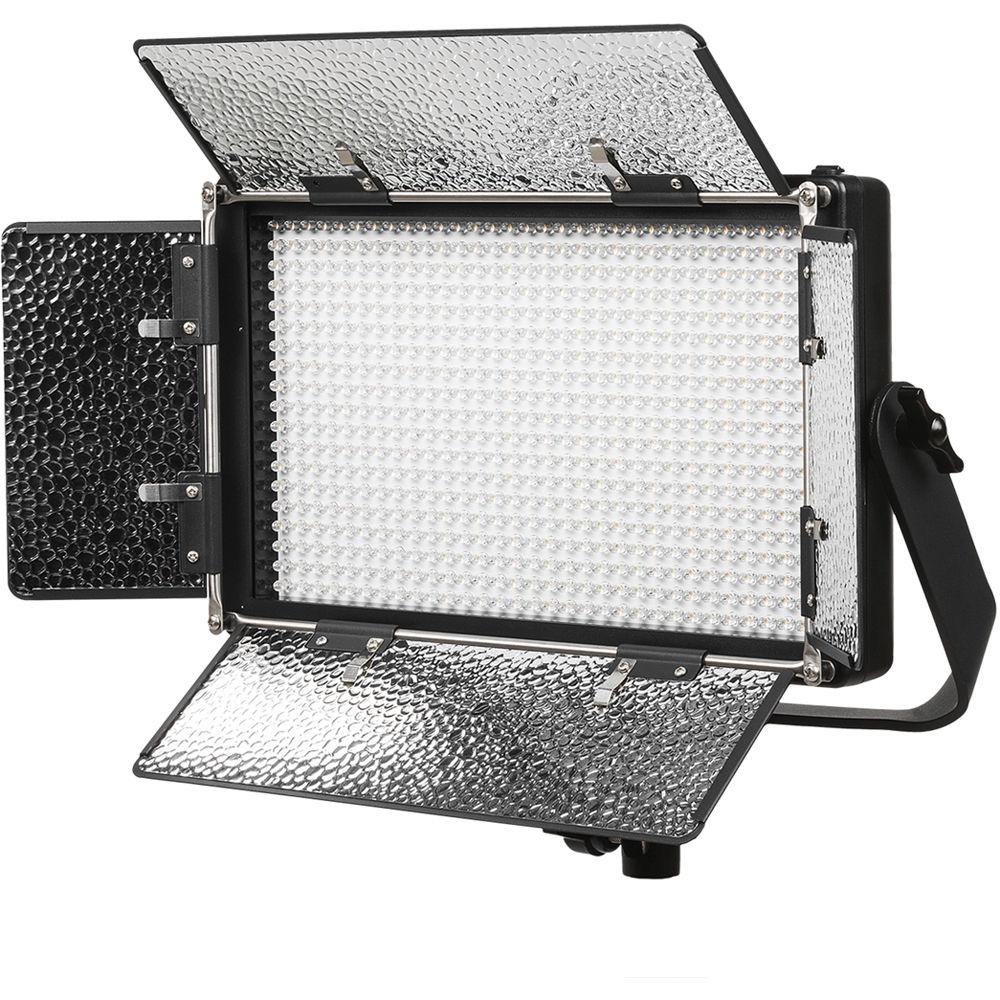

  • While some users may enjoy the small increase in light output that intensifiers bring, other users prefer to use barndoors without intensifiers. The removable intensifiers that come with this light attach securely to the barndoors. You do not have to attach all four intensifiers, which allows you choose how many barndoors to use for intensifying your output and how many barndoors to use to cut spill.

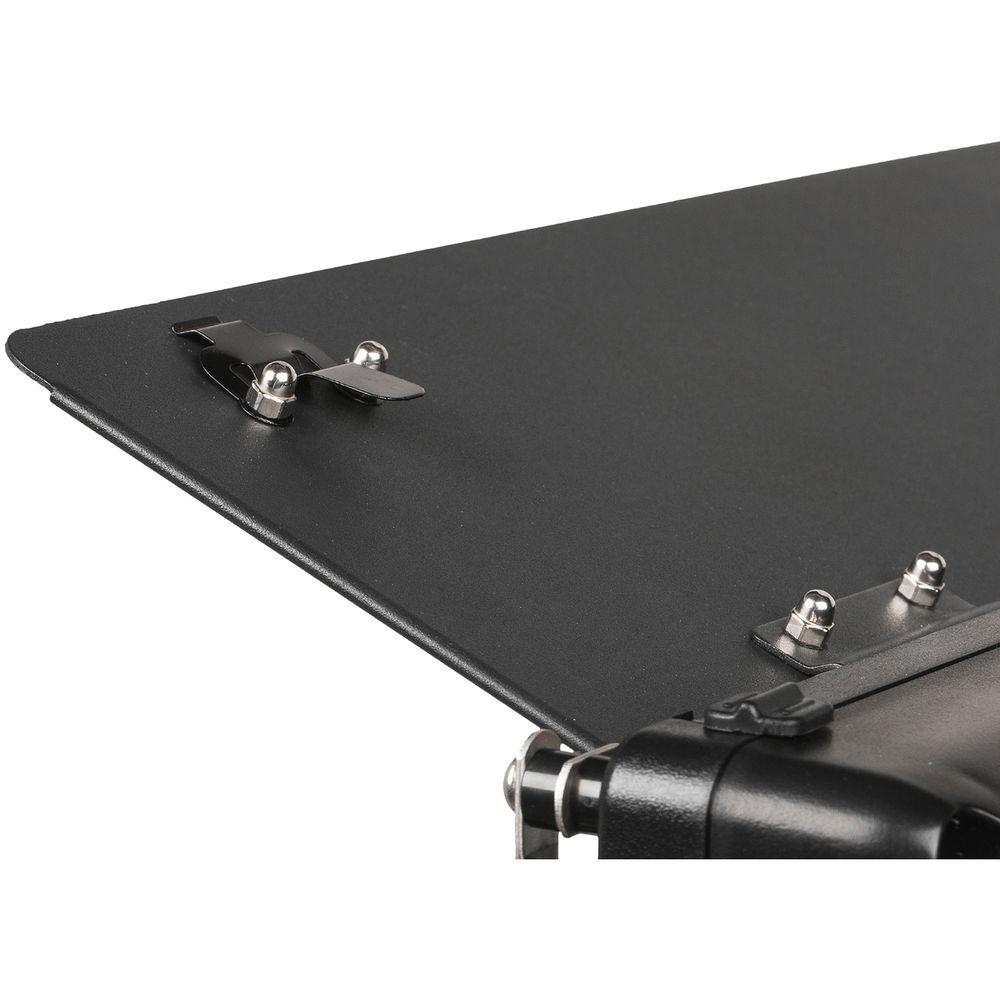

  • The top and bottom barndoors integrate gel clips for attaching diffusion or gels.
  Battery Power

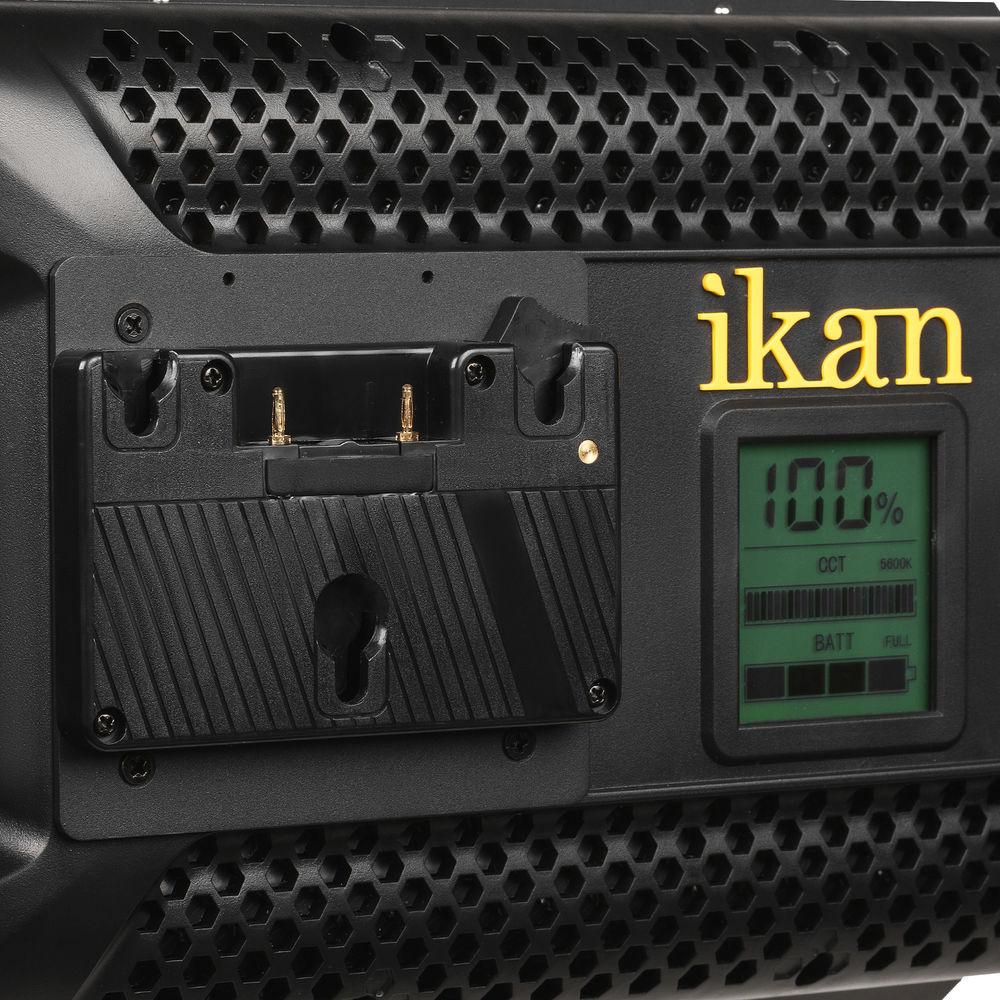

  • The fixture features an interchangeable Gold Mount battery plate. Removing four screws and disconnecting the snap connector allows you to swap out the Gold Mount battery plate for the included V-Mount plate.

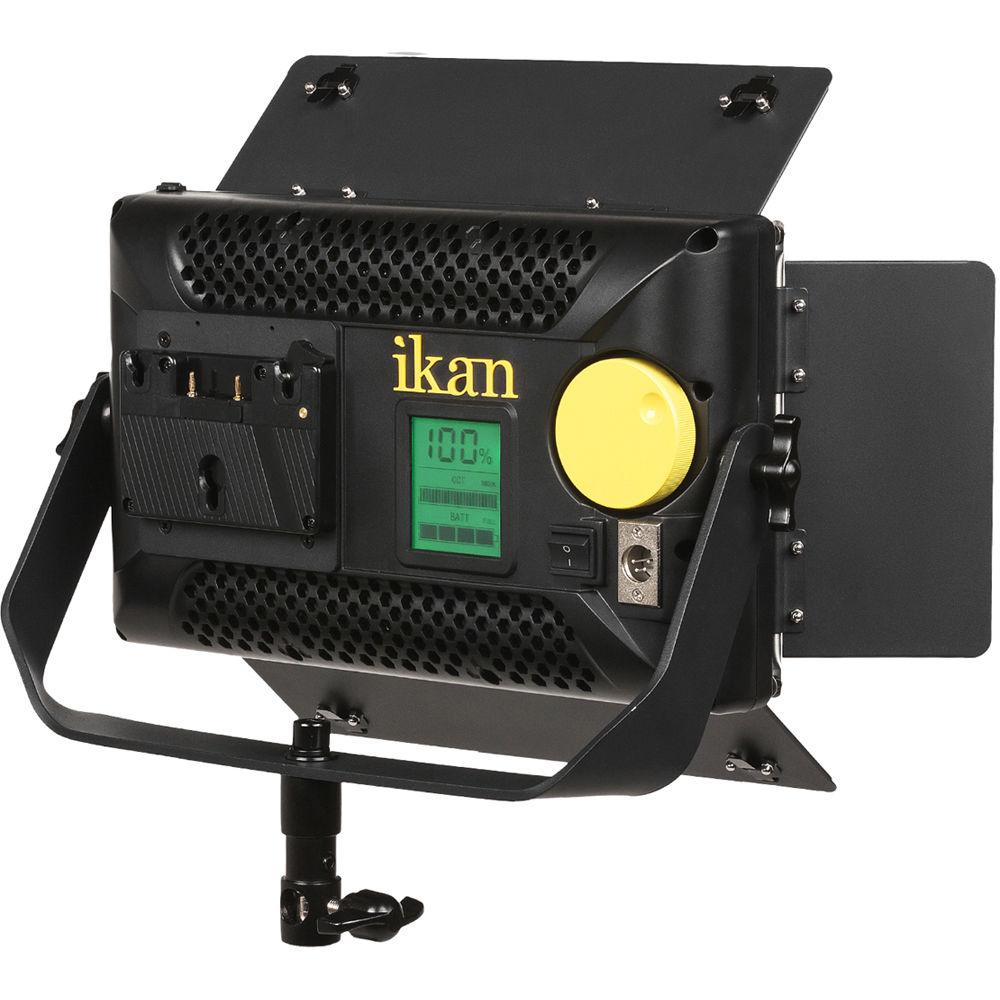

  LCD Info Screen
  • On the back of the fixture is an LCD info screen that displays the battery power remaining and brightness percentage.
  UPC: 847983016457

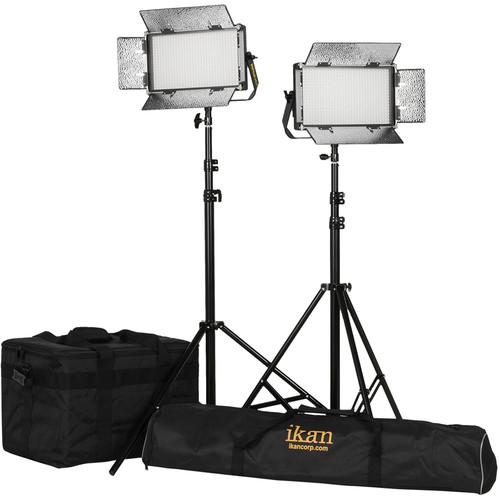

• V2 Heavy Duty Light Stand (8') The V2 Heavy Duty Light Stand from Ikan is a two-riser, three-section, air-cushioned support that rises to a height of 8' and folds down to 36". The stand supports up to 8 lb and has a 5/8" top stud. UPC: 847983019502

• Gold Mount Battery Plate (Attached)

• V-Mount Battery Plate

• Power Supply with 4-Pin XLR Cable

• Remote Control

• Yoke with Combo Baby-Pin Receiver/Junior Pin

• Neutral Diffusion Panel

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Case for the Lights
• Case for the Stands

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Rayden RW5 Daylight Half x 1 Studio & Field LED Light

  Beam Angle	50°
  Color Temperature	5600K
  Color Accuracy Standard	CRI 95 TLCI 96
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Housing Material	Resin
  Number of LEDs	608
  Fixture Dimensions	14.0 x 8.0 x 3.0" / 35.6 x 20.3 x 7.6 cm
  Fixture Weight	6.0 lb / 2.7 kg

  Battery Plate	1 x Gold Mount 1 x V-Mount

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Proprietary Wireless

  AC Input Power	110 to 220 VAC, 50 / 60 Hz
  DC Input Power	15 VDC at 7 A
  Power Source	AC Adapter, External Battery
  Consumption Per LED	0.06 W
  Max Power Consumption	36.4 W

  IP Rating	IP20

  Box Dimensions (LxWxH)	17.8 x 16.0 x 5.5"

• V2 Heavy Duty Light Stand (8')

  Load Capacity	8.0 lb (3.6 kg)
  Maximum Height	95" (241.3 cm)
  Minimum Height	38.5" (97.8 cm)
  Folded Length	36" (91.4 cm)
  Air Cushioned	Yes
  Mount	5/8" (16 mm) stud

  Box Dimensions (LxWxH)	36.5 x 3.7 x 3.7"
