Product description - Ikan Corp: Tech Corner - Rayden LED Lights
- Ikan - Rayden Flat Panel LED Lights

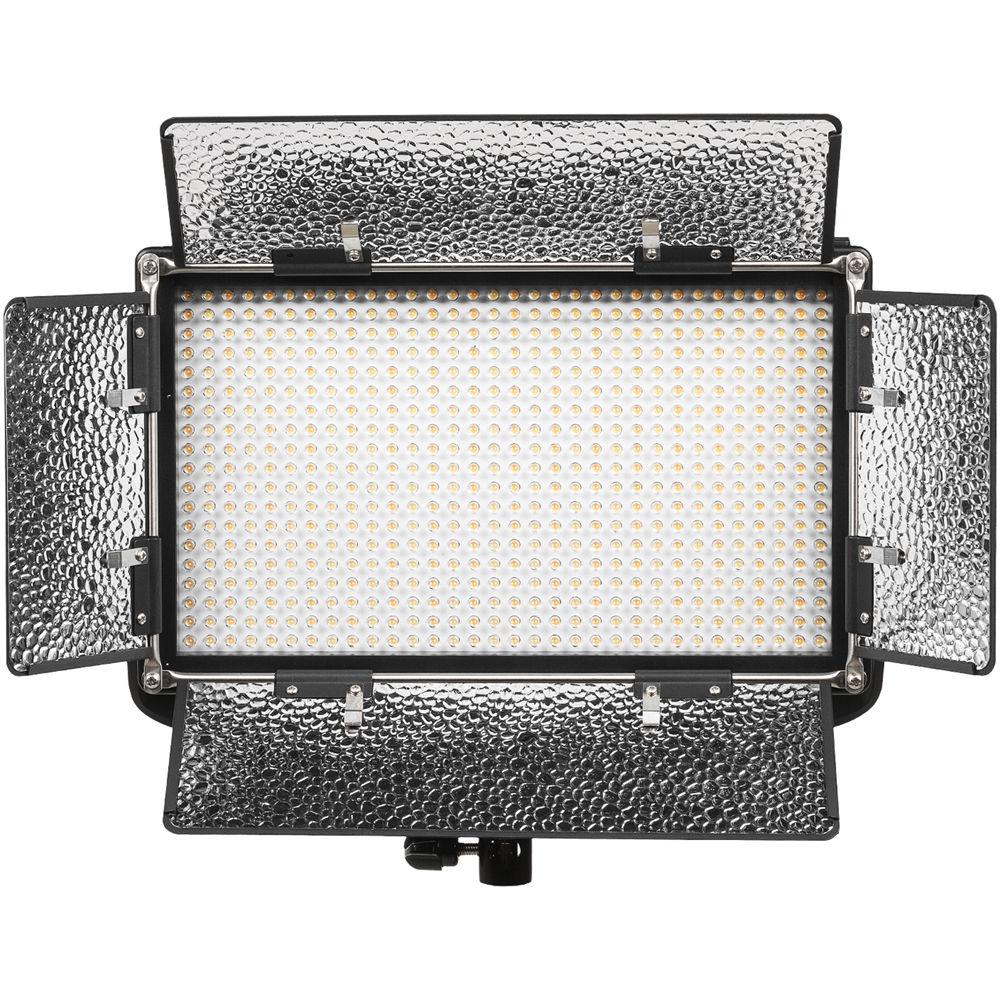

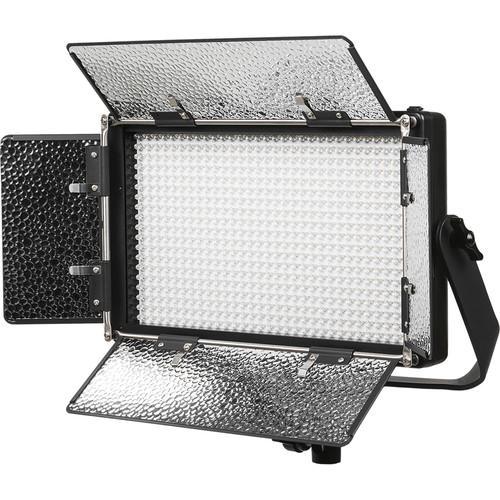

The Rayden RB5 Bi-Color Half x 1 Studio & Field LED Light from ikan is built into a heavy-duty molded plastic chassis providing a lightweight yet strong variable color fixture with enhanced features such as 100-10% flicker-free dimming, LCD display, and an included wireless remote. It produces a 50° beam spread and the barndoors feature integrated gel clips.

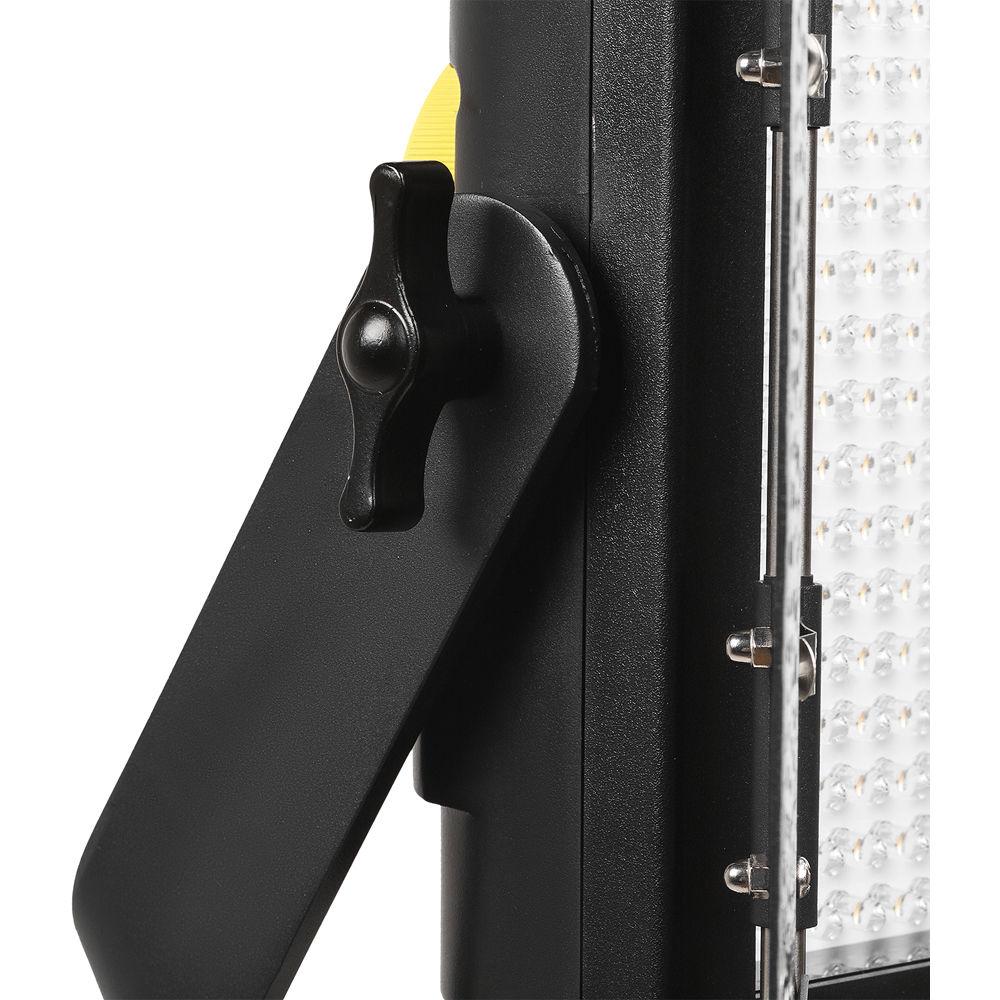

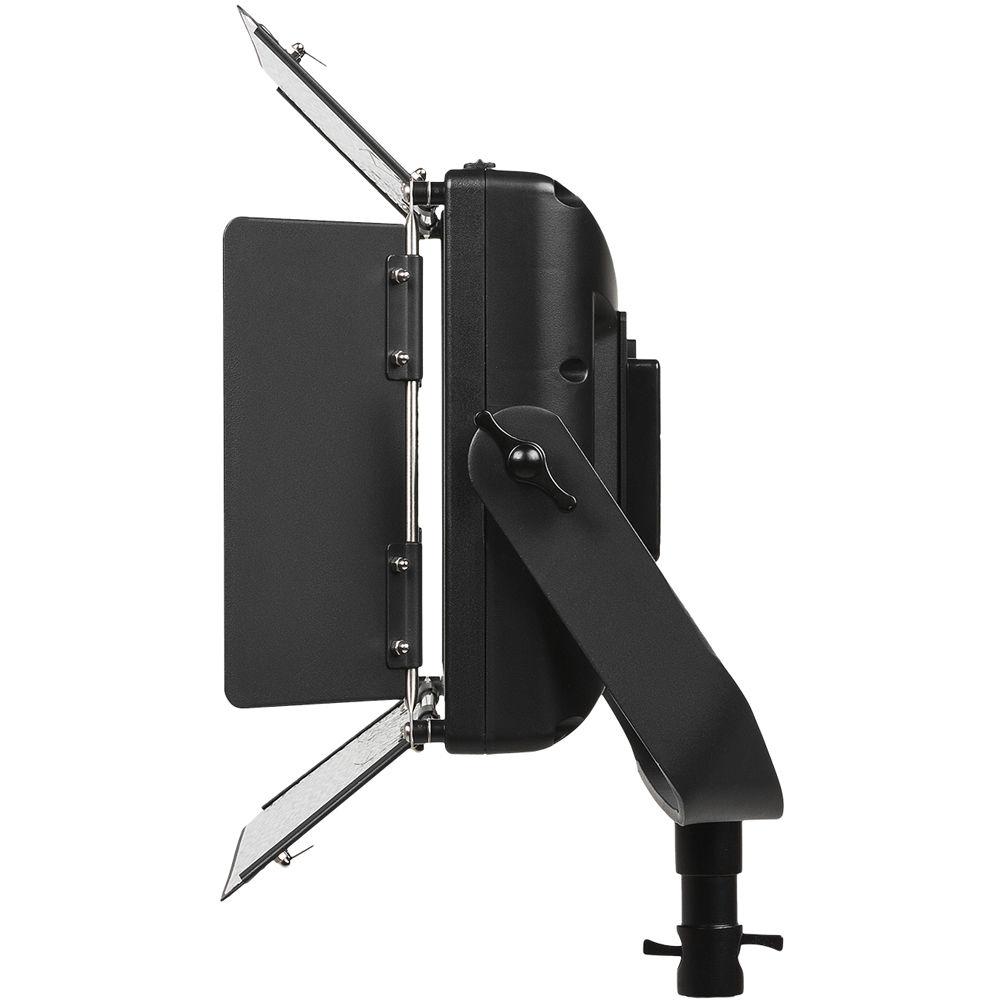

The fixture is DC powered, incorporating a 4-pin XLR connector and including an AC/DC power supply for mains power. Interchangeable Gold Mount/V-Mount plates are included so no worrying about getting the fixture that matches your battery system. The four-leaf barndoors provide control over light spill, and feature removable light intensifiers to suit your taste. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The fixture also has a combo baby pin/junior stud mount so you can mount it on a stand or hang it from a grid with optional clamps. - Color Temperature Adjustment and Dimming

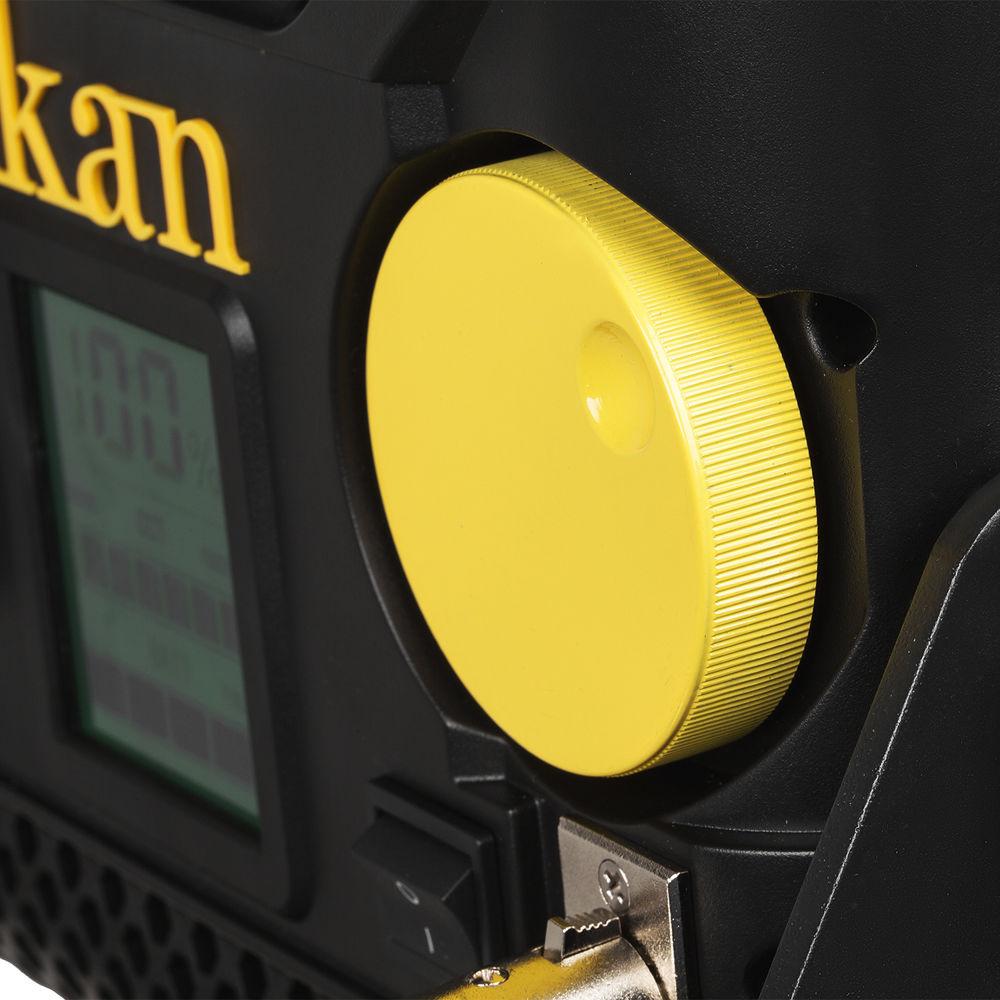

- The big yellow knob on the back of the unit controls both the color temperature selection and the dimming of the unit. It features an indent for fingertip control and is positioned at the edge of the fixture, which is cut away allowing you to adjust the knob from the side of the unit when the back is difficult to access. When you power on the light the yellow dimming knob defaults to controlling the dimming, pressing in the knob switches it to color temperature control (3200 to 5600K), pressing it again reverts back to dimming. You can also use the included wireless remote to control the color temperature and dimming.
- Consistent Light Levels
- The light output stays consistent as you transition across the color temperature range, preventing the brightness spike that happens with many LED lights around 4300K.
- Removable Intensifiers

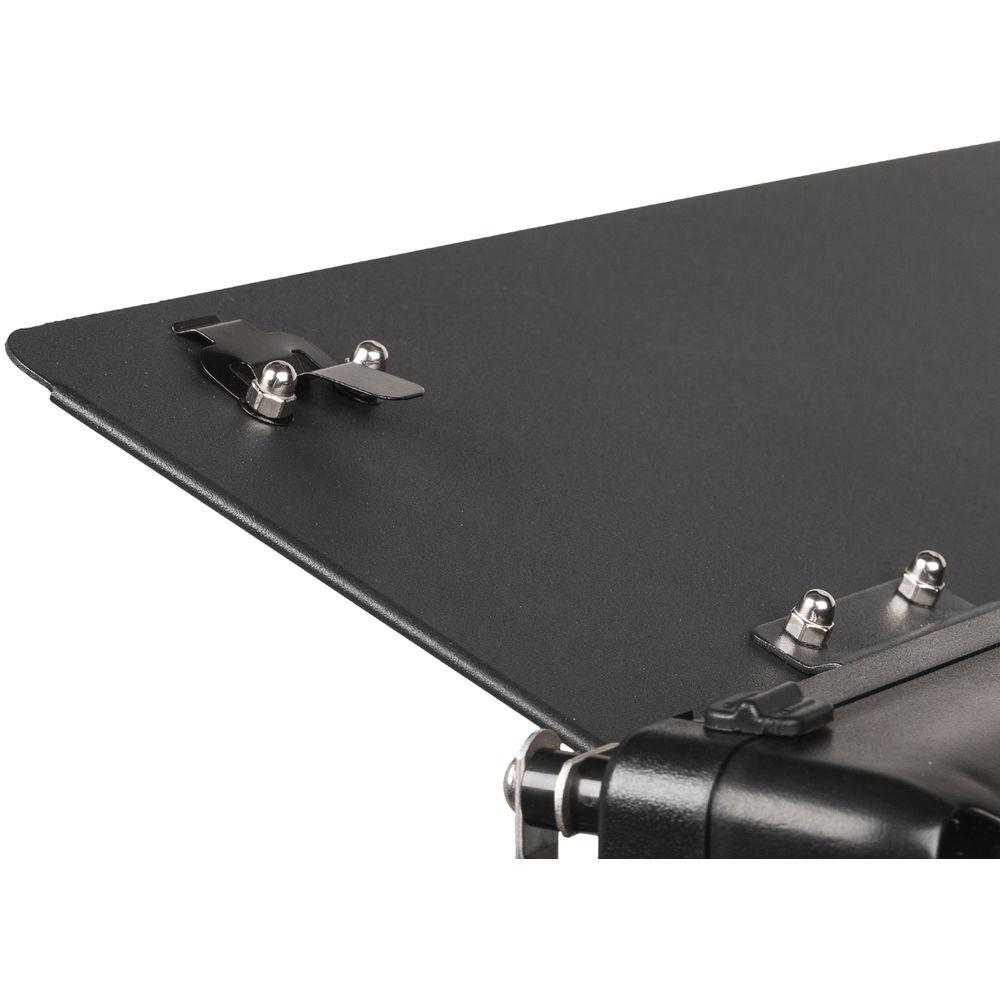

- While some users may enjoy the small increase in light output that intensifiers bring, other users prefer to use barndoors without intensifiers. The removable intensifiers that come with this light attach securely to the barndoors. You do not have to attach all four intensifiers, which allows you choose how many barndoors to use for intensifying your output and how many barndoors to use to cut spill.
- The top and bottom barndoors integrate gel clips for attaching diffusion or gels.
- Battery Power

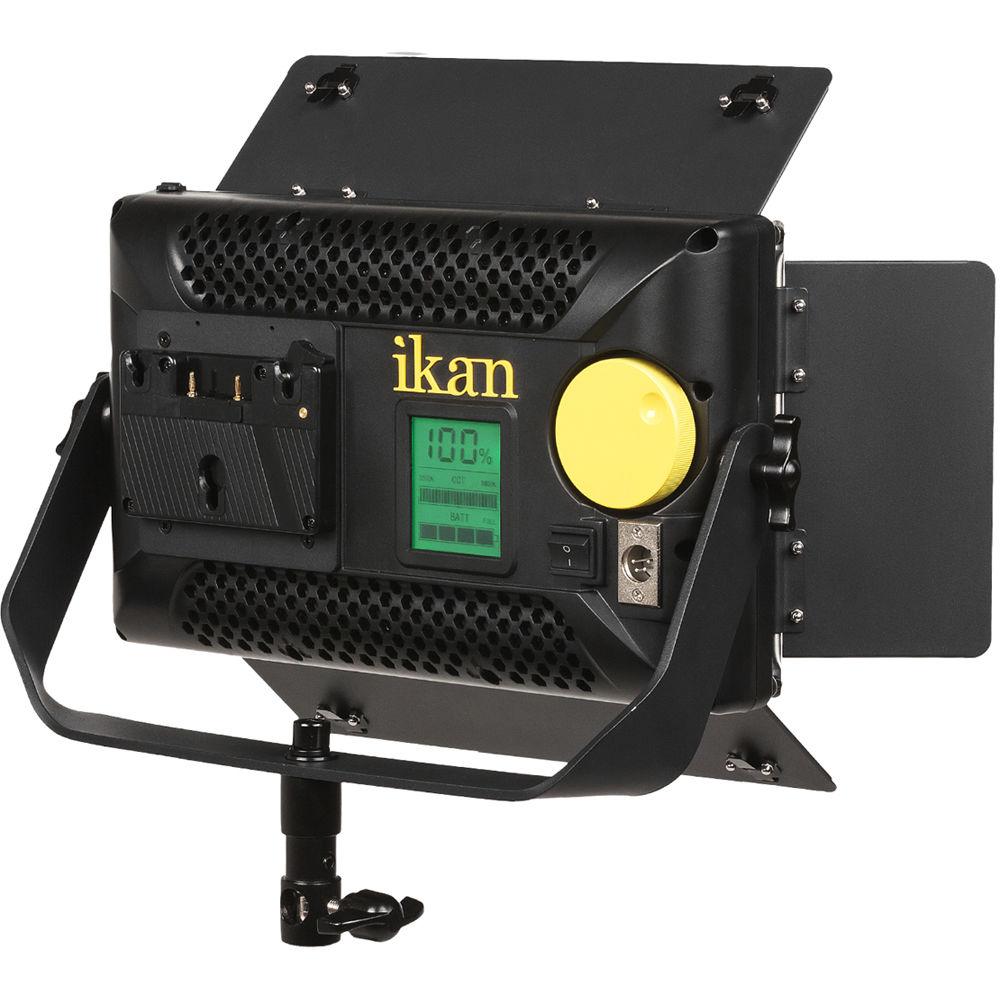

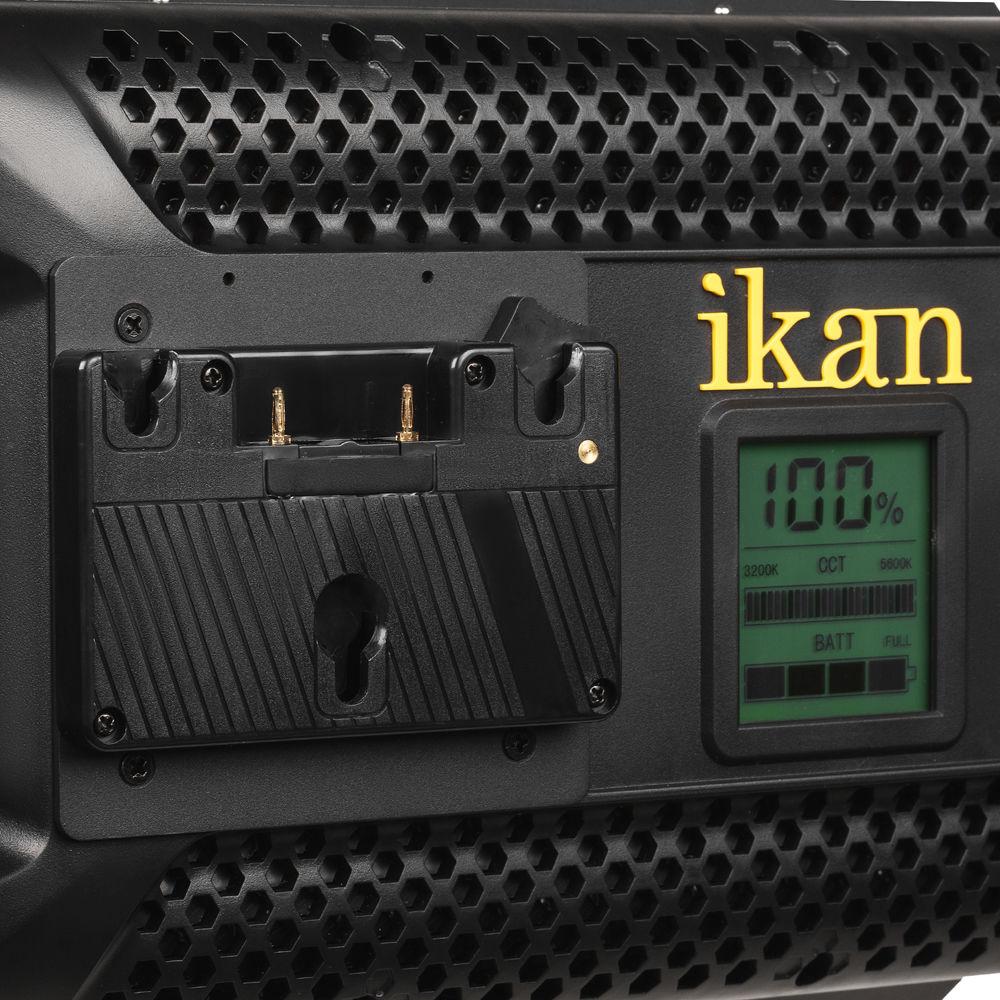

- The fixture features an interchangeable Gold Mount battery plate. Removing four screws and disconnecting the snap connector allows you to swap out the included V-mount plate.
- LCD Info Screen

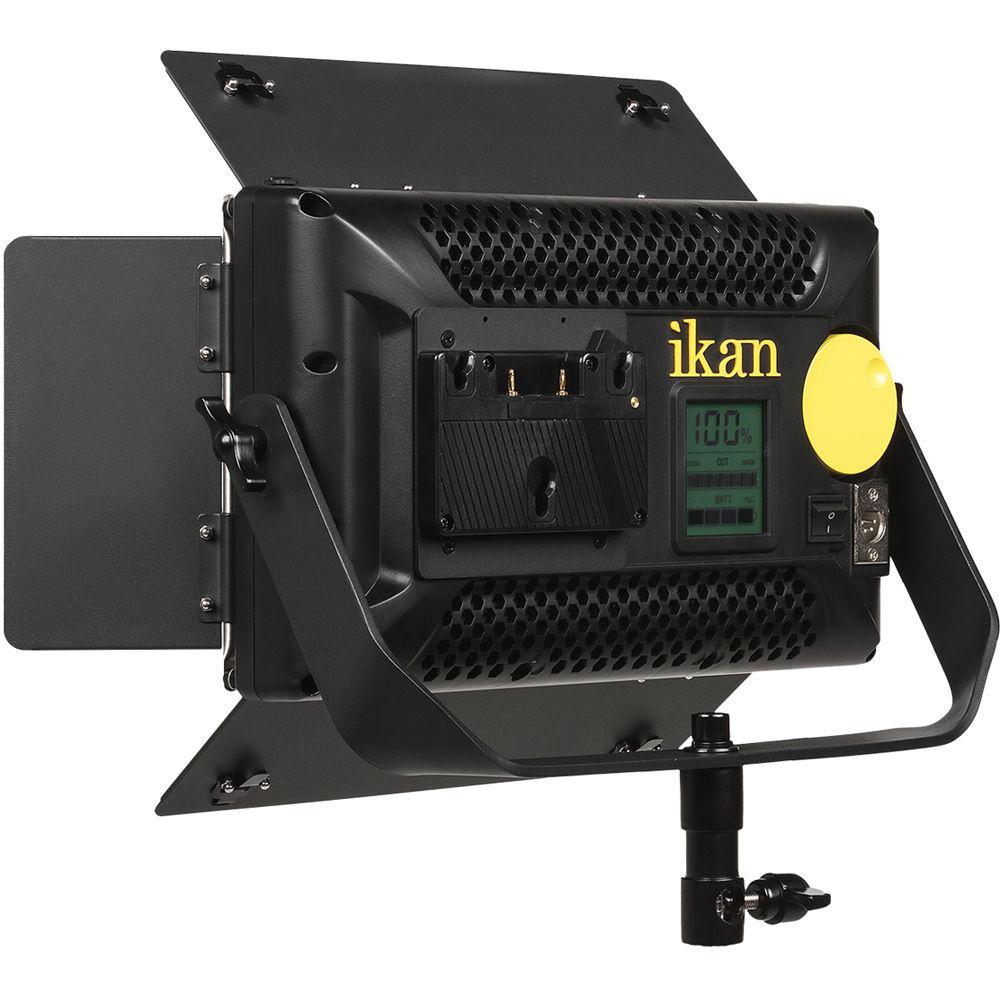

- On the back of the fixture is an LCD info screen that displays the battery power remaining, brightness percentage and color temperature.
UPC: 847983016440 In the Box ikan Rayden RB5 Bi-Color Half x 1 Studio & Field LED Light Gold Mount Battery Plate (Attached) V-Mount Battery Plate Power Supply with 4-Pin XLR Cable Remote Control Yoke with Stand Receiver/Pin Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Rayden RB5 Bi-Color Half x 1 Studio & Field LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan RB5 Specs | | | Beam Angle | 50° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 96 at 3200K
CRI 96 at 5600K
TLCI 98 at 3200K
TLCI 98 at 5600K | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | Resin | | Number of LEDs | 608 | | Fixture Dimensions | 14.0 x 8.0 x 3.0" / 35.6 x 20.3 x 7.6 cm | | Fixture Weight | 4 lb / 1.8 kg | | | | Battery Plate | 1 x Gold Mount
1 x V-Mount | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | DC Input Power | 15 VDC at 7 A | | Power Source | AC Adapter, External Battery | | Consumption Per LED | 0.06 W | | Max Power Consumption | 51 W | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 17.8 x 15.6 x 5.4" |
