ikan Rayden RXW5 Half x 1

Search your instruction manual in PDF to download

User Manual for ikan Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX

Click to enlarge the picture
ikan Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX Contents of the user manual for the ikan Rayden RXW5 Half x 1
  • Product category: LED Lights ikan
  • Brand: ikan
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ikan LED Lights

ikan Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX ikan Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX ikan Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX ikan Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX ikan Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX ikan Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX
User manual for the ikan Rayden RXW5 Half x 1 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ikan product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!



Product description

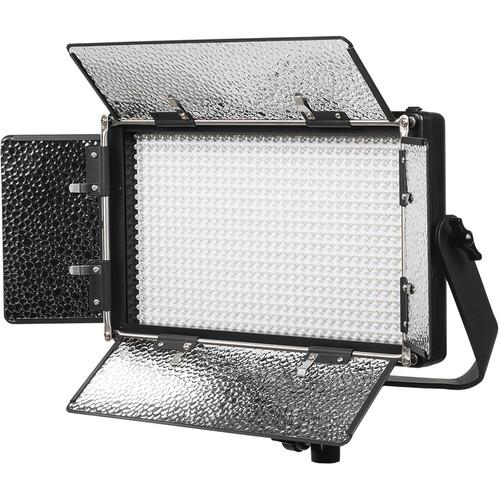

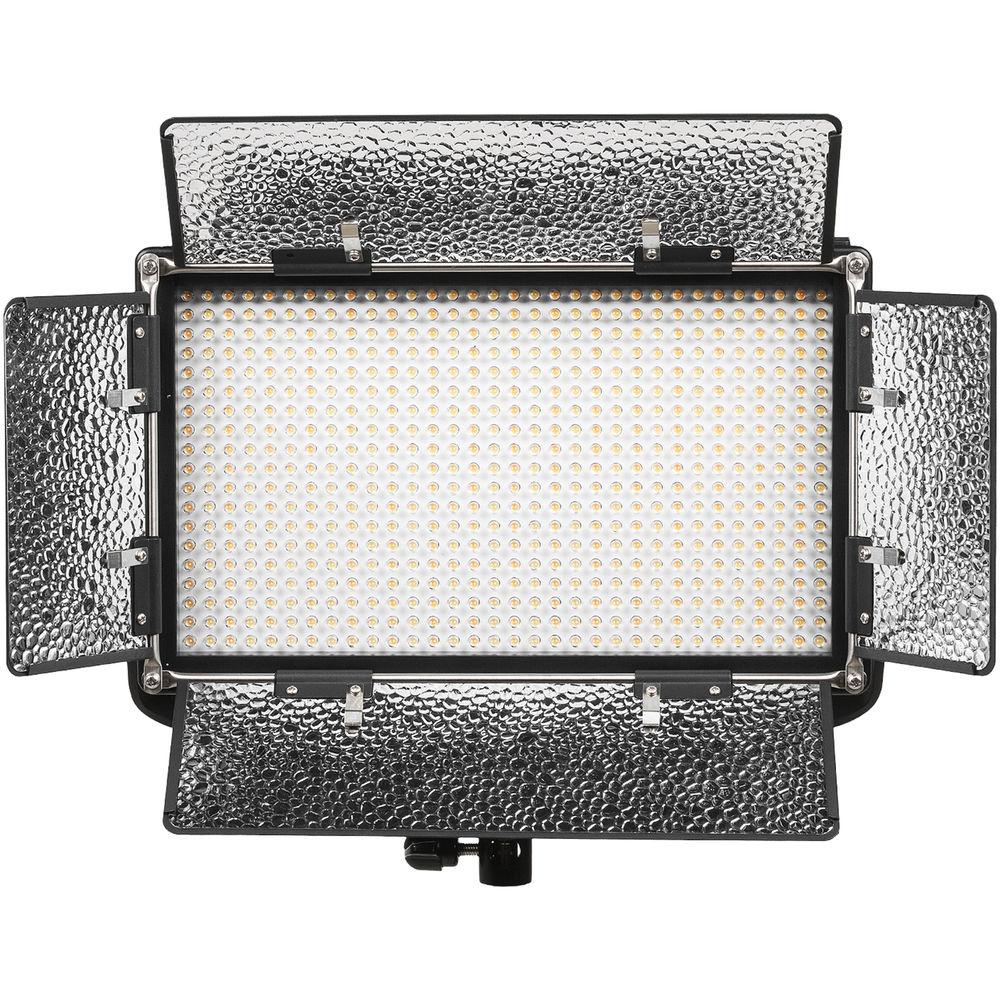

The Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX from ikan employs a heavy-duty resin chassis to create a lightweight yet rugged fixture with features such as flicker-free dimming (that can be controlled locally or via DMX) and an LED display. Known for its powerful output, the RXW5 produces the equivalent of 400W of incandescent power while drawing only 36.4W and running barely warm to the touch. That means a comfortable shoot for the talent and a rapid return on your investment. The Rayden RXW5's 608 LEDs have a tight 50° beam spread with a high CRI and TLCI for precise color rendering.The fixture's four-leaf barndoors feature light intensifiers for maximum output while providing control over spill light. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The Rayden RXW5 also has a combo baby receiver / junior pin on the yoke so you can mount it on a stand or hang it from a grid with optional clamps.
    Consistent Color and Brightness
  • The high CRI LED chips output a strong, bright diffused light. The RXW5's 5600K color temperature works well with any lighting production.
    Single Knob Control
  • Whether it's brightness or DMX, you can adjust these settings with a single knob at any time. The enhanced LED readout is brighter and provides a quick reference of the light output with precise measurements.

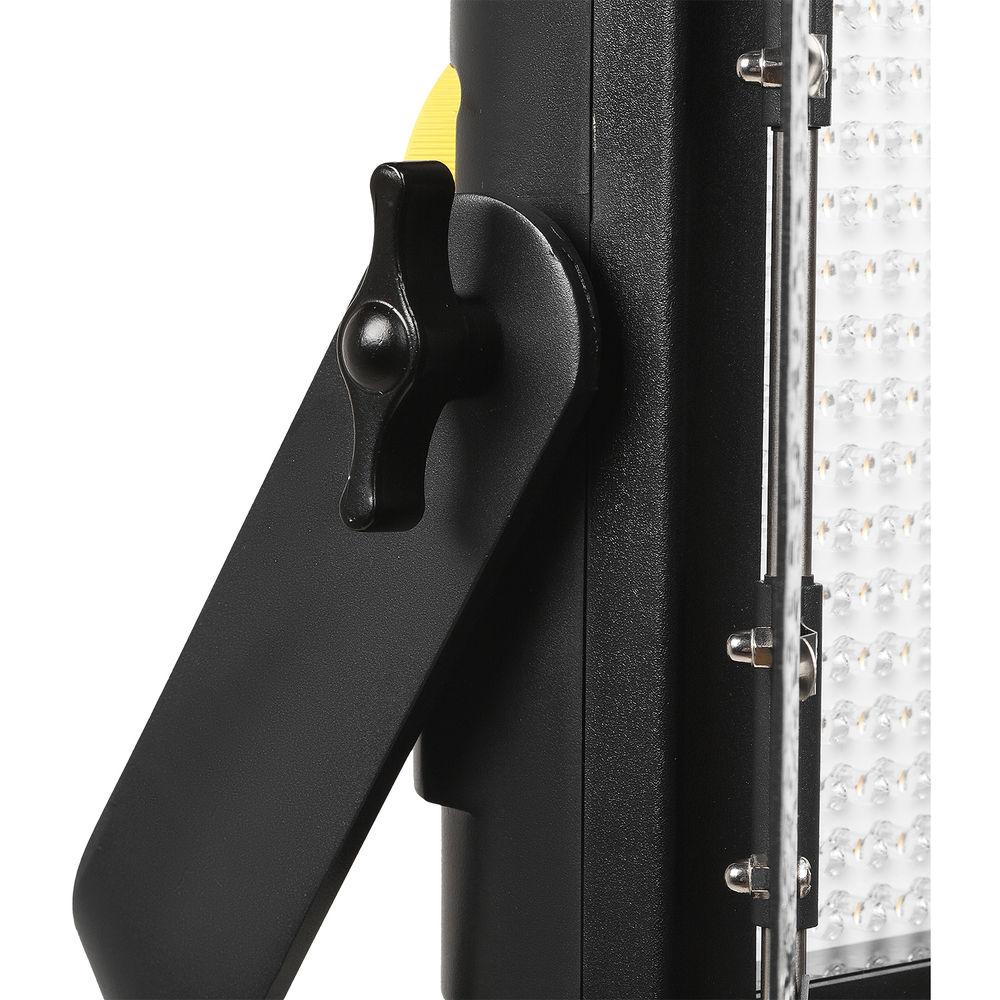

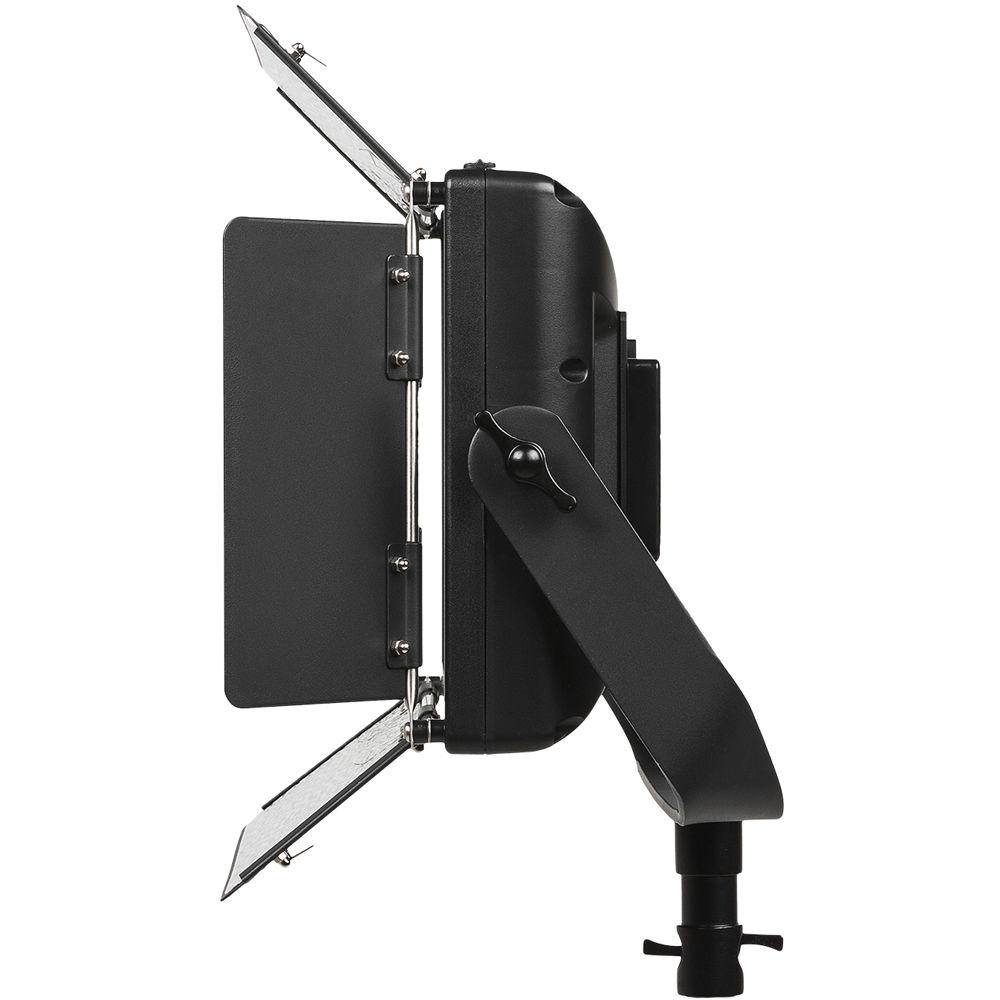

    Improved Yoke Design and Better Components
  • The 30-degree angled yoke provides unobstructed movement of the barn doors. The strong steel tension knobs securely lock the light in place at any angle.

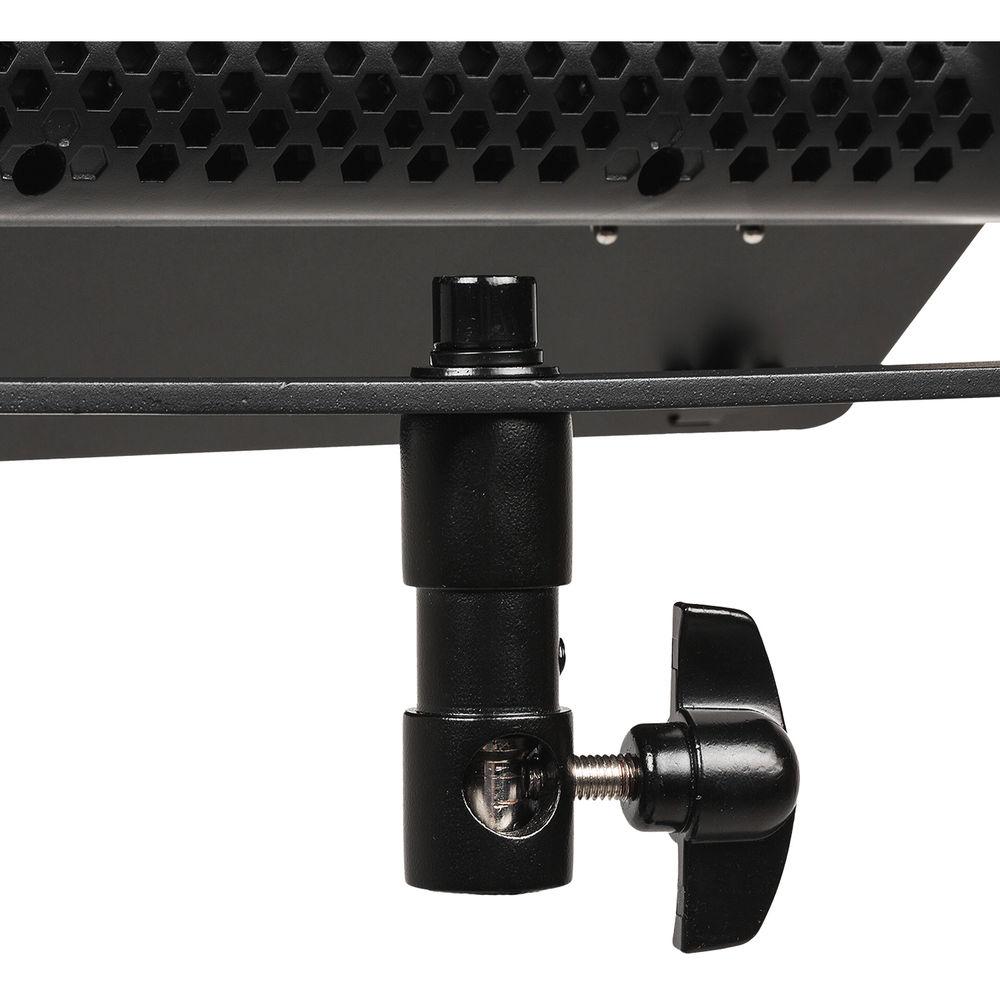

    Industry Standard Combo Pin
  • The baby 5/8" and junior 1-1/8" combo pin includes a right-angle receiver hole that allows you to attach it to any grip stand.
    Incandescent Watts Equivalency
  • The fixture is equivalent to a 400W incandescent light and outputs a clean, single shadow.

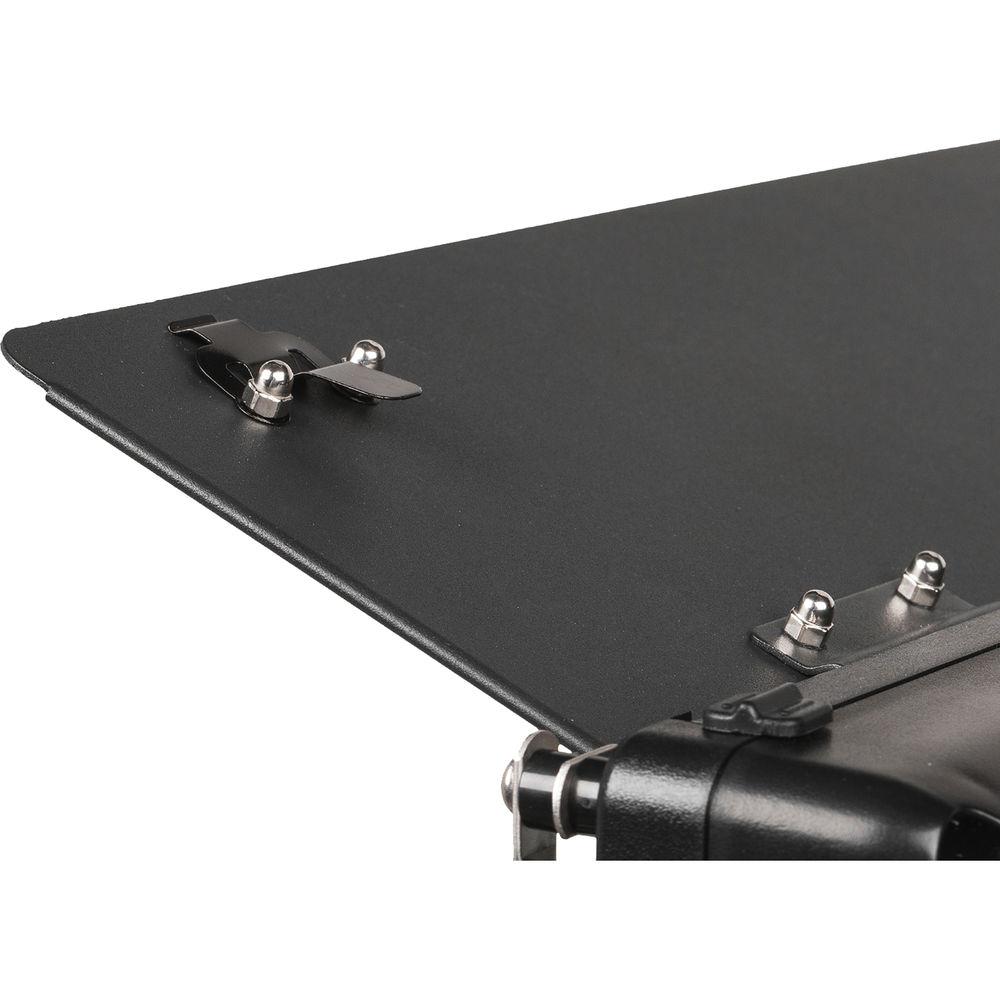

    Barndoors Included
  • ikan's reliable barndoors with intensifiers allow you to shape the light to fit your needs.
    Benefits in Short
    • High CRI LEDs
    • Solid 5600K color temperature
    • Bright consistent light
    • Beam angle of 50 degrees
    • DMX512 In and Out
    • Baby 5/8" / junior 1-1/8" combo pin adapter with right angle receiver hole
    • 30-degree angled yoke for unobstructed movement
    • Strong steel tension knobs for locking the light into place
    • Single knob control for adjusting brightness or DMX
    • LED readout screen giving you precise adjustments
    • Equivalent to 400 watts of incandescent light
UPC: 847983021116 In the Box ikan Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX
  • Barndoors with Intensifiers
  • Multi-Voltage Power Supply with Cable
  • Yoke with Stand Receiver/Pin
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ikan Rayden RXW5 Half x 1 Daylight Studio LED Light with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ikan RWX5 Specs

    Beam Angle 50°
    Color Temperature 5600K
    Cooling System Passive
    Dimming Yes
    Display None
    Housing Material Resin
    Number of LEDs 608
    Fixture Dimensions 14.0 x 8.0 x 3.0" / 35.5 x 20.3 x 7.6 cm
    Fixture Weight 4 lb / 1.8 kg

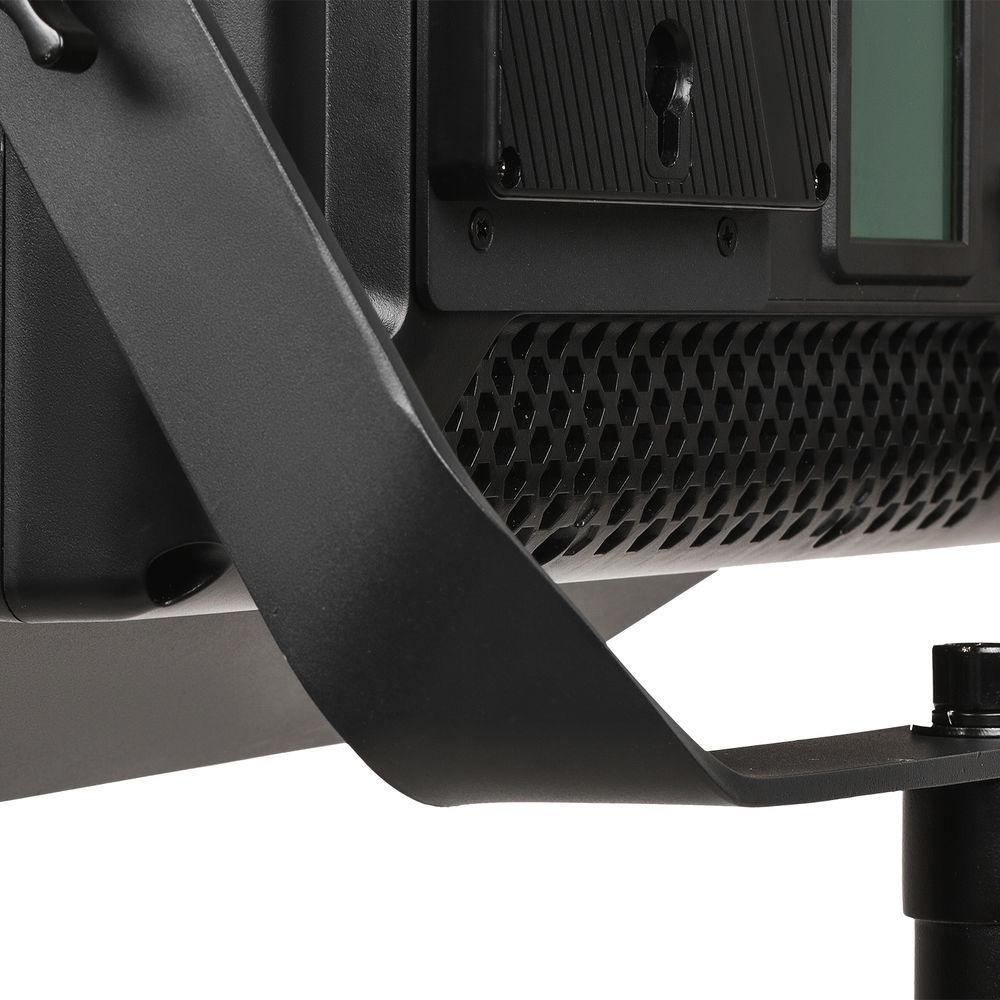

    Battery Plate 1 x Gold Mount
    1 x V-Mount
    DMX Connector 5-Pin XLR
    Fixture Mount Combination 1-1/8" Stud and 5/8" Receiver
    Accessory Mount None
    Remote Control Type DMX
    AC Input Power 110 to 220 VAC, 50 / 60 Hz
    DC Input Power 15 VDC at 7 A
    Power Source AC Adapter, External Battery
    Consumption Per LED 0.2 W
    Max Power Consumption 150 W
    IP Rating IP20
    Package Weight 9.25 lb
    Box Dimensions (LxWxH) 17.8 x 16.3 x 5.2"
