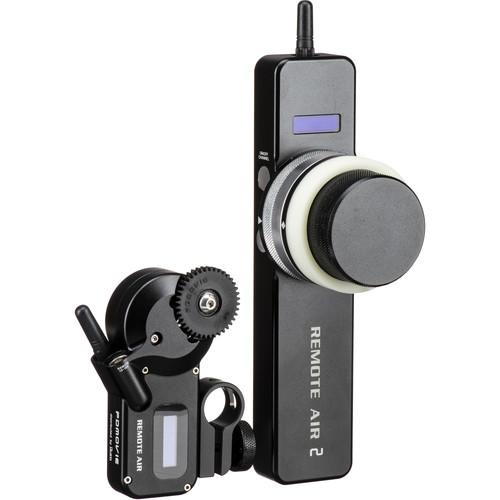

User Manual for ikan Remote Air 2 Single Channel Wireless Lens Control System Click to enlarge the picture
Contents of the user manual for the ikan Remote Air 2 Single Channel
- Product category: Wireless Lens Control Systems ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Wireless Lens Control Systems
 |
User manual for the ikan Remote Air 2 Single Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - Ikan Corp: Tech Corner - PD Movie Remote Air 2 Wireless Lens Control System
- Remote Air 2 Wireless Follow Focus System PD1-N & PD2-N (PD Movie) | Ikan

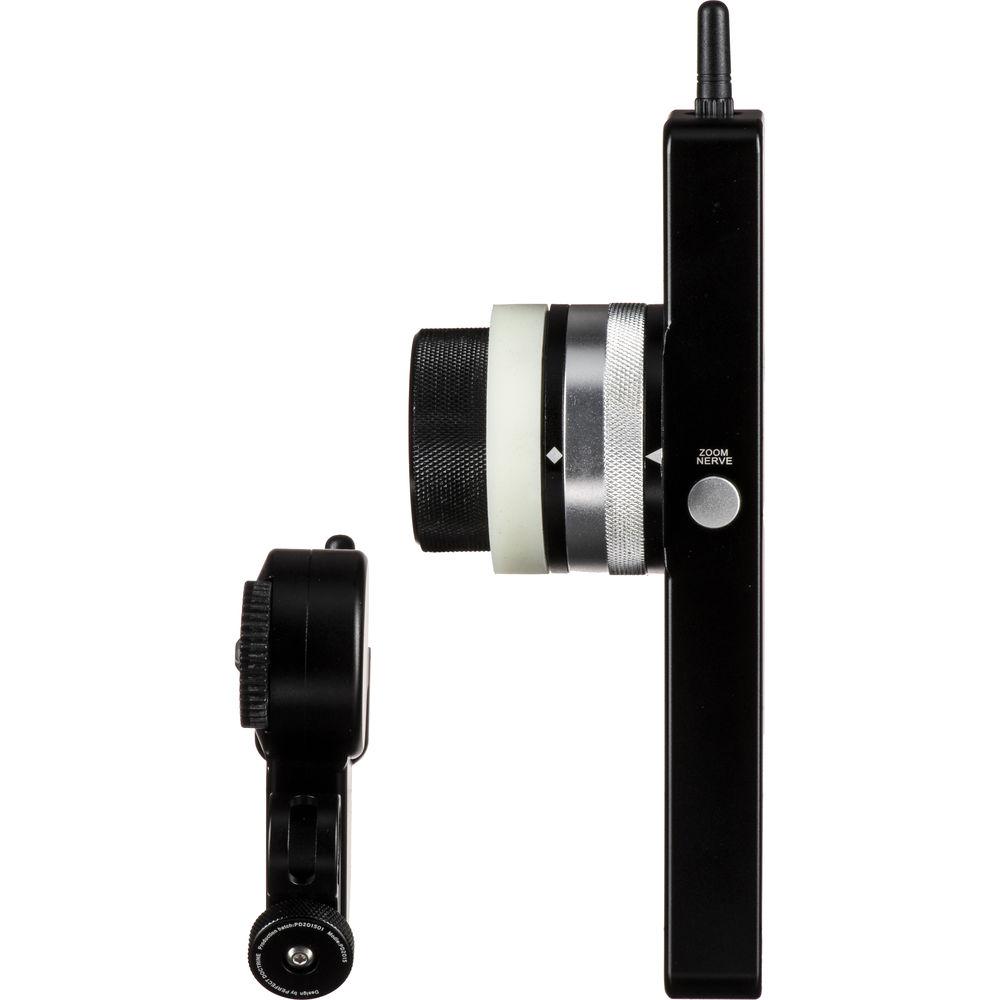

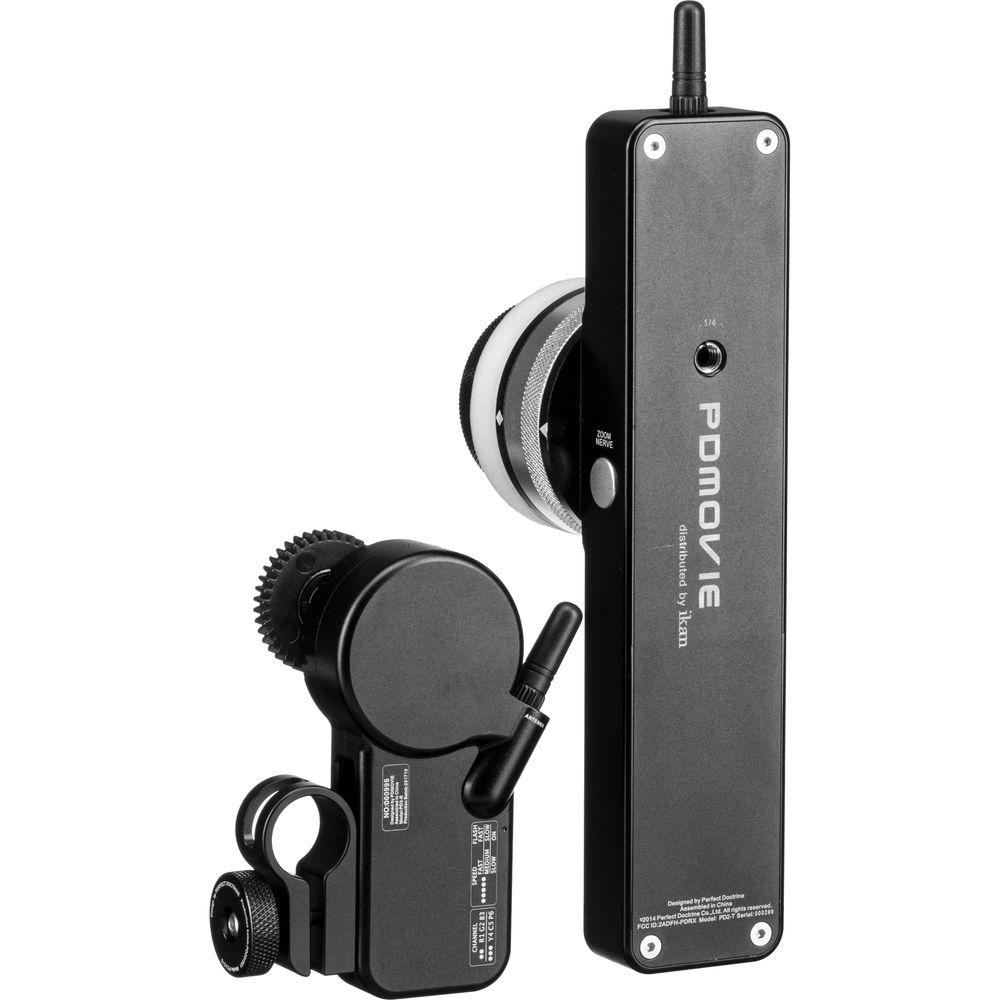

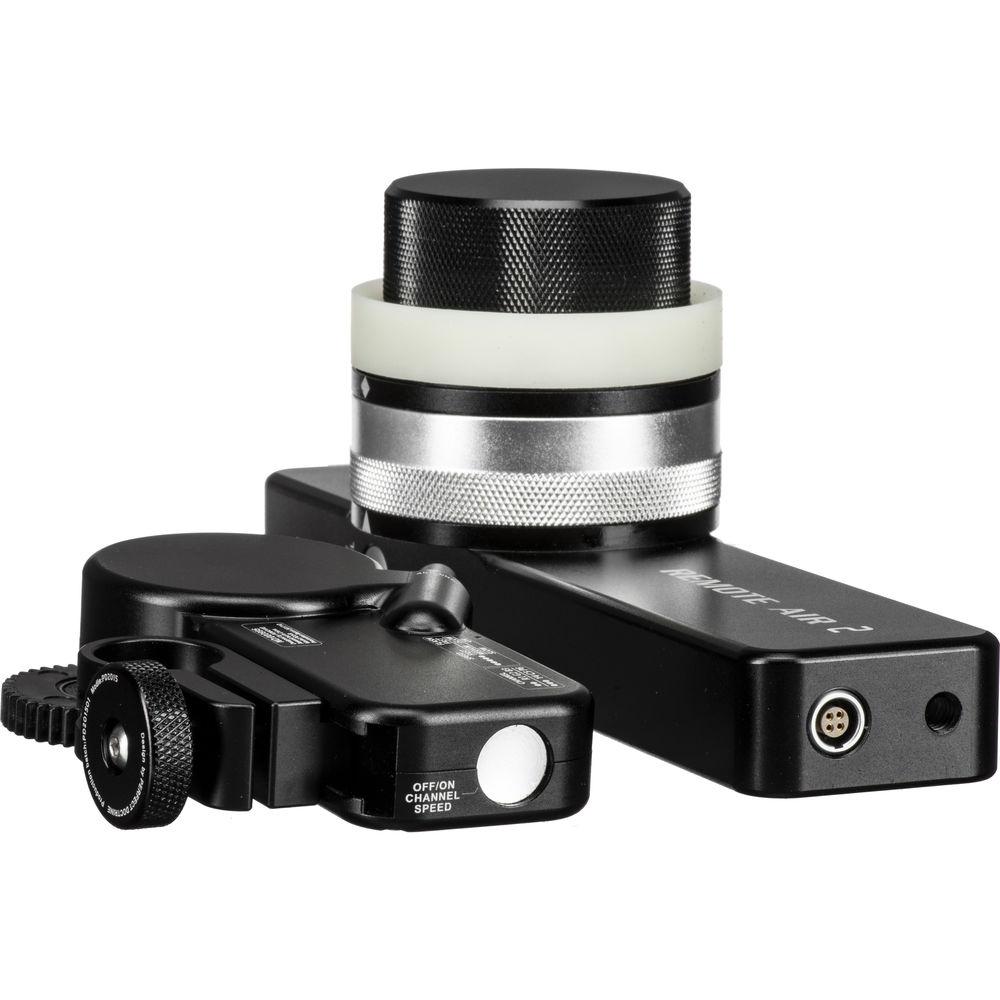

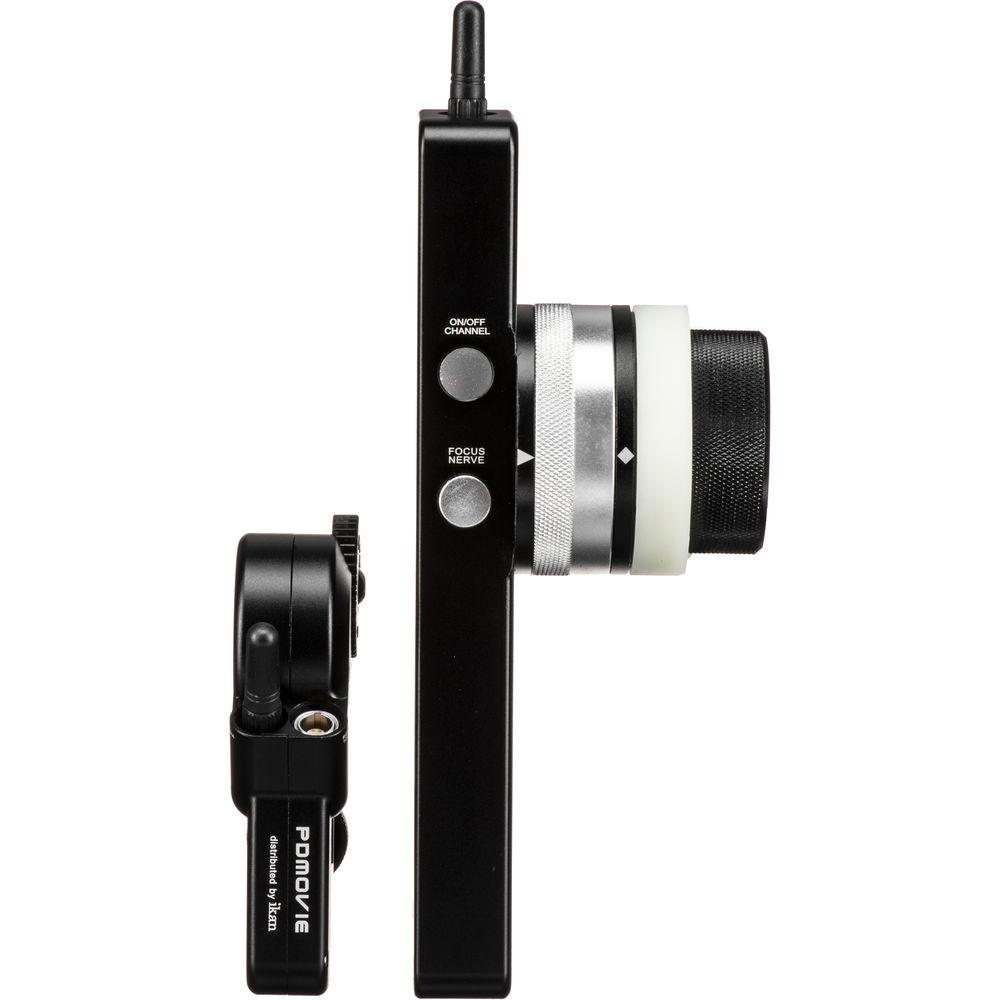

The ikan Remote Air 2 Single Channel Wireless Lens Control System (PD Movie) combines the receiver into the lens motor for reducing the weight, and its brushless motor can drive various professional camera lenses such as the Angenieux, Arri Ultra/Cooke. It offers a resolution of 7200 after optimization. The system divides the hand wheel of the controller into 7200 levels, and each small turn is displayed on the OLED screen.The Remote Air 2 displays the current channel in use. With a short press of the ON/OFF Channel button, you can easily change the channels. The screen also displays the signal strength of the Hand Control Unit and the receiver when interworking. It also displays the percentage of battery remaining on the controller and the receiver's voltage.The follow focus's marking ring achieves automatic decimal alignment simultaneously when it is attached to the controller rotary table. You can quickly mark the stroke scale with the magnetic attachment and the Remote Air's automatic stroke detection function. When you use a new lens, you can save previously aligned marking rings to be used later.The Remote Air 2 uses 2.4 GHz wireless technology and a full duplex mode for signal transmission. It features anti-interference and error correction functions and offers a transmission range of up to 328'. The system can be charged via USB or a portable power source. It offers a battery life of up to 30 hours and standby time of 30 days. Performance - High precision, lightweight, and quiet motor compatible with 19 or 15mm rods
- High-torque motor, capable of operating all types of lenses from still photography to high-end cine lenses
- 360° hand control unit knob with a 7200 resolution
- Accurate OLED screen displays channel info, signal strength, battery life, and voltage
- Communicates through a 20-channel 2.4 GHz wireless protocol
- Signal transmission distance of 328'
Memory Function - One-key stroke memory function can record strokes of different lens
- Manually set the (AB point)
- Digital limitation function ensures the safety of the lens
Stroke Detection - Automatic current and speed distribution
- Automatic matching maximum speed
Battery - Over 30-hour service time
- Instant start with standby time of 30 days
- Over 1000 times circulation of full charge and discharge
Motor - High-precision brushless motor
- Unified standard aviation self-locking plug
UPC: 847983019564 In the Box ikan Remote Air 2 Single Channel Wireless Lens Control System (PD Movie) Remote Air 2 Single Channel Hand Control Unit PD3-R Remote Air Pro Receiver Motor 0.8 Pitch Gear (Pre-Assembled) 19mm Rod Clamp (Pre-Assembled) 19 to 15mm Adapter Ring 4-Pin Lemo to Standard USB Cable 6-Pin Lemo to D-Tap Power Cable Antenna (Long) PD Movie Lanyard Travel Hard Case USB Power Adapter 2 x Antennas (Short) 3 x Glow-in-the-Dark Marking Disks Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Remote Air 2 Single Channel Wireless Lens Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan PD1-N Specs | | | Battery Capacity | 3000 mAh | | Battery Voltage | 3.7 V | | Charging Voltage | 5 V in | | Dimensions (L x W x H) | 7.95 x 2.44 x 2.2" (20.2 x 6.2 x 5.6 cm) | | Weight | 0.81 lb (0.37 kg) | | | | Torque | Maximum 0.5 Nm | | Working Voltage | 12 to 18 VDC | | Noise | < 28 dB | | Gear | Module: 0.8 Teeth: 40 | | Dimensions (L x W x H) | 4.25 x 2.87 x 1.14" (10.8 x 7.3 x 2.9 cm) | | Weight | 0.4 lb (0.367 kg) | | | | OLED | 2.4 GHz Wireless Network Channel: Shows current Channel in use, short press on OFF/ON Channel button to change channel
Signal Level: Displays the signal strength of the Hand Control Unit and the receiver when interworking
TX: The controller battery charge remaining percentage
RX: Receiver voltage | | Wireless LAN | 2.4 GHz digital wireless
Full duplex transmission mode | | Transmission Distance | Up to 328' (100 m) | | Battery | Service Time: 30 hours
Standby Time: 30 days
Circulation: 1000 times (full charge and discharge)
Charging: USB | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 12.126 x 8.898 x 3.937" |
