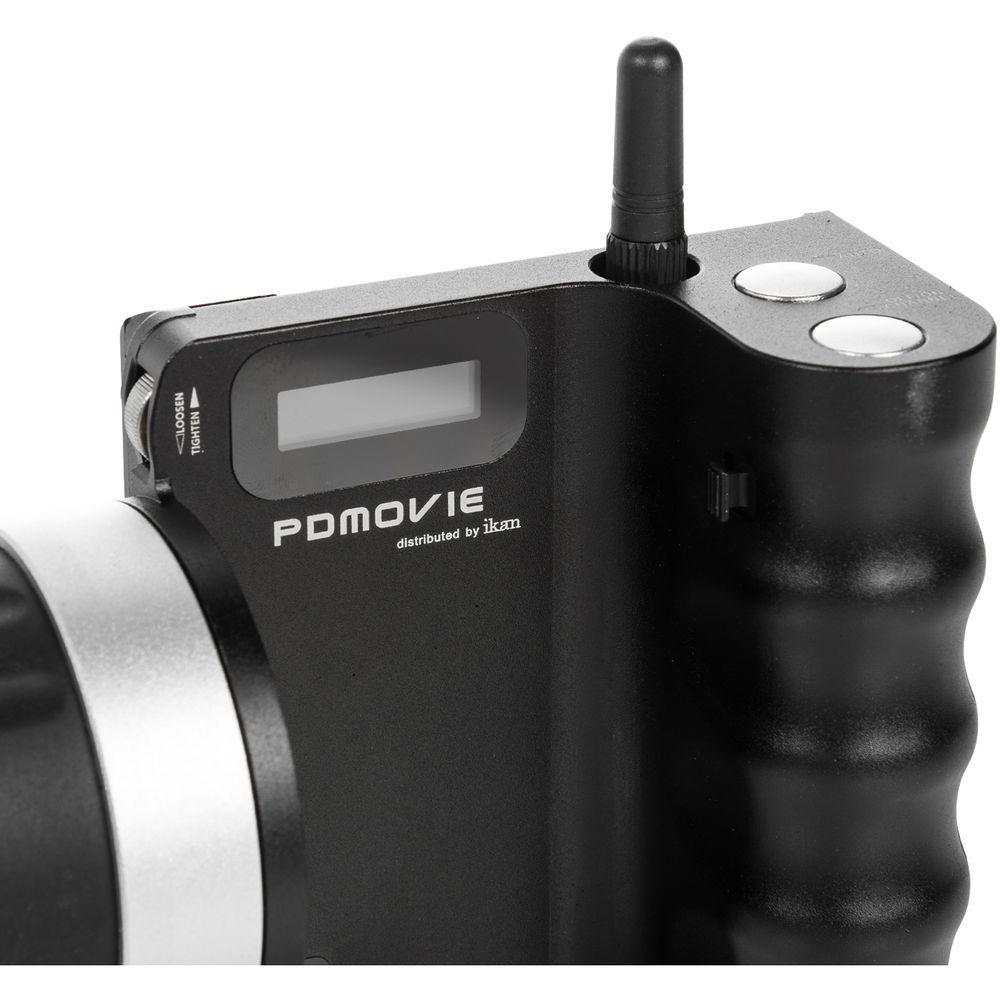

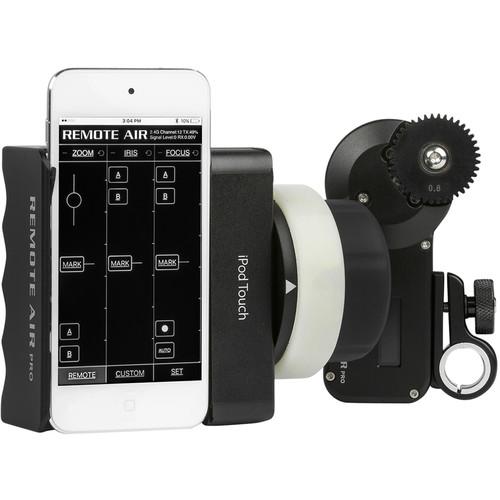

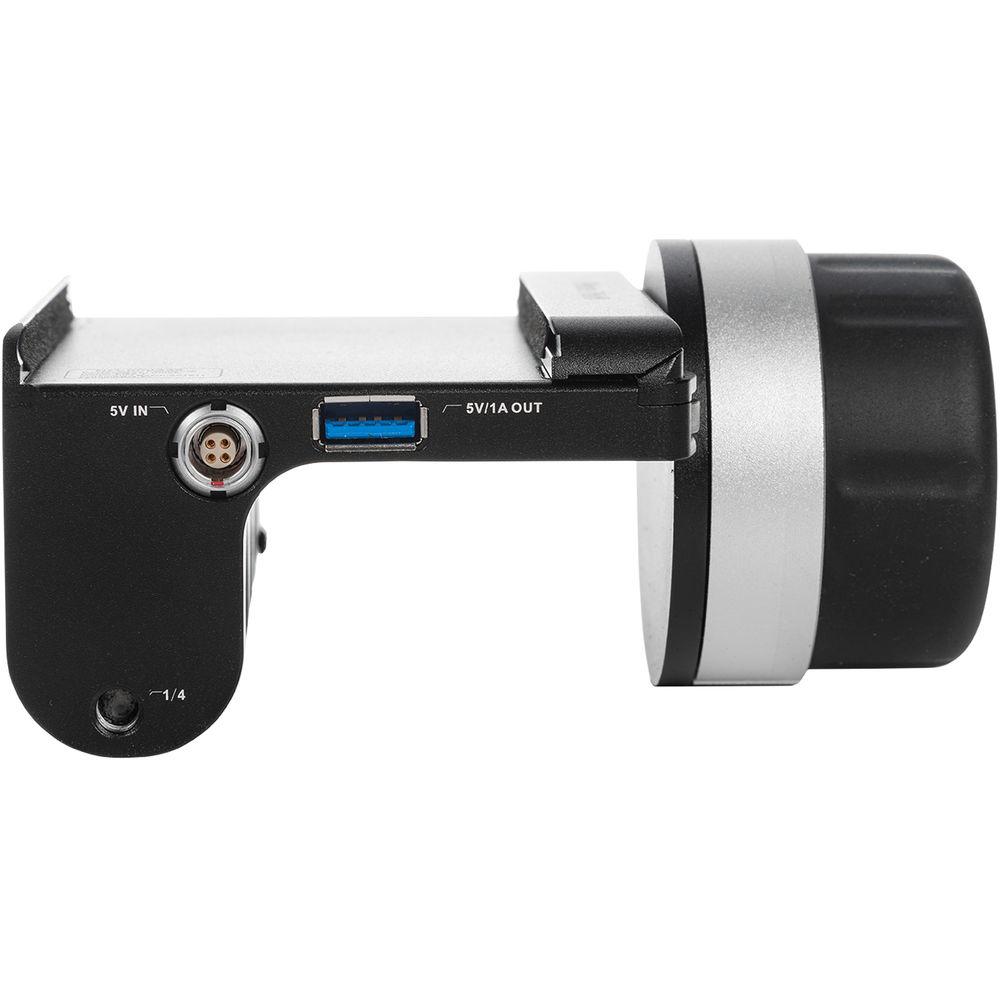

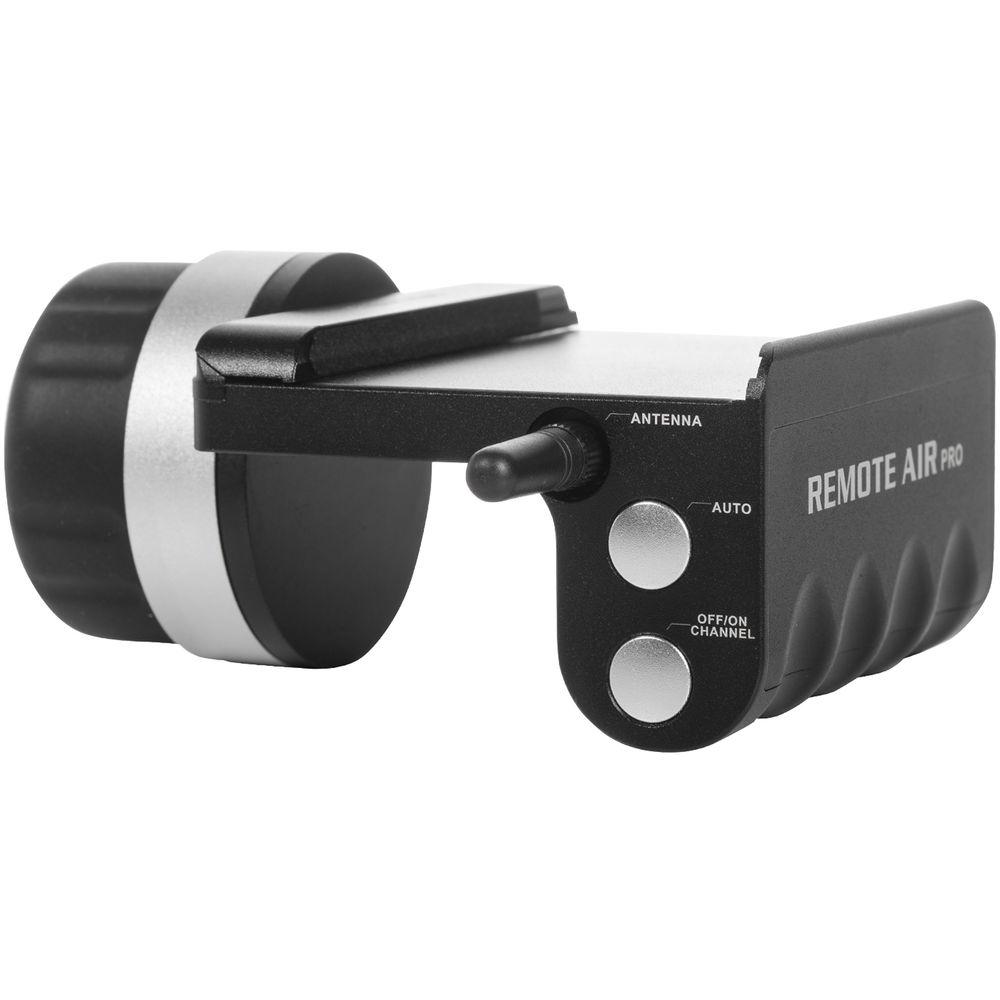

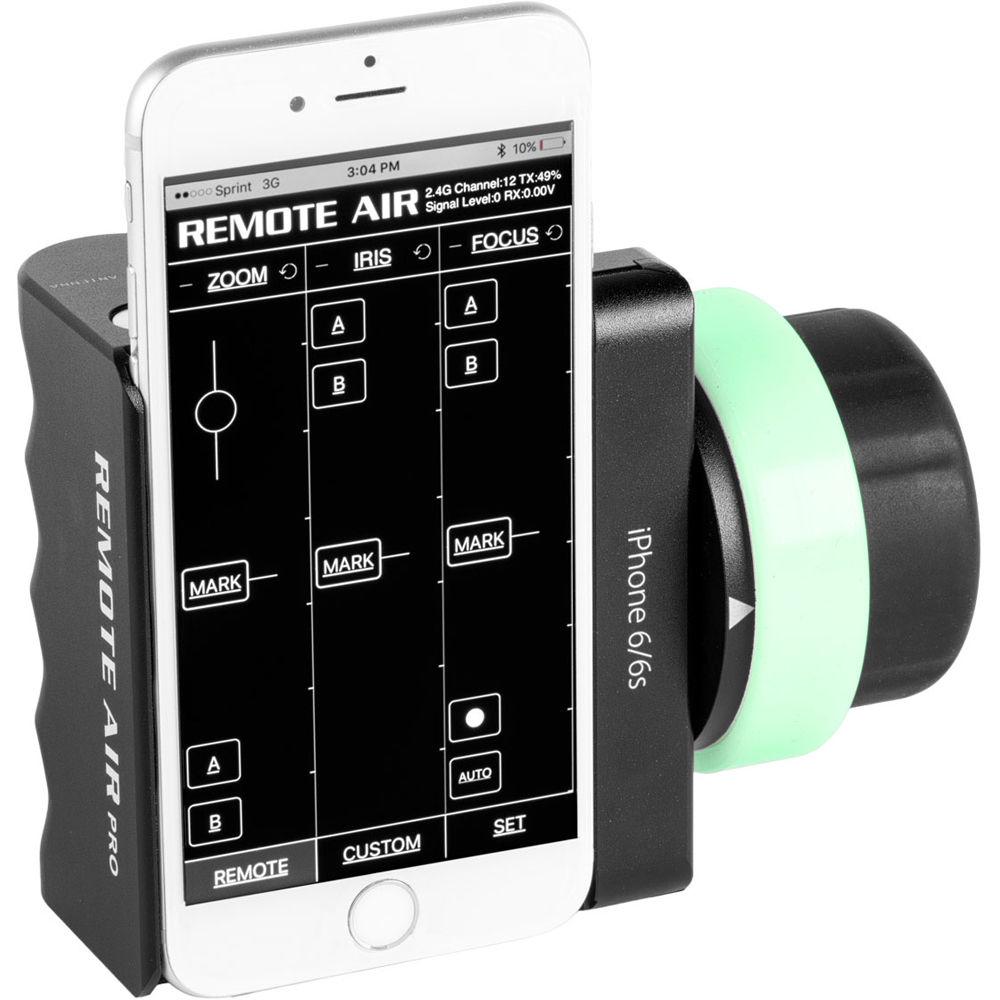

Product description The Remote Air Pro Wireless Follow Focus Single Motor Kit from ikan includes an integrated hand control unit, three glow in the dark marking rings, three antennas, 15mm/19mm adapter ring, 6-pin D-Tap power cable, Lightning to USB connecting cable, PD Movie lanyard, receiver / master motor, USB charger, 4-pin USB charging cable, iPhone 6/6s/6 Plus/6s Plus clamp, and an iPod Touch clamp. - Glow-In-The-Dark Magnetic Marking Disk
- PD Movie Remote Air Pro Wireless Follow Focus - How To Set Up The Motors | Ikan Tech Corner
- PD Movie Remote Air Pro Wireless Follow Focus - How To Use The Remote Air App | Ikan Tech Corner
- PD Movie Remote Air Pro Wireless Follow Focus - How To Use The Control Unit | Ikan Tech Corner
The Ikan Glow-In-The-Dark Magnetic Marking Disk is designed for use with the PD1 Remote Air One, PD1-HT Remote Air One High Torque, PD2 Remote Air Two, and PD2-HT Remote Air Two High Torque. The Remote Air’s marking ring achieves automatic decimal alignment simultaneously when it is attached to the controller rotary table. It employs magnetic attachment to mark the stroke scale and combines with Remote Air's automatic stroke detection function for increasing the marking speed. When you use a new lens, an already aligned marking ring can be preserved for next use. UPC: 847983014552 - PD3-ANT Antenna for Remote Air, Air 2 & Air Pro The ikan PD3-ANT Antenna is a replacement for the ikan Remote Air, Remote Air 2, and Remote Air Pro lines of follow focus systems.
- 19 to 15mm Rod Adapter Bushing (PD Movie) This 19 to 15mm Rod Adapter Bushing from Ikan fits into the 19mm rod bracket for PD Movie motors, enabling you to mount the motor on a 15mm support rod. The bushing is split, allowing it to compress, so it is easier to fit into the 19mm opening. The bushing's textured finish improves grip, and a contoured lip holds the bushing in place inside the rod clamp when not mounted on a rod.
- Split in bushing allows for compression
- Textured surface reduces slip
- Contoured lip helps prevent bushing from falling out of the mounting bracket when not in use
UPC: 847983012534 - 25" Remote Air Pro D-Tap to LEMO Cable The Remote Air Pro D-Tap to LEMO Cable from ikan is for use with the PD3-P1, PD3-P2, and PD3-P3 Remote Air Pro Single Channel Wireless Follow Focuses. This 25" cable features a D-Tap at one end and the other end is a 6-pin LEMO connector.
- Compatibility
- PD3-P1, PD3-P2, and PD3-P3 Remote Air Pro Single Channel Wireless Follow Focuses
UPC: 847983018147 - PD Movie Lightning to USB Cable (3") The 3" PD Movie Lightning to USB Cable from ikan allows you charge devices having a lightning port via the USB port on the PD3 Remote Air Pro Wireless Follow Focus motor unit.
- Compatible With
- PD3-P1 Remote Air Pro 1-Channel Wireless Follow Focus
PD3-P2 Remote Air Pro 2-Channel Wireless Follow Focus
PD3-PD Remote Air Pro 3-Channel Wireless Follow Focus UPC: 847983021048 - Replacement Strap for PD Movie Products The Replacement Strap from Ikan is used with all PD Movie products.
- Compatibility
- All PD Movie products

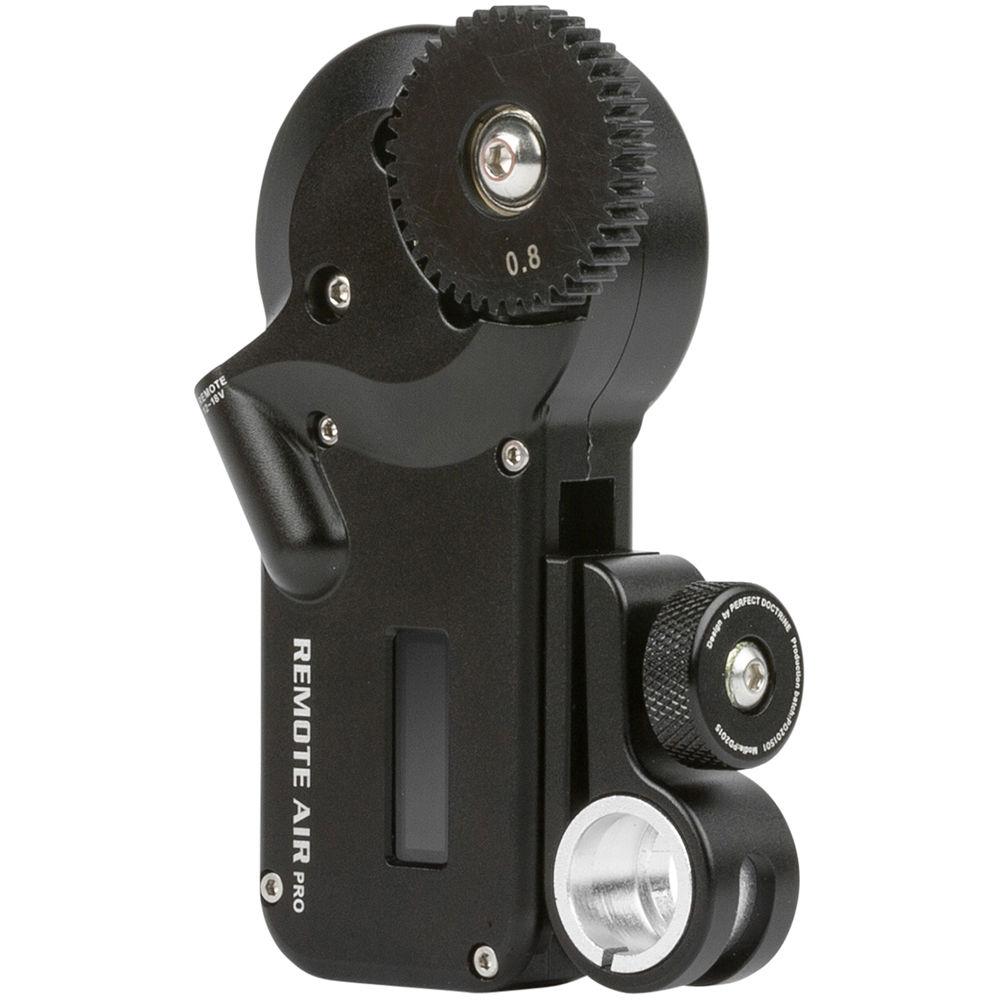

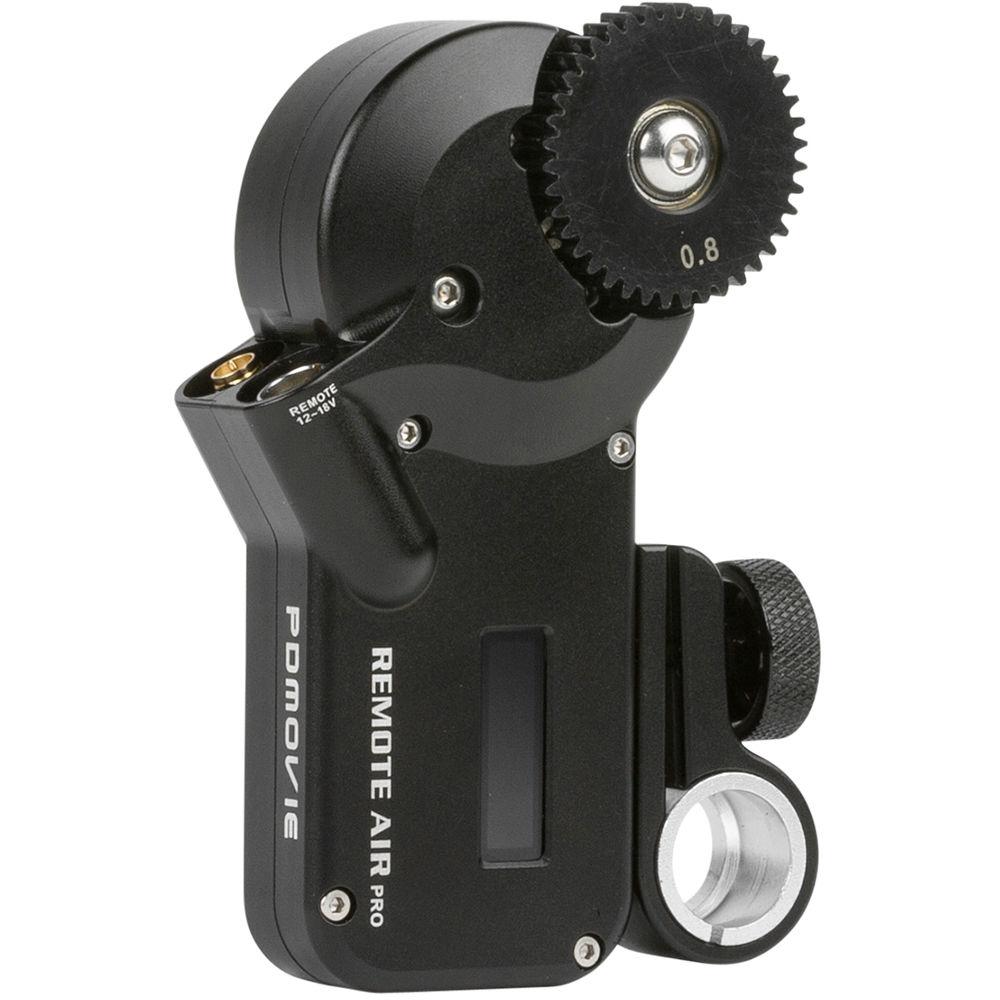

UPC: 847983013814 - PD3-R Remote Air Pro Receiver Motor The PD3-R Remote Air Pro Receiver Motor from ikan is designed for use with the PD Movie Remote Air wireless lens controllers. UPC: 847983016266
- USB Charger for Remote Air Pro Follow Focus The USB Charger from ikan is for use with the Remote Air Pro Follow Focus. It features 110/220V input and 5V output.
- Compatbility
- Remote Air Pro Follow Focus
UPC: 847983016235 - Replacement USB Charging Cable for Remote Air Pro Follow Focus The Replacement USB Charging Cable from ikan is for use with the Remote Air Pro Follow Focus.
- Compatibility
- Remote Air Pro Follow Focus
UPC: 847983016228 - Replacement Clip for iPhone 6 The Replacement Clip from ikan is used to hold an iPhone 6 to the Remote Air Pro Follow Focus hand unit. UPC: 847983016211
- Replacement Clip for iPhone 6 Plus The Replacement Clip from ikan is used to hold an iPhone 6 Plus to the Remote Air Pro Follow Focus hand unit.
- Compatibility
- iPhone 6 Plus
UPC: 847983016198 - Replacement Clip for iPod Touch The Replacement Clip from ikan is used to hold an iPod Touch to the Remote Air Pro Follow Focus hand unit. UPC: 847983016204
In the Box Bundle Items 3 x Glow-In-The-Dark Magnetic Marking Disk btewewaebywseq 3 x PD3-ANT Antenna for Remote Air, Air 2 & Air Pro 19 to 15mm Rod Adapter Bushing (PD Movie) 25" Remote Air Pro D-Tap to LEMO Cable PD Movie Lightning to USB Cable (3") Replacement Strap for PD Movie Products btewewaebywseq PD3-R Remote Air Pro Receiver Motor USB Charger for Remote Air Pro Follow Focus btewewaebywseq Replacement USB Charging Cable for Remote Air Pro Follow Focus Replacement Clip for iPhone 6 Replacement Clip for iPhone 6 Plus Replacement Clip for iPod Touch
Also Includes - Integrated Hand Control Unit
- 3mm Hex Key
Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Remote Air Pro Wireless Follow Focus Single Motor Kit with Apple iPhone and iPod Touch Integration in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PD3-ANT Antenna for Remote Air, Air 2 & Air Pro
| | | Box Dimensions (LxWxH) | 7.0 x 5.25 x 0.1" | - 19 to 15mm Rod Adapter Bushing (PD Movie)
| Diameter | Outer: 19 mm
Inner: 15 mm (when compressed) | | | | Box Dimensions (LxWxH) | 5.0 x 2.5 x 0.1" | - 25" Remote Air Pro D-Tap to LEMO Cable
| Cable Length | 25" (63.5 cm) | | | | Box Dimensions (LxWxH) | 4.9 x 1.9 x 1.0" | - PD Movie Lightning to USB Cable (3")
| Connector 1 | Lightning connector | | Connector 2 | USB | | Length | 3" (7.6 cm) | | | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 1.0" | - Replacement Strap for PD Movie Products
- PD3-R Remote Air Pro Receiver Motor
| Torque | Maximum 0.5 Nm | | Gear | Module: 0.8
Teeth: 40 | | Noise | < 28 dB | | Working Voltage | 12 to 18 V | | Dimensions | 4.25 x 2.87 x 1.14" (108 x 73 x 29 mm) | | Weight | 6.4 oz (181.4 g) | - USB Charger for Remote Air Pro Follow Focus
| Input | 110/220 VAC | | Output | 5 VDC | - Replacement USB Charging Cable for Remote Air Pro Follow Focus
| | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" | - Glow-In-The-Dark Magnetic Marking Disk
- Replacement Clip for iPhone 6
- Replacement Clip for iPhone 6 Plus
- Replacement Clip for iPod Touch
