Product description - Saga S7H High Bright 7" Monitor | Ikan Tech Corner

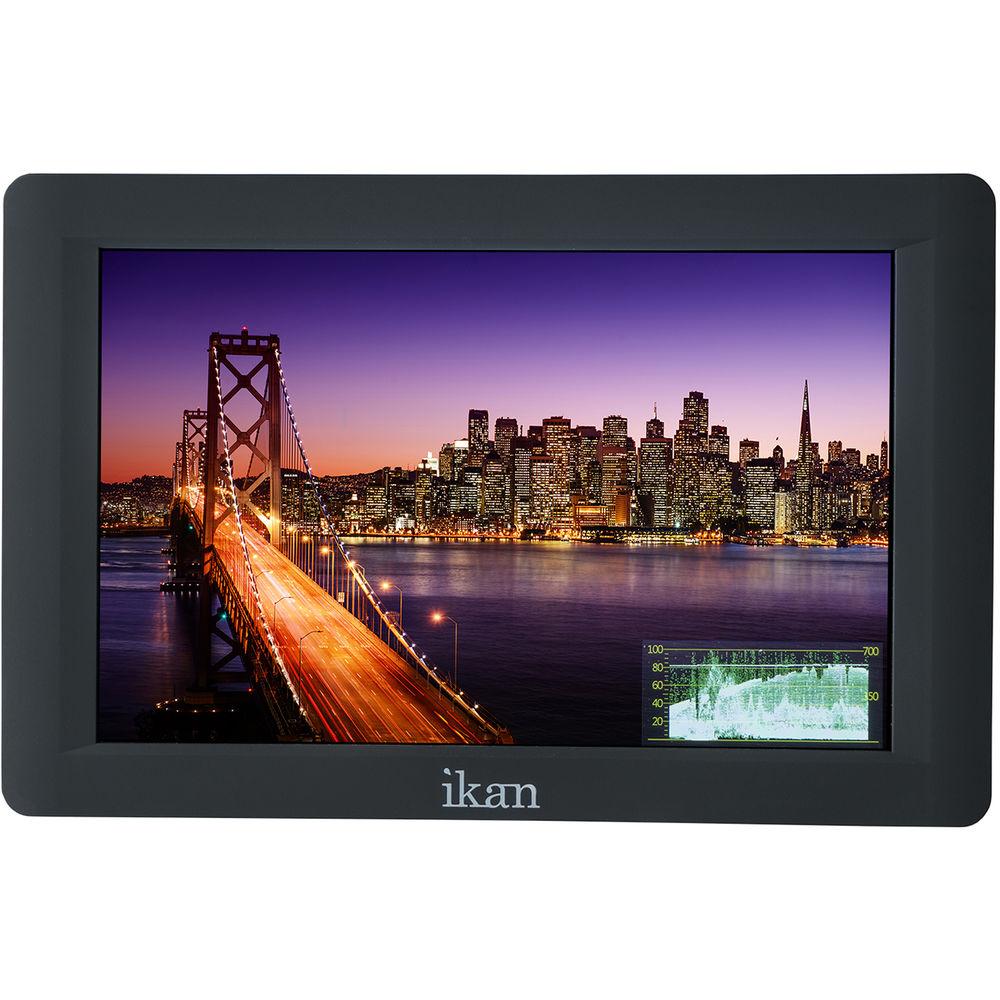

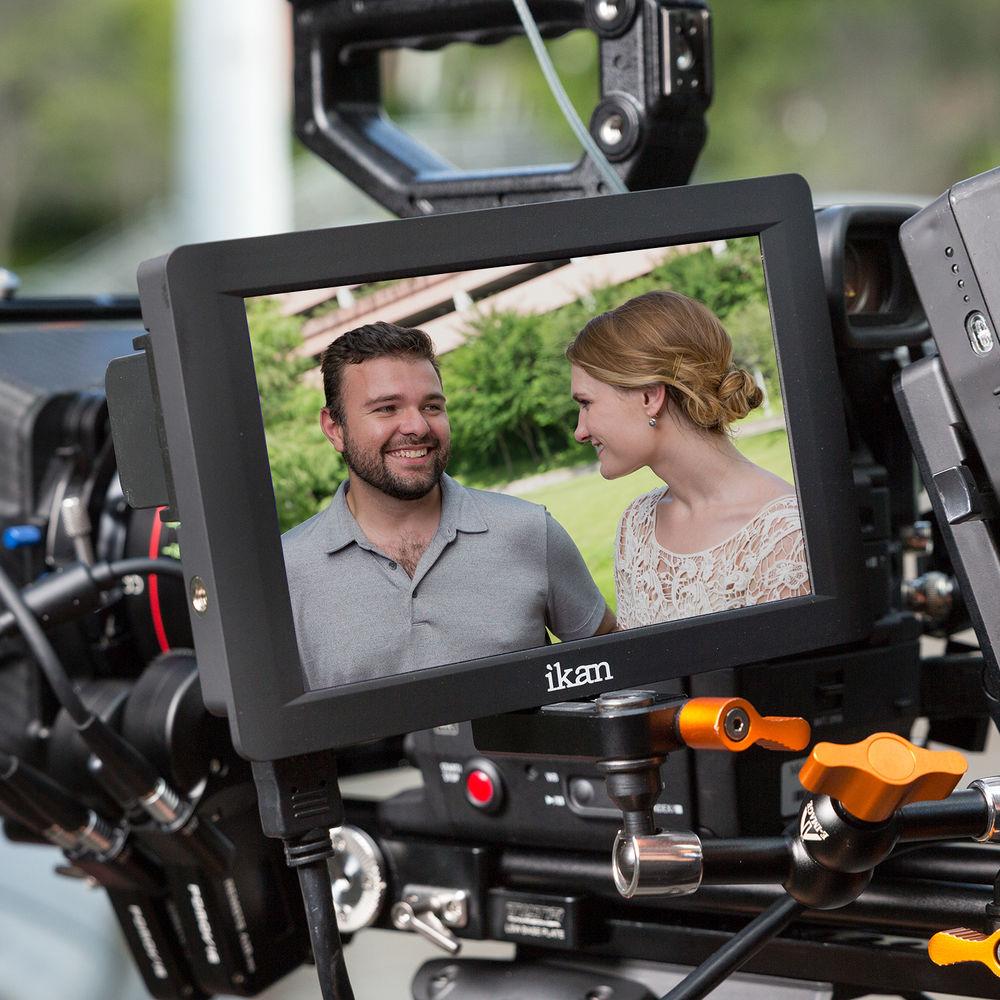

The S7H-DK Saga 7" High-Brightness On-Camera Monitor Deluxe Kit from ikan comes with the Saga 7" LCD monitor with neoprene sleeve, two Canon LP-E6 type batteries with compatible adapter plates and charger, 36" D-Tap to mini-XLR power cable for powering the monitor, and a soft case for easy storage and transportation. This kit also includes a shoe mount, 1.5' standard to micro-HDMI cable, 1.5' standard to mini-HDMI cable, and a 1.5' SDI cable with BNC to right-angle BNC connector.

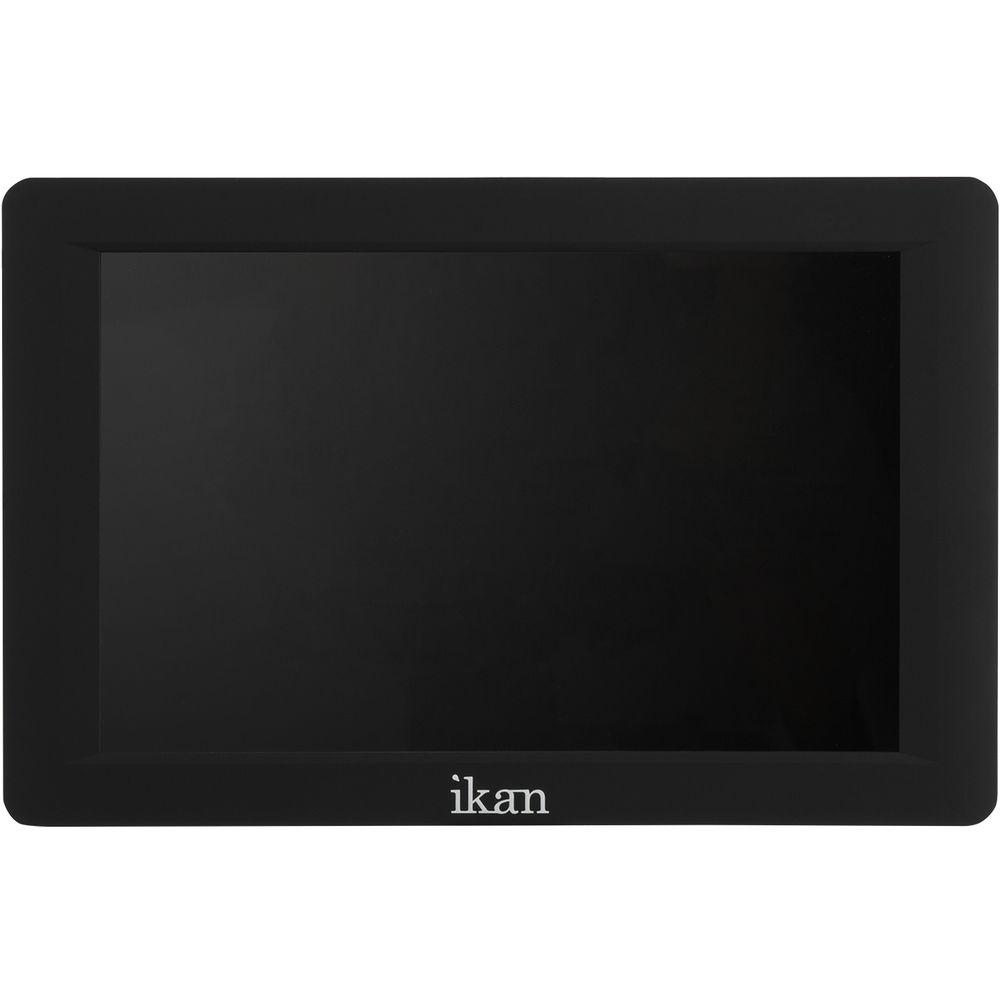

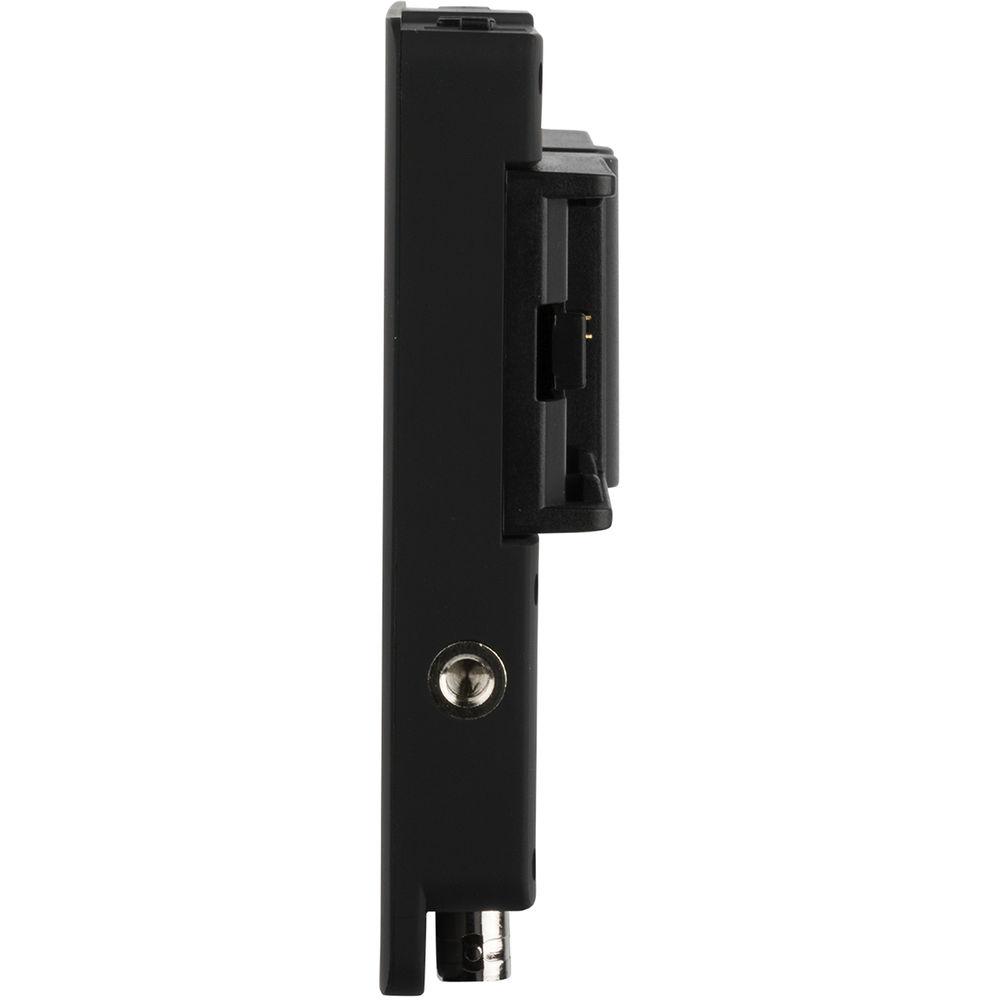

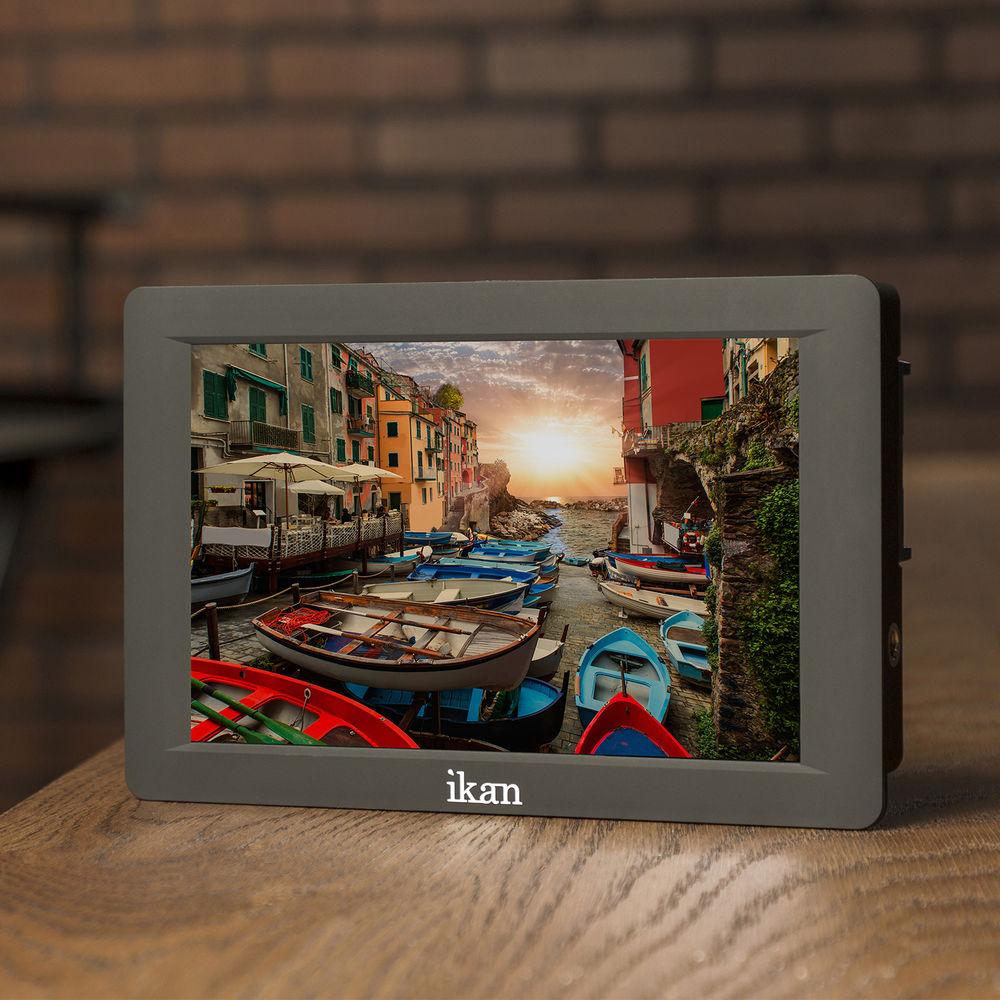

The Saga 7" on-camera monitor can display UHD and DCI 4K input signals from HDMI, as well as professional HD or SD signals over SDI. While the bright 700 cd/m2 IPS LCD screen is natively 1920 x 1200 in resolution, using the 1:1-pixel mapping allows you to achieve sharp focus, even with 4K video. Both the SDI and HDMI inputs can be looped through respective outputs (no cross conversion) to connect other monitoring or recording equipment.
The headphone jack comes in handy with cameras that don't let you monitor audio through an output. And having two battery plates allows you to continuously power the monitor by hot-swapping discharged batteries for fresh ones as needed. - Bright 700 cd/m² LCD screen with 1920 x 1200 display resolution
- IPS technology offers accurate colors and wide viewing angles (178°/178°)
- DCI 4K and Ultra HD support via HDMI
- 3G-SDI and HDMI inputs and outputs
- Includes two Canon LP-E6 type batteries with adapter plates and dedicated charger
- Waveform, histogram, and audio level meters
- Peaking, false color, clip guides, underscan, and pixel-to-pixel
- DSLR scaling with normal, 3:2, 16:9, and full-screen options

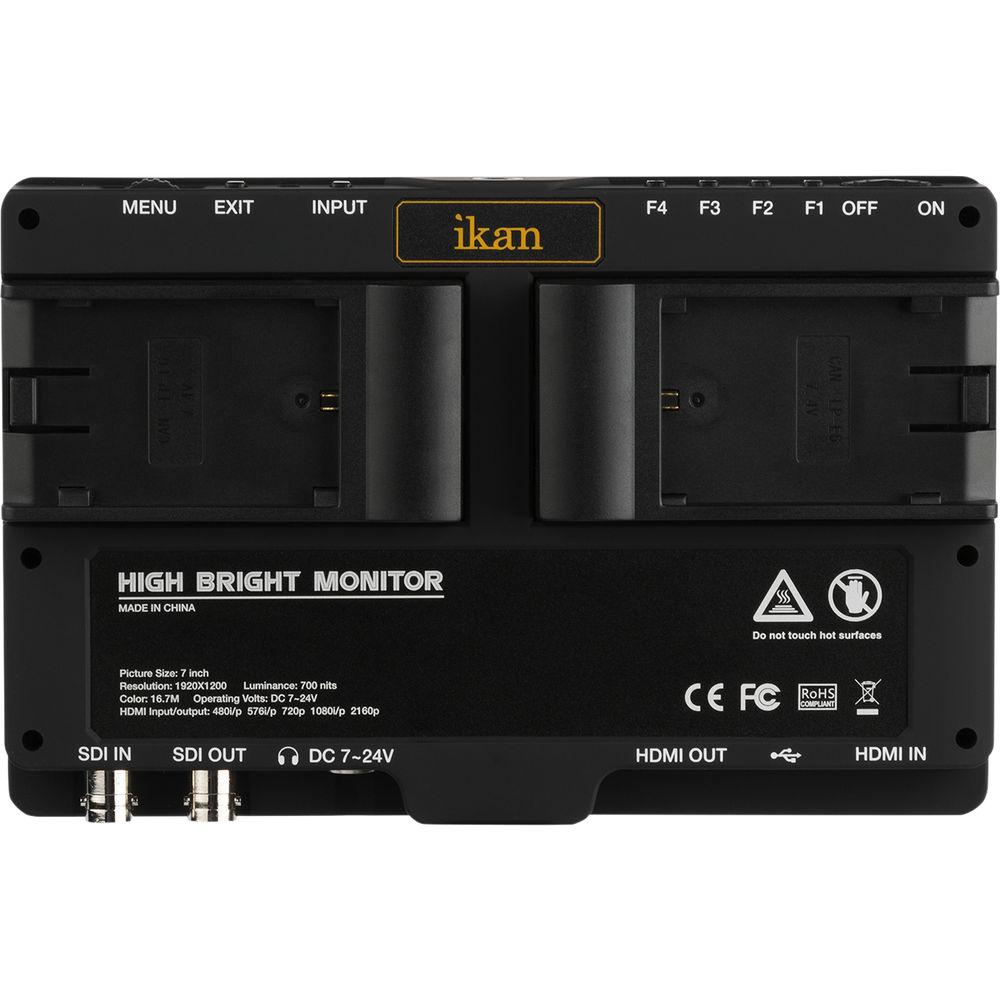

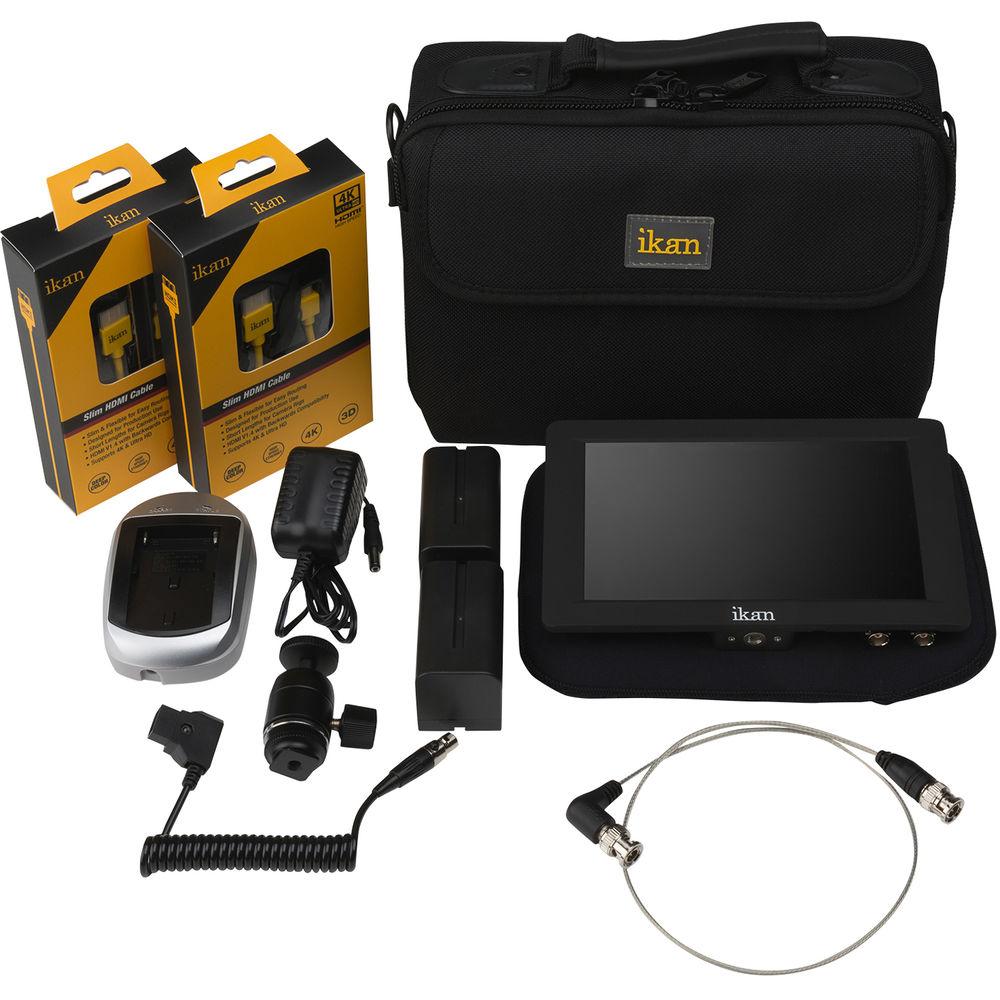

UPC: 847983023523 In the Box ikan S7H-DK Saga 7" High-Brightness On-Camera Monitor Deluxe Kit (Canon LP-E6 Type) Saga 7" On-Camera Field Monitor Neoprene Sleeve 36" D-Tap to Mini-XLR Power Cable 2 x IBC-E6+ Lithium-Ion Battery Pack (7.2V, 2950mAh) wyyyrvqatzxuwfurttsybuweyuxb 2 x BP5 Canon LP-E6 Battery Plate for ikan Monitors Canon LP-E6 Compatible Charger Shoe Mount Mini-HDMI to HDMI High-Speed Slim Cable (Yellow, 1.5') Micro-HDMI to HDMI High-Speed Slim Cable (Yellow, 1.5') Ultra Slim SDI Cable with BNC to Right-Angle BNC Connector (1.5') Soft Carry Case Limited 1-Year Warranty Quick start Guide PDF 390.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan S7H-DK Saga 7" High-Brightness On-Camera Monitor Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

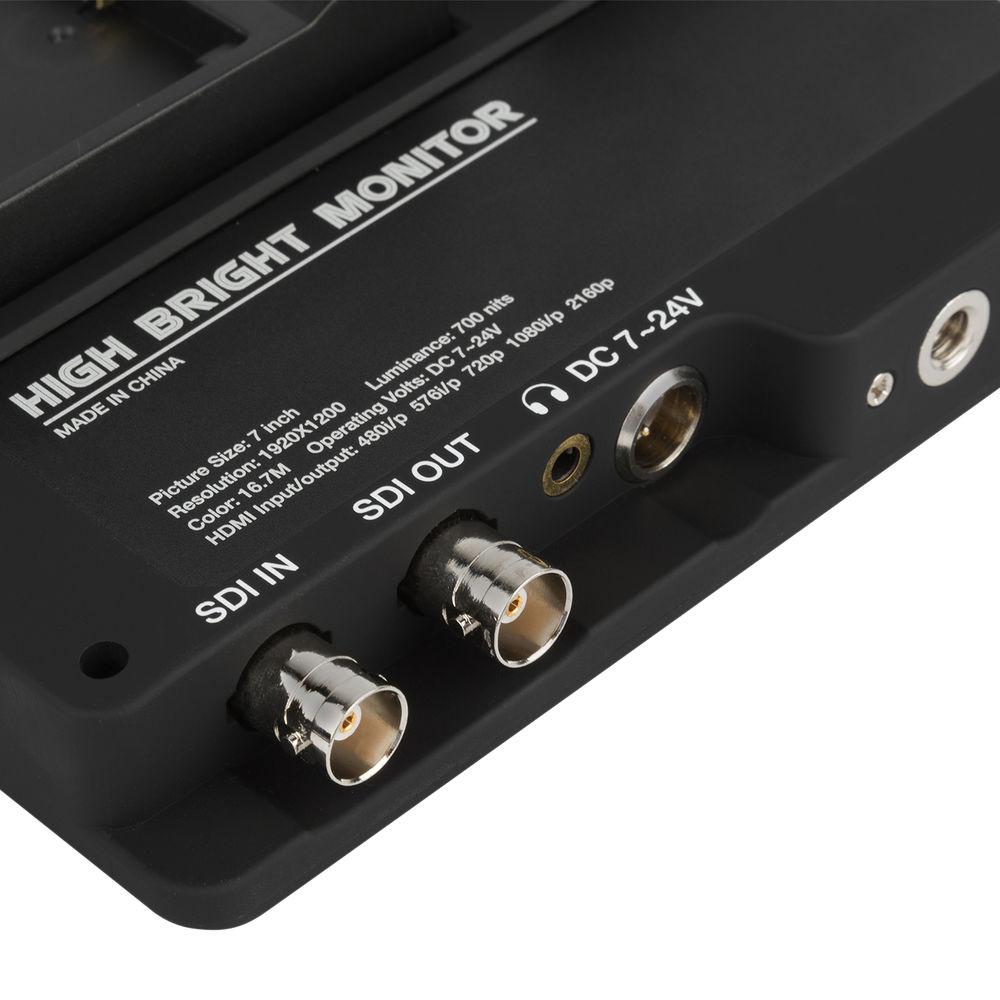

Technical parametersikan S7H Specs | Display | 7" / 17.8 cm LCD | | Backlight | LED | | Resolution | 1920 x 1200 | | Brightness | 700 cd/m² | | Color Depth | 8 bits per color channel (16.7 million colors) | | Color System | NTSC, PAL, SECAM (auto-detected) | | Aspect Ratio | 16:10 | | Contrast Ratio | 1200:1 | | Viewing Angle | 178° H/V | | Pixel Pitch | 0.07875 mm² | | Response Time | 20 ms | | Inputs | 1 x BNC, 3G-SDI

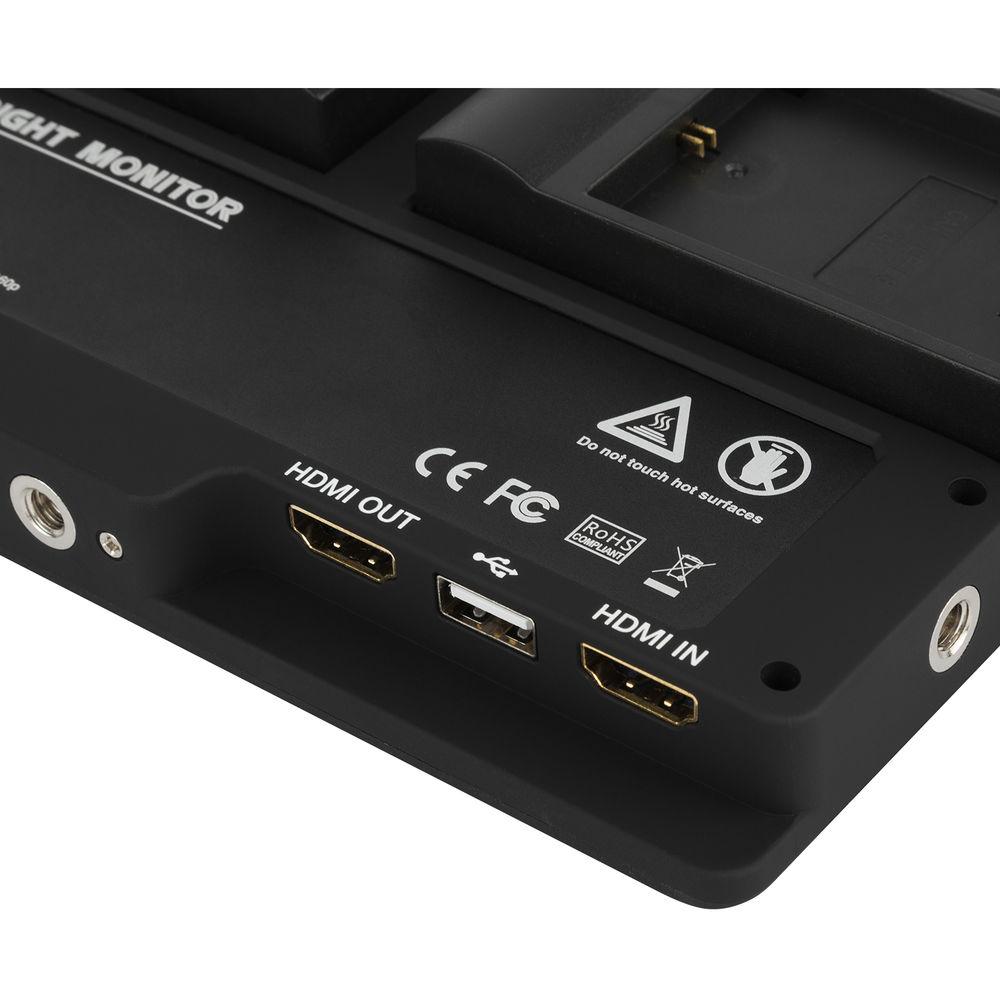

1 x HDMI Type A | | Outputs | 1 x BNC, 3G-SDI
1 x HDMI Type A
1 x 3.5 mm headphone jack | | Supported HDMI Resolutions | 4096 x 2160 24/25/30
3840 x 2160 24/25/30
1080p 23.97/24/25/29.94/30/50/59.94/60
1080PsF 24/25/29.97/30
1080i 50/59.94/60
720p 23.97/24/25/29.94/30/50/59.94/60
576i 50
480i & 480p 59.94/60
NTSC
PAL | | Picture Controls | Waveform
Histogram
Audio level meter
Peaking
False color
Clip guides
DSLR scaling
Underscan
Pixel-to-pixel
Image flip
Zooming
Crosshair
Check field
HV delay
Grids | | Input Voltage | 7-24 VDC | | Power Consumption | 6 W | | Firmware Updates | Via USB port | | Housing | Heavy-duty plastic | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 7.5 x 4.8 x 0.8" / 19 x 12.2 x 2 cm (monitor only) | | Weight | 0.5 lb / 260 g (monitor only) | | | | Package Weight | 4.065 lb | | Box Dimensions (LxWxH) | 11.35 x 8.5 x 6.8" |
