User Manual for ikan Saga 7" 4K HDMI 3G-SDI On-Camera Monitor Deluxe Kit Click to enlarge the picture
Contents of the user manual for the ikan Saga 7" 4K HDMI 3G-SDI
- Product category: On Camera Monitors ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan On Camera Monitors
 |
User manual for the ikan Saga 7" 4K HDMI 3G-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

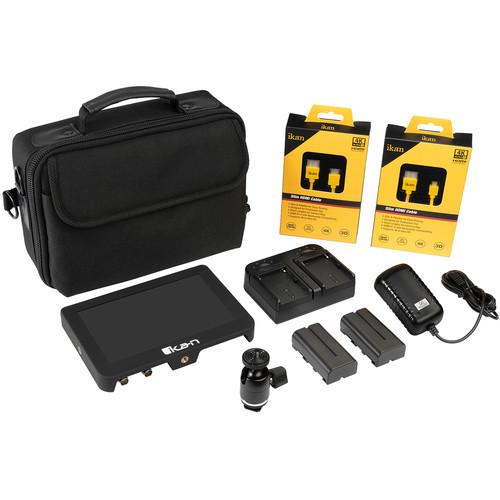

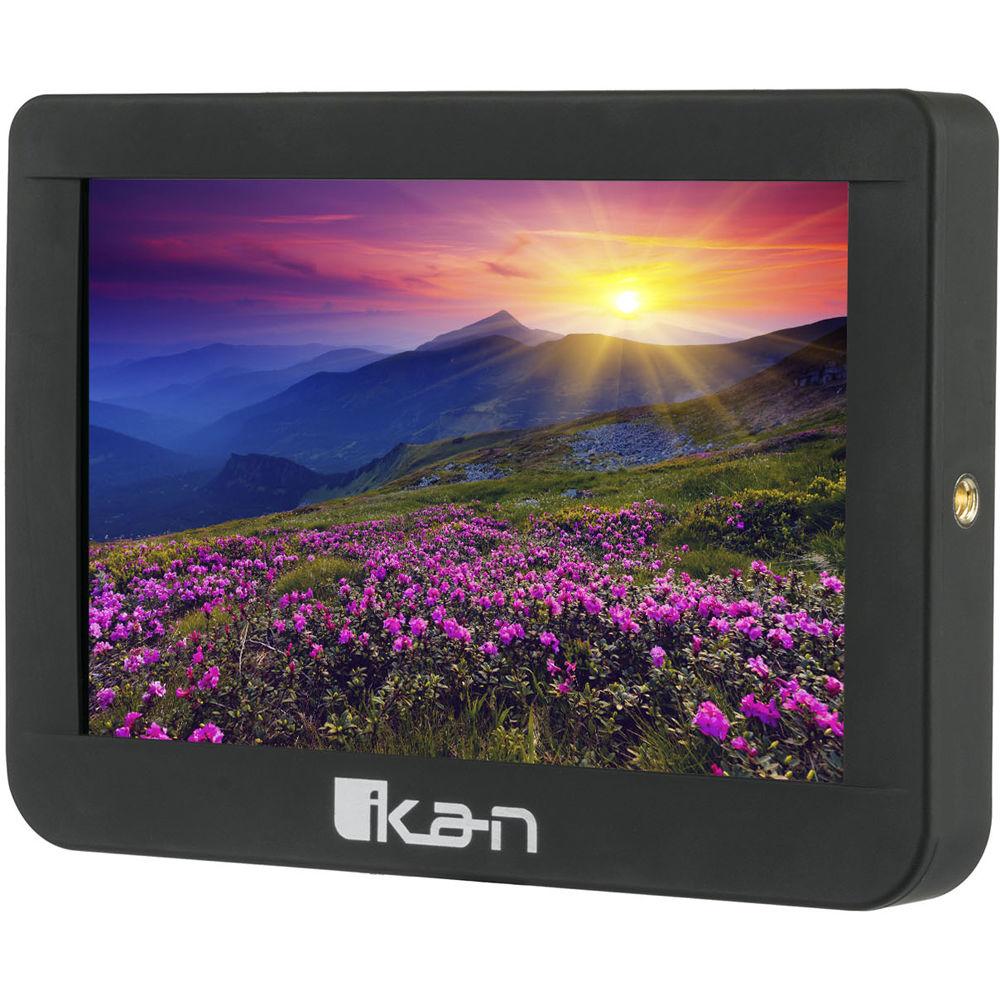

Product description This Saga 7" 4K HDMI/3G-SDI On-Camera Monitor Deluxe Kit from ikan features a S7C Saga 7" on-camera monitor, two IBS-550 L-series batteries, a dual battery charger, a power adapter, two HDMI cables, a ball head with shoe mount, a sun hood, and a soft case to carry everything in the kit.
The monitor has 3G-SDI and HDMI inputs, features 450 cd/m² brightness so you can see clearly even in daylight conditions, and supports DCI 4K, UHD 4K, HD, and SD resolution input. The two 2900mAh L-series batteries provide 7.4V output and can be charged simultaneously in the included charger. The included micro-HDMI and Mini HDMI cables provide connection to the camera. Read more below about the items in this kit. - Saga 7" On-Camera 4K HDMI/3G-SDI Monitor The Saga On-Camera 4K HDMI/3G-SDI Monitor from ikan is a 7" monitor that supports a resolution up to 1920 x 1200. It features both HDMI and 3G-SDI inputs and outputs, as well as a 3.5mm audio output. This monitor is slim and lightweight, and is operated using two Sony L-series type batteries (sold separately). It includes a sun hood, power adapter, and a shoe mount adapter.
- Key Features
-
- Histogram, check field, pixel-to-pixel, zebra
- DSLR scale, zoom in, peaking, false colors
- Image flip, audio meter, display ratio
UPC: 847983025992 - NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh) The NP-F550 L-Series Compatible Lithium-Ion Battery from ikan features a 7.4V output and 2900mAh capacity. It can be used with any device that accepts NP-F550 batteries. Compatible ikan devices include the iLED6, iLED144, iLED312 (-v2), ID508, and IB508. UPC: 847983006007
In the Box Bundle Items Saga 7" On-Camera 4K HDMI/3G-SDI Monitor 2 x NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh)
Also Includes - Dual Battery Charger
- Slim Mini HDMI to HDMI Cable (1.5')
- Slim Micro-HDMI to HDMI Cable (1.5')
- Soft Carry Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Saga 7" 4K HDMI 3G-SDI On-Camera Monitor Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Saga 7" On-Camera 4K HDMI/3G-SDI Monitor
| | | Panel Type | Unspecified LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178° (89/89) | | Touchscreen | No | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1100:1 | | Real-Time LUT Monitoring | No | | Image Controls | False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Zebra | | | | Video | 1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output | | Embedded Audio | HDMI
SDI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | None | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 2 x L-Series | | | | Dimensions (W x H x D) | 7.25 x 5 x 0.75" / 18.41 x 12.7 x 1.91 cm | | Weight | 1 lb / 0.45 kg | | | | Box Dimensions (LxWxH) | 10.9 x 10.4 x 2.7" | - NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 21 Wh | | Amp-Hours | 2900 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.8 x 1.5 x 0.8" / 7.0 x 3.8 x 2.0 cm | | Weight | 0.2 lb / 90.7 g | | | | Box Dimensions (LxWxH) | 3.95 x 2.15 x 1.0" |
