User Manual for ikan Saga 7" On-Camera 4K HDMI 3G-SDI Monitor Click to enlarge the picture
Contents of the user manual for the ikan Saga 7" On-Camera 4K HDMI
- Product category: On Camera Monitors ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan On Camera Monitors
 |
User manual for the ikan Saga 7" On-Camera 4K HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

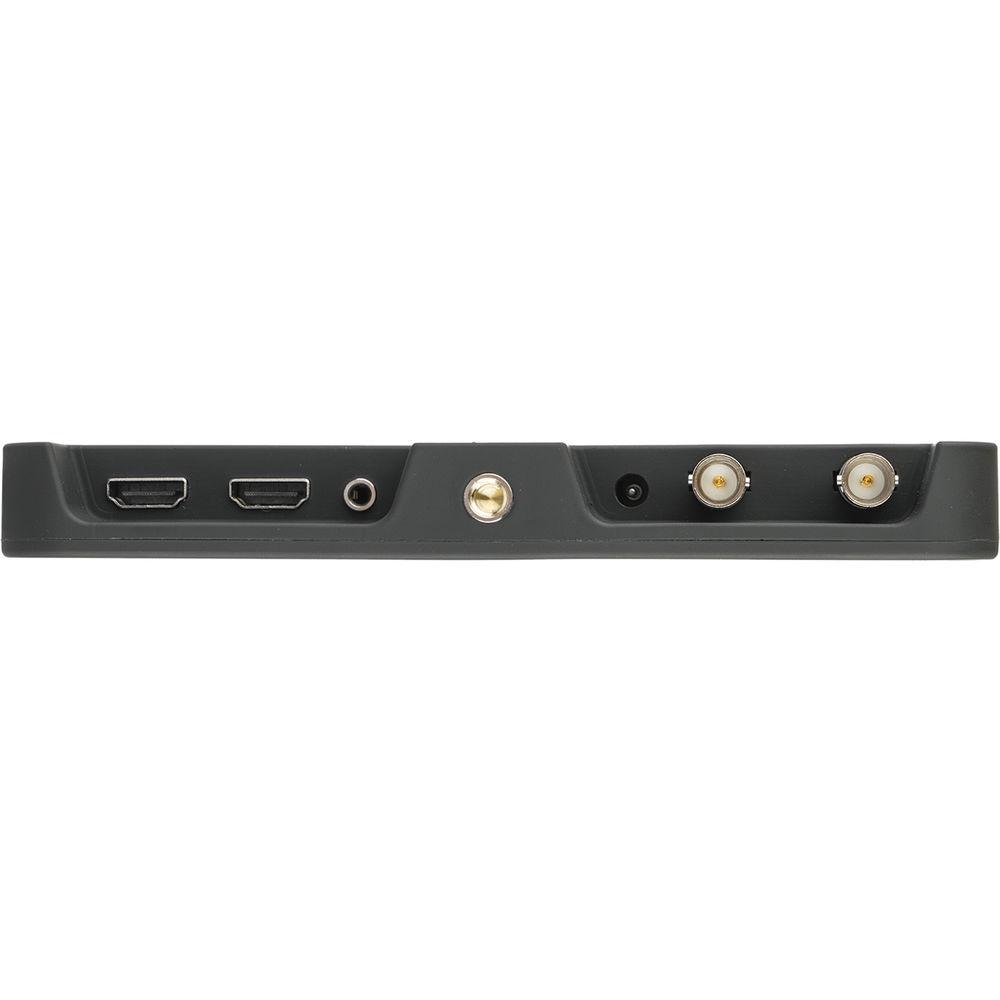

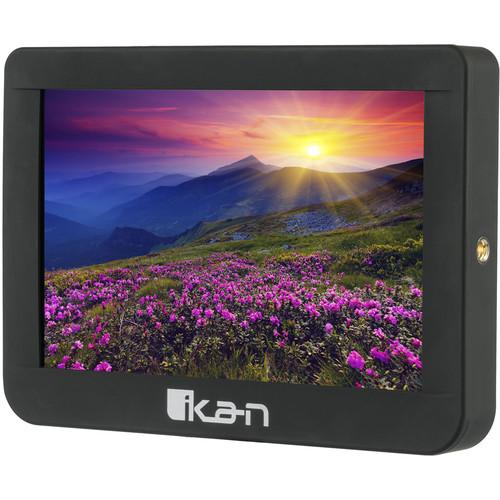

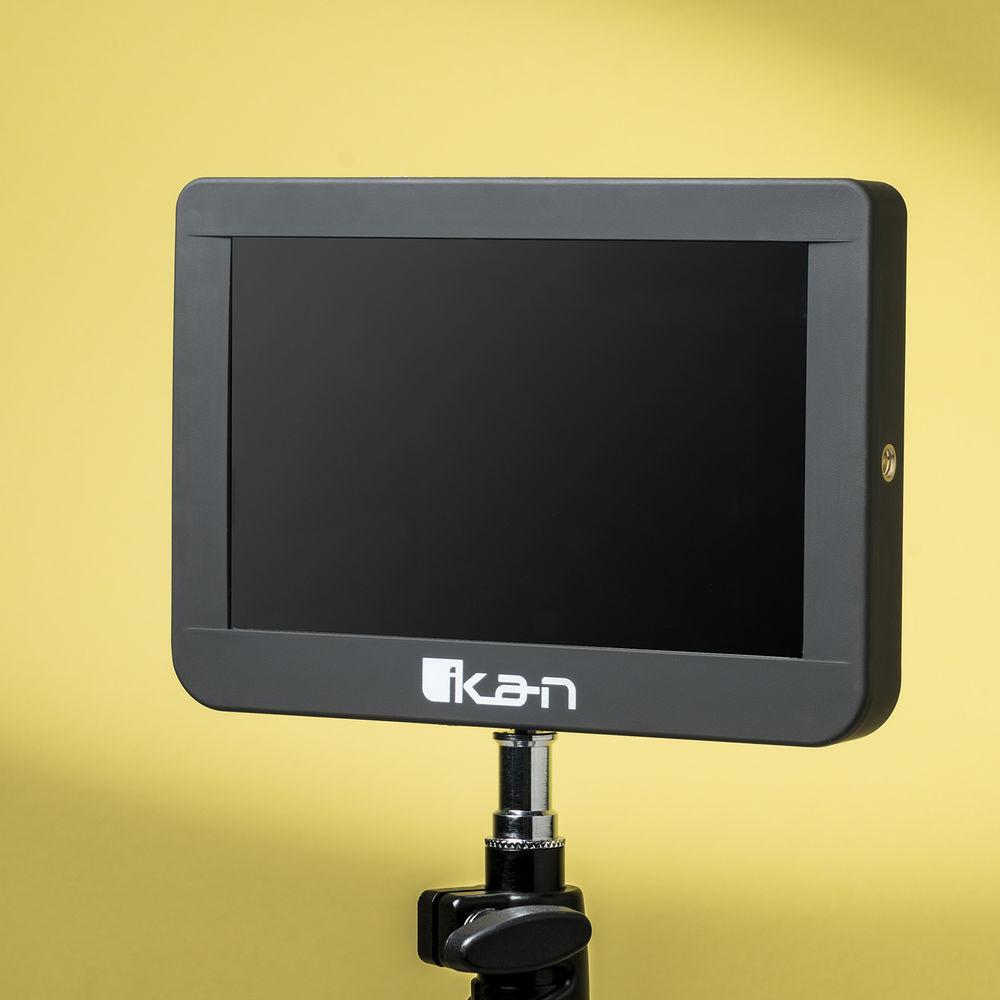

Product description The Saga On-Camera 4K HDMI/3G-SDI Monitor from ikan is a 7" monitor that supports a resolution up to 1920 x 1200. It features both HDMI and 3G-SDI inputs and outputs, as well as a 3.5mm audio output. This monitor is slim and lightweight, and is operated using two Sony L-series type batteries (sold separately). It includes a sun hood, power adapter, and a shoe mount adapter. - Key Features
-
- Histogram, check field, pixel-to-pixel, zebra
- DSLR scale, zoom in, peaking, false colors
- Image flip, audio meter, display ratio
UPC: 847983025992 In the Box ikan Saga 7" On-Camera 4K HDMI/3G-SDI Monitor Sun Hood Power Adapter Shoe Mount Adapter Limited 1-Year Warranty Quick start Guide PDF 507.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Saga 7" On-Camera 4K HDMI 3G-SDI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

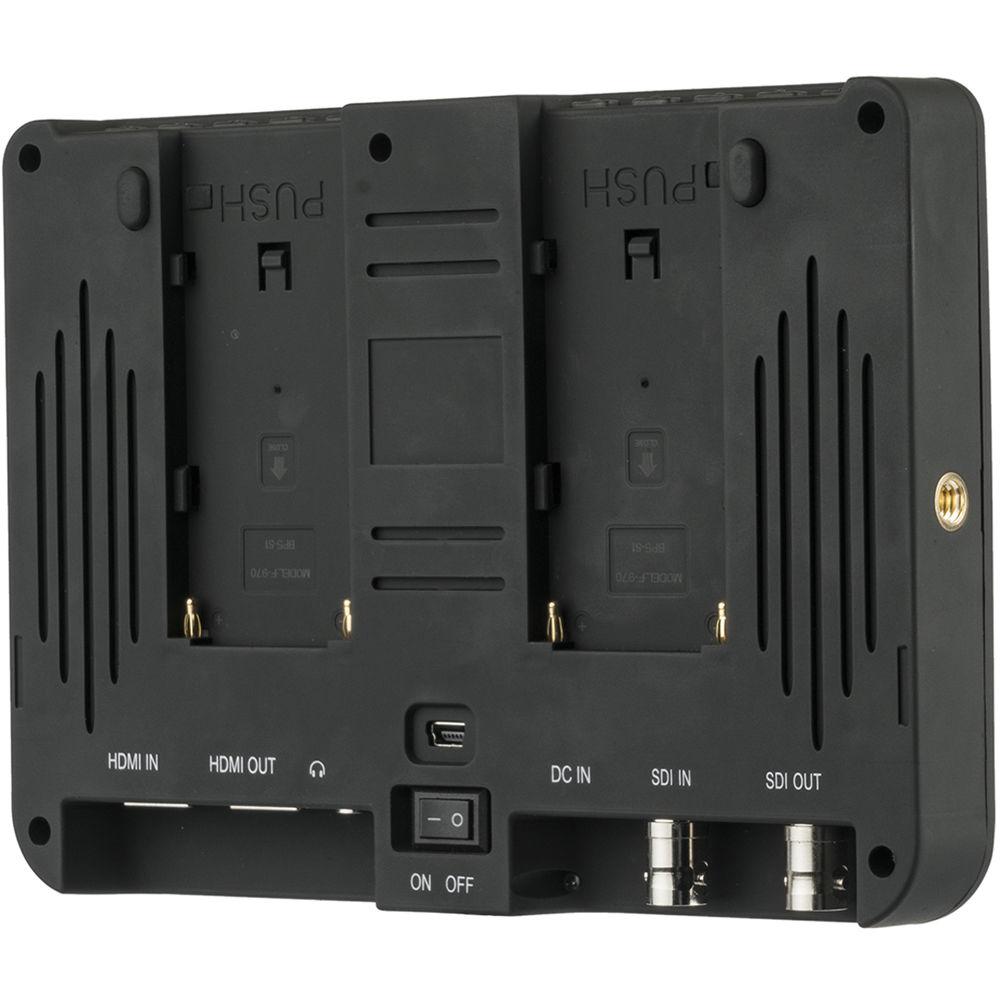

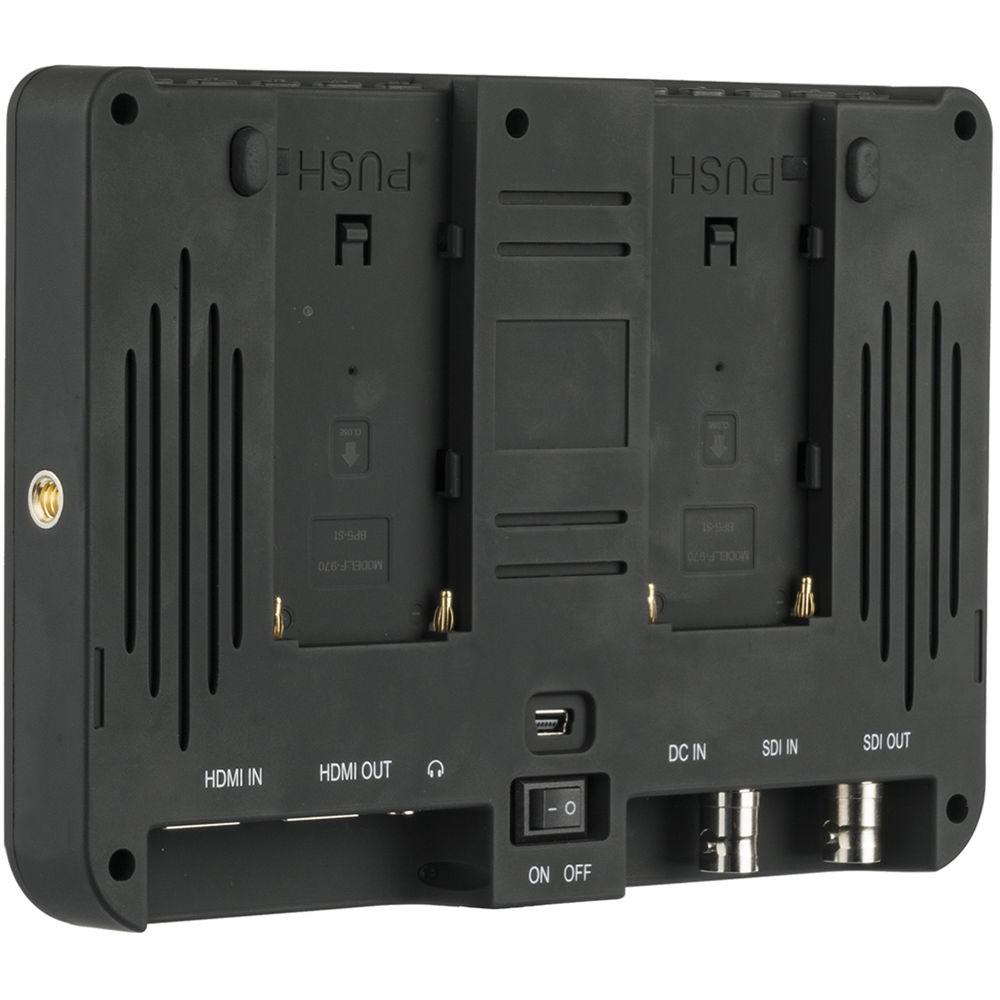

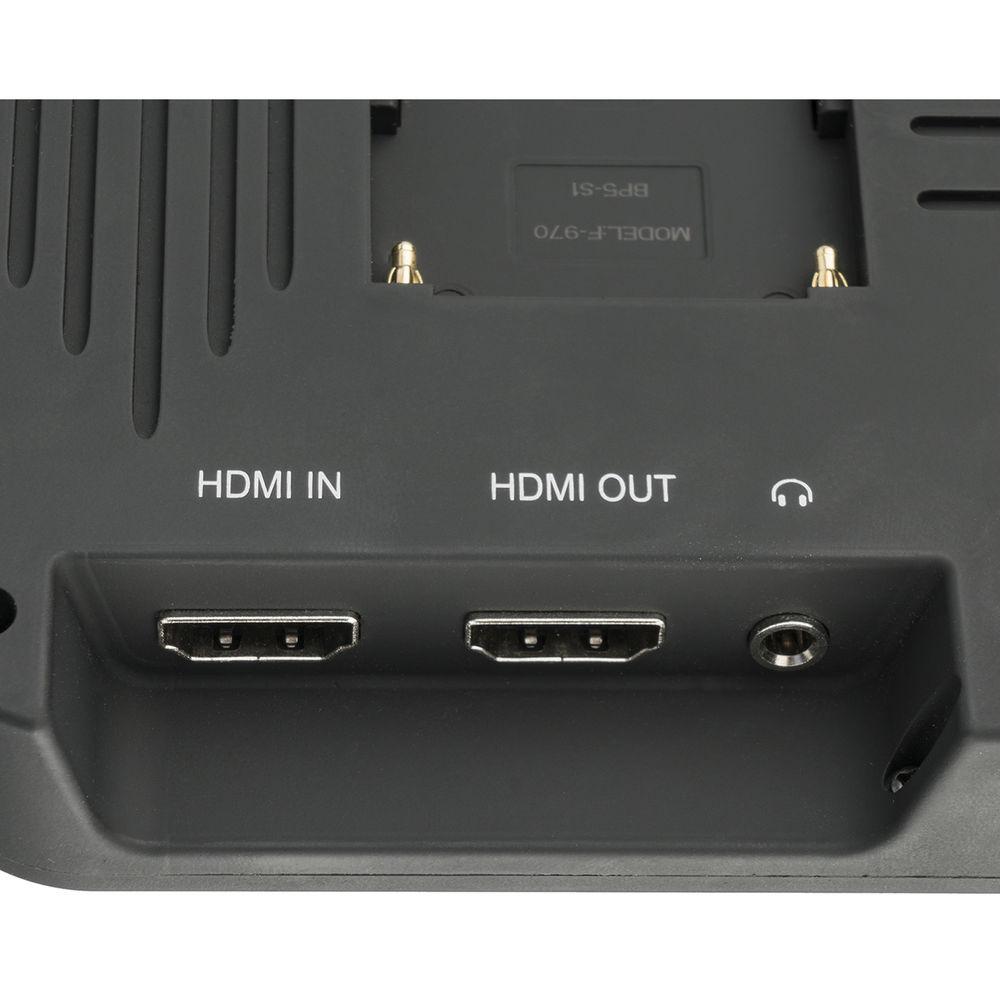

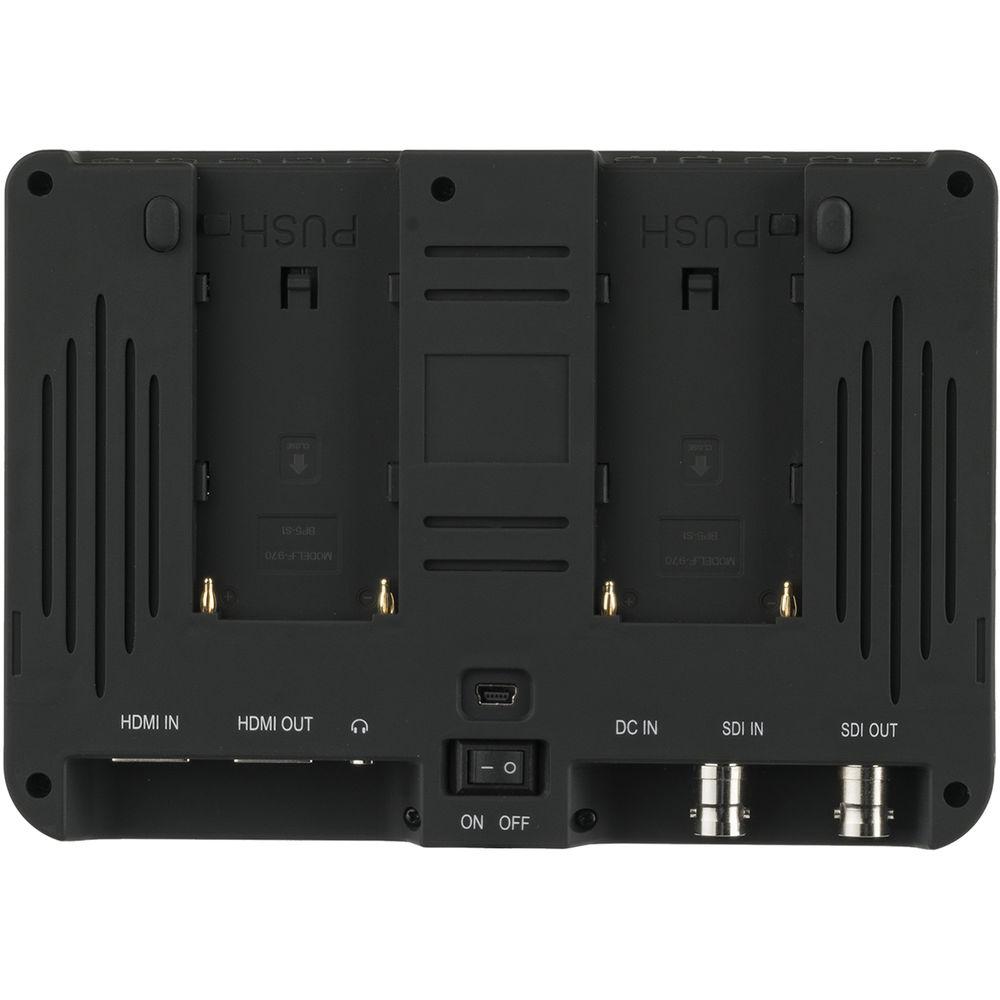

Technical parametersikan Saga Specs | | | Panel Type | Unspecified LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178° (89/89) | | Touchscreen | No | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1100:1 | | Real-Time LUT Monitoring | No | | Image Controls | False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Zebra | | | | Video | 1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output

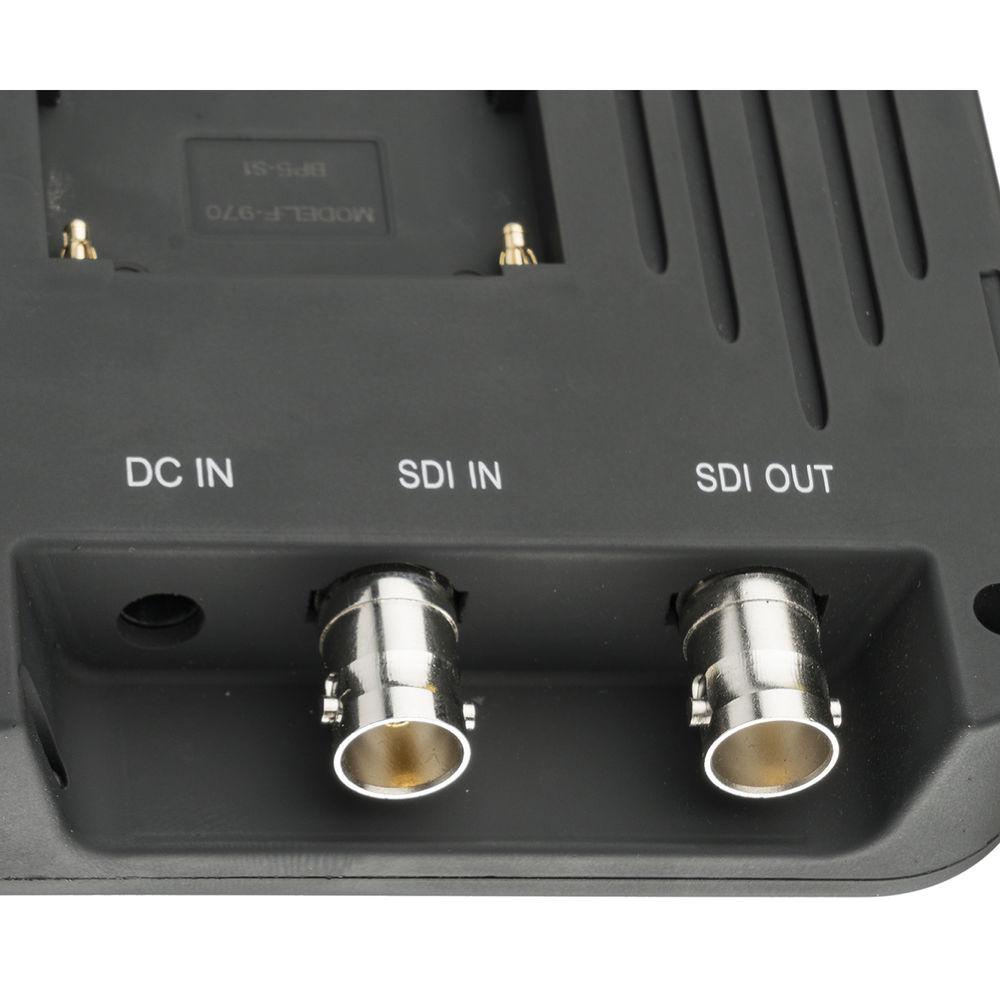

1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output | | Embedded Audio | HDMI
SDI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | None | | Card Slot | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 2 x L-Series | | | | Dimensions (W x H x D) | 7.25 x 5 x 0.75" / 18.41 x 12.7 x 1.91 cm | | Weight | 1 lb / 0.45 kg | | | | Package Weight | 2.57 lb | | Box Dimensions (LxWxH) | 10.9 x 10.4 x 2.7" |
