Product description - Saga SX7 Super High Bright Field Monitor | Ikan Tech Corner
- Saga SX7 7" Super High Bright Monitor with Scopes

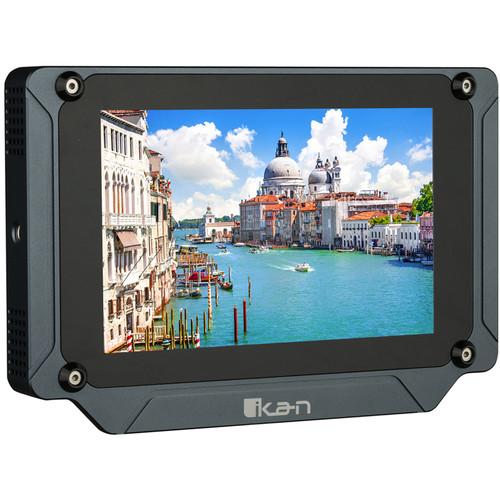

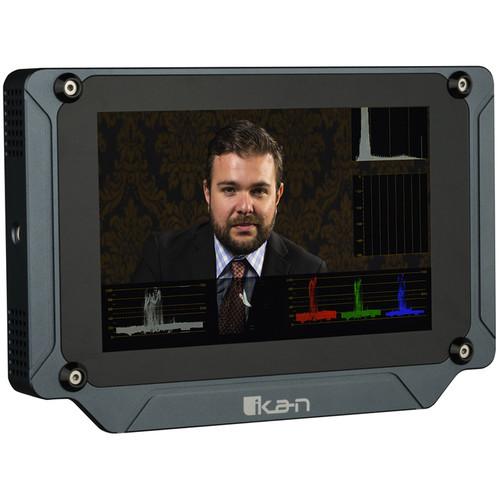

The Saga SX7 7" High-Brightness 3G-SDI/HDMI Field Monitor from ikan offers a brightness rating of 2000 cd/m2 and resolution of 1920 x 1200, allowing you to clearly view footage under bright lighting conditions. It comes with waveform, vectorscope, RGB parade, histogram, and eight-channel audio level meter. The monitor supports 3D LUTs and allows you to load LUT files from a USB drive. It comes pre-loaded with profiles for a wide variety of cameras. Its casing is made of aluminum, and the screen is protected by Gorilla Glass.

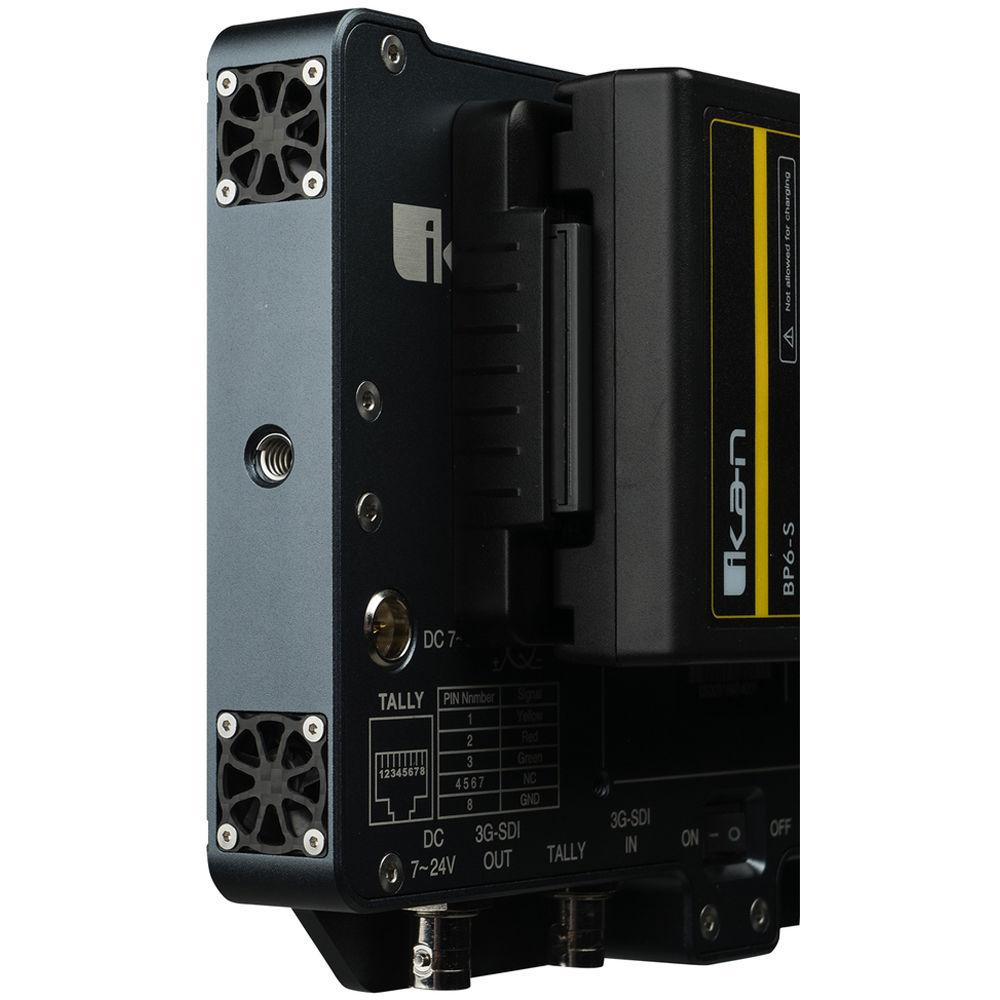

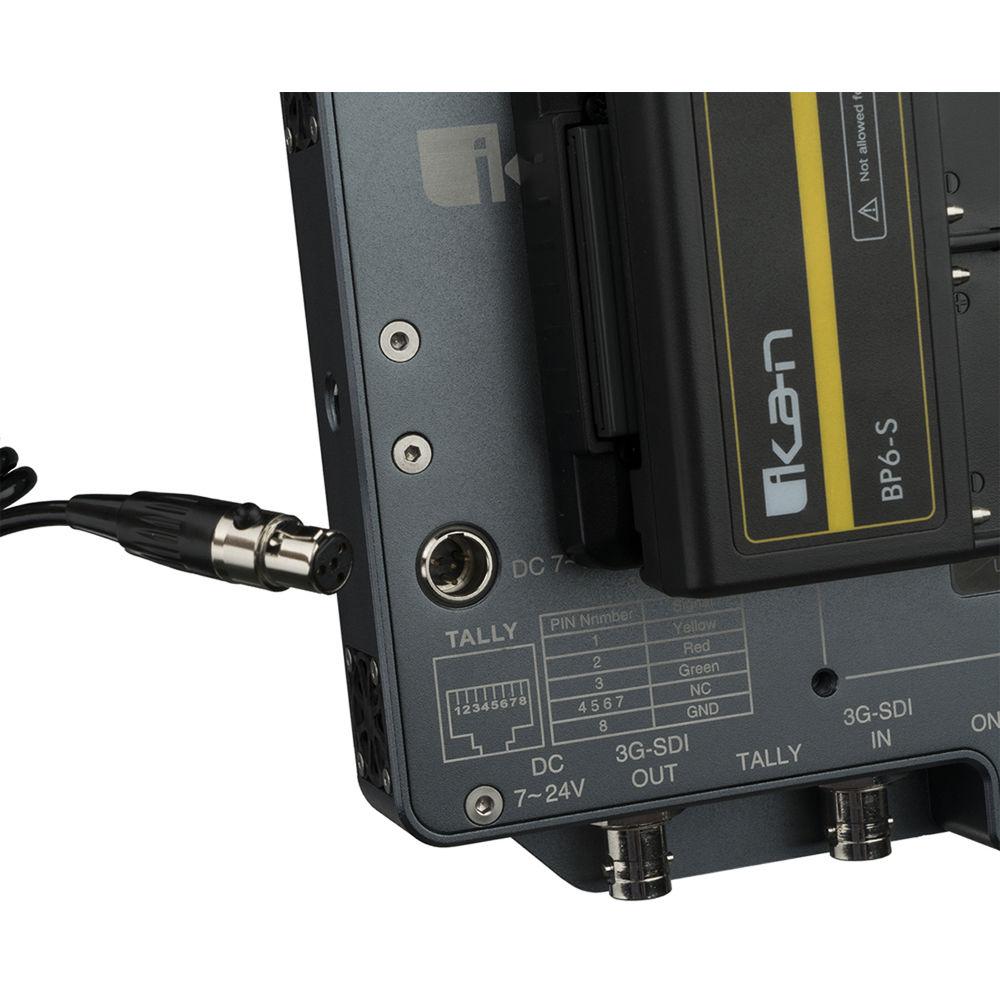

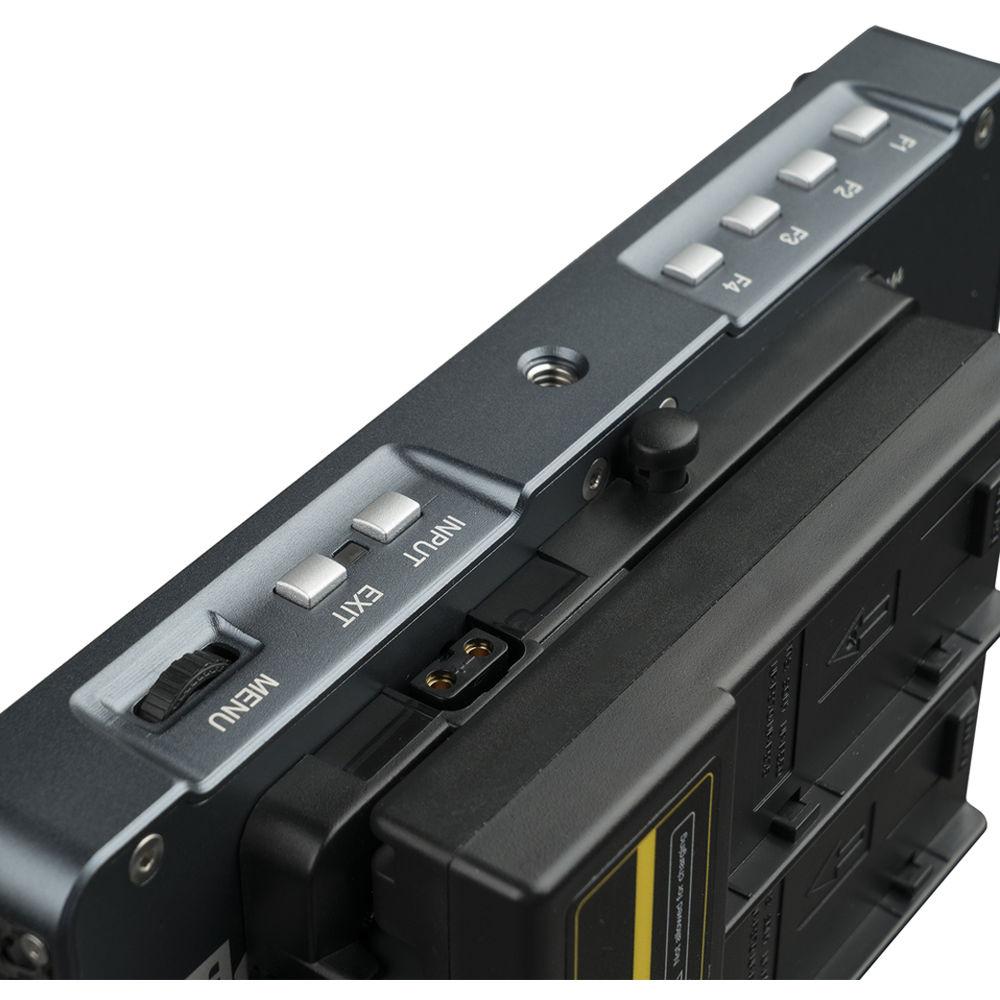

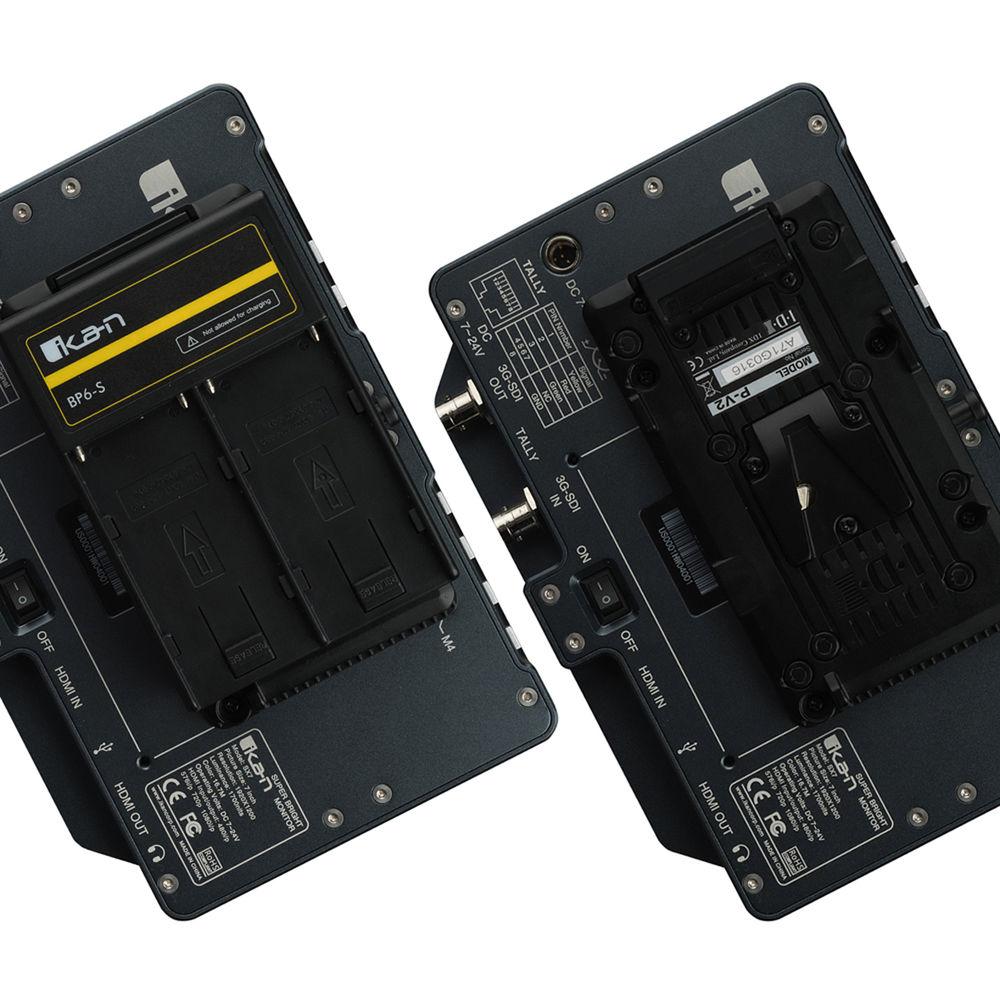

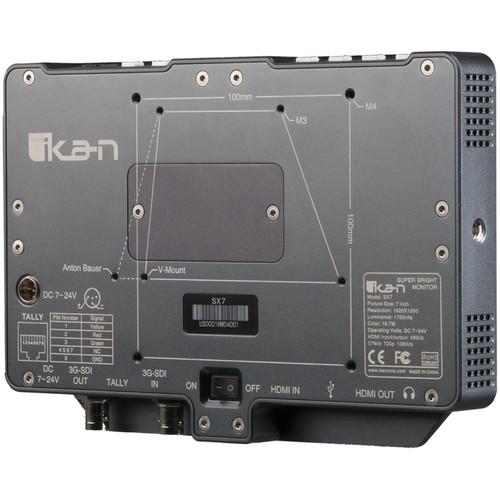

The SX7 is equipped with both HDMI and 3G-SDI inputs and outputs. In addition, a 3.5mm headphone output allows you to monitor audio. The monitor features a tally terminal and a USB port for software upgrades and importing 3D LUTs. The USB port also allows you to power various 5V devices. It supports pro and DV batteries, and features a mini-XLR power input for a secure connection. Monitor - 1920 x 1200 Full HD plus LCD panel
- 3G-SDI / HDMI inputs and outputs
- Software Features
- 3D LUTs
HDR preview
Guides
Grids
Crosshair
Waveform
Vectorscope
RGB parade
Histogram
Audio meters
Peaking
False color
Image zoom
Image flip
Check field
Zebra
Underscan

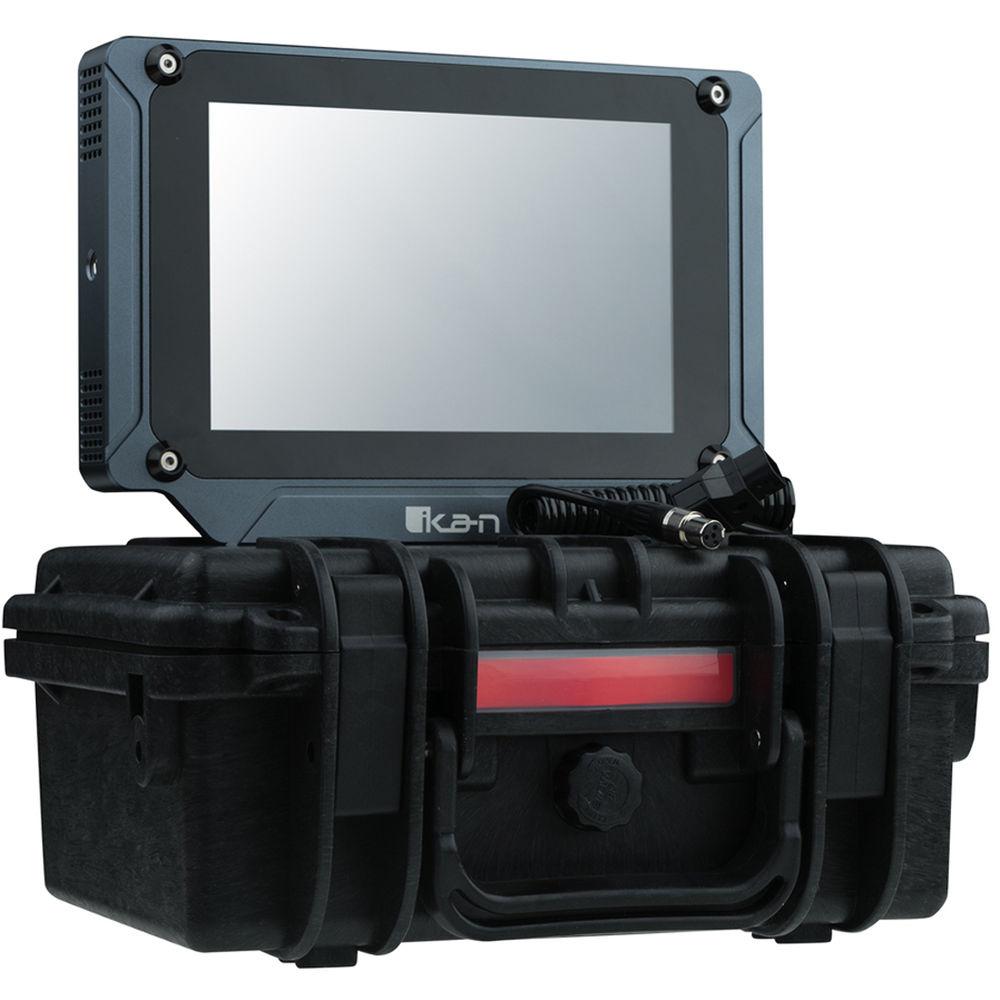

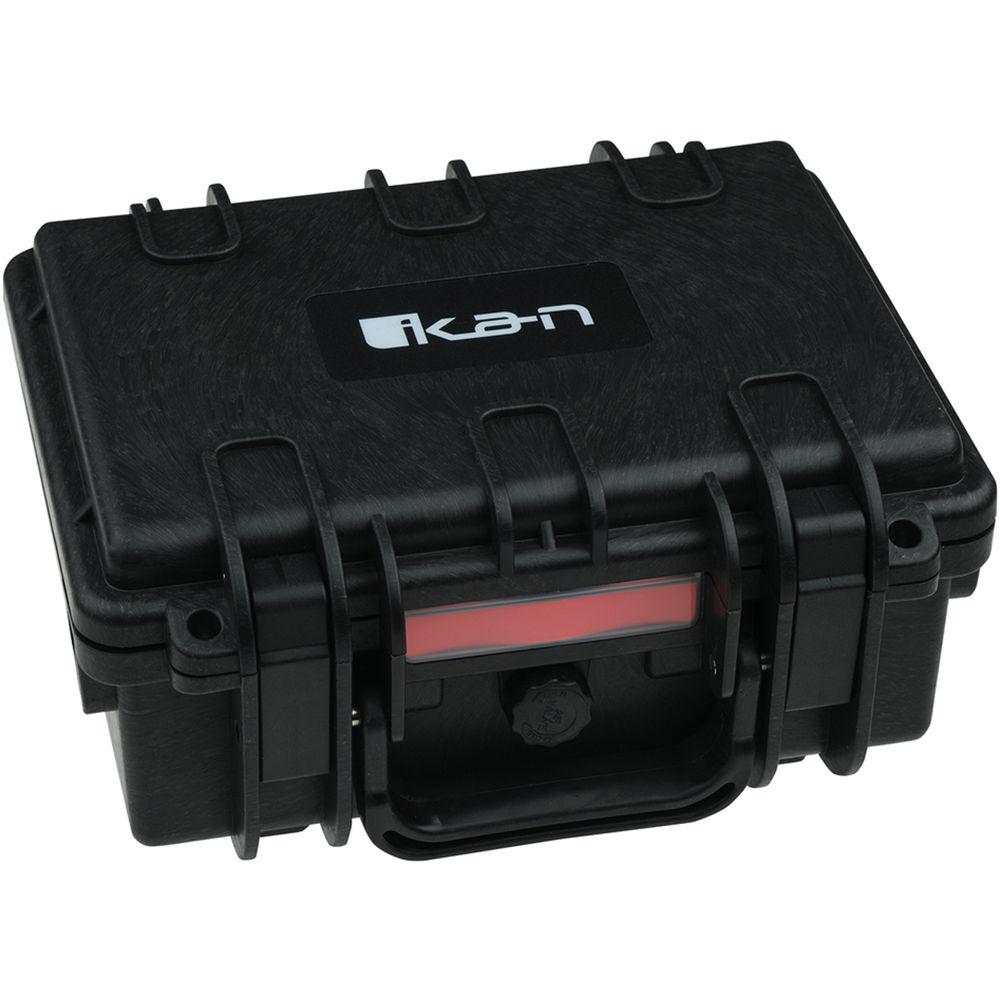

USB firmware update UPC: 847983023493 In the Box ikan Saga SX7 7" High-Brightness 3G-SDI/HDMI Field Monitor with 3D LUTs & Scopes Dual L-Series Type Battery Adapter Mini-XLR to D-Tap Cable Hard Case Limited 1-Year Warranty Quick start Guide PDF 396.8kbscbdqzuebeftvrftttvz Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Saga SX7 7" High-Brightness 3G-SDI HDMI Field Monitor with 3D LUTs & Scopes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan Saga Specs | Screen Size | 7" / 178 mm | | Screen Type | IPS LCD screen | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Backlight | LED | | Brightness | 2000 cd/m2 | | Color Depth | 16.7 million | | Color System | PAL/NTSC/SECAM (auto-detected) | | Contrast Ratio | 1200:1 | | Viewing Angle (H/V) | 178°/178° | | Pixel Pitch | 0.07875 x 0.07875 mm | | Response Time | 20 ms | | Input/Output Connectors | Inputs
1 x 3G-SDI
1 x HDMI
Outputs
1 x 3G-SDI
1 x HDMI
1 x 3.5 mm headphone jack
1 x Tally
1 x USB | | Supported Resolutions | 3G-SDI
2048 x 1080PsF: 23.98, 24, 25, 29.97, 30
1920 x 1080p: 50, 59.94, 60 (4:2:2 YCbCr)
HD-SDI (4:4:4 YCbCr)
1920 x 1080p: 23.97, 24, 25, 29.97, 30
1920 x 1080PsF: 23.98, 24, 25, 29.97, 30
1920 x 1080i: 50, 59.94, 60
1280 x 720p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
SD-SDI (4:2:2)
720 x 576i: 50
720 x 480i: 60
HDMI
1920 x 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920 x 1080PsF: 24, 25, 29.97, 30
1920 x 1080i: 50, 59.94, 60
1280 x 720p: 23.97, 24, 25, 29.94, 30, 50, 59.94, 60
720 x 576i: 50
720 x 480i: 60 | | Material of Construction | Aluminum | | Input Voltage | 7 to 24 VDC | | Power Consumption | Not specified by the manufacturer | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 8.5 x 5.7 x 0.9" / 21.6 x 14.5 x 2.3 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 5.485 lb | | Box Dimensions (LxWxH) | 10.65 x 9.2 x 4.85" |
