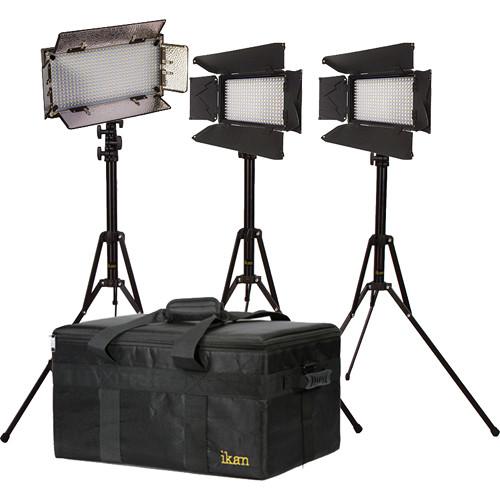

ikan Small Interview Dual Color Kit

User Manual for ikan Small Interview Dual Color Kit with Two iLED312-v2 and One IB508-v2

• Product category: LED Lights ikan
• Brand: ikan
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ikan LED Lights

Product description

• iLED312-v2 On-Camera Bi-Color LED Light with Digital Display The ikan iLED312-v2 On-Camera Bi-Color LED Light with Digital Display is a compact battery powered daylight/tungsten balanced on camera light. It features a continuously variable color temperature between 3200 tungsten and 5600K daylight, and a built-in variable dimmer that can dim the lights output from 100 to 10%. Built into the light is an LCD display panel that shows a digital readout of the brightness level, color temperature of the light and features a battery gauge so you know how much power you have left.

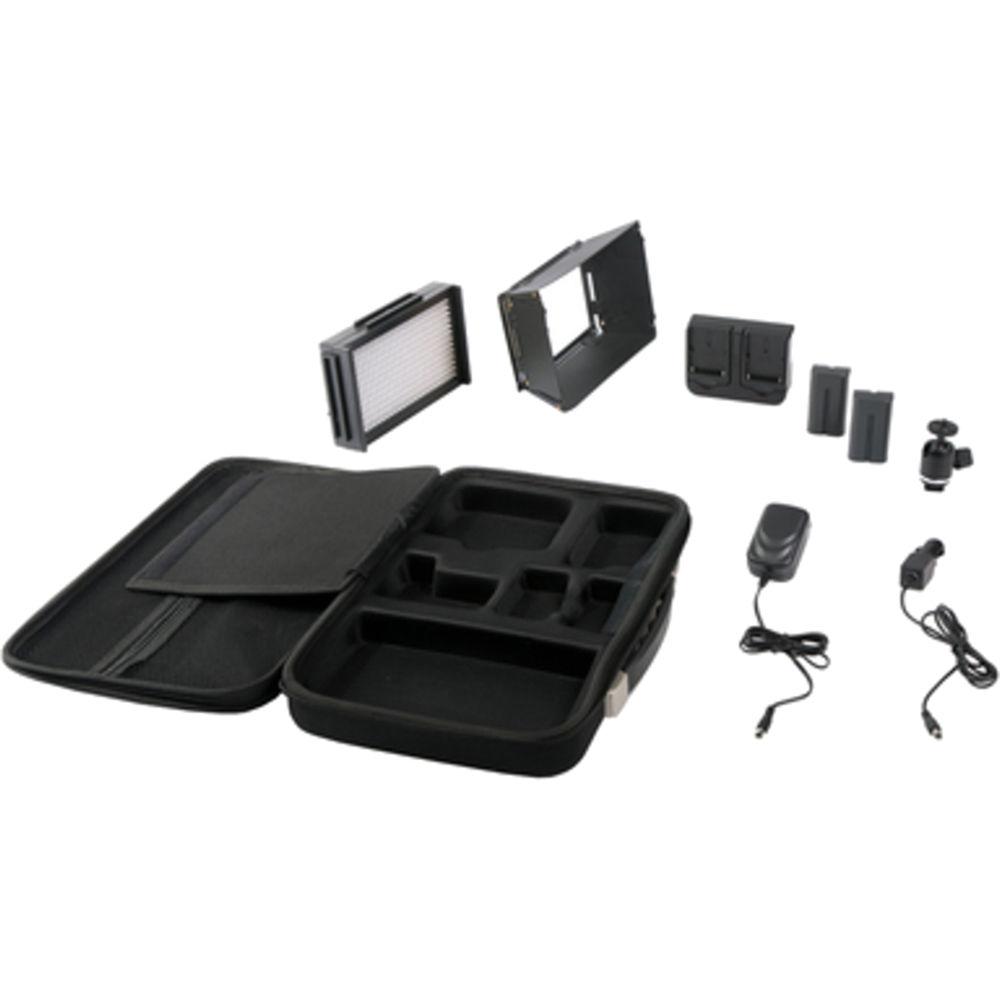

  The light produces a 60° beam angle, and includes both a removable four leaf barn door and diffusion gel. The light features slots for two Sony L-Series type batteries, and includes two batteries and a dual battery charger. A 1/4"-20 threaded hole allows you to mount the light to your camera's accessory shoe via the included ball adapter. You can also stack multiple iLED312 lights together using the interlocking rail system. An included soft carry case allows you to easily pack and carry your light unit, gel, barn doors and included accessories to and from shoots.
  Variable Color Temperature & Dimming
  • The iLED312-v2 features 312 LEDs, and a single knob that allows you to vary the color temperature of the unit from 3200 to 5600K. A separate knob controls the dimming of the unit, with brightness range of 100 to 10%.
  Digital Display Screen
  • The dimmer and color temperature settings are controlled by analog knobs, but the built-in digital readout on the built-in display screen allows you to match the output of other units or repeat setups, if you have to go back and get pick up shots. The display also incorporates a four-step battery gauge so you know how much battery power you have left.
  Barn Doors

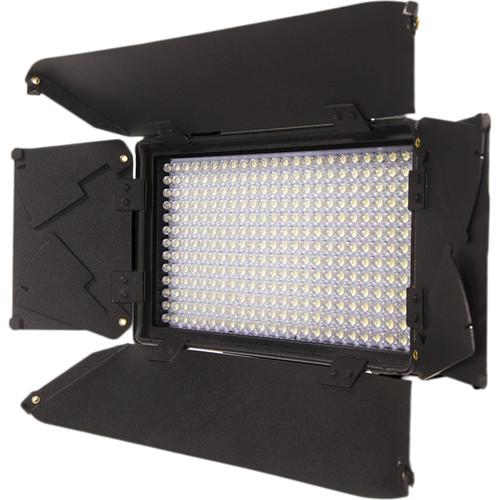

  • The included four sided removable barn doors are constructed so the doors can interlock together, limiting light leak from the edges, controlling light spill, and providing directionality to your light. The side doors feature articulating leafs that provide you a fairly wide range of adjustment while still controlling light leaks from the edges of the doors.
  Diffusion
  • Although you can attach diffusion gel to the barn doors, the iLED312-v2 features a slot for the included precut diffusion sheet, that can be used with or without the barn doors in place. The diffusion is notched, and a safety tab engages the notch to prevent it from accidentally falling out.
  Power
  • The light unit features slots for two Sony L-Series type batteries of any capacity, and includes two NP550-type batteries. The light can run on one or two batteries, you can use the AC adapter that powers the included dual battery charger to power the light instead, via the small power connector on the back of the unit.
  Mounting
  • The light incorporates a 1/4"-20 threaded mounting hole in the bottom of the unit, and an interlocking rail system that allows you to stack up to three units vertically or horizontally, with a maximum of six lights.
  UPC: 847983007691

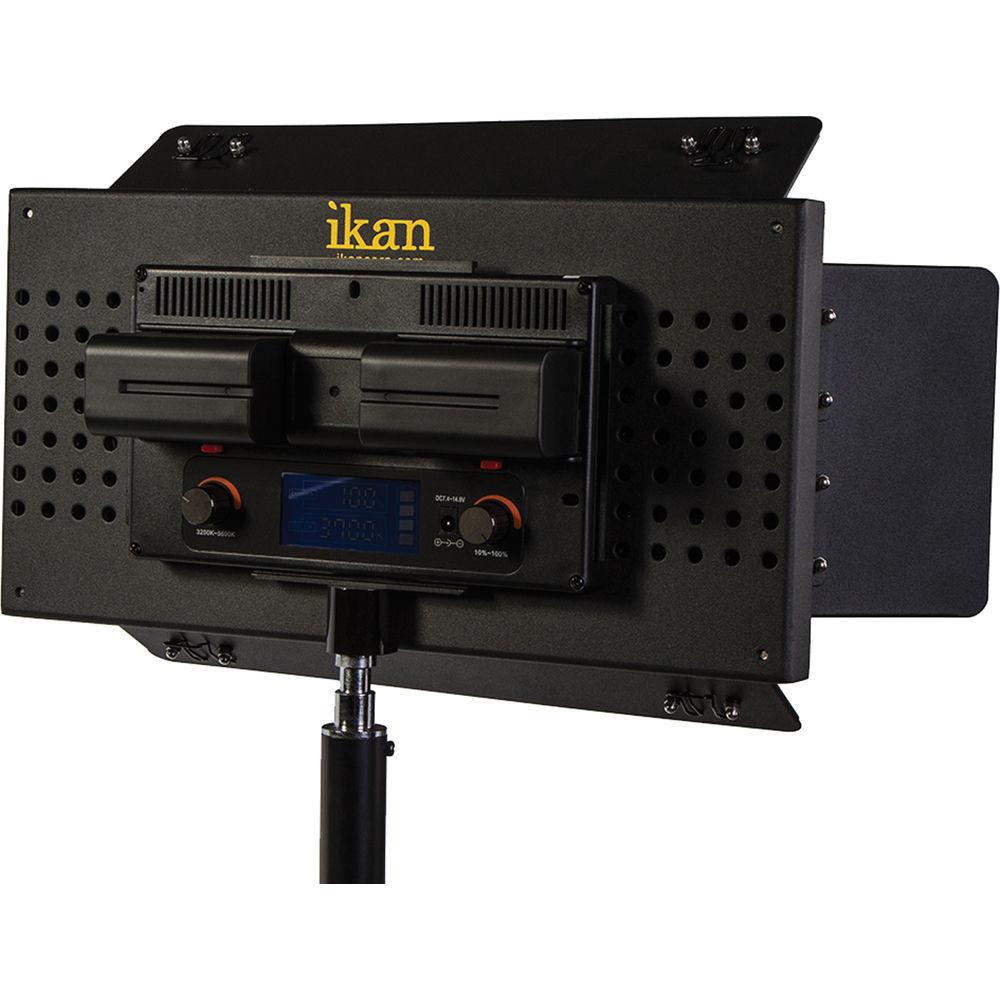

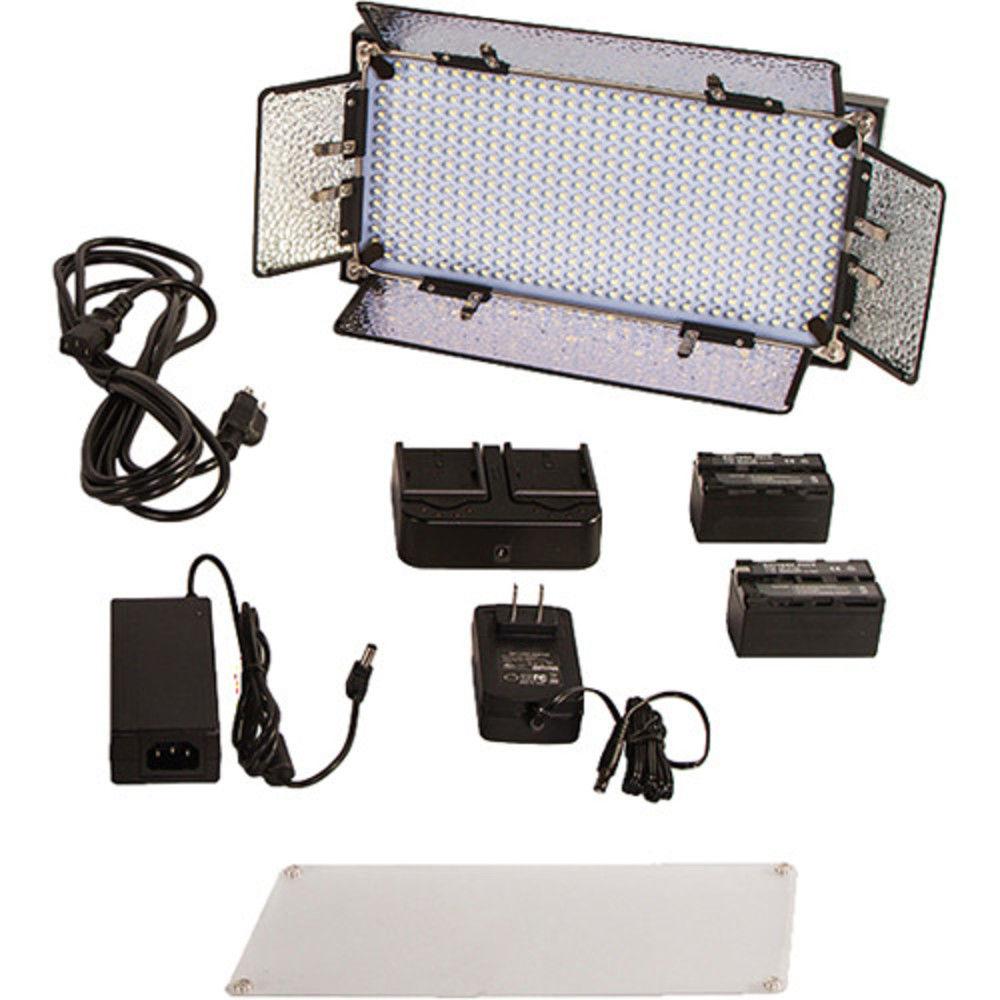

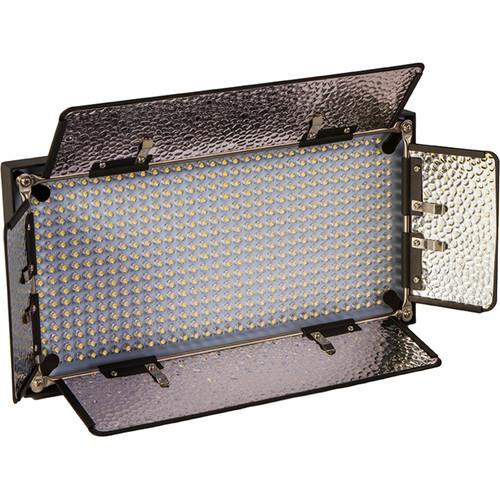

• IB508 Dual Color LED Studio Light The ikan IB508 Dual Color LED Studio Light is a cool-running, dimmable (100 - 10%) LED light that uses very little power and can be operated on AC power or on DC power with optional 7.4 - 14.8V batteries or the 2 included L series Sony-type batteries. Adaptability is key to the design of the IB 508. Instead of having you choose between a daylight or tungsten balanced light or deal with cumbersome gel filters, ikan includes 3200K and 5600K LEDs in the same panel. Respond to the prevailing color temperature by setting the IB508 to either setting or any temperature between them. The IB508 is rated at 1,227 lux at 3.0' or the equivalent of 200W of tungsten output at 5,600K. A stand mount, diffuser, and multi-voltage AC adapter and multi-voltage battery charger are also included. It all fits in the kit's carrying case. Note: Due to the way the Sony L 500 Series and 300 series batteries are designed, Sony MP-F330/F570/F550 batteries will not work on the left battery slot of the IB 508
  • Lightweight design
  • Wide angle beam pattern
  • Built-in dimmer
  • On-board battery life indicator
  • Light stand options available
• CP-STND Compact Light Stand (6.25') The ikan CP-STND Compact Light Stand is ideal for supporting small lighting fixtures on location. The five-section stand rises to a height of 6.25', and by using a reversing-folding design, folds down to just 19" in length. The stand has a 5/8" stud and will support up to 5.5 lb.
• IBG-500-3L Light Kit Bag (Black) The black IBG-500-3L Light Kit Bag from Ikan is a customized case for your three ID500 lights. The included adjustable inserts allow you to configure the interior to suit your style and shooting needs. The bag is made from a tough, breathable nylon and complemented by a snap-on, adjustable shoulder strap for ease of transport. In addition, plastic padded side handles provide another carrying option.Inside, there's a mesh accessory pocket for your small accessories. The bag unzips on three sides for complete and rapid access to the contents. The bottom comes with anti-skid feet for ground support and additional protection for the lights. This bag comes with a one-year warranty against manufacturer's defects.
  • Adjustable, heavy-duty padded snap-on shoulder strap and inserts
  • Plastic padded side carry handles
  • Mesh accessory compartment
  • Sturdy, breathable nylon material
  • Snap-on clip for added security
  • Durable dual zippers
  • Non-skid rubber feet
  Compatibility
  • • IB500 Dual-Color LED Studio Light
    • IFB576-A Featherweight Dual Color LED Light with Gold Mount Battery Plate
    • IFB576-S Featherweight Dual Color LED Light with Sony V-Mount Battery Plate
    • IFB576-S Two-Point Light Kit with Sony V-Mount Battery Plate
    • IFB576-S Two-Point Light Kit with Sony V-Mount Battery Plate
    • IFB576-A Two-Point Light Kit with Gold Mount Battery Mount Plate
    • IFD576-A Featherweight Dual Color Three-Light Kit with Gold Mount Battery Plate
    • IFD576-S Featherweight Dual Color Three-Light Kit with Gold Mount Battery Plate
    • IFD576-A Featherweight Daylight LED Light with Gold Mount Battery Plate
    • IFD576-S Featherweight Daylight LED Light with Sony V-Mount Battery Plate
    • IFD576-S Two-Point Light Kit with Sony V-Mount Battery Plate
    • IFD576-A Two-Point Light Kit with Gold Mount Battery Mount Plate
    • IFD576-A Featherweight Daylight Three-Light Kit with Gold Mount Battery Plate
    • IFD576-S Featherweight Daylight Three-Light Kit with Sony V-Mount Battery Plate
    • ID500-v2 LED Studio Light with Touch Screen Dimming
    • IDMX500 LED Studio Light with Touch Screen Dimming
    • IDMX500T LED Tungsten Studio Light with DMX

• AC Adapter

• 2 x Sony L-Type Battery

• Barn Doors

• Dual Sony L-Series Compatible Battery Charger

• Diffusion Filter

• Ultra-Heavy Duty Camera Shoe Mount

• Soft Carry Case

• Limited 1-Year Warranty

• IB508 Fixture

• 2 x L Series Sony-type Batteries

• Battery Charger

• AC Adapter

• Stand Mount

• Diffuser

• Carrying Case

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Shoulder Strap

• Adjustable Padded Inserts

• Limited 1-Year Warranty

Also Includes

• 3 x Stand Adapters

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• iLED312-v2 On-Camera Bi-Color LED Light with Digital Display

  Beam Angle	60°
  Color Temperature	3200 to 5600K
  Number of LEDs	312

  Battery Plate	1 x Sony L-Series (NP-F)
  DC Input Power	7.4 to 14.8 VDC
  Power Input Connector	Barrel
  Power Source	AC Adapter, External Battery

  Mount Type	1/4"-20 Female Thread, Cold Shoe
  Dimensions	8.2 x 1.8 x 4.5" / 20.9 x 4.5 x 11.4 cm
  Weight	2 lb / 0.9 kg (Including Battery)

  Box Dimensions (LxWxH)	16.2 x 11.15 x 3.45"

• IB508 Dual Color LED Studio Light

  Light Source	LED
  Color Temperature	3,200 - 5,600K
  Operating Voltage	7.4 - 14.8V
  Power Draw	37W
  Dimming	Yes, 100 - 10%
  Light Intensity	1,227 lux @ 3.0' (0.9 m) at 5,600K, 200W tungsten equivalent 1,776 lux @ 3.0' (0.9 m) at 3,200K, 250W tungsten equivalent
  Mount	5/8" (16 mm)
  Dimensions	13 x 6.75 x 2.75" (33 x 17 x 7.0 cm)
  Weight	5.0 lb (2.26 kg)

  Box Dimensions (LxWxH)	16.4 x 8.8 x 6.4"

• CP-STND Compact Light Stand (6.25')

  Number of Risers	4
  Sections	5
  Material	Aluminum
  Load Capacity	5.5 lb (2.5 kg)
  Dimensions	Maximum: 75" (190 cm) Minimum: 23" (58 cm) Closed: 19" (48 cm) Footprint: 36" (91.4 cm)
  Weight	2.0 lb (0.9 kg)

  Box Dimensions (LxWxH)	20.1 x 3.2 x 3.0"

• IBG-500-3L Light Kit Bag (Black)

  Material	Nylon
  Type of Closure	Dual zippers
  Exterior Dimensions	21 x 15 x 14" / 53.3 x 38.1 x 35.6 cm
  Interior Dimensions	20 x 14 x 13" / 50.8 x 35.6 x 33.0 cm
  Carrying/Transport Options	Adjustable, padded snap-on shoulder strap Plastic, padded side carry handles
  Weight	5 lb / 2.3 kg

  Box Dimensions (LxWxH)	21.5 x 16.0 x 5.7"
