User Manual for ikan USB Control Grip Click to enlarge the picture
Contents of the user manual for the ikan USB Control Grip
- Product category: Zoom & Focus Controls ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Zoom & Focus Controls
 |
User manual for the ikan USB Control Grip contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

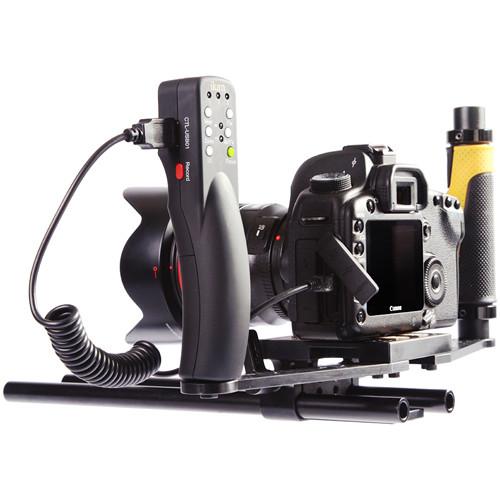

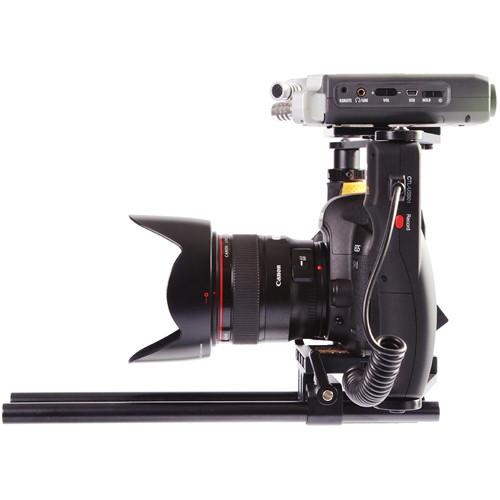

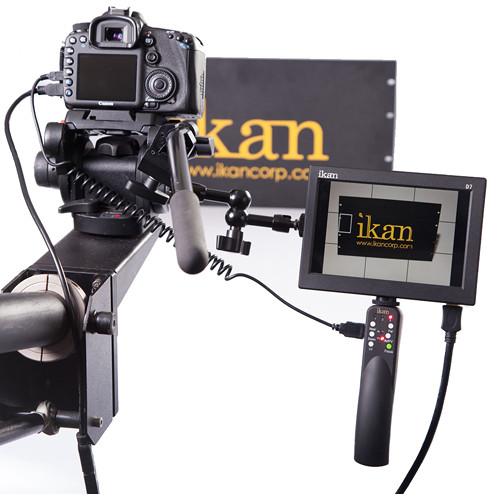

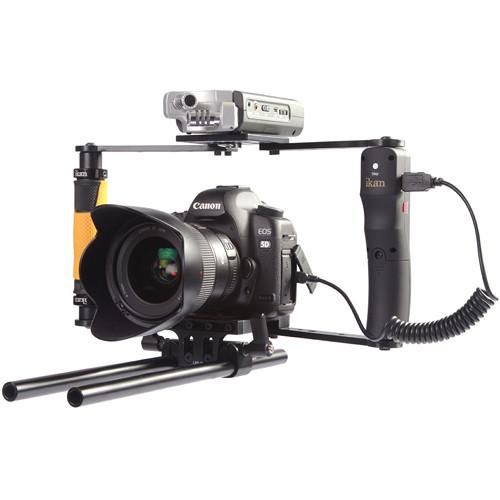

Product description The ikan USB Control Grip enables remote control for Canon EOS DSLRs and EF lenses. In addition to video record start/stop, the grip's remote functions include focus, iris and live view controls. The control grip interfaces with the camera via USB and is compatible with most Canon DSLRs, including the 5D Mark II and the 5D Mark III. The 1/4"-20 threaded sockets on the top and bottom makes it easy to integrate the grip with a camera support rig. The grip is powered by two AA batteries.
Note: Not compatible with the 7D. - Record Start/Stop
- A button on the side of the grip activates video record start/stop. Press the button once to start recording. Hold the button for half a second longer to stop recording.
- Focus and Iris Control
- When used with a compatible, auto focus lens the control grip can adjust focus – near and far – in three steps: fast, slow and normal speed. Alternately, when used with an auto iris lens, the control grip can open and close the lens aperture.
- Live View Control
- In addition to turning Live View mode on and off, the control grip can also zoom the display.
- Top and Bottom 1/4"-20 Threaded Sockets
- The 1/4"-20 threaded sockets on the top and bottom of this device are designed for ease of mounting. Although, ikan cautions that they are not intended to support a weighty camera rig.
- Automatic Shutdown
- To conserve power, the USB Control Grip will automatically shut down after 30 minutes of inactivity.
- Indicator Lights
- Three LED lights on the face of the control unit indicate how many steps focus will be advanced when the "Near" or "Far" buttons are pressed. Two additional LEDs indicate whether the device is in "Focus" or "Aperture" mode.
UPC: 847983004157 In the Box ikan USB Control Grip 2 x AA Batteries USB Cable 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan USB Control Grip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan CTL-USB01 Specs | Compatibility | 1D X, 1D Mk IV, 1D Mk III, 5D Mk III, 5D Mk II, 6D, 60D, 50D, 40D, Rebel T4i, 650D, Rebel T3i, 550D, Rebel T1i, 500D, Rebel XSi, 450D, Rebel T3, 1100D, Rebel XS, 1000D, M. Not all features work with all models or with cameras that have non-factory firmware installed.
Note: Not compatible with the 7D. | | Dimensions | 6.25 x 1.5 x 1.5" (158.8 x 38.1 x 38.1 mm) | | Weight | 8 oz (226.8 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.5 x 4.0 x 2.0" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
