User Manual for ikan VK5 Field Monitor Deluxe Kit with Canon 900 Series Battery Plate Click to enlarge the picture
Contents of the user manual for the ikan VK5 Field Monitor Deluxe Kit
- Product category: On Camera Monitors ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan On Camera Monitors
 |
User manual for the ikan VK5 Field Monitor Deluxe Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

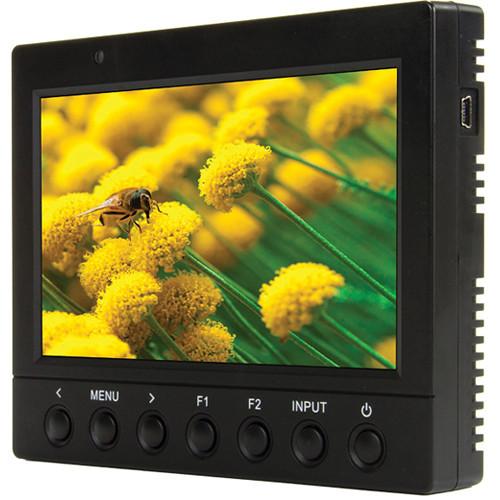

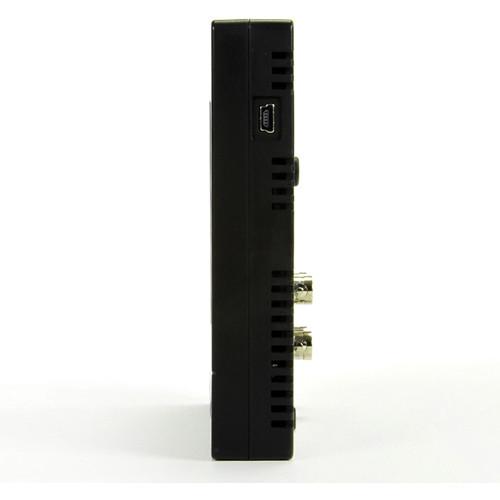

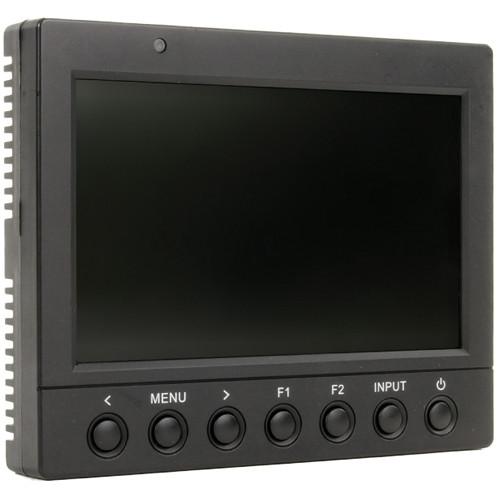

Product description ikan's VK5 Field Monitor Deluxe Kit with Canon 900 Series Battery Plate is a complete field monitor kit that offers 1024 x 600 HD resolution for the attention to detail a video professional needs. The VK5 has all the necessary hardware to give you a portable and flexible field monitor kit that won't inhibit your shooting needs. Plus the monitor offers 16:9 and 4:3 safe areas, and will accept inputs from 480i/p, 576i/p, 720p, 1080i/p sources. The VK5-DK is your complete solution with a Canon 900 Series Battery Plate, charger and carrying case for a dependable field monitor kit when you need one. The VK5 Monitor also offers flexibility for you by providing HDMI, Component, and Composite inputs, allowing you to connect it to a wider choice of HD cameras for monitoring. - Peaking
- The VK5 makes life easier for you by assisting with focus peaking. Both a monochrome and color peaking feature with a red highlight can help you achieve sharp in focus images every time. All you do is adjust the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus.
- False Color
- The False Color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure. The under/ over luminance warning enables you to get the quality you desire every time. By adjusting the camera's Iris, the subject of the image will change color based on specific brightness values indicating optimal exposure. This feature will help prevent you from having your video over exposed and under exposed.
- DSLR Scaling
- The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen.
- Clip Guides
- The VK5 offers adjustable upper Clip Guide levels to accurately display overexposed images in any shooting condition. You simply assign the upper IRE to your preference and any exposure over the set IRE limit will flash in a vivid purple, indicating only the over exposed area.

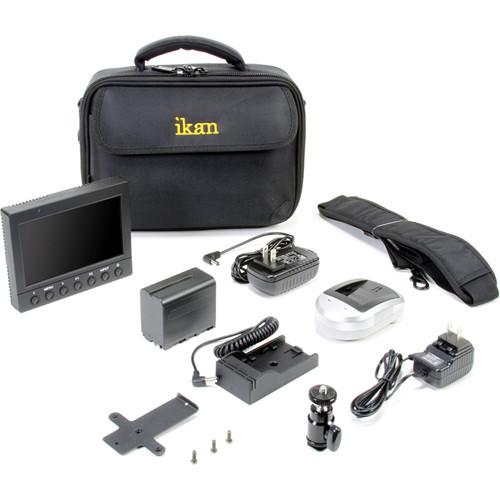

UPC: 847983003174 In the Box ikan VK5 Field Monitor Deluxe Kit with Canon 900 Series Battery Plate VK5 - 5.6" LCD Monitor AC Adapter DV Battery DV Battery Charger Canon 900 Series Battery Plate Metal Case Camera Shoe Mount Sunhood Limited 1-Year Warranty Quick-Start Guide PDF 1mbswtcybdrtsafbz Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan VK5 Field Monitor Deluxe Kit with Canon 900 Series Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

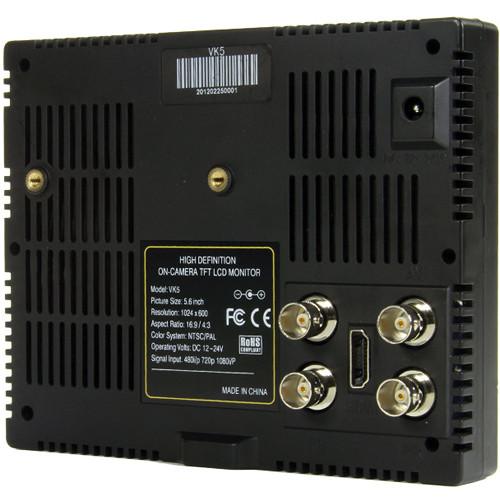

Technical parametersikan VK5 Specs | Monitor Type | 5.6" LCD Field Monitor (VK5) | | Screen Size | 5.6" Diagonal | | Resolution | 1024x600 | | LCD Brightness | 350 NIT | | Aspect Ratios | Full, 16:9, 4:3 | | Viewing Angle | 140° (H) 110° (V) | | Inputs/Outputs | Inputs:
1x HDMI, 1x Component, 1x Composite | | Power Consumption | Operating Volts: DC 7 to 24V | | Dimensions (H x W x D) | 5.75 x 4.625 x 0.82"" (14.61 x 11.75 x 2.08cm) | | Weight | Total Weight of Kit: Approximately 2lbs
Weight of Monitor: 0.7lbs | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 11.1 x 8.4 x 4.7" |
