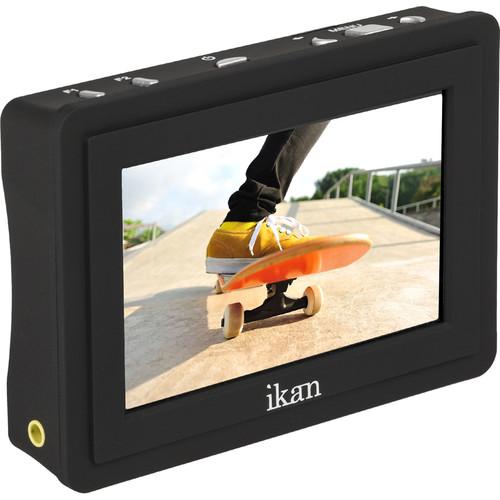

User Manual for ikan VL35 3.5" 4K HDMI On-Camera LCD Monitor with Canon LP-E6 Battery Plate Click to enlarge the picture
Contents of the user manual for the ikan VL35 3.5" 4K HDMI On-Camera
- Product category: On Camera Monitors ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan On Camera Monitors
 |
User manual for the ikan VL35 3.5" 4K HDMI On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - Ikan Corp: Tech Corner - 4K On-Camera LCD Monitors

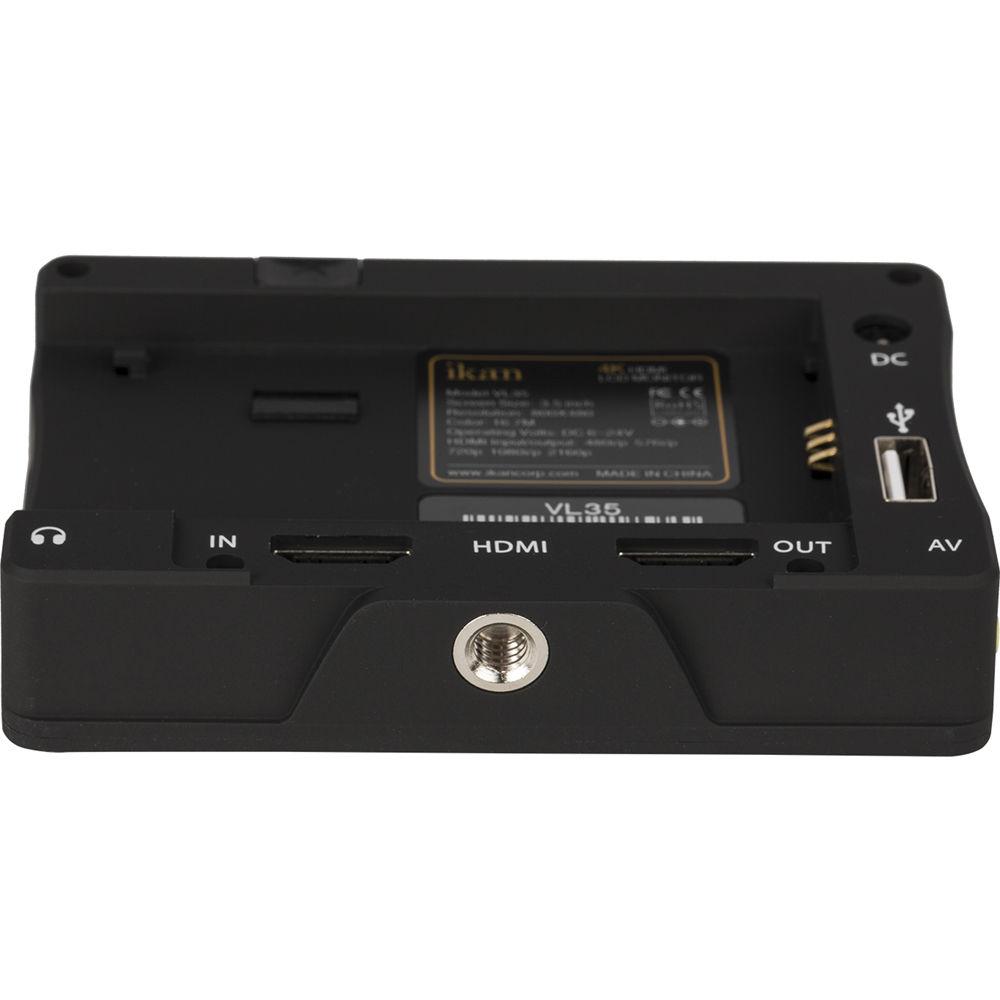

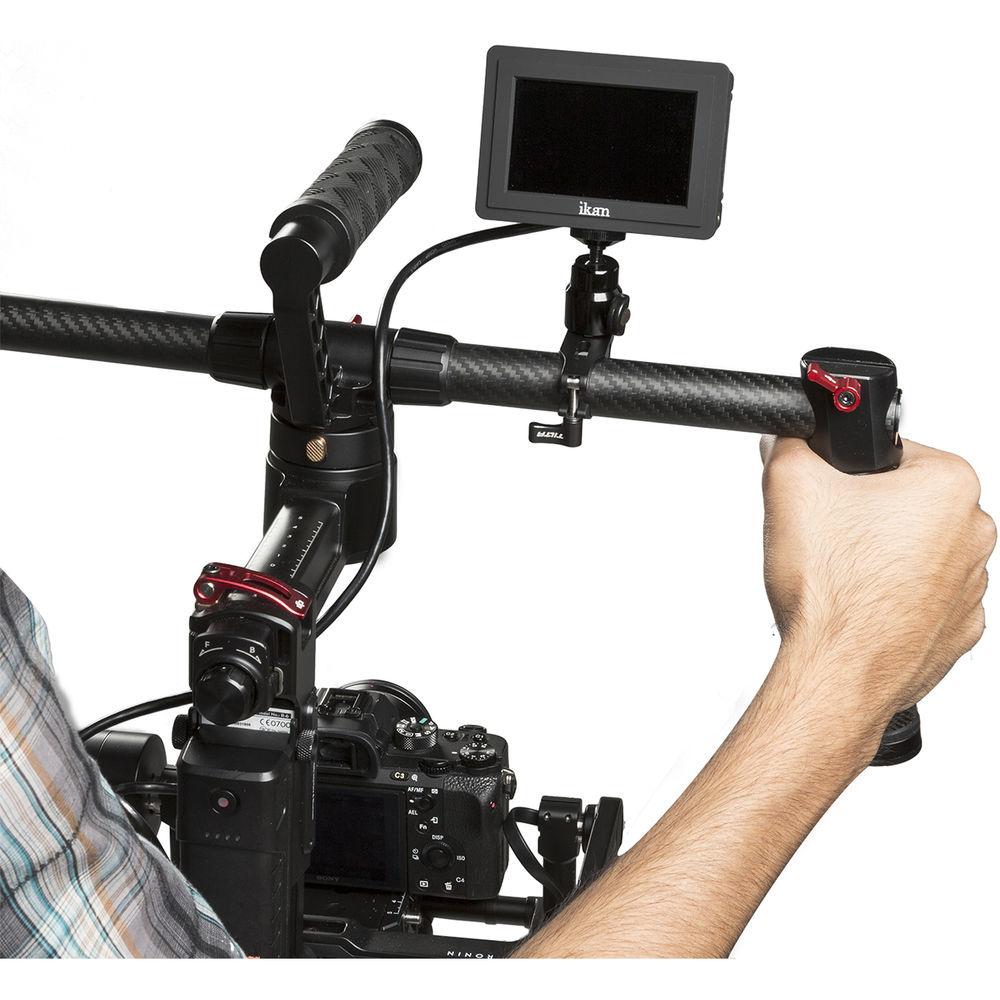

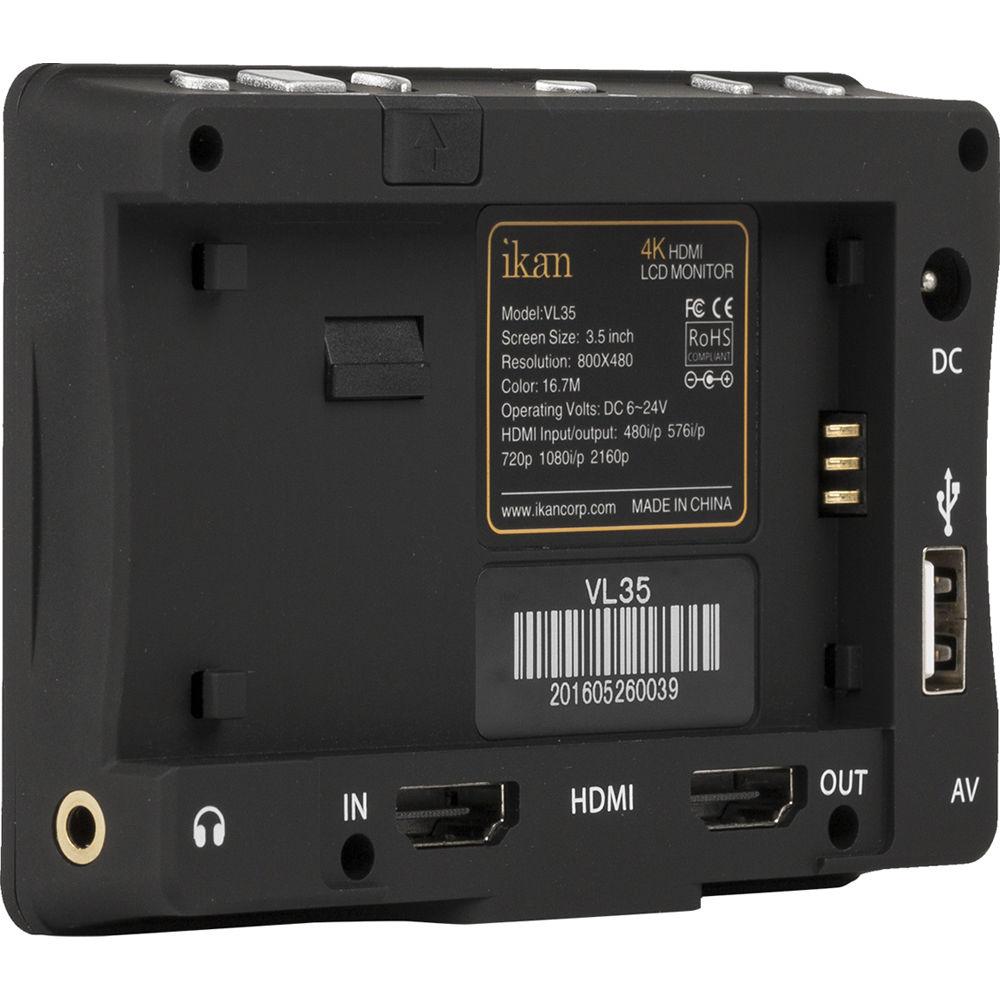

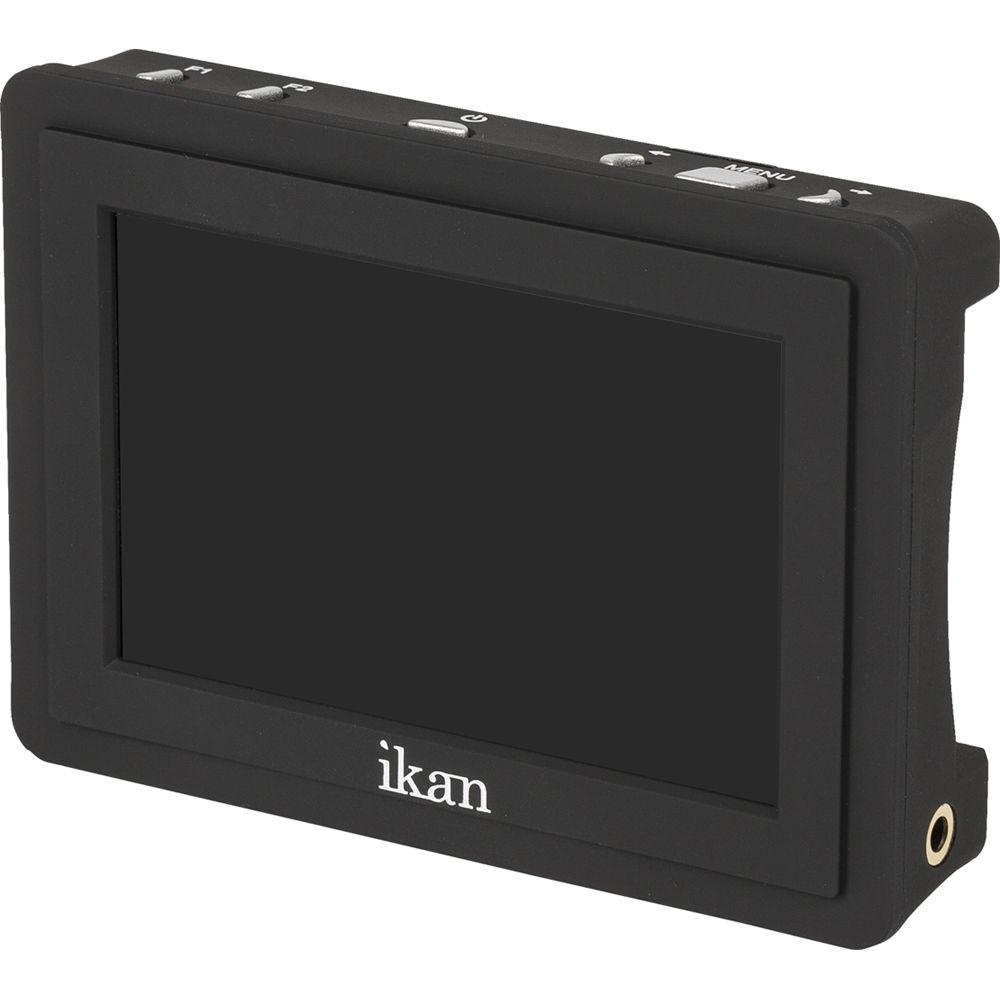

The VL35 3.5" 4K HDMI On-Camera LCD Monitor from Ikan is a compact field monitor with a native resolution of 800 x 480. This 3.5" display accepts DCI or Ultra HD 4K images and scales them down to the native resolution, producing sharp images. It includes standard features like histogram, false color, peaking, pixel-to-pixel, and frame guides. The pixel-to-pixel feature provides a 1:1-pixel representation of the 4K image captured by the camera.The VL35's small size makes it suitable for gimbals and lightweight camera systems, especially those without a built-in display screen such as certain sports and action camera models. It features an HDMI input and output as well as a composite input via a 3.5mm connector. It also features a headphone output for audio monitoring and a USB port for firmware updates. - Native resolution of 800 x 480
- Supports DCI and UHD 4K resolutions via HDMI
- Histogram to get the perfect exposure
- Peaking for focus assist, false color, pixel-to-pixel, and clip guides

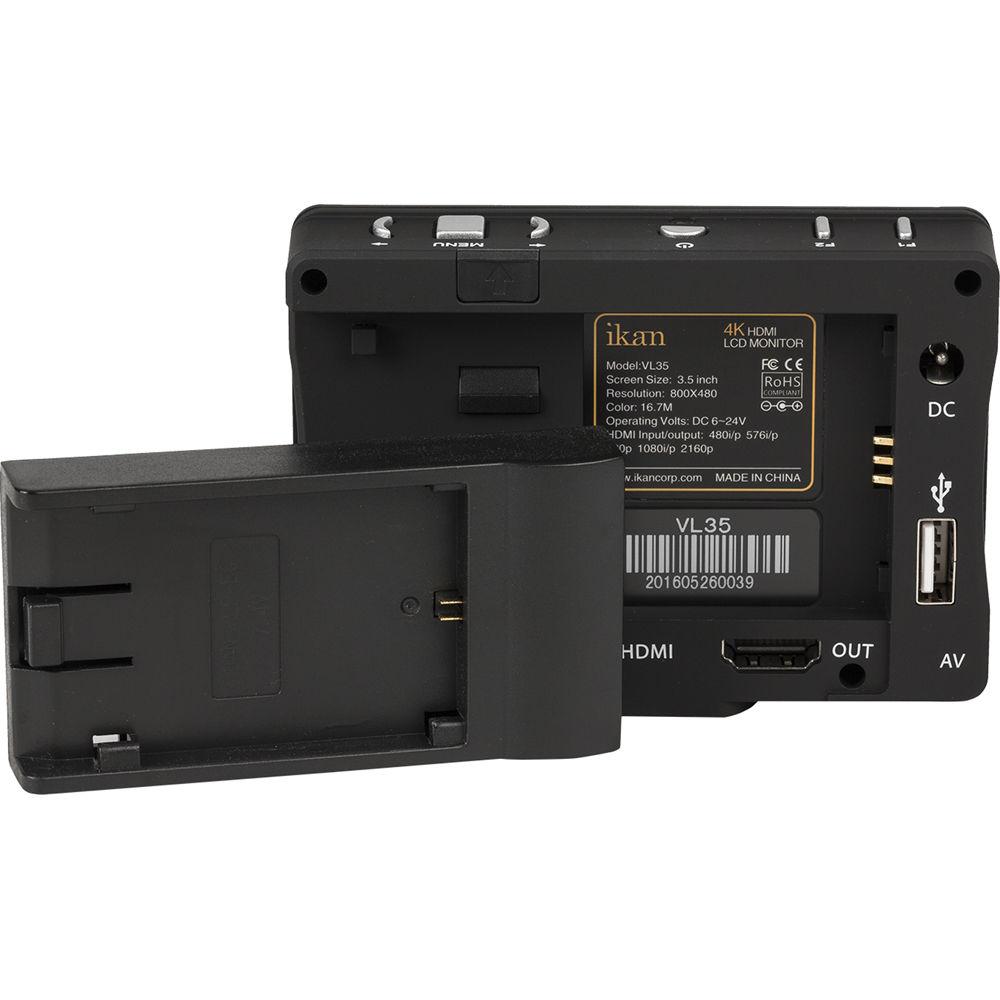

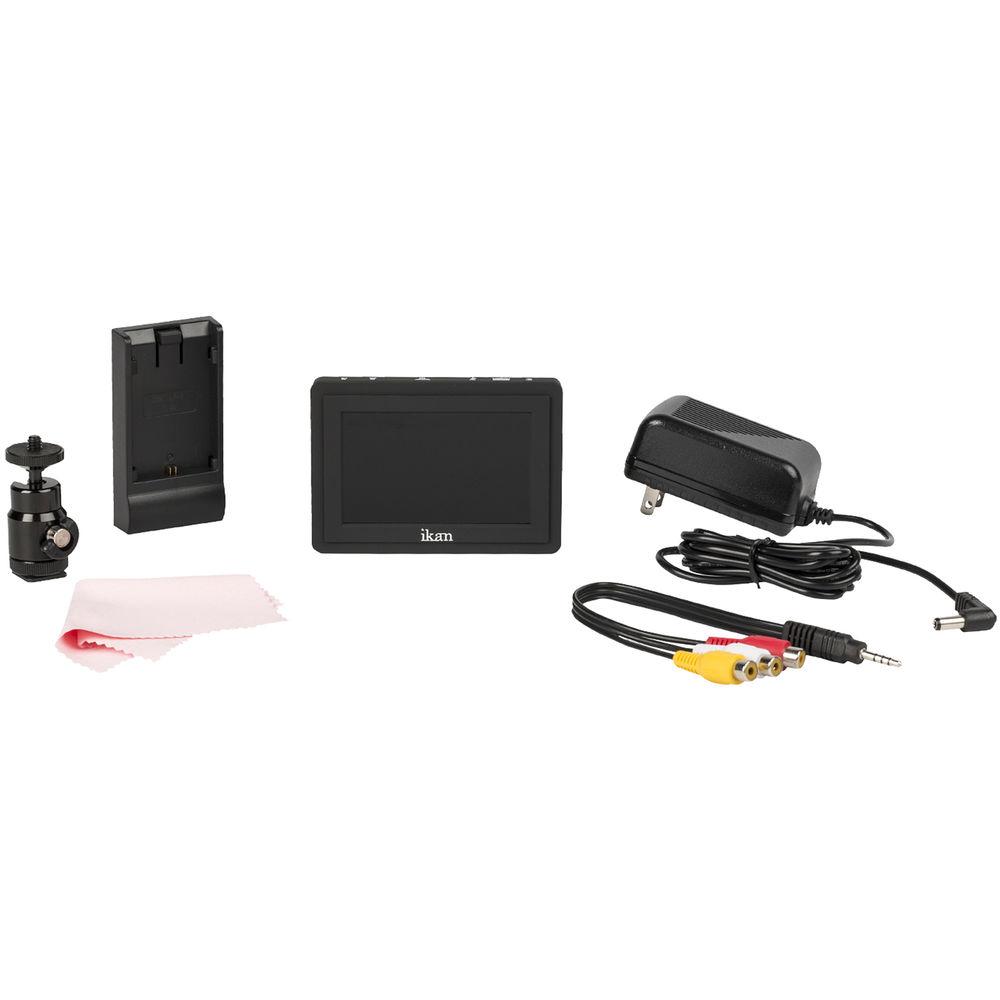

UPC: 847983018086 In the Box ikan VL35 3.5" 4K HDMI On-Camera LCD Monitor with Canon LP-E6 Battery Plate 12 VAC Adapter AV Breakout Cable Canon LP-E6 Battery Plate Screen Cleaning Wipe Shoe Mount USB Drive for Software Updates Limited 1-Year Warranty Quick start Guide PDF 410.1kbtqbqyrewstuebqteevbzuq Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan VL35 3.5" 4K HDMI On-Camera LCD Monitor with Canon LP-E6 Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan VL35 Specs | Signal System | PAL/NTSC/SECAM (Auto-Detected) | | Monitor Type | On-Camera LCD | | Screen Size | 3.5" / 8.9 cm | | Resolution | 800 x 480 | | Display Colors | 16.7 Million | | Viewing Angle (H x V) | 160° x 160° | | Brightness | 315 cd/m² | | Contrast Ratio | 800:1 | | Backlight | LED | | Surface Treatment | Anti-Glare | | Inputs/Outputs | Inputs: HDMI, Composite
Output: HDMI | | Supported Signals | HDMI:
4096 x 2160p: 24
3840 x 2160p: 24, 25, 30
1920 x 1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60
1920 x 1080PsF: 24, 25, 29.97, 30
1920 x 1080i: 50, 59.94, 60
1280 x 720p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60
720 x 576i: 50
720 x 480p: 59.94, 60
720 x 480i: 59.94, 60
Composite:
NTSC-M, NTSC-J, NTSC 4.43
PAL B/G H I D, PAL M, PAL N
SECAM | | Material | Heavy-Duty Plastic | | Power Requirements | 6 to 24 VDC | | Power Consumption | 2.5 W | | Dimensions | 4.0 x 2.9 x 0.7" / 10.2 x 7.4 x 1.8 cm | | Weight | 0.2 lb / 0.1 kg | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.9 x 6.1 x 3.6" |
