Product description - Ikan Corp: Tech Corner - 4K On-Camera LCD Monitors

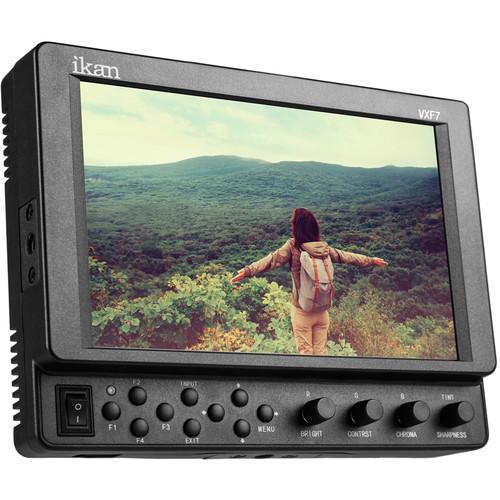

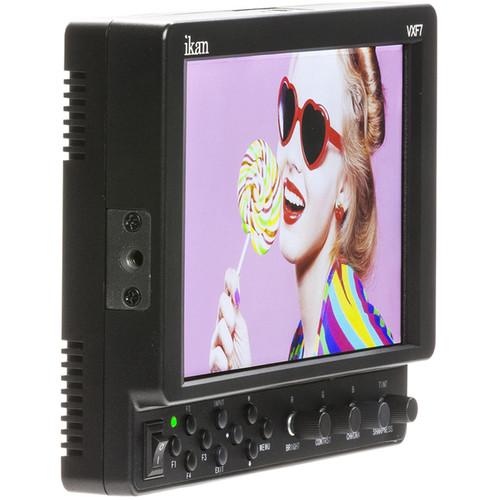

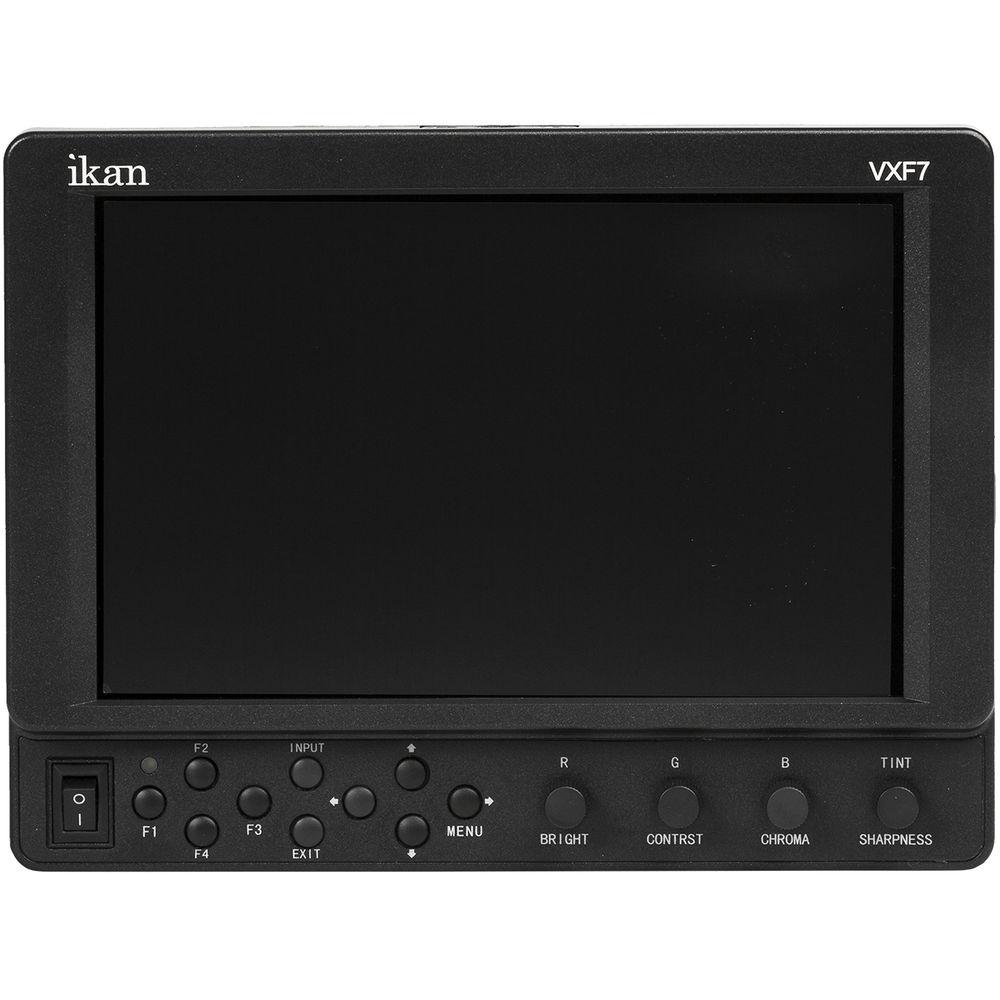

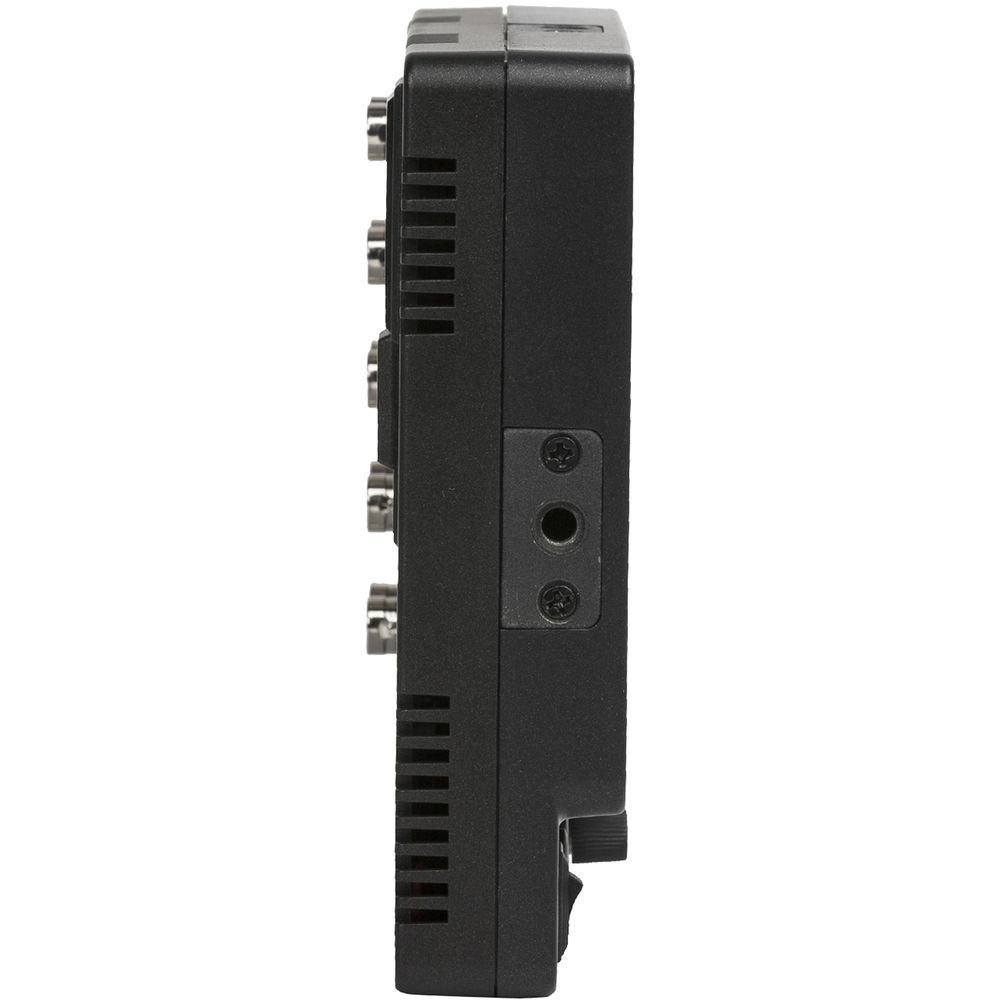

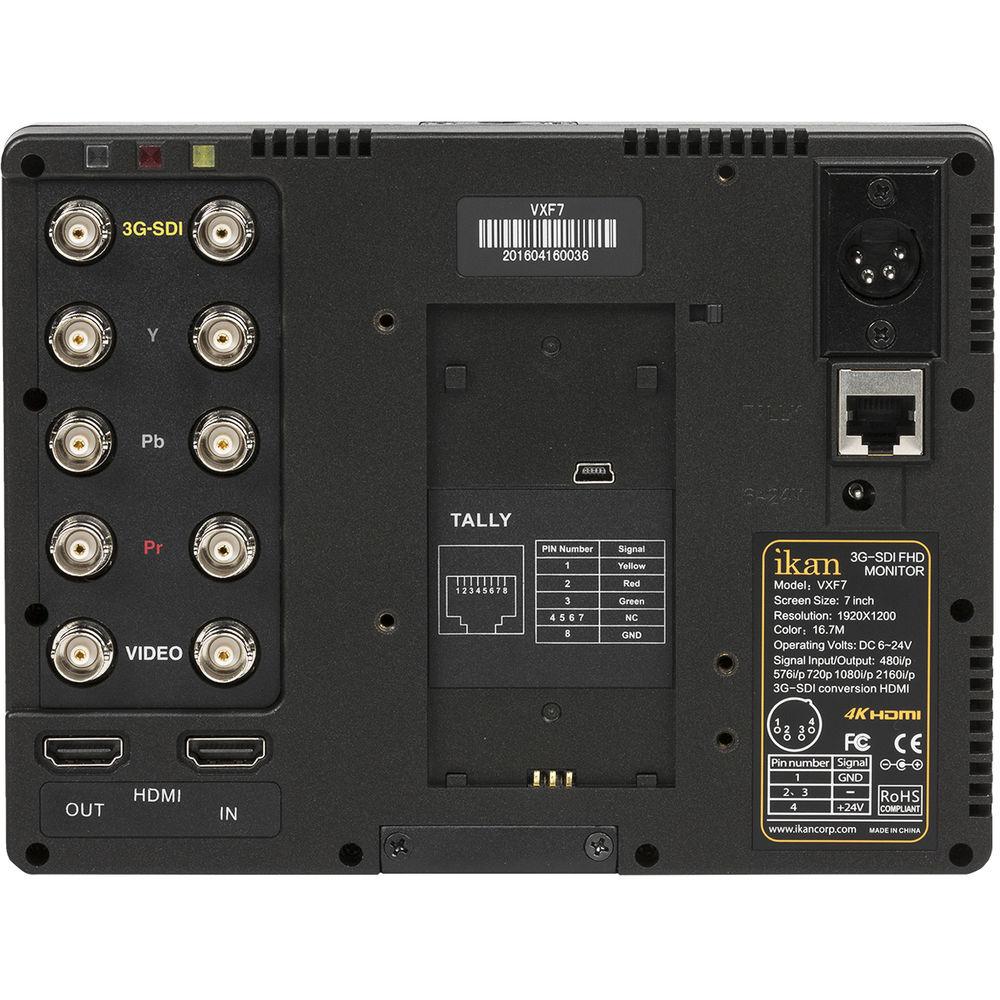

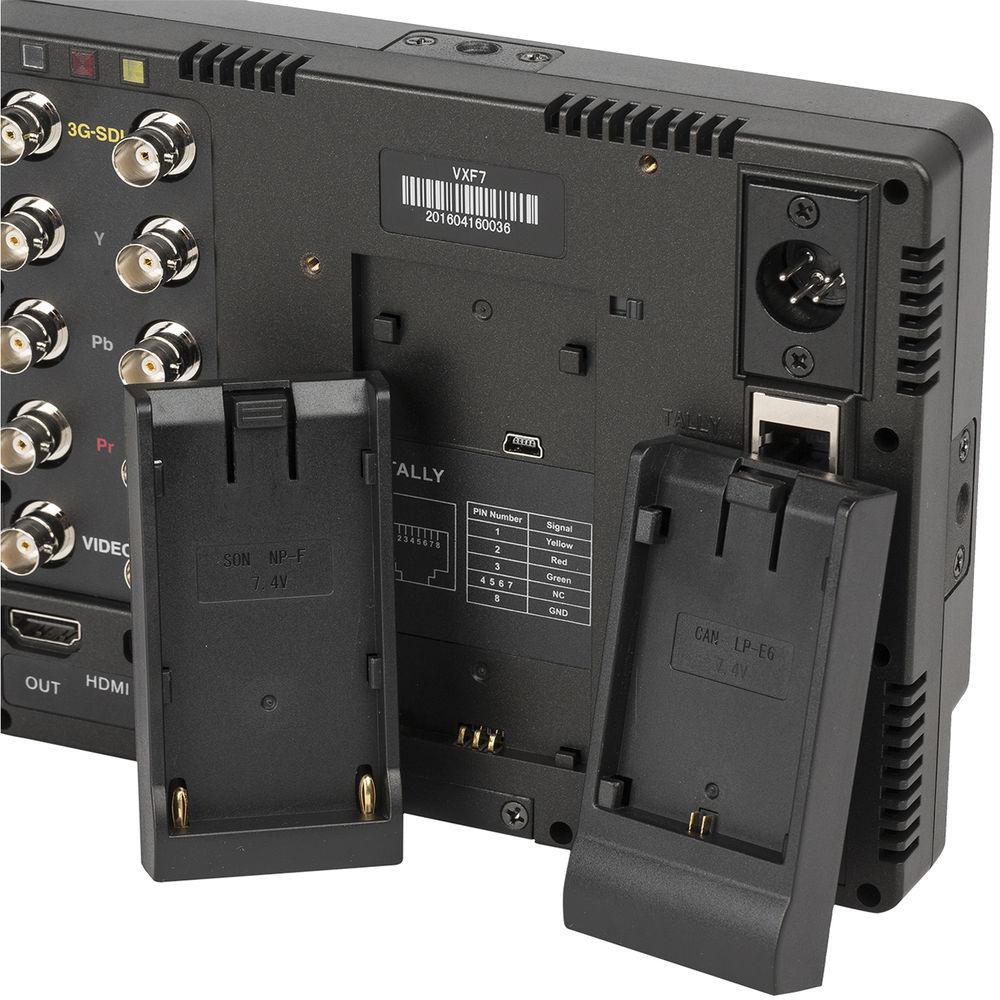

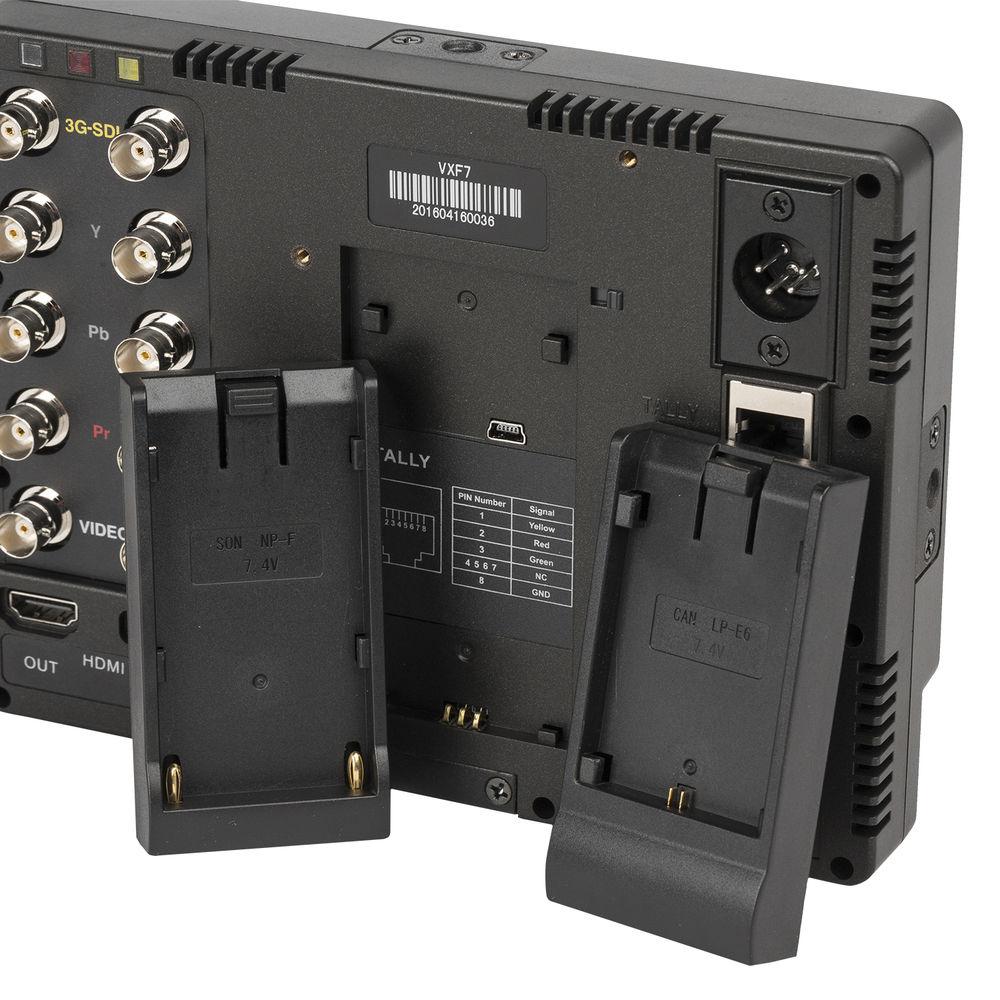

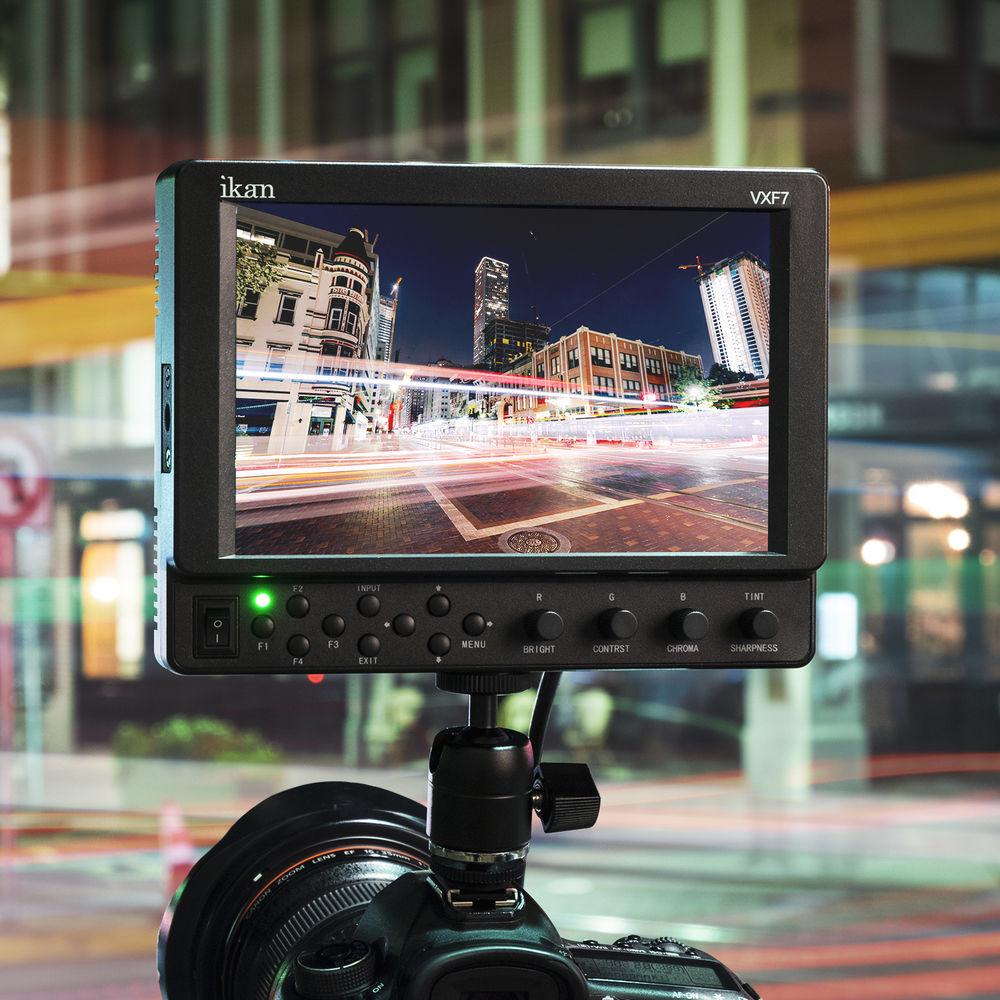

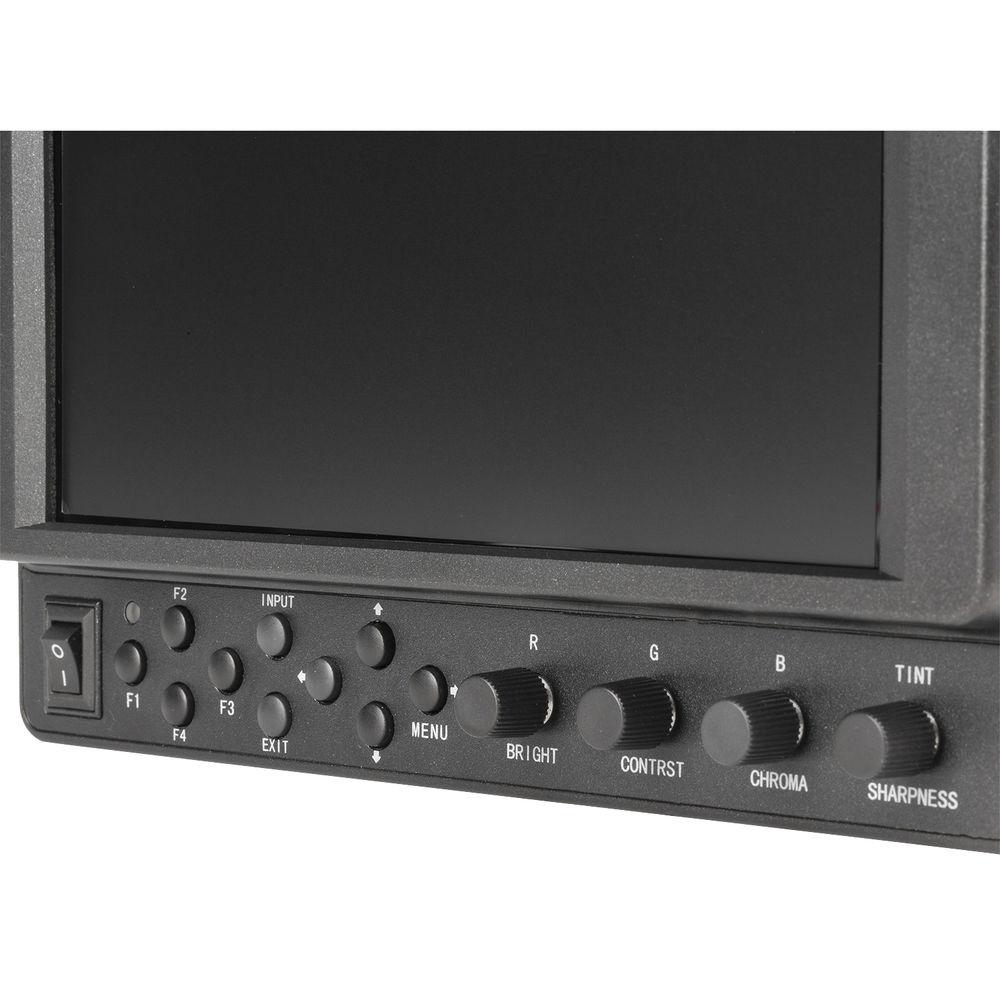

Supporting 4K, HD, and legacy SD workflows, the Ikan VXF7 7" HDMI/SDI On-Camera Monitor is a versatile monitoring choice for nearly any production situation. Signals input to the monitor are displayed on the 1920 x 1200 resolution LED LCD panel, which can display Full HD signals with no scaling. DCI and UHD 4K signals are supported via HDMI only, while HD or SD signals can be input through digital SDI and HDMI inputs, or analog component and composite inputs (the latter only supports SD signals). All inputs, other than HDMI, use rugged BNC connectors to prevent accidental disconnection. Another professional connection is the tally connector. The diagram on the back of the monitor shows the pin configuration for proper communication with broadcast equipment. Three tally indicator LEDs are located on the rear surface of the monitor.This monitor includes various accessories so you can use it right out of the box. Use the included ball mount to secure the monitor to a standard accessory shoe. Other 1/4"-20 threaded holes are available for more mounting options. Keep your screen in optimal condition with the included screen protector and cleaning cloth. If you have Sony L-Series type batteries or Canon LP-E6 batteries, use one of the included swappable plates. An AC adapter is included for powering from a wall outlet. Another power option is the 4-pin XLR port which accepts DC power from batteries or professional power supplies. Other features may be added in the future, and the firmware can be updated by using the included USB cable to connect to your computer. - SDI to HDMI Conversion
- If you are working in a broadcast environment and require an HDMI display for client or director viewing, the VXF7 can convert and output the SDI signal through the HDMI port, providing more affordable display options.
- Peaking
- Peaking highlights the sharpest (most in focus) areas of the image with a color outline. The VXF7 features two modes: monochrome and color. The monochrome mode shows the image in black and white with the red peaking outline, and the color peaking mode shows the image in color with a red peaking outline. Both the peaking color and sensitivity can be adjusted in the monitor's menu system
- False Color
- The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure.
- Clip Guides
- This extension of the False Color function allows the operator to set the preferred IRE exposure limits, and the operator is warned when the image exposure either exceeds or is falling under the preset IRE limit.
- Movable Pixel-to-Pixel Mapping
- 1:1 pixel-to-pixel mapping allows you to look at parts of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts. Using the navigation keys, the non-scaled area can be moved to analyze other portions of the image.
- DSLR Scaling
- The DSLR Scaling function enables you to extend your DSLR's HDMI output to any option of four display options: Normal, 3:2, 16:9 or Full Screen.
- Underscan
- Constrains the size of the image so you can see exactly what is being recorded.

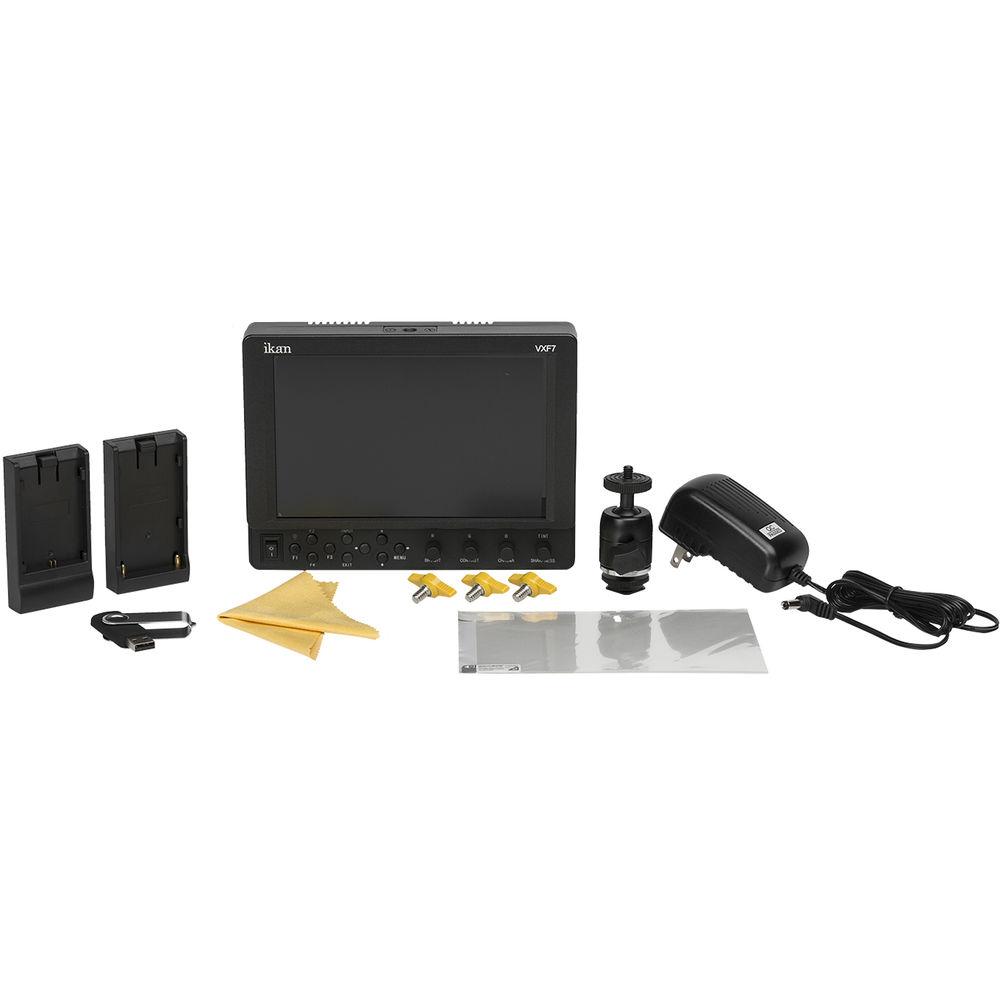

UPC: 847983018062 In the Box ikan VXF7 7" HDMI/SDI On-Camera Monitor LP-E6 Battery Plate L-Series Battery Plate AC Adapter Ultra-Heavy Duty Camera Shoe Mount USB Cable USB Drive Screen Protector Sun Hood Screen Cleaning Cloth Limited 1-Year Warranty Quick start Guide PDF 850.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan VXF7 7" HDMI SDI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan VXF7 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 800:1 | | Dot Pitch | 0.07875 x 0.07875 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 20 ms | | Image Controls | False Color, Focus Peaking, Pixel-to-Pixel Zoom, Underscan | | | | Video | 1 x BNC (3G-SDI) Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output
1 x HDMI Type A Output
1 x BNC (3G-SDI) Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input
1 x HDMI Type A Input | | Audio | None | | Built-In Speaker | None | | Other I/O | 1 x Tally (RJ45) | | Card Slot | None | | | | Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
NTSC
PAL
HDMI
DCI 4K: 24
UHD 4K: 24/25/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
576p: 50
480p: 60
PAL
NTSC
Component
1080p: 23.98/24/25/29.97/30
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL
Composite
NTSC
PAL | | | | DC Input Power | 6 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Power Consumption | 11 W | | | | Dimensions (W x H x D) | 7.4 x 5.6 x 1.3" / 187 x 142 x 33 mm | | Weight | 1 lb / 450 g | | | | Package Weight | 2.605 lb | | Box Dimensions (LxWxH) | 14.65 x 7.85 x 3.1" |
