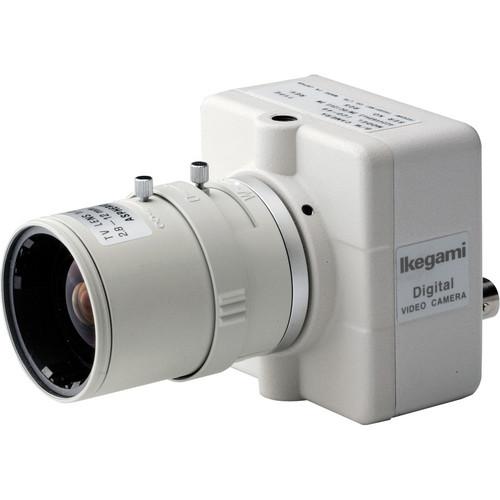

Product description The 1/2" CCD Super Cube Monochrome Camera is a small cube camera with exceptional low light capabilities. Through the use of a 1/2" CCD and advanced electronic controls this camera can produce visible images in light levels as low as 0.0075 lux (F1.2). Its ability to respond to light in the near infrared range (800nm to 1000nm approx.) translates into a sensitivity level five times that of a conventional IT CCD camera.
The camera's small form factor makes it a good choice for installation in confined places such as inside an ATM machine. Its small size will also come in handy when there's a need to pair it with an outdoor housing. - High Sensitivity
- With its high sensitivity rating of 0.0075 lux at F1.2, this camera is suitable for outdoor use (with appropriate housing) in 24-hour security applications. Furthermore its sensitivity reaches to near-infrared range (800nm to 1000nm approx.), which is about five times higher than conventional IT CCD camera.
- High Resolution and High Quality Picture
- It has a high horizontal resolution of more than 570 TV lines and realizes a high quality picture with a signal to noise ratio more than 50dB.
- Low Smear Level
- With its low smear design of -120dB, this camera produces natural looking images even in the presence of a bright light source in an otherwise dark scene - such as when viewing a car with headlights on in a parking lot.
- BLC (Back Light Compensation) Function
- Its BLC function compensates for images where the subject matter is brightly lit from behind.
- Advanced Electronic Controls
- It has fulfilling functions like an AES (Automatic Electronic Shutter) function, 2 ways of Auto Iris Functions; VIDEO Iris and DC Iris, and a Line Lock function.
In the Box Ikegami 1/2" CCD Super Cube DSP Monochrome Camera ICD-49 Super-Cube DSP Monochrome Camera IK-DV5X3.6R4B-SA2L 1/2" CS Mount 3.6-18mm f/1.8 Varifocal Auto Iris Lens (with Long AI Cable) CMB-1W Universal Camera Bracket (White) 10-Year Warranty (1-year warranty on lens) Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami 1 2" CCD Super Cube DSP Monochrome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami KIT-49 ID1 Specs | Signal System | EIA (NTSC) | | Image Sensor | 1/2" B/W IT CCD | | Resolution | 570 TVL | | Number of Pixels | 768 x 494 | | Lens | Included Lens: 3.6-18mm (CS mount on camera) | | Iris Operation | Included Lens: DC Iris (camera is DC/Video iris) | | Minimum Illumination | 0.0075 Lux at F1.2, 0.01 lux at F1.4 | | Signal-to-Noise Ratio | >50dB | | Controls | BLC (On/Off)
AES (On/Off) | | Sync | Internal Lock/Line Lock | | Video Output | BNC | | Audio Output | N/A | | Motion Detection | No | | Alarm I/O | No | | Control Ports | No | | Power Requirements | 24VAC or 12VDC | | Power Consumption | 3.3W | | Operating Temperature | 14 - 122°F (-10 ~ +50°C) | | Dimensions (WxHxD) | 2.5 x 2.5 x 2.1" (64 x 64 x 53mm) | | Weight | 0.6 lbs (250g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.0 x 6.4 x 4.6" |
