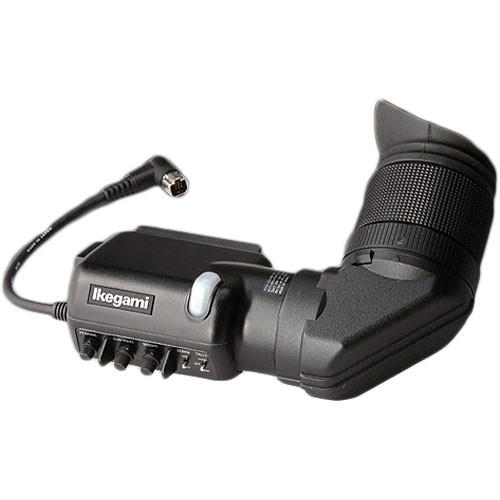

User Manual for Ikegami 2" B W Viewfinder Click to enlarge the picture
Contents of the user manual for the Ikegami 2" B W Viewfinder
- Product category: Viewfinders Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Viewfinders
|
User manual for the Ikegami 2" B W Viewfinder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The Ikegami 2" B/W Viewfinder (1080i50/60) supports a resolution of 1080/60i, 1080/24psf, 1080/50i, and is compatible with select HDK and GF cameras. The viewfinder uses a CRT display with over 600 TV lines of resolution to deliver clear and bright images of the camera scene.
On-board controls allow quick adjustment of contrast volume, brightness volume, and peaking volume. There's also a tally light with a built-in dimmer function as well as a zebra feature for displaying exposure levels. - 2" B/W HD CRT viewfinder for select HDK and GF cameras
- High image quality with over 600 TVL resolution at screen center
- Contrast volume, brightness volume, and peaking volume control
- Zebra function indicates over exposure levels
In the Box Ikegami 2" B/W Viewfinder (1080i50/60) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami 2" B W Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami VF421HD Specs | Supported Products | Broadcast/HDK-77EXa
Broadcast/HDK-79EXIII / HDK-79EXIII [α version]
Broadcast/GF series | | Input Signal | 1080/60i, 1080/24psf, 1080/50i | | Signal Level | Input: VS : 1.0Vp-p | | Impedance | Input: 75 ohm | | Operation | Contrast Volume, brightness Volume, peaking volume | | Switch | Tally (Dimmer function available), Zebra | | Maximum Output Level | 10Vp-p or more CRT G1 | | Resolution | More than 600 lines at screen center | | Power Requirement | DC+12V (DC+10.5V~+17V) | | Operating Temperature | -4 ~ 113°F (-20 ~ 45°C) | | Relative Humidity | less than 90% (non-condensing) | | Weight | 1.7 lbs (770g) | | Connector | HR12 (20 pin) | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 14.5 x 11.6 x 7.7" |
