User Manual for Ikegami 21.5" Full HD 3G-SDI & HDMI Professional Monitor Click to enlarge the picture
Contents of the user manual for the Ikegami 21.5" Full HD 3G-SDI &
- Product category: Production Monitors Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Production Monitors
 |
User manual for the Ikegami 21.5" Full HD 3G-SDI & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|

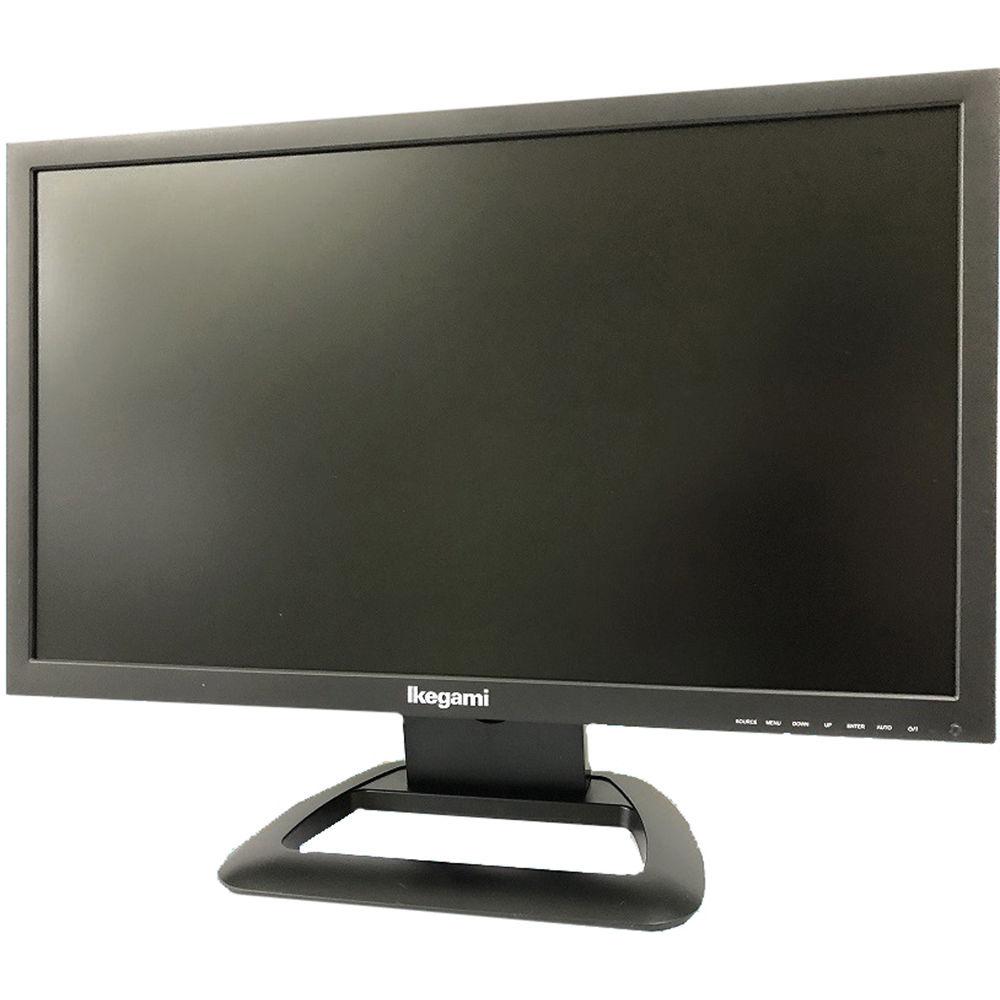

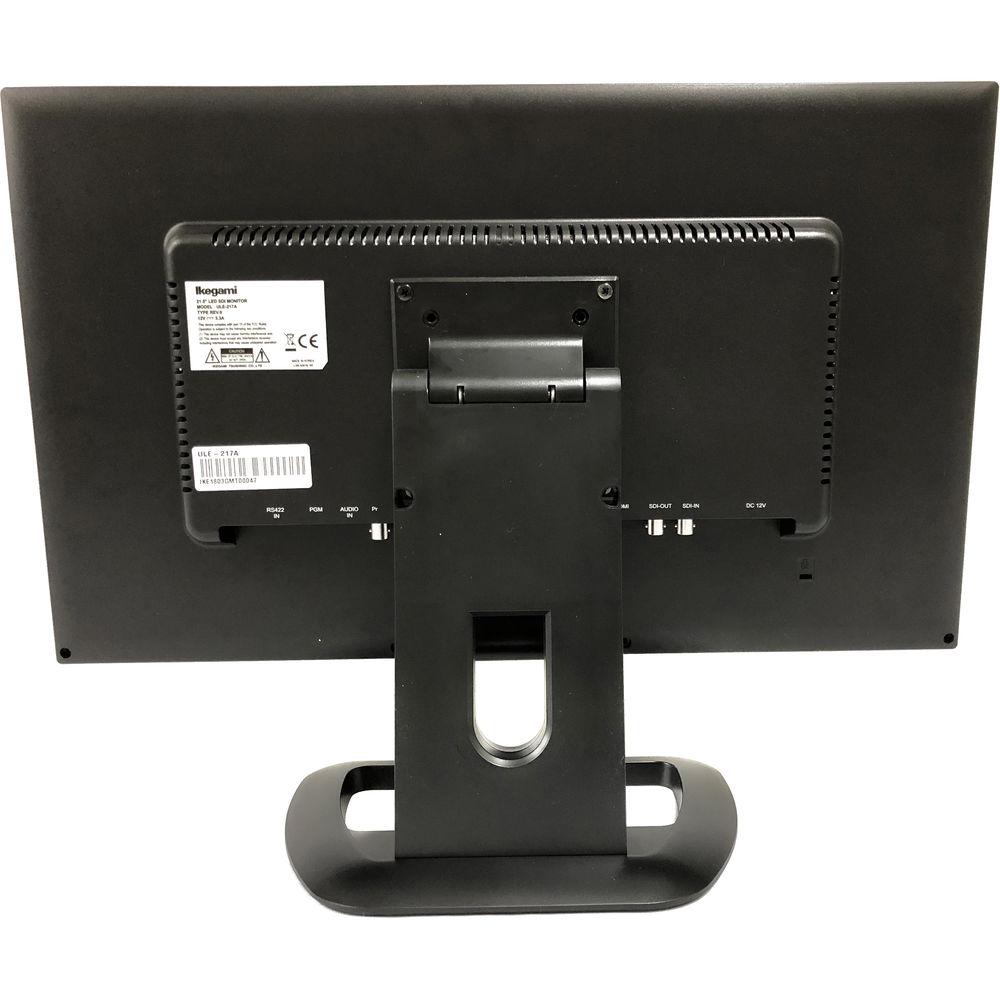

Product description The Ikegami 21.5" Full HD 3G-SDI & HDMI Professional Monitor features a 1920 x 1080 resolution and offers SDI, HDMI, composite, DVI, VGA, and audio inputs, SDI and composite outputs, and a GPIO input for external control. The monitor is designed for various HD monitoring broadcast applications. It can be used desktop-mounted with the included stand, or wall-mounted using an optional VESA interface. An anti-reflection coating ensures you'll see your images clearly in all environments. - Key Features
-
- 1920 x 1080 multi-format LED monitor
- SDI, HDMI, composite, DVI, VGA, and audio inputs
- SDI and composite output
- Built-in speakers
- 3D comb filter and deinterlace
- Built-in HDCP encryption engine
- Anti-reflection coating
- Optional VESA wall mount bracket and IR remote control supported
UPC: 681716002184 In the Box Ikegami 21.5" Full HD 3G-SDI & HDMI Professional Monitor Power Cord Power Adapter VGA Cable Stand Base & Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami 21.5" Full HD 3G-SDI & HDMI Professional Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ULE-217A Specs | Display | 21.5" / 55 cm | | Display Resolution | 1920 x 1080 | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 (typical) | | Viewing Angle | 170/160° | | Response Time | 5 ms (typical) | | Input | 3G/HD/SD-SDI: 1 x BNC (Level-A)
HDMI: 1 x HDMI type A
Composite: 1 x 2BNC
DVI: 1 x DVI-I
VGA: 1 x 15-pin D-sub
Stereo Analog Audio: 1 x 2RCA (for composite), 1 x 3.5 mm jack (for DVI/VGA)
1 x GPIO | | Output | 3G/HD/SD-SDI: 1 x BNC
Composite: 1 x BNC | | Speakers | Built-in | | Mount Type | Desktop stand included
Optional wall mount VESA interface supported | | Input Power | 12 VDC, 1.8 A | | Power Consumption | <21.6 W | | Dimensions | 20.5 x 12.2 x 2" / 52 x 31 x 5 cm (without stand) | | Weight | 11 lb / 5.4 kg (without stand) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 22.0 x 17.0 x 5.0" |
