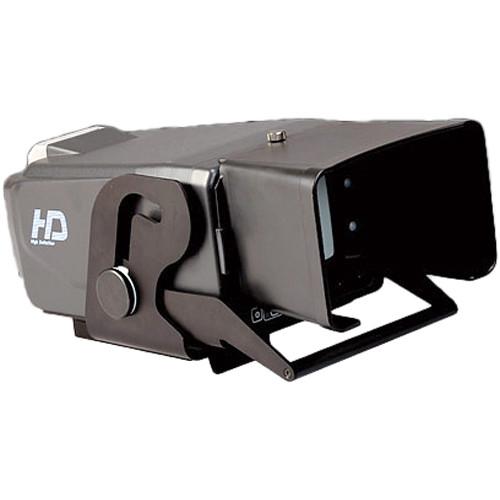

User Manual for Ikegami 5" HDTV B&W Viewfinder Kit Click to enlarge the picture
Contents of the user manual for the Ikegami 5" HDTV B&W Viewfinder Kit
- Product category: Viewfinders Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Viewfinders
|
User manual for the Ikegami 5" HDTV B&W Viewfinder Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The Ikegami VF13XHD/3 5" B&W HDTV Viewfinder Kit is a high-resolution monochrome viewfinder that provides on-camera monitoring for Ikegami professional HDTV cameras, such as the HDK-77EC and HDK-79EC. Along with the included mount, it provides a sharp, stable, easy-to-focus image in both studio and location environments. In the Box Ikegami 5" HDTV B&W Viewfinder Kit 1 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami 5" HDTV B&W Viewfinder Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami VF13XHD/3 Specs | Signal System | 1080i/60, 59.94,50 SMPTE 274M
720p/60, 59.94,50 SMPTE 296M
1080p/24sf (optional) | | Impedance | 75Ω | | Input | 20-pin HR25 | | Horizontal Resolution | More than 650 TV Lines | | Power Requirements | 12VDC (10.5~17VDC) | | Power Consumption | 20W | | Dimensions | Not specified by manufacturer | | Weight | 4.2 lbs (1.9kg) |
