User Manual for Ikegami 9" Full HD Multi-Format LCD Monitor Click to enlarge the picture
Contents of the user manual for the Ikegami 9" Full HD Multi-Format LCD
- Product category: On Camera Monitors Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami On Camera Monitors
|
User manual for the Ikegami 9" Full HD Multi-Format LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|

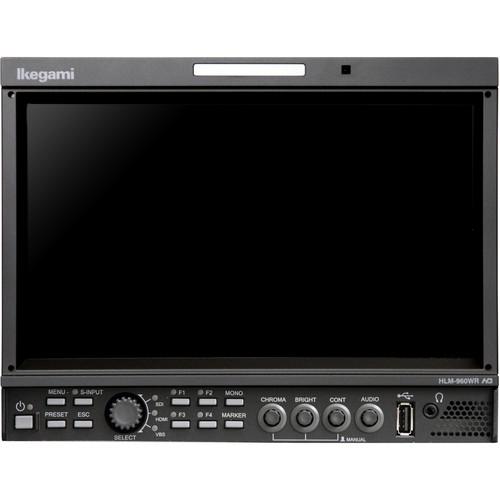

Product description The 9" Full HD Multi-Format LCD Monitor from Ikegami features 1920 x 1080 resolution LCD panel with LED backlight. It offers multi‐format 3G/HD/SD‐SDI inputs, as well as HDMI input and 4K 2SI (3Gx1) input is available for 2K monitoring of a 4K signal. It also features FM and vector displays, audio level monitoring, and USB connector for auto setup, mouse control, and file storage. - 9" 1920 x 1080 LCD panel with LED backlight
- Multi-format 3G/HD/SD-SDI inputs, as well as HDMI input
- Four SDI inputs (by setting outputs into inputs)
- 4K 2SI (3Gx1) input is available for 2K monitoring of a 4K signal
- Two-video side-by-side display
- USB connector for auto setup, mouse control, and file storage
- Dual rackmount or standalone
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami 9" Full HD Multi-Format LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami HLM-960WR Specs | Panel Type | LCD/LED backlight | | Number of Pixels | 1920 x 1080 | | Display Size | 9" / 23 cm | | Brightness | 400 cd/m2 | | Contrast Ratio (Typical) | 700:1 | | Display Color | 16.77 million colors, 8‐bit | | Viewing Angle | 178° (up & down, left & right typical) | | Format Support | 1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
575i: 50
480i: 59.94 | | Video Input / Output | 3G/HD/SD-SDI: 2 inputs with 2 loop-through outputs, or 4 inputs
VBS: 1 input with 1 loop-through output
HDMI: 1 input | | Audio Input | Analog Audio Input: Standard (stereo mini jack)
Display: Standard 8-channel embedded audio level meter display | | Speaker | Rating Output: 350 mW
Analog Audio Output: Standard (monaural)
Embedded Digital Audio Output: Standard (monaural)
5.1-channel surround down-mix output
Headphone output | | Power Requirements | 100 to 120 VAC, 200 to 240 VAC
12 VDC | | Power Consumption | AC: 23 W
DC: 20 W / 1.6 A | | Rack-Mountable | 4 RU | | Dimensions | 8.8 x 6.8 x 2.8" / 22.3 x 17.2 x 7.1 cm | | Weight | 4.41 lb / 2.0 kg |
