User Manual for Ikegami BSH-200 Base Station Hub Click to enlarge the picture
Contents of the user manual for the Ikegami BSH-200 Base Station Hub
- Product category: CCU & Base Station Accessories Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami CCU & Base Station Accessories
|
User manual for the Ikegami BSH-200 Base Station Hub contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|

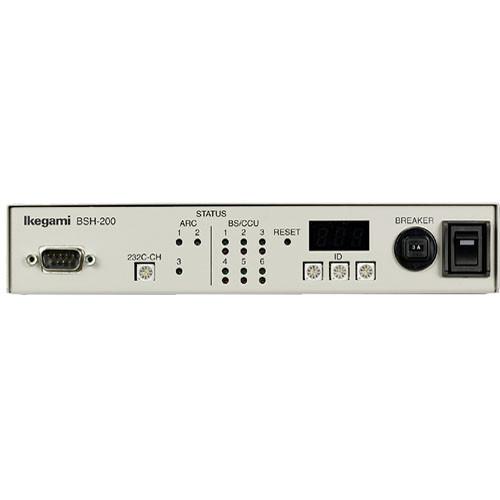

Product description The Ikegami BSH-200 Base Station Hub utilizes the command converter to connect multiple BS/CCU (base station / camera control units) to form a network system. With a 6 BS/CCU connection capability, the hub allows control panel connection with the help of CP (Cathodic Protection Copper Conductor) cables. In addition, it offers compatibility with both current ICCP (Ikegami Camera Control Protocol) and new Network Command by using CPUs for each channel.
Built-in coaxial connector supports 3 network ports and can divide the network into 2 systems electrically for easy maintenance. In addition, the number of BS/CCU and control panels can be increased by connecting 2 or more hubs. Equipped with a preview connector the same as OCP (operation control panel), the preview output facility displays the selected input as a full screen image preview. - Utilizes command converter to connect multiple BS/CCU (base station / camera control units) to form a network system
- 6 BS/CCU connection capability
- Allows control panel connection with the help of CP (Cathodic Protection Copper Conductor) cables
- Offers compatibility with both current ICCP (Ikegami Camera Control Protocol) and new Network Command by using CPUs for each channel
- Built-in coaxial connector supports 3 network ports and can divide the network into 2 systems electrically for easy maintenance
- Number of BS/CCU and control panels can be increased by connecting 2 or more hubs
- Equipped with preview connector
- Preview output facility displays the selected input as a full screen image preview
- Offers transfer rate of 5Mbps
- Supports maximum of 255 nodes/1 network
In the Box Ikegami BSH-200 Base Station Hub 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami BSH-200 Base Station Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami BSH-200 Specs | Power | AC100-240V 0.35-0.2A 50-60Hz | | Operating Temperature | 32 - 113°F (0 - 45°C) | | Storage Temperature | -13 - 140°F (-25 - +60°C) | | Ambient Humidity | 30 - 90% No condensation | | Dimensions (W x H x D) | 8.5 x 1.5 x 15.7" (217 x 38.6 x 400 mm) | | BS/CCU REMOTE | 6 channels ICCP | | MAX Cable | 984' (300m) CP Cable | | Coaxial Network | 3 channels Network Command | | Transfer Rate | 5 Mbps | | Number of Maximum Nodes | 255 nodes/1 network
10 units/918" (280m) (Reference value) 5C-FB Corresponding
10 units/426.5' (130m) (Reference value) 3C-2V Corresponding | | Maximum Extension Distance | One network: 10,498' (3200m)
Between two nodes:
1312' (400m) (Reference value) 5C-FB Corresponding. Coaxial network
688.9' (210m) (Reference value) 3C-2V Corresponding. Coaxial network | | Minimum Extension Distance | Between Nodes: 3.28' (1m) | | Rack Mount | RM-200 | | Weight | 5.7 lb (2.6kg) |
