User Manual for Ikegami Compact Flash Adaptor Click to enlarge the picture
Contents of the user manual for the Ikegami Compact Flash Adaptor
- Product category: Solid State Recorder Accessories Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Solid State Recorder Accessories
 |
User manual for the Ikegami Compact Flash Adaptor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|

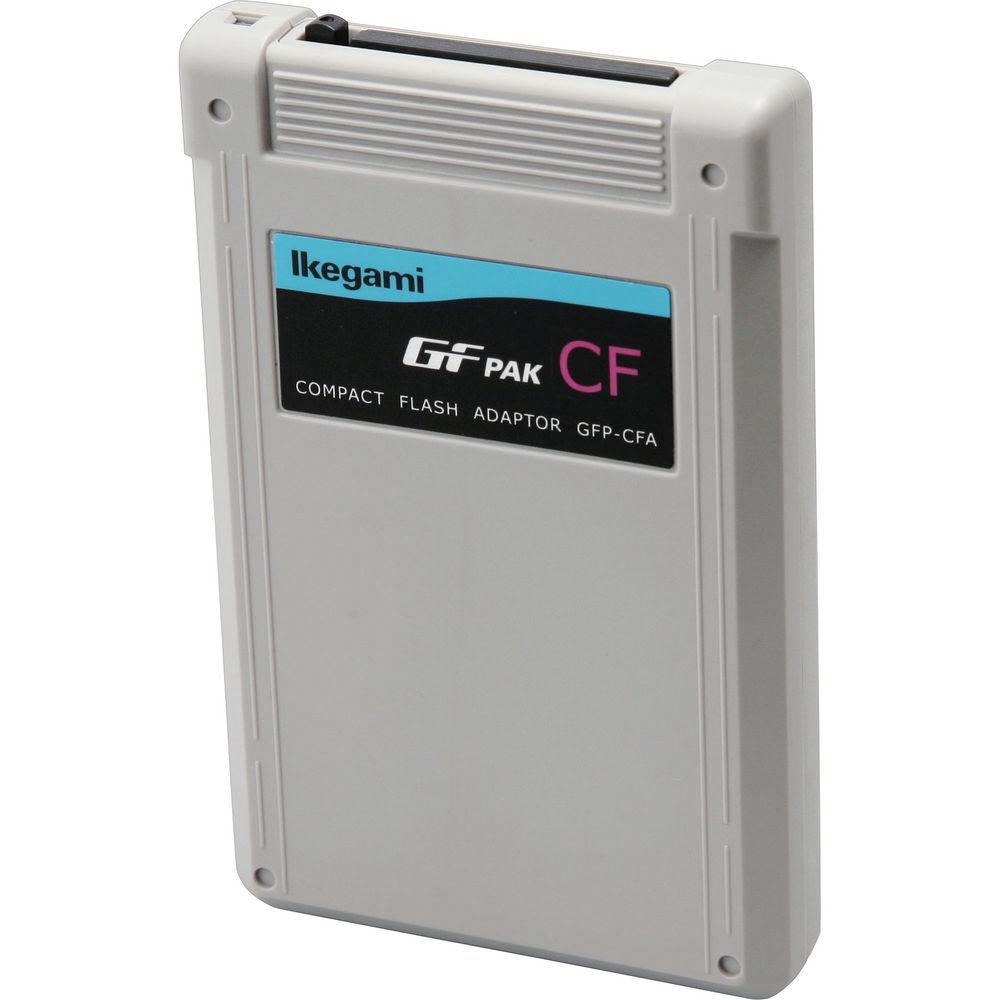

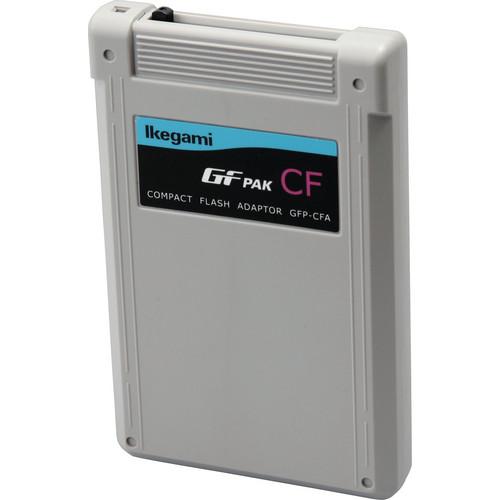

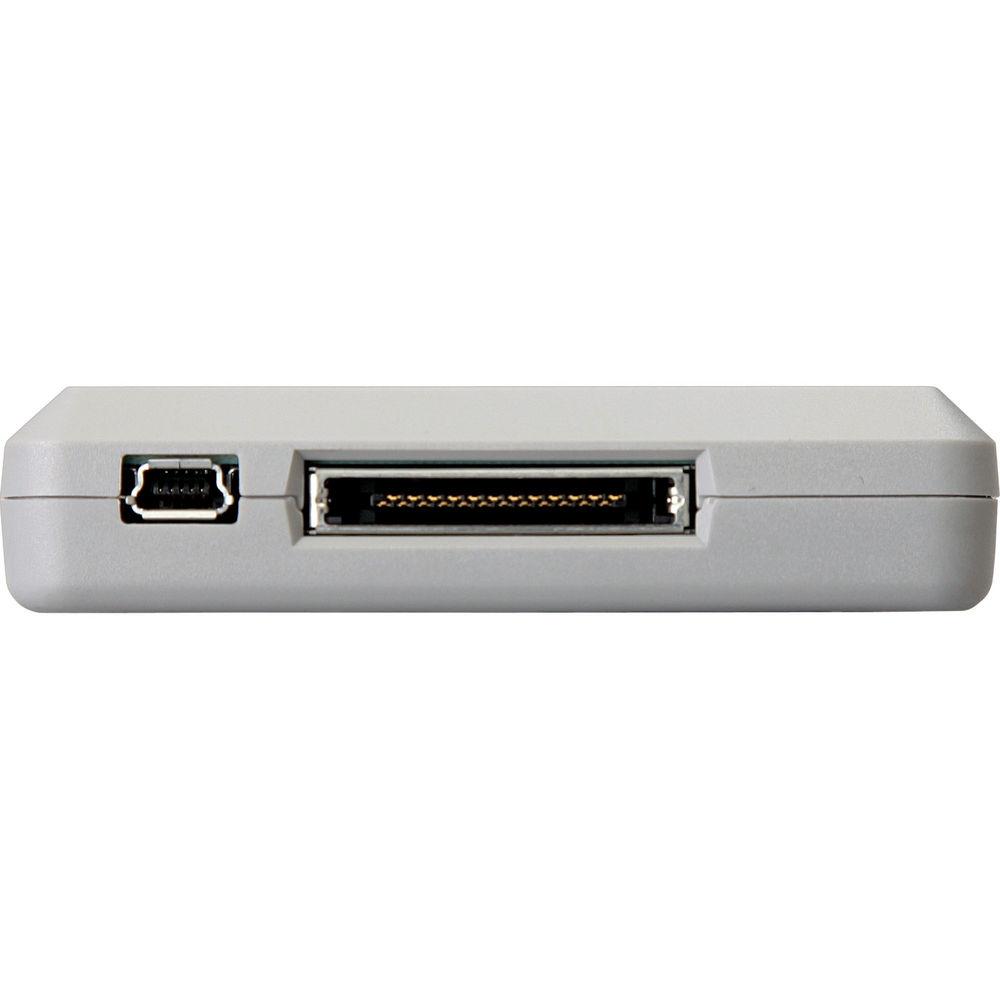

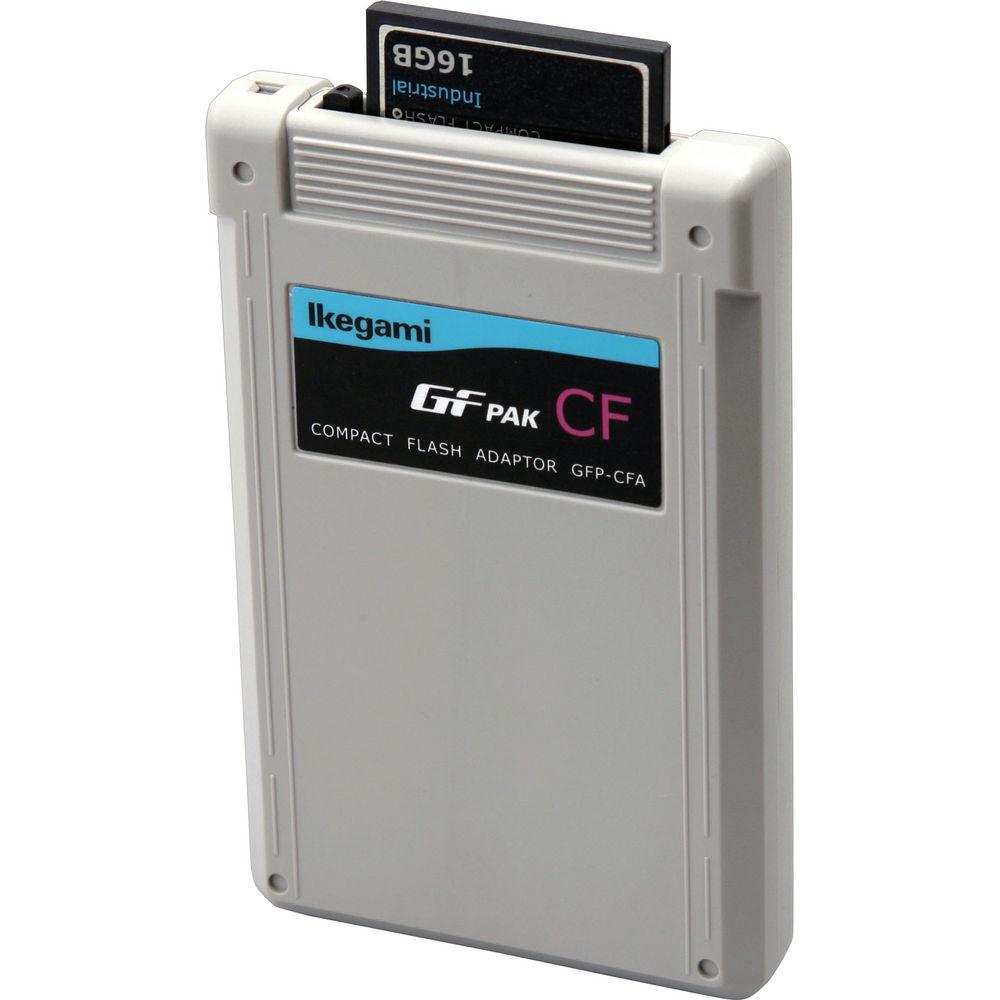

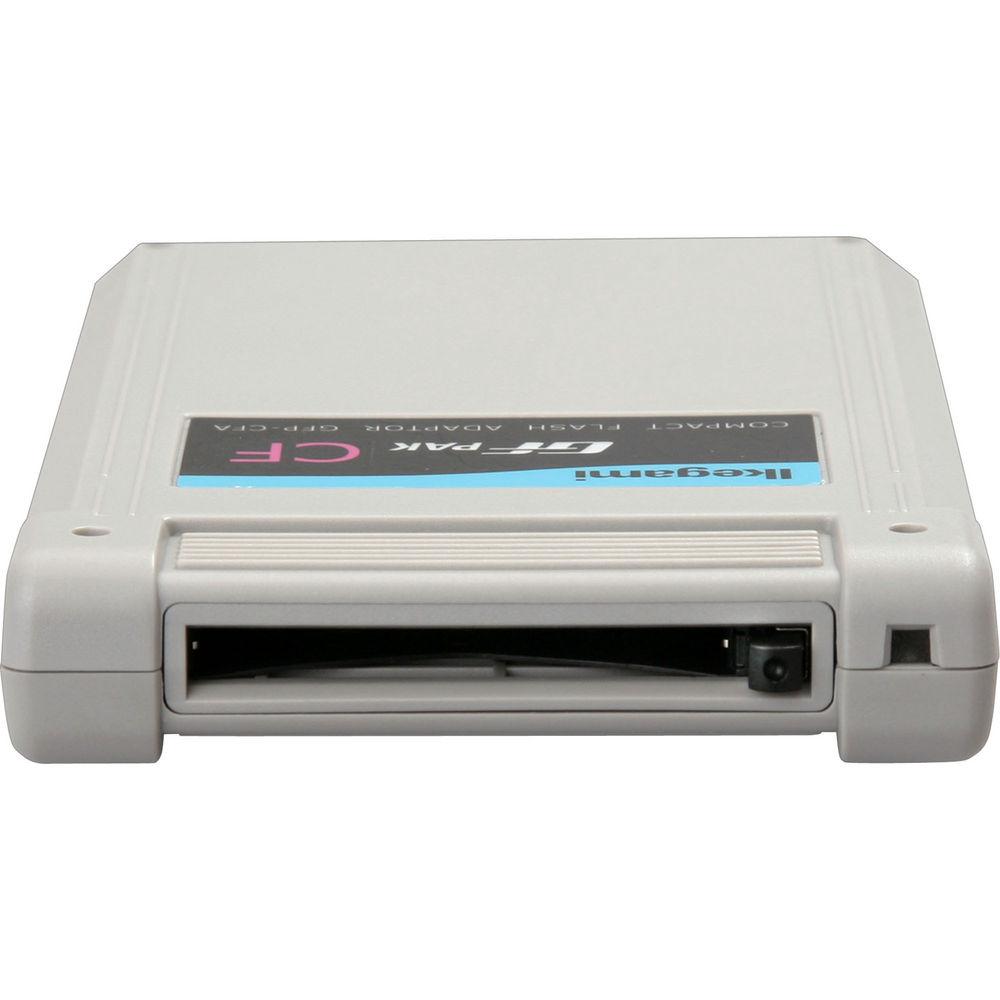

Product description The Ikegami Compact Flash Adaptor is a removable storage medium for use with the Ikegami GFCAM unit. Standard PC interface connectivity standards are supported via the 68-pin connection port. Integrating the Compact Flash-type memory system, the flash adaptor offers distinct advantages over optic disk-based memory storage solutions. You are provided with easy maintenance options for the flash adaptor owing to its rugged and impact-and-vibration resistant construction that does not include any moving parts. Longer life is also a feature of this semi-permanent storage medium. Enhanced data protection allows you to retain and maintain the integrity of your data. You can use the Compact Flash Adaptor to perform large volumes of flawless read/write operations on CompactFlash cards. High-speed random access reduces the latency involved in data retrieval, and increases work efficiency. You can use any CompactFlash Type I memory card with the flash adaptor making it compatible with the GFCAM slot and enabling plug-n-play operation. The PC type Compact Flash Adaptor can also be used with a PC or a notebook via the PCMCIA card slot. - Acts as a removable storage medium
- Used with the Ikegami GFCAM unit
- Offers compliance with PC interface connectivity standards via the 68-pin connection port
- Integrates the Compact Flash-type memory system
- Offers distinct advantages over optic disk-based memory storage solutions
- Provides easy maintenance options owing to its rugged and impact-and-vibration resistant construction that does not include any moving parts
- Lasts longer as a semi-permanent storage medium
- Supports large volumes of flawless read/write operations on CompactFlash cards
- Offers enhanced data protection allowing you to retain and maintain data integrity
- Allows high-speed random access support reducing latency involved in data retrieval and hence increases work efficiency
- Supports use of any CompactFlash Type I memory card making it compatible with the GFCAM slot and enabling plug-n-play operation
- Can also be used with a PC or a notebook via the PCMCIA card
In the Box Ikegami Compact Flash Adaptor 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami Compact Flash Adaptor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami CFADAPTOR Specs | Recording Time | MPEG2 HD 4:2:2 50Mbps
8GB: 16 minutes
16GB: 32 minutes
32GB: 64 minutes
SD IMX 30Mbps
8GB: 25 minutes
16GB: 50 minutes
32GB: 100 minutes | | File Format | MPEG SD/HD recording | | Frame Rate | I frame 30/40/50Mbps (long GOP 50Mbps only supported) | | Supported Media | 300x or faster speed CF media only supported | | Recommended Media | Ikegami MCF Compact Flash Memory card | | Reading Speed | 44MB/sec (max) | | Writing Speed | 30MB/sec (max) | | Host Interface | PC card memory mode
PC card I/O mode
True IDE mode | | Error Correction | 4bit Error Correction | | Compliance | RoHS compliant | | Operating Temperature | -40 ~ 185°F (-40 ~ 85°C) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 6.1 x 4.0 x 1.5" |
