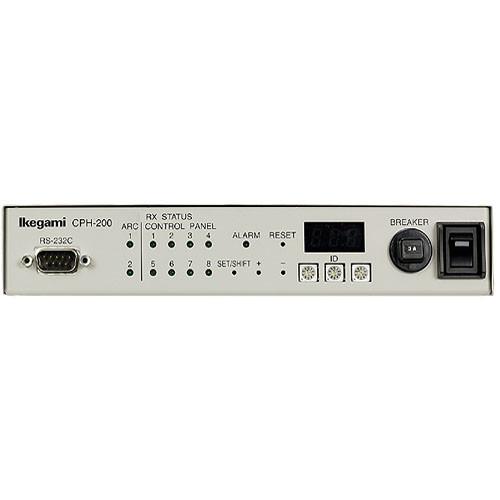

Product description The Ikegami Control Hub is designed to work as a hub unit with all Ikegami network capable control systems. With connection capabilities of up to 8 control panels, the hub unit provides extensive interface and connection options. Need for external power supplies for control panels is eliminated as the required DC +12V power is supplied via the Control Hub itself using CP cables. You can separate the network into 2 electrical systems using the co-axial connector allowing easy electrical maintenance. Larger number of BS/CCUs and control panels can be connected via the 2 network ports. You can create and connect up to 255 nodes per network, and achieve a transfer rate of 5Mbps within the networks. - Designed to work as a hub unit with all Ikegami network capable control systems
- Offers connection capabilities of up to 8 control panels, providing extensive interface and connection options
- Eliminates need for external power supplies for the control panels as the required DC +12V power is supplied via the Control Hub itself using CP cables
- Provides the option of separating the network into 2 electrical systems using the co-axial connector, allowing easy electrical maintenance
- Allows connection of larger number of BS/CCUs and control panels via the 2 network ports
- Allows creation and connection of up to 255 nodes per network
- Provides a transfer rate of 5Mbps
In the Box Ikegami Control Hub 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami Control Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami CPH-200 Specs | Channels | MCP/OCP Remote: 8 channels Network command | | Cable | Maximum Cable Length
OCP-200 Max. Cable: 164' (50m) CP Cable
MCP-200 Max. Cable: 98.4' (30m) CP Cable
MCP-200 Ext. Power: 164' (50m)
Minimum Cable Length
Min. Cable Length: 3.3' (1m) CP Cable | | Network | Coaxial network: 2 channels (network command) | | Transfer Rate | 5 Mbps | | Maximum Device Control | Number of maximum nodes: 255 nodes/1 network | | Maximum Distance | The maximum in one network extension distance: 2 miles (3.2km)
The maximum extension distance between nodes (two nodes):
1312.3' (400m) (Reference value) 5C-FB Corresponding. Coaxial network
689' (210m) (Reference value) 3C-2V Corresponding. Coaxial network
Minimum extension distance between nodes: 3.3' (1m) (Reference value)
Number of maximum nodes:
10 units/918.6' (280m) (Reference value) 5C-FB Corresponding
10 units/426.5' (130m) (Reference value) 3C-2V Corresponding | | Power | AC100-240V 1.5-0.8A 50-60Hz (internal power supply) | | Environmental | Operating temperature: 32 ~ 113°F (0 ~ 45°C)
Storage temperature: -13 ~ 140°F (-25 ~ 60°C)
Ambient humidity: 30 ~ 90% No condensation | | Dimensions (WxHxD) | 8.5 x 1.5 x 15.7" (217 x 39 x 400mm) | | Weight | 6.2 lbs (2.8kg) |
