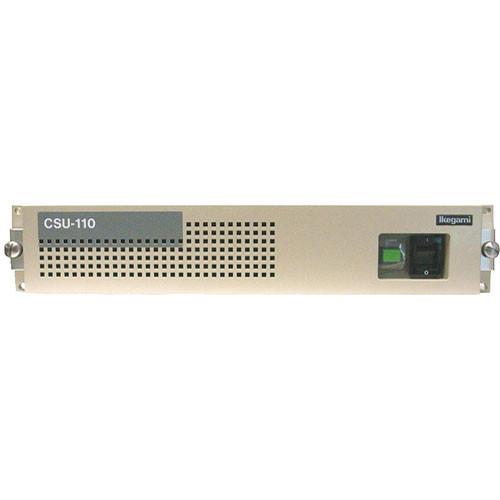

Product description The Ikegami CSU-110 Camera Select Unit is a device that allows you to switch control and video signals from a camera via control signals from the MCP. You can also connect the CSU-110 Camera Select Unit in a chain connection with other CSUs. A wide variety of video signals are supported by the CSU-110 Camera Select Unit, namely, the 1080i/59.94 analog and digital (SDI) HDTV signals; and the 1080i/50 analog HDTV signals. Also supported are NTSC and PAL digital (SDI) and analog SDTV signals. You can switch video signals via picture monitor / waveform monitor video signals in any of these formats. Cable length can be extended to 984' (300m) via an optional MCP modification and can be used to connect the CSU and the MCP. With an external remote functionality, the Camera Select Unit can transmit camera select signals to external equipment. Note: NOTE: SDI card for digital (SDI) signal support not included - Allows you to switch control and video signals from a camera via control signals from the MCP
- Provides for chain connections with other CSUs
- Supports wide variety of video signals - 1080i/59.94 analog and digital (SDI) HDTV signals, and the 1080i/50 analog HDTV signals
- Supports NTSC and PAL digital (SDI) and analog SDTV signals
- Offers video signal switching via picture monitor / waveform monitor video signals
- Provides for cable extension to 984' (300m) via an optional MCP modification and connects the CSU and the MCP
- Incorporates external remote functionality, allowing the transmission of camera select signals to external equipment
In the Box Ikegami CSU-110 Camera Select Unit 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami CSU-110 Camera Select Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami CSU-110 Specs | Supported Signals | HDTV Signal
1080i/59.94: Analog signals and digital (SDI) signals are supported.
1080i/50: Only analog signals are supported. Currently, digital (SDI) signals are not supported. (optional card is required for SDI support)
SDTV Signal
NTSC: Analog signals and digital (SDI) signals are supported.
PAL: Analog signals and digital (SDI) signals are supported. Various formats above can be handled as picture monitor signals/waveform monitor signals for switching video signals. (optional card is required for SDI support) | | Maximum Distance | Maximum cable length of 984' (300m)
The CSU and MCP can be connected via an MCP cable by extending its length up to 984' (300m). (However, a modification (optional) of the MCP is required.) | | Remote | External Remote Function: The camera select signals can be output from the CSU to external equipment. | | Options | SDI card
2x MCP operation
(these two options cannot be combined) |
