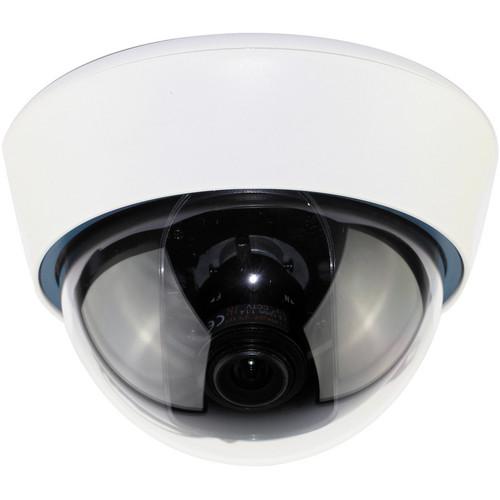

User Manual for Ikegami ECO-312700-ACDC 1 3" Color High Resolution Dome Camera Kit Click to enlarge the picture
Contents of the user manual for the Ikegami ECO-312700-ACDC 1 3" Color High
- Product category: Wired Analog & HD Cameras Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Wired Analog & HD Cameras
|
User manual for the Ikegami ECO-312700-ACDC 1 3" Color High contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The Ikegami ECO-312700-ACDC Camera Line Kit includes the ECO-312700 1/3” Color High Resolution Dome Camera and a 24VAC to 12VDC Converter. This kit is specially designed for use in surveillance areas that require discreet monitoring.The camera features a Sony Effio Chip and a 2.8 to 12mm lens that allows for capturing of high-quality images at resolutions up to 700 TVL. This camera can be set using the On Screen Display, which includes features such as Mirror and Motion Sensing.The included converter is a device that converts 24VAC input to 12VDC and allows DC cameras to be powered by an AC power connection. In the Box Ikegami ECO-312700-ACDC 1/3" Color High Resolution Dome Camera Kit ECO-312700 1/3" Color High Resolution Dome Camera (NTSC) AC 24V to DC 12V Converter (300ma) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami ECO-312700-ACDC 1 3" Color High Resolution Dome Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami ECO-312700 Specs | | | Image Sensor | 1/3" Sony SuperHad II | | Resolution | 700 TVL high resolution | | Electronic Shutter | 1/60 to 1/100,000 sec | | Synchronizing System | Internal | | Video Output | 1 Vpp composite 75 Ω | | Minimum Illumination | 0.001 lux | | Lens | 2.8 to 12 mm | | Automatic Gain Control | On / off by OSD | | White Balance | On / off by OSD | | Day/Night | True day & night, controlled by OSD | | Backlight Compensation | Auto / On / Off / HSBLC by OSD | | Temperature | Operating: 4 to 122°F (-15 to 50°C)
Storage: 4 to 122°F (-15 to 50°C) | | Dimensions | 4.6 x 3.5" (116.8 x 88.9 mm) | | Weight | 0.50 lb (0.22 kg) | | | | Power Input | 20 to 28 VAC
16 to 30 VDC | | Power Output | 12 VDC regulated | | Output Current | 300 mA | | Cable | Input Side: 11.8" (299.7 mm), 22 AWG 2-pin terminal block output
Side: 11.8" (299.7 mm), 22 AWG 0.08" (2.1 mm) DC plug | | Dimensions | 1.77 x 1.00 x 0.75" (44.95 x 25.40 x 19.05 mm) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 7.0" |
