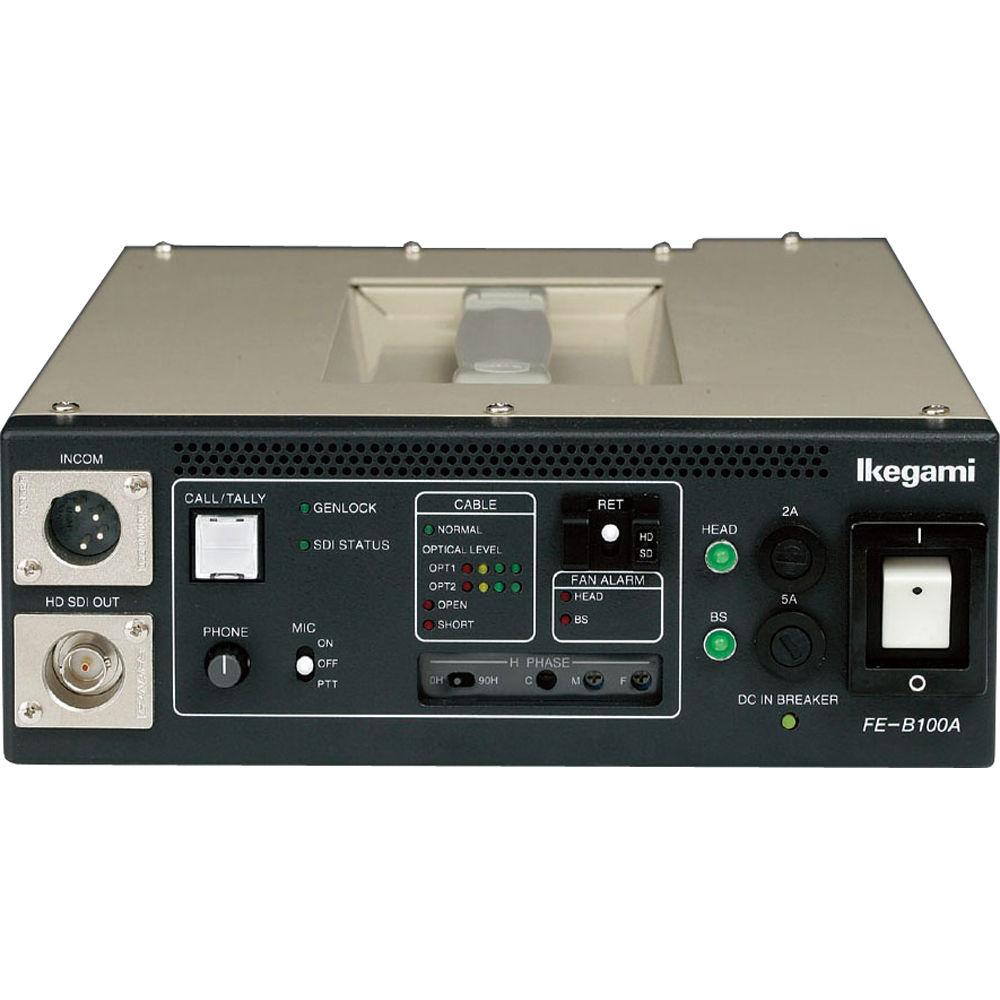

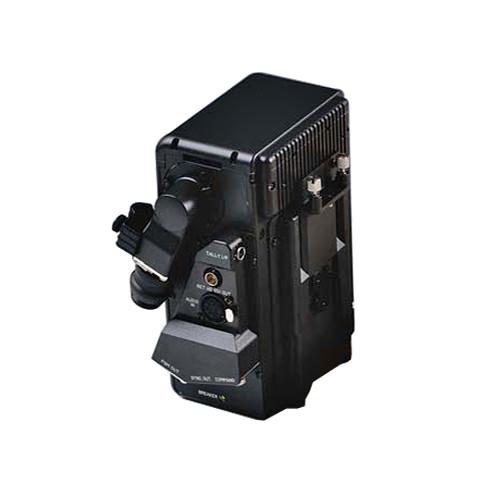

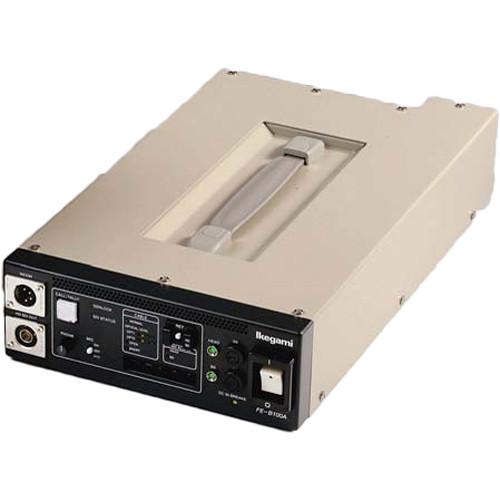

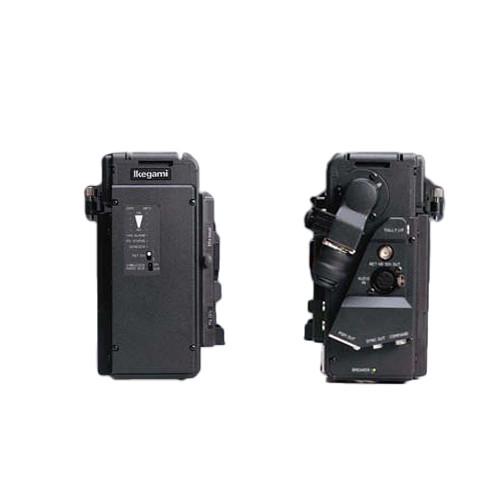

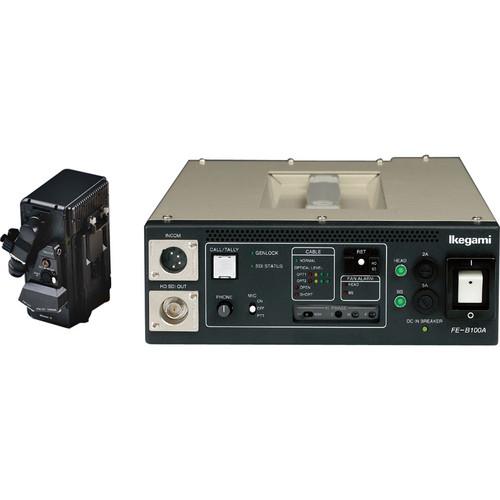

Product description The Ikegami FE-100A/K2 Fiber Extension System transmits signals between the HDS-V10 camcorder and a base station, over a distance up to 500 meters (1,640 ft). Using a long-distance SMPTE hybrid fiber cable to connect the base unit (FE-B100A) and on-camera adapter (FE-C100A), the FE-100A transmits HD-SDI, camera control, intercom, genlock, intercom and audio signals for use in professional ENG/SNG/EFP applications.An optional studio viewfinder can be mounted directly on the FE-C100A for manned operation, while an additional power supply will extend the system's range up to 2 kilometers (1.24 miles). In the Box Ikegami FE-100A/K2 Fiber Extension System for HDS-V10 1 Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami FE-100A K2 Fiber Extension System for HDS-V10 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

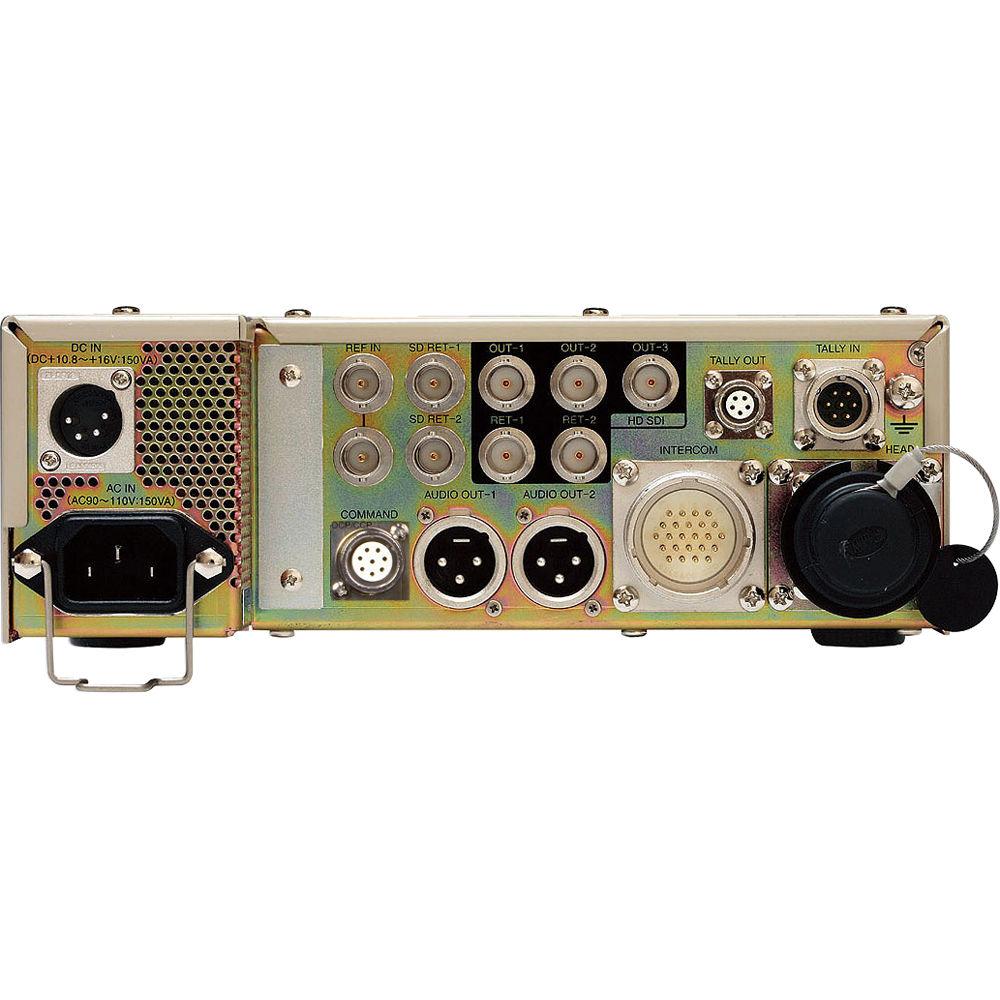

Technical parametersIkegami FE-100A/K2 Specs | | | Transmission | HD-SDI SMPTE292M 1.485Gbps, 1 channel | | Video Signal | HD-SDI SMPTE292M or NTSC VBS, 1 channel | | Input | Audio: -60/-40/-20/0dBm, 600Ω balanced, 2 channel
Intercom signal: -60dBm, 1 channel
Camera control: Ikegami COMMAND, 1 channel (PRC05-8pin M)
Serial interface: RS-232C/RS-422 (Dsub 25-pinF) | | Output | RET signal (SDI): HD-SDI SMPTE292M, 1 channel (75Ω BNC)
RET signal (Analog): HD-Y ch: PS 1.0Vp-p or NTSC VBS: VS 1.0p-p, 1 channel (75Ω)
Phase reference: Tri-Sync 0.6Vp-p (BNC)
Audio PGM: 0dBm, 600Ω balanced, 1 channel (XLR-3pin M)
Camera control: Ikegami COMMAND, 1 channel (PRC05-8pin M)
Serial interface: RS-232C/RS-422 (Dsub 25-pin F) | | Ambient Temperature | -10°C - +45°C (+14°F - +112°F) | | Dimensions (HxWxD) | 7.8 x 5.8 x 11" (19.8 x 14.8 x 28 cm) | | Weight | Approx. 9.9 lbs (4.5kg), excluding HDL-45, VF | | | | Input | RET signal (HD): HD-SDI SMPTE292M (75Ω BNC)
RET signal (SD): NTSC VBS (75Ω BNC)
Phase reference: Tri-Sync 0.6Vp-p or BBS 0.3Vp-p, 2-channel (75Ω BNC) (HD/SD auto detection)
Intercom signal: -60dBm, 1 channelAudio PGM: 0dBm, 600Ω balanced, 1 channel (XLR-3pin M)
Camera control: Ikegami COMMAND, 1 channel (PRC05-8pin M)
Serial interface: RS-232C/RS-422 (Dsub 25-pin F) | | Output | Main video: HD-SDI SMPTE292M 1.485Gbps, 4 channel (75Ω BNC)
Audio signal: +4dBm, 600Ω balanced, 2 channel
Intercom signal: +10dBu max.
Serial interface: RS-232C/4S-422 (Dsub 25-pin F) | | Dimensions (HxWxD) | 3.1 x 8.9 x 13.9" (7.8 x 21.5 x 35.2 cm) | | Weight | Approx. 9.7 lbs (4.4kg) |
