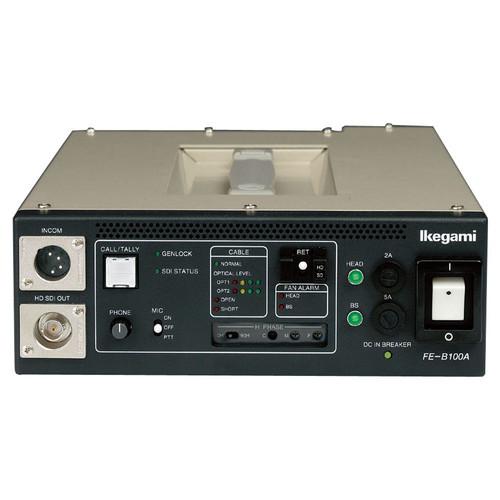

Product description The Ikegami Fiber Extension System transfers HD and NTSC signals between a camera recorder and a base station via SMPTE292 hybrid fiber cable. It offers automatic detection of HD/SD input signals and transmits HD-SDI, camera control, intercom, and audio signals. Offering 4 channels for video output that provide HD-SDI signals with a transmission rate of 1.485 Gbps, the extender provides 2 channels for audio output signal. It transmits data upto a distance of 500m. The transmission distance can be extended up to 1.2 miles (2 km) via a separate power supply to the camera adaptor. - Transfers HD and NTSC signals between a camera recorder and a base station
- Uses SMPTE292 hybrid fiber cable with BNC connectors
- Automatic detection of HD/SD input signals
- Transmits HD-SDI, camera control, intercom, and audio signals
- Offers 4 channels for video output with a transmission rate of 1.485 Gbps for HD-SDI signals
- 2 channels for audio output signal of +4dBm / 600Ω balanced
- Transmits data up to a distance of 500m, extendable up to 1.2 miles (2 km) via a separate power supply to the camera adaptor
In the Box Ikegami Fiber Extension System 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami Fiber Extension System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami FE-B100A Specs | Input Signal | RET signal (HD): HD-SDI SMPTE292M (75Ω BNC)
RET signal (SD): NTSC VBS (75Ω BNC)
Phase reference: Tri-Sync 0.6Vp-p or BBS 0.3Vp-p, 2-channel (75Ω BNC) (HD/SD auto detection)
Intercom signal: -60dBm, 1 channel
Audio PGM: 0dBm, 600Ω balanced, 1 channel (XLR-3 pin M)
Intercom signal: +10dBu max.
Camera control: Ikegami COMMAND, 1 channel (PRC05-8 pin M)
Serial Interface: RS-232C/RS-422 (D-SUB 25-pin F) | | Output Signal | Main Video: HD-SDI SMPTE292M 1.485Gbps, 4 channel (75Ω BNC)
Audio signal: +4dBm, 600Ω balanced, 2 channel
Intercom signal: +10dBu max.
Serial Interface: RS-232C/RS-422 (D-SUB 25-pin F) | | Dimensions (WxHxD) | 8.9 x 3.1 x 13.8" (215 x 78 x 352mm) | | Weight | Approx. 9.7 lbs (4.4kg) |
