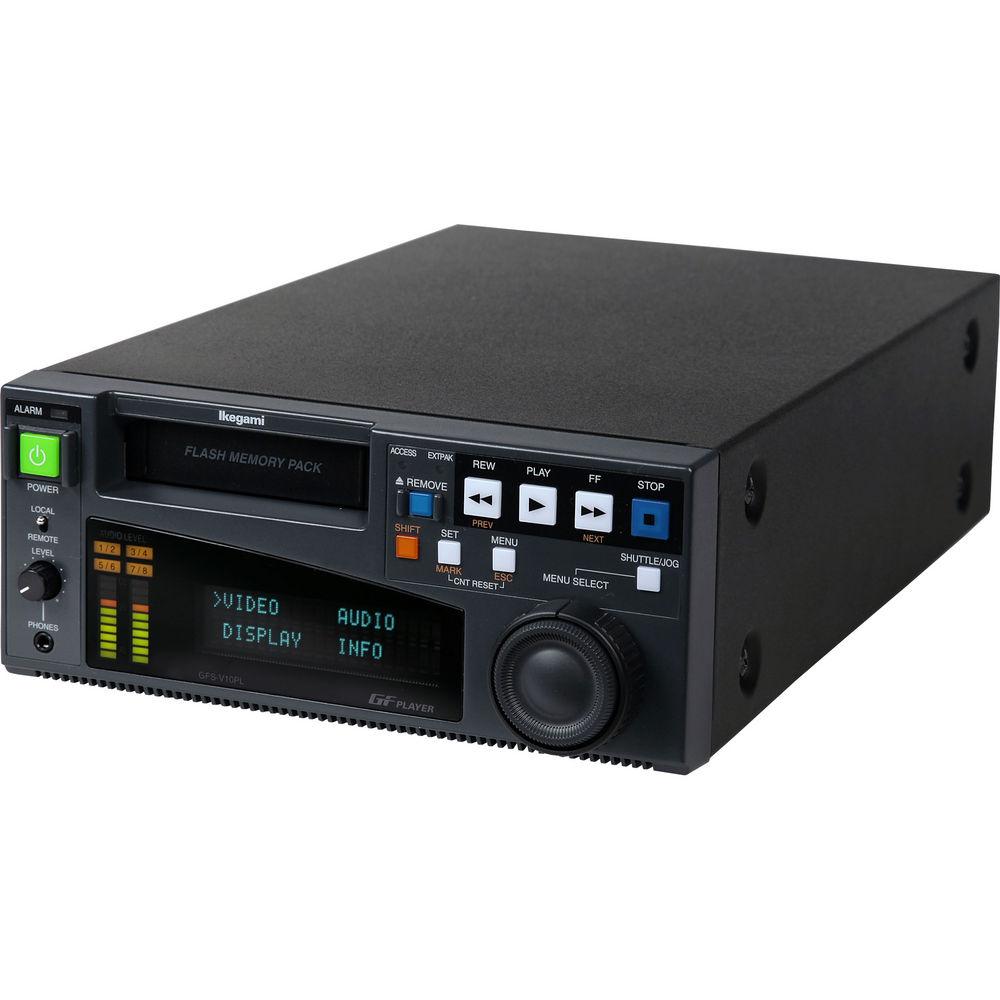

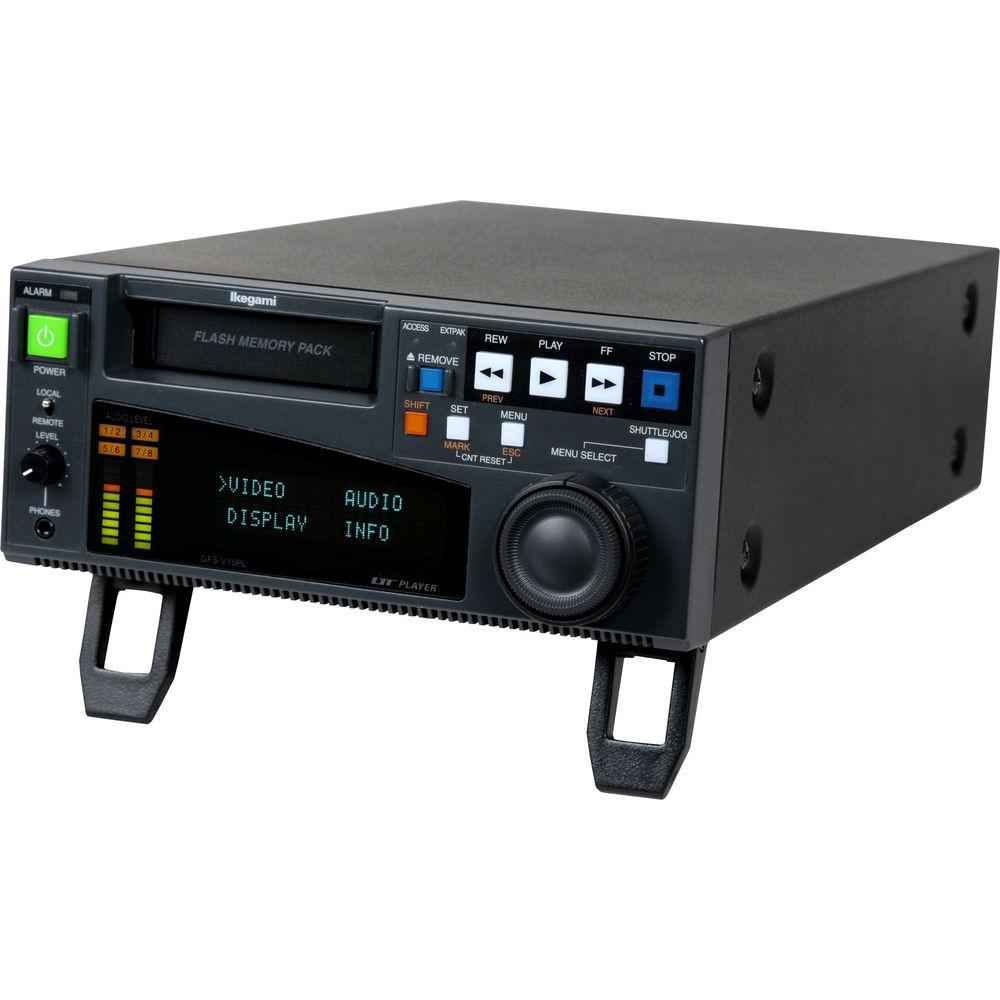

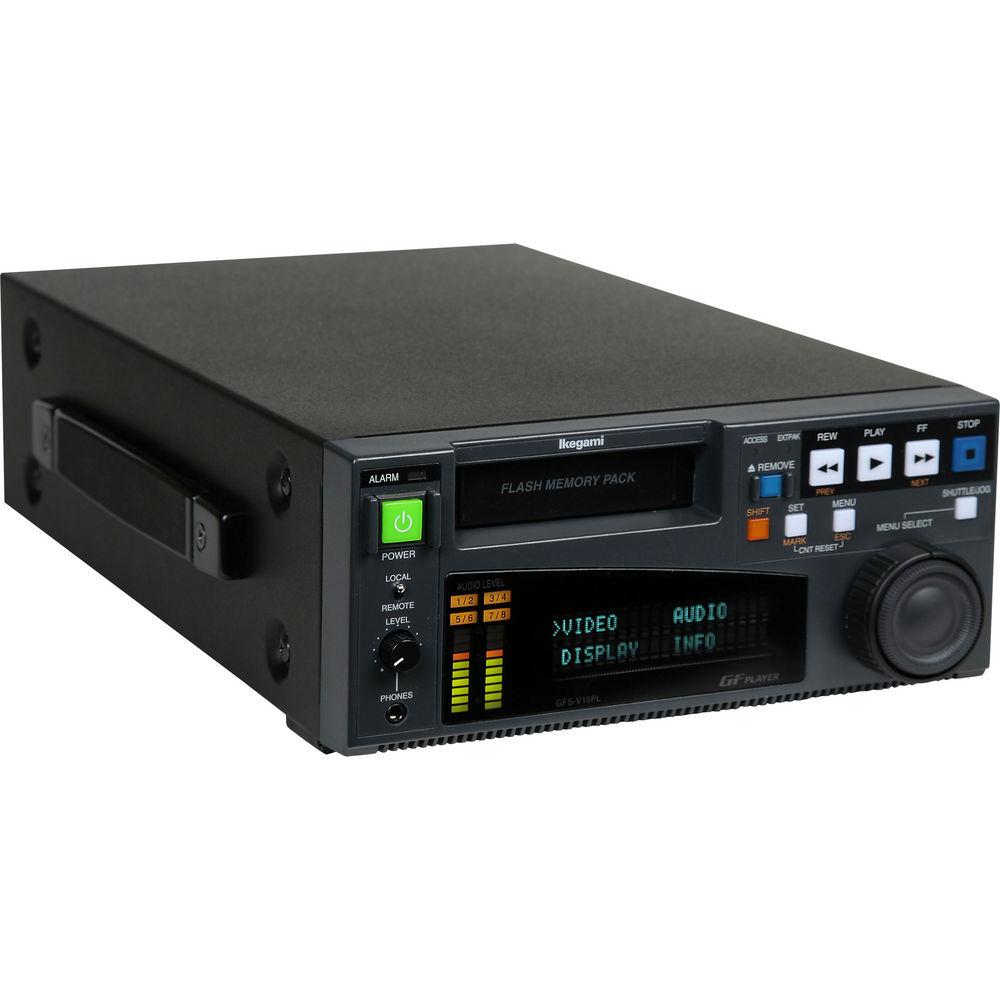

Product description The Ikegami GFPLAYER Portable Flash Memory Player allows playback of GFSTATION, GFSTATION PORTABLE, and GFCAM playlists. You can use the player with the GFPAK and move it as needed, owing to its portable structure weighing in at 8.82 lb and measuring 8.27 x 3.47 x 13.78". A jog and shuttle feedback feature (± 30x speed) enhances playback functionality. DC power based operation makes the GFPLAYER Portable Flash Memory Player suitable for OB-Van installation and other outdoor shooting applications. Remote control based operation is possible via the 9-pin RS-422A interface. You can view the menu or status information via the 2 row, 20 letter VFD display. Video monitor support for information display is also enabled via an OSD (On Screen Display). HD and SD-SDI video output signals are provided using BNC connectors. You can also monitor video on a standard computer monitor using the DVI-D video output. - Allows playback of GFSTATION, GFSTATION PORTABLE, and GFCAM playlists

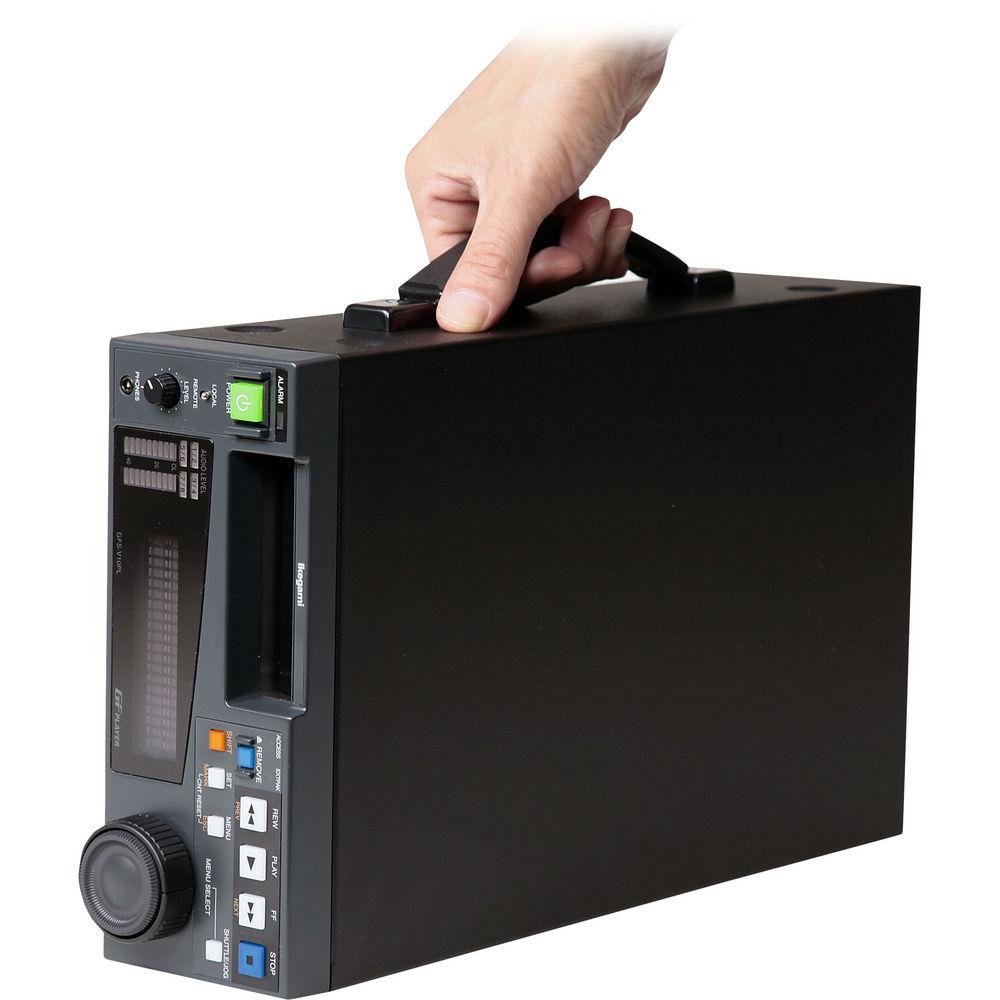

- Incorporates a compact and portable design with a weight of 8.82 lb and dimensions of 8.27 x 3.47 x 13.78"
- Offers jog / shuttle feedback (± 30x speed) feature for enhanced playback functionality
- Provides DC power-based operation suitable for OB-Van installation and other outdoor shooting applications
- Allows remote control based operation via 9-pin RS-422A interface

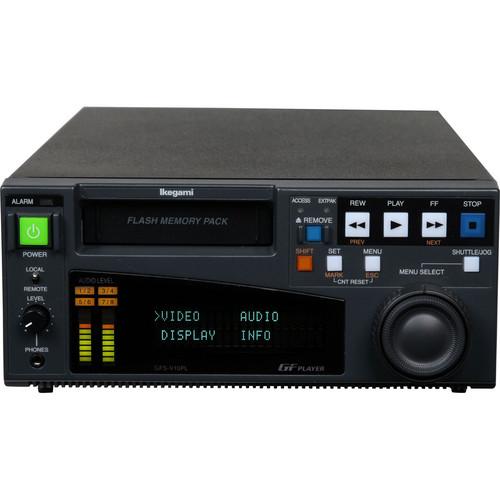

- Provides menu or status information via a 2 row/20 letter VFD display
- Offers video monitor support for information display via an OSD
- Provides HD / SD-SDI video output signals via BNC connectors
- Allows video monitoring on a standard computer monitor using the DVI-D video output
In the Box Ikegami GFPLAYER Portable Flash Memory Player 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami GFPLAYER Portable Flash Memory Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

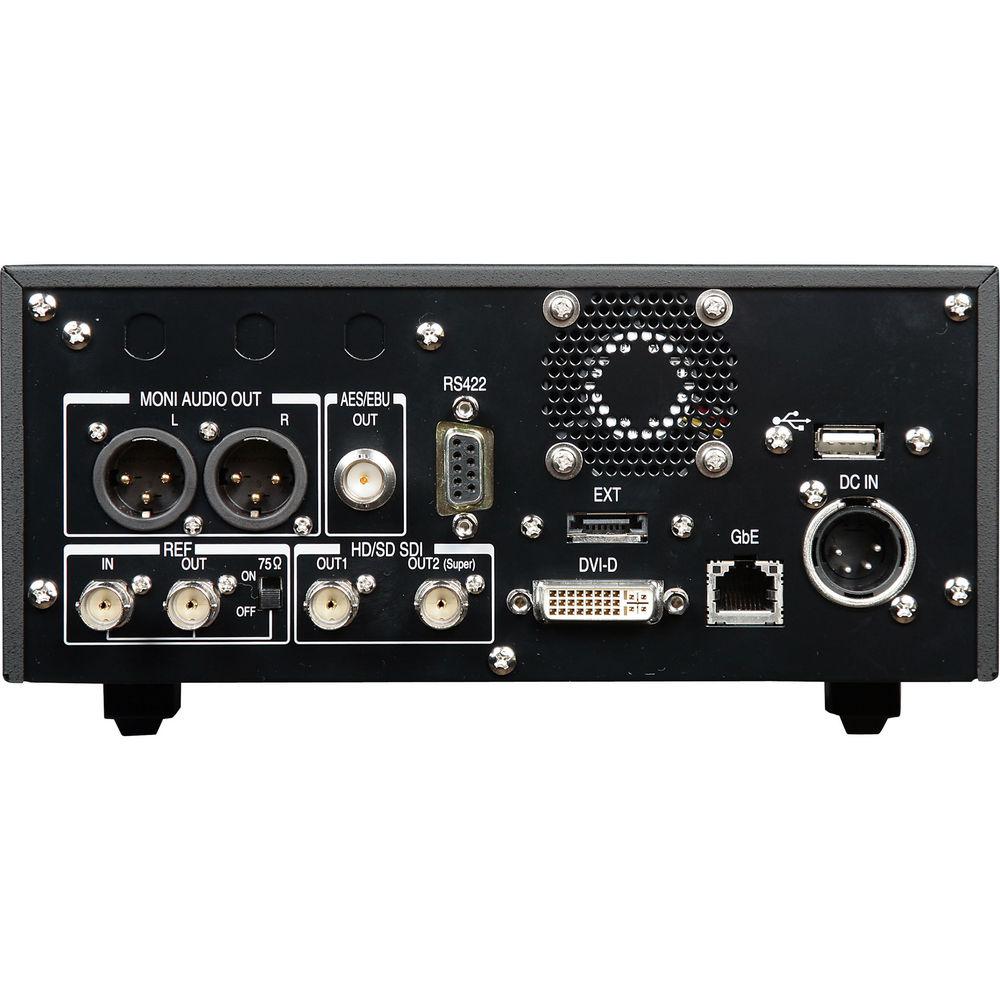

Technical parametersIkegami GFS-V10PL Specs | Interface | HD/SD SDI Output
1x BNC, 1x BNC (Super-Impose ON/OFF)
Video: Conforms to SMPTE292M/259M
Audio: Conforms to SMPTE299M/272M
Digital Audio Output
1x BNC, Conforms to AES3id-1995 (48KHz)
Monitor Audio Output
2x XLR (3 pin) 600ohm Balanced, 0dBm/4dBm
2ch Menu Selectable
Headphone Output
1x Stereo Mini Jack
DVI-D Output
1x Characters overlaid
RS-422A
1x D-SUB 9pin
Gbit Ethernet
1x RJ45, 1000Base-T (disabled)
External
1x eSATA
USB
1x USB2.0, A-Terminal | | Power Requirements | 100VAC ~ 240VAC, 50/60Hz (+11VDC ~ +17VDC) | | Power Consumption | 30W or less | | Operating Temperature | 23 ~ 104°F (-5 ~ 40°C) | | Dimensions (WxHxD) | 8.3 x 3.5 x 13.8" (210 x 88 x 350mm) | | Weight | 8.8 lbs (4kg) |
