Product description

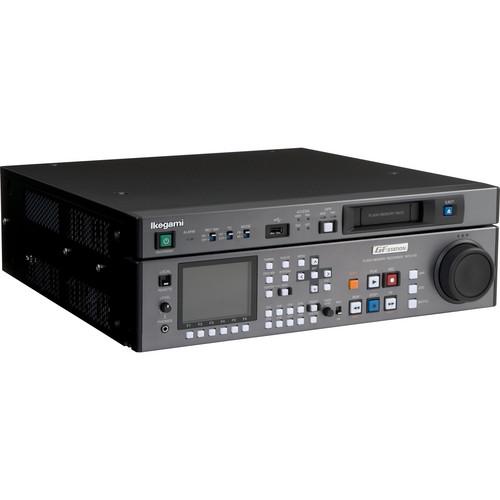

The GFS-V10 GFSTATION Flash Memory Recorder from Ikegami incorporates a flash memory board to act as a flash memory server using ON-AIR MAX technology. It features 128GB of internal flash memory and supports up to (4) hours of HD recording and playback. The unit employs MPEG-2 compression and MXF file format, which offer full HD picture resolution of 1920 x 1080. The recorder can play and record HDTV pictures with removable media, GFPAK, or with built-in memory. Beyond being a flash memory recorder, this solution incorporates VTR-like operation with the function of a tapeless system.
  • Recording and playback can be executed at the same time by using GFPAK and built-in flash memory (Multi-Task function)
  • Its internal 128GB flash memory can support up to (4) hours of HD video at 50Mbps
  • Supported formats include HDTV 1080i/720p and SDTV PAL & NTSC
  • It supports MPEG-2 HD Long GOP-50Mbps and I frame 100Mbps Multi CODEC
  • MXF file transfer is available
  • This solution can be used as an up- and down-converter for playback
  • A color LCD is included to facilitate use of the device
  • Thumbnail search operation is available
  • The unit can be managed with jog & shuttle dial operation
  • In/out editing is available
  • This unit supports playlist delivery
  • RS-422A protocol allows for the same operation as conventional editing systems and combination with a liner editor
In the Box Ikegami GFS-V10 GFSTATION Flash Memory Recorder
  • One-Year Warranty Against Defects in Material & Workmanship
  • rbbcyerceqradeswfdbdfaddvc Table of Contents




    Upload User Manual

    Have you got an user manual for the Ikegami GFS-V10 GFSTATION Flash Memory Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ikegami GFS-V10 Specs

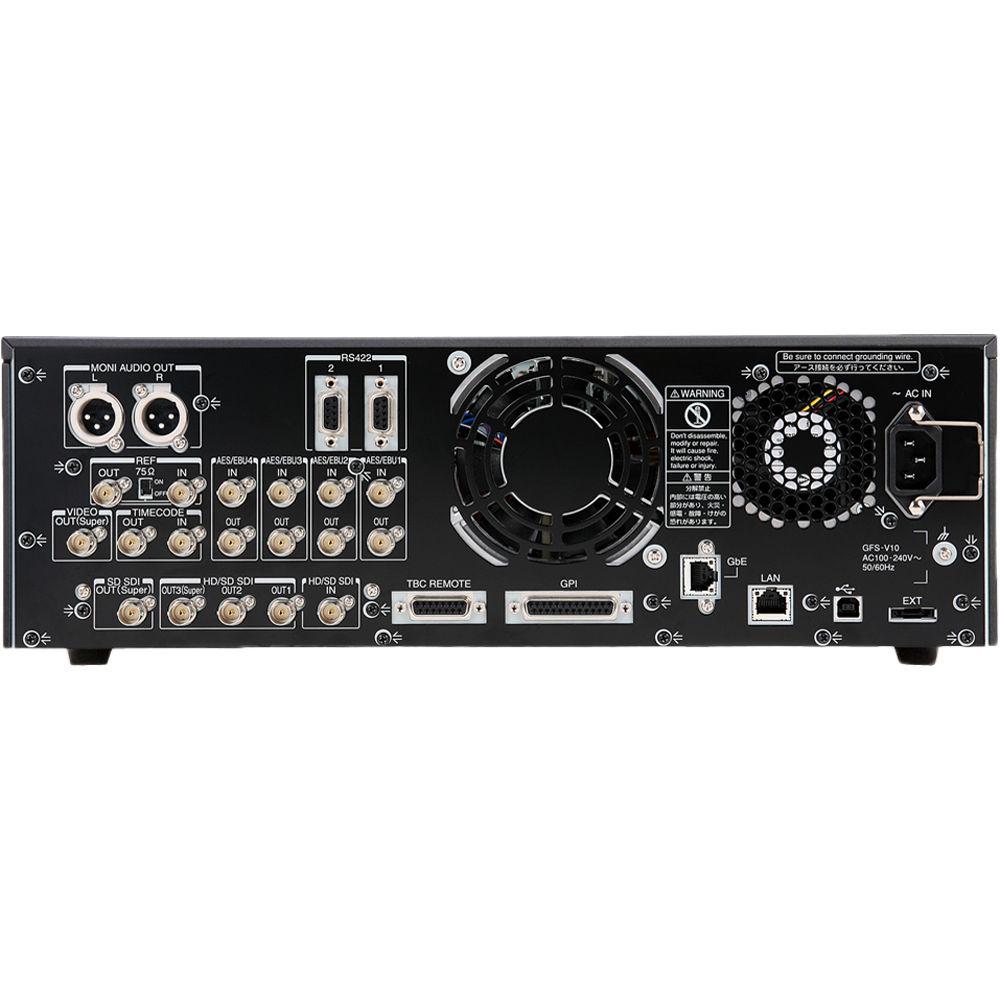

    Inputs/Outputs Digital Input:
    BNC75ohm 1 input (SMPTE292M/SMPTE259M conformity)
    Digital Audio Input :
    BNC75ohm 4 inputs (8ch inputs) (SMPTE276M conformity)
    Sync:
    Tri-level Sync or Black Burst
    BNC75ohm 1 input / 1 output (loop through)
    Time Code:
    BNC75ohm 1 input / 1 output (SMPTE time code)
    Digital Output:
    BNC75ohm 3 outputs (1 output has Super)
    (SMPTE292M/259M conformity)
    Digital Audio Output:
    BNC75ohm4 (8ch) outputs (SMPTE276M conformity)
    Monitor Audio Output:
    XLR connector 2 outputs
    Headphone Output:
    Stereo Jack 1 output
    LAN:
    IEEE802.3ab (1000Base-T) RJ451 input / 1 output
    IEEE802.3 (100Base-T) RJ451 input / 1 output
    USB:
    USB A Terminal High-speed USB 1 input / 1 output
    USB B Terminal High-speed USB 1 output
    External Serial ATA:
    1 input / 1 output
    RS-422A:
    D-SUB 9-pin 2 inputs/outputs
    TBC Remote Control:
    D-SUB 15-pin
    GPI:
    D-SUB 25-pin
    Power Voltage: 100 to 240VAC
    Frequency: 50/60Hz
    Power Consumption: 180W (target)
    Dimensions (HxWxD) 5.2 x 16.54 x 17.72" (132 x 420 x 450mm)
    Weight 44 lbs (20kg)
