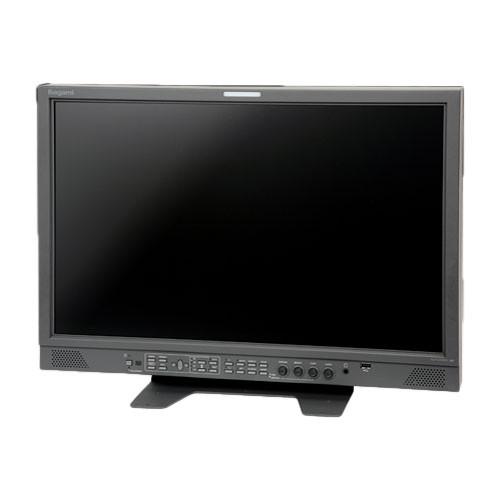

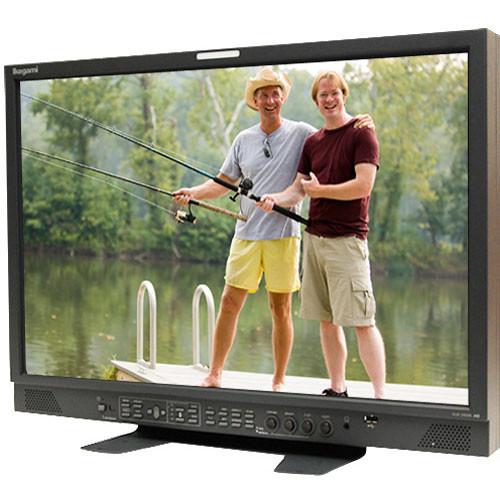

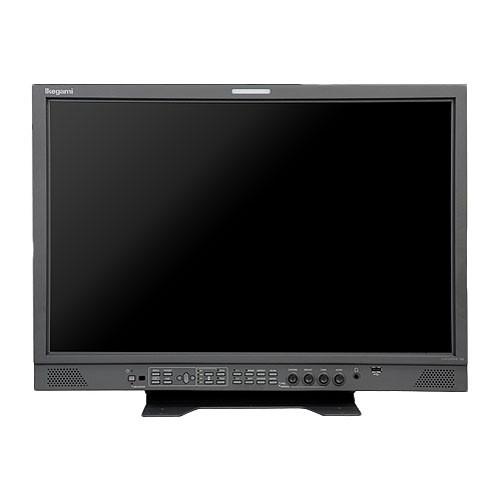

Product description The Ikegami HLM-2450WB Multi-Format LCD Monitor is a 24" high definition LCD monitor designed specifically for professional editing workstations and broadcast studios. The monitor offers a plethora of features to make the process from acquisition all the way to delivery as smooth as possible. Features include HD-SDI, tally, signal generator, waveform display, split screen and much more. Additionally, its modular design allows for additional input boards to be added and removed depending on your specific needs. - Exceptionally High Viewing Angle
- With a viewing angle of 178°, operators can see it from anywhere in the room with crystal clarity. This can be especially useful when space within an OB van is limited.
- Automatic NTSC or PAL Recognition
- The panel accepts both NTSC (United States, Japan) and PAL (Europe, Australia) standard signals. Conveniently, the monitor automatically detects which standard it is being fed without having to push a button, flip a switch or access a menu.
- Wide Range of Broadcast Features
- The monitor truly hits on all aspects of professional broadcast, including built-in 3 remote types, 10 color-temperature memory presets, waveform monitoring, marker, and a test signal generator.
- Other Features
-
- Flat, compact and self-contained construction
- Employs a newly developed high contrast LCD panel
- Space-saving and light-weight in rack and wall mounting
- LCD protection by on-panel film
- Lower power consumption
- 2ch each HD/SD-SDI and analog composite inputs
- 3G SDI Input (Option)
- DVI-D Single Link 24p input
- Analog Component and PC RGB inputs (optional)
- Tiltable monitor stand
- 19-inch rack mountable (with optional hardware)
- Auto Set-up ready (ASP-100)
UPC: 681716024506 In the Box Ikegami HLM-2450WB Multi-Format LCD Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami HLM-2450WB Multi-Format LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami HLM-2450WB Specs | Application | Broadcast Monitoring | | LCD Size | 24" | | Video System | NTSC/PAL
1080i/60 (59.94), 1080i/50, 1080p/30 (29.97), 1080psF/30, 1080p/25, 1080psF/25, 1080p/24, (23.98), 1080psF/24 (23.98), 1035i/60, 59.94, 720p/60 (59.94), 720p/50, 720p/30 (29.97), 720p/25, 720p/24 (23.98), 480i/59.94, 480p/59.94, 575i/50 | | Picture Elements | 1920 x 1200 | | Viewing Angle | 178° | | Contrast Ratio | 1000:1 (max) | | Brightness | 400cd/m² | | Number of Colors | 1.07 Billion | | Input and Output Connectors | Composite Video: BNC (x2 Input)

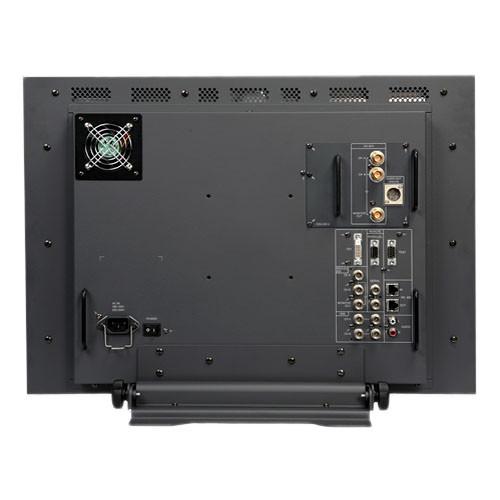

HD-SDI: BNC (x2 Input, x1 Output)
DVI: DVI-D (x1 Input)
Analog Audio: RCAx2 (x1 Input)
Tally: 9-Pin DSub (x1)
Remote: RS-232C (x1) | | Speakers | Built-in Stereo (1W + 1W) | | Picture Controls | Menu System, Front Panel Controls | | Remote Control | Serial RS-232C, Parallel, IR | | Mount Type | Not Specified By Manufacturer | | Power Requirements | 100-240VAC ±10%, 50/60 Hz | | Power Consumption | 98-120W | | Dimensions (WxHxD) | 22.1 x 15.6 x 3.5" (56.2 x 39.6 x 9cm) | | Weight | Display: 19.8 lbs (9kg)
Stand: 7.1 lbs (2.3kg) | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 25.0 x 17.0 x 16.0" |
