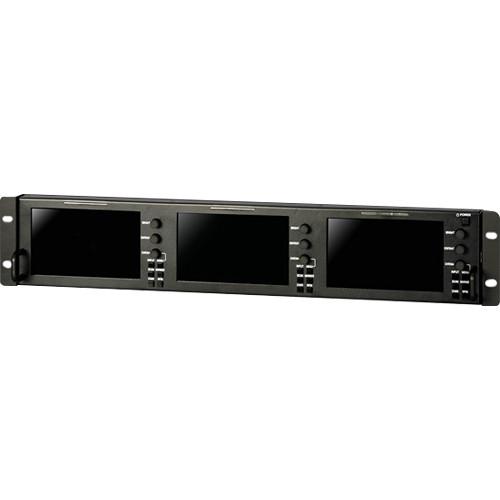

Product description The HLM-5013WR 5" Triple Multi-Format Broadcast LCD Monitor from Ikegami is a rackmount-ready broadcast monitor featuring two channels of SD-SDI, HD-SDI, and 3G-SDI multi-format signal inputs. It offers a maximum resolution of 800 x 480 and contrast ratio of 500:1. The monitor comes with a host of features such as title generator, embedded audio level indicators, up to 16-channel waveform display, and a vectorscope display. - Key Features
-
- LED backlight panel
- Full-screen waveform monitor and vectorscope displays for effective utilization of space
- Four types of display sizes (full, large, middle, small)
- Video overlapping and screen marker
- Embedded audio level meter and character display
- Three-color temperature memory
- VITC/LTC display
- User display
In the Box Ikegami HLM-5013WR 5" Triple Multi-Format Broadcast LCD Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami HLM-5013WR 5" Triple Multi-Format Broadcast LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami HLM-5013WR Specs | Monitor Type | Triple 5" LCD monitor, multi-format | | Screen Size | Viewing Area: 5" / 12.7 cm, each display
In 16:9: 4.9" / 12.4 cm, each display | | Signal System | NTSC, PAL | | Resolution | 800 x 480 (effective pixels) | | Display Colors | 16.77 million / 8-bit | | Viewing Angle | 176° (H/V) | | Brightness | 180 cd/m2 | | Contrast Ratio | 500:1 | | Aspect Ratio | Auto, 4:3, 16:9 | | Supported Formats | 1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/29.97/30
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60
575i 50
480i 59.94 | | Response Time | Not specified by the manufacturer | | Inputs/Outputs | 2 x 3G/HD/SD-SDI input per display
1 x 3G/HD/SD-SDI output per display | | Remote Control | Yes, supports parallel remote control | | Audio Level Meter | 16-channel embedded | | Marker | Safety Marker: 100% + 80 to 99% (every 1% step)
Area Marker: 4:3 (at 16:9), 13:9, 14:9, 15:9, 16:9 (at 4:3), 1.85:1, 2.35:1 | | Timecode | LTC, VITC1, VITC2 | | Color Temperature | 6500K, 9300K, 1-user setting | | Scan | Scan Selection: Normal, over, 4:3 (zoom) | | Conversion Modes | I/P Conversion Mode: Frame | | Operating Temperature | Not specified by the manufacturer | | Power Requirements | 100 to 240 VAC (when using AC adapter)
12 VDC (10 to 19 VDC) | | Power Consumption | 34 W, 1.7 A | | Rack Units | 2 RU | | Character Display | Color: Yellow, red, black
Position: Top, bottom
Size: Small, large | | Input | 3G/HD/SD (4:2:2) | | Vectorscope | Size: Full, large, middle, small
Position: Upper left, upper right, lower left, lower right
Format: Overlay, overlap | | Waveform Display | Size: Full, large, middle, small
Format: Overlay, overlap
Display: Y/YPbPr | | Audio Level Meter | Channel: 1 to 16
Display: 2-split, 4-split
Format: Overlay, overlap | | Weight | 3.74 lb / 1.7 kg | | Dimensions | 18.9 x 3.5 x 2.2" / 48.1 x 8.8 x 5.6 cm | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 22.4 x 9.3 x 6.7" |
