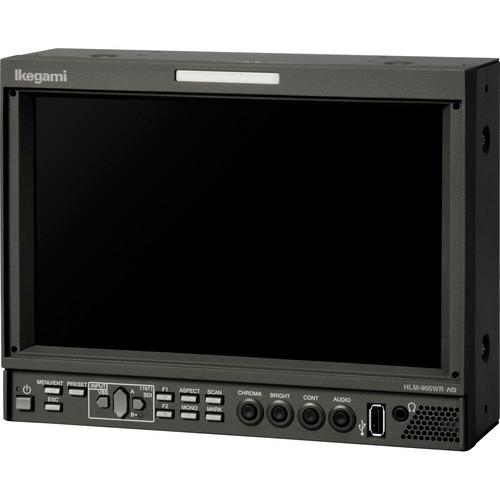

User Manual for Ikegami HLM-905WRRM 9" HDTV SDTV Multi-Format LCD Color Monitor Click to enlarge the picture
Contents of the user manual for the Ikegami HLM-905WRRM 9" HDTV SDTV Multi-Format
- Product category: Production Monitors Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Production Monitors
 |
User manual for the Ikegami HLM-905WRRM 9" HDTV SDTV Multi-Format contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The HLM-905WRRM 9" HDTV/SDTV Multi-Format LCD Color Monitor from Ikegami is a compact, lightweight monitor supporting 3G/HDTV/SDTV multi-format SDI and VBS inputs as standard. For its LCD panel, a high-resolution WXGA (1280 x 768) panel is employed incorporating the IPS technology with LED backlight and wide viewing angle. It can be rack mounted in dual monitor configuration, making it suitable for use in a full range of applications. The monitor consumes low power, supporting either AC or DC powering. It can be battery operated using a battery bracket (sold separately). This monitor has a USB connection port on the operation panel, allowing setup file store and recall, as well as remote operation from a mouse for menu navigation, including user marker operation and more. - High-resolution, compact monitor
- IPS LCD panel with LED backlight
- Fast response time and enhanced color reproduction
- USB connector for mouse control & file storage
- Audio level indicator for monitoring
- External USB memory interface
- Multi-format HD/SD SDI inputs including 3G (2 channel)
- Embedded analog audio output
- Analog stereo audio input
- 5.1-channel surround down-mix
- Built-in test signal generator
- 10-color temperature memory
- Markers (aspect and safety markers)
In the Box Ikegami HLM-905WRRM 9" HDTV/SDTV Multi-Format LCD Color Monitor AC Cable DR-904 Dual Rack Mount Adapter for HLM-904WR & HLM-905WR Monitors (4 RU) BP-920 Blank Panel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami HLM-905WRRM 9" HDTV SDTV Multi-Format LCD Color Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami HLM-905WRRM Specs | Width | 9.0" (22.8 cm) | | Resolution | WXGA: 1280 x 768 pixel
VGA: 800 x 480 | | Power | AC: 23 W
DC: 20 W | | Viewing Angle (H/V) | 176/176° | | Contrast Ratio | 1000:1 | | Aspect Ratio | 4:3/16:9 | | Display | WFM, VITC, Dot-by-Dot, vector scope, and pixel-by-pixel mode | | Input | 2-channel analog audio, 1-channel analog composite, AC, DC, VBS, and 3G/HD/SD (4:2:2)-SDI | | Port | USB memory and stereo headphone jack | | Height | 4 RU | | Dimensions (W x H x D) | 8.8 x 6.8 x 2.8" (222.4 x 173.0 x 69.5 mm) | | Weight | 4.41 lb (2.0 kg), excluding stand | | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 23.9 x 20.5 x 14.8" |
