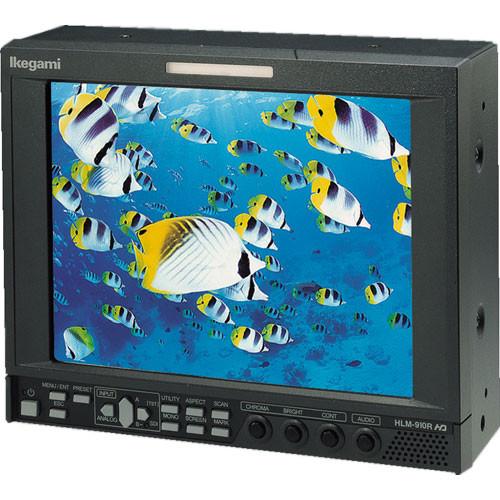

User Manual for Ikegami HLM-910R 8.4" HDTV SDTV LCD Monitor Click to enlarge the picture
Contents of the user manual for the Ikegami HLM-910R 8.4" HDTV SDTV LCD
- Product category: Production Monitors Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Production Monitors
|
User manual for the Ikegami HLM-910R 8.4" HDTV SDTV LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description The Ikegami HLM-910R is an 8.4" LCD display specifically designed for professional video applications, including studio and field monitoring. Don't let its modest size fool you, the HLM-910R is a true performer. Boasting an uncanny XGA native resolution, the monitor is especially well suited for verifying focus when shooting HD footage. The unit can be placed in any standard 19" racking system, making it useful in high-end production facilities, as well as OB vans. - High Resolution Panel
- Rare for its size, the HLM-910R incorporates an XGA resolution panel. The growing world of high definition makes this improvement in resolution a must. Everything from framing to verifying focus, to simply getting a better idea of what the footage looks like can prove critical.
- Wide Angle Range of Vision
- This screen offers an exceptionally broad viewing angle of 170 degrees. This lets you view the screen in crystal clarity from anywhere in the room.
In the Box Ikegami HLM-910R 8.4" HDTV/SDTV LCD Monitor 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami HLM-910R 8.4" HDTV SDTV LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami HLM-910R Specs | Application | Rack Mount, Control Room | | LCD Size | 8.4" | | Video System | 1080/60i, 1080/50i, 1080/30p, 1080/25p, 1080/24p, 1080/24pSF, 720/60p, 720/50p, 720/30p, 720/24p, 480/60p, 480/60i, 575/50 | | Picture Elements | 1024 x 768 | | Viewing Angle | 170° | | Input and Output Connectors | Component (x1 Input)
Composite (x2 Input)
HD/SD-SDI: BNC (x2 Input)
Remote: SerialEmbedded Audio | | Picture Controls | Not Specified By Manufacturer | | Remote Control | None | | Power Requirements | 12 VDC | | Power Consumption | 26W | | Dimensions (WxHxD) | 8.5 x 6.9 x 4.2" (21.6 x 17.6 x 10.7 cm)
4RU | | Weight | 5.3 lb (2.4 kg) |
