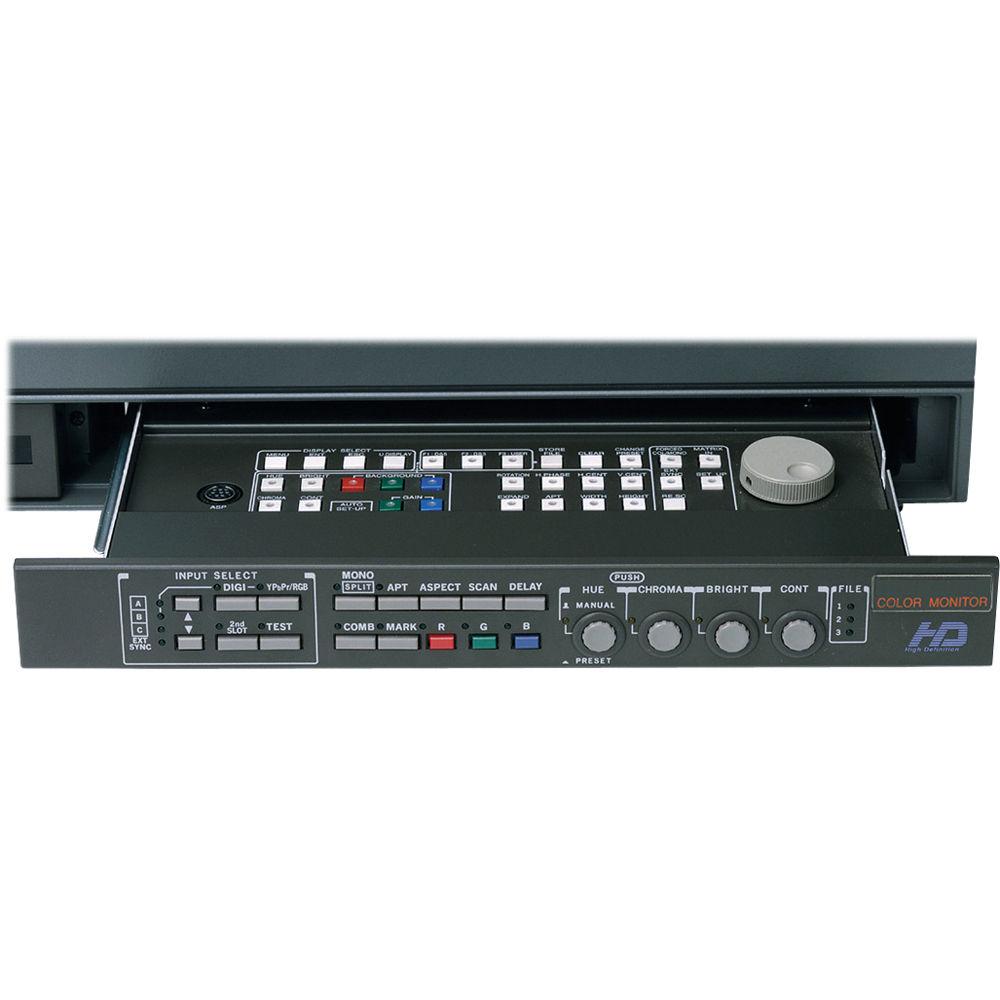

User Manual for Ikegami HTM-1990-R 19" HDTV SDTV Multi-Format Color Monitor Click to enlarge the picture
Contents of the user manual for the Ikegami HTM-1990-R 19" HDTV SDTV Multi-Format
- Product category: Production Monitors Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Production Monitors
 |
User manual for the Ikegami HTM-1990-R 19" HDTV SDTV Multi-Format contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|

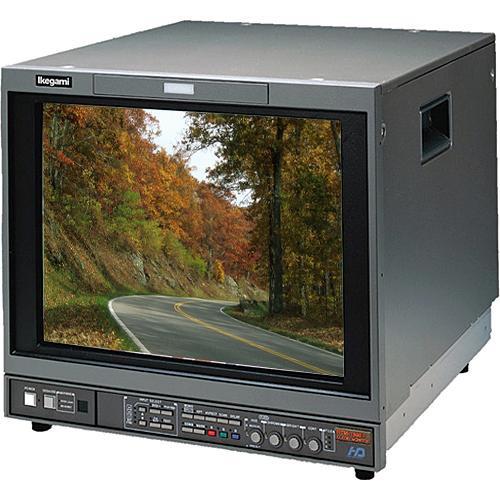

Product description The Ikegami HTM-1990-R is a 19" HDTV CRT monitor designed for broadcast applications such as professional studio monitoring. The monitor comes equipped with a variety of features and options that make it perfect for high-end broadcast and finishing. Features include an auto calibrator and analog AES/EBU audio support. The most distinctive aspect of the HTM-1990-R is its ability to use modular input boards, allowing studios to customize both inputs and outputs. - Improved Flat-Surface Design
- Its new flat surface CRT design provides superior image quality when compared to previous versions. As digital cameras become more and more useful in today's growing high definition broad environment, the HTM-1990-R is up to the task.
- Modular Configuration
- The HTM-1990-R works around the concept of end-user configuration and customization. By producing a display that's capable of expansion based on need, operators can avoid spending additional money on features that aren't useful to their specific application.
- HD-SDI and AES/EBU
- By configuring the HTM-1990-R to use HD-SDI and AES/EBU, the display is a perfect solution for high definition productions.
- Automatic NTSC or PAL Recognition
- The panel accepts both NTSC (United States, Japan) and PAL (Europe, Australia) standard signals. Conveniently, the monitor automatically detects which standard it is being fed without having to push a button, flip a switch or access a menu
- Durable Case
- The easily transportable casing surrounding the HTM-1990-R provides exceptional protection to combat the rigors of daily use. The handles make transporting the unit easy and comfortable.
- Auto-Calibration
- Additional options make it easy to calibrate color temperature, which can be a critical aspect of shooting on video and film. The monitor makes a great video-assist display for cinema.
In the Box Ikegami HTM-1990-R 19" HDTV/SDTV Multi-Format Color Monitor IR Remote Control Operation Manual Service Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami HTM-1990-R 19" HDTV SDTV Multi-Format Color Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami HTM-1990-R Specs | Application | HD/SD Production Monitoring | | CRT Size | 19" | | Video System | 1080i, 720p, NTSC, PAL | | Maximum Resolution | 950 TV Lines | | Phosphor | Not Specified By Manufacturer | | Color Temperature Pre-Sets | 4 | | Input and Output Connectors | Component: BNC (x1 Input)
Tally (x2 Input) | | Set-Up Features | Comprehensive Set-Up through Menu | | Remote Control | RS-232C, Parallel, IR | | Rack Mount | With Option (9RU) Rackmount Not Included | | Power Requirements | 100-240VAC, 50/60 Hz | | Power Consumption | 240W | | Dimensions (WxHxD) | 17.8 x 15.8 x 20.3" (45 x 39.9 x 51.5cm) | | Weight | 81.8 lbs (37kg) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
