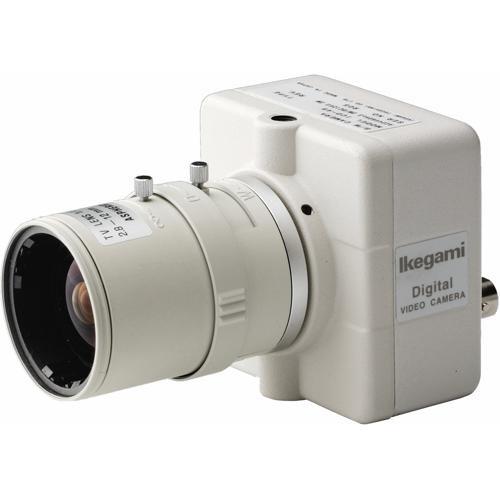

User Manual for Ikegami ICD-49 1 2" CCD Super Cube DSP B W Camera with 4-12mm AI Lens Click to enlarge the picture
Contents of the user manual for the Ikegami ICD-49 1 2" CCD Super
- Product category: Wired Analog & HD Cameras Ikegami
- Brand: Ikegami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ikegami Wired Analog & HD Cameras
|
User manual for the Ikegami ICD-49 1 2" CCD Super contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ikegami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ikegami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ikegami product will considerably shorten its lifespan!
|
Product description Rarely will you find a CCTV camera that can match the light sensitivity levels of the Ikegami KIT-49 PRO. Its 0.0075 lux rating means that it can see in virtual darkness. And unlike IR enhanced cameras, images are of exceptionally good quality, with minimal amounts of noise and with virtually no glow or blooming affects. This level of night vision serves to complement the camera's excellent picture resolution of 570 lines generated by a 1/2" CCD. Amazingly, Ikegami was able to pack all of this power inside an ultra compact enclosure. This way, you can easily pair it with an outdoor housing and use this highly sensitive camera to monitor an outdoor location that remains dark for a good part of a 24-hour cycle. Because of these attributes, Ikegami has also seen many of its customers integrate this camera inside ATM machines. - Super High Sensitivity
- A 0.0075 lux rating is truly a rarity among CCTV cameras. Through the use of a 1/2" B/W CCD along with advanced electronic controls, this camera is able to pick up light in the near infrared wave spectrum (800nm to 1000nm), which translates into a light sensitivity level 5 times that of conventional IT CCD cameras.
- Low Smear Level
- A low smear level of -120dB reduces the light streaks and halos that often accompany bright points of light in an otherwise darker image - a good example being a vehicle's headlights at night. Without those obscuring elements, you'll have an easier time identifying people and objects in the vicinity of that light source.
- Backlight Compensation
- An advanced BLC function automatically activates in scenes where the subject matter is brightly lit from behind. By eliminating this silhouetting effect, you'll be able to view those objects in greater detail.
- 10-Year Warranty On Camera
- Yes you heard right, Ikegami provides a 10-year warranty for this camera, a time period unheard of in the CCTV industry. And they also make it easy to register multiple cameras on the same registration page.
In the Box Ikegami ICD-49 1/2" CCD Super Cube DSP B/W Camera with 4-12mm AI Lens ICD-49 B/W Cube Camera 4-12mm DC Iris Varifocal Lens C to CS Mount Lens Adapter 10-Year Warranty (1-year warranty on lens) Table of Contents
|
Upload User Manual
Have you got an user manual for the Ikegami ICD-49 1 2" CCD Super Cube DSP B W Camera with 4-12mm AI Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIkegami KIT-49 PRO Specs | Signal System | EIA (NTSC) | | Image Sensor | 1/2" B/W IT CCD | | Resolution | 570 TVL | | Number of Pixels | 768 x 494 | | Lens | Included Lens: 4-12mm (CS mount on camera) | | Iris Operation | Included Lens: DC Iris (camera is DC/Video iris) | | Minimum Illumination | 0.0075 Lux at F1.2, 0.01 lux at F1.4 | | Signal-to-Noise Ratio | >50dB | | Controls | BLC (On/Off)
AES (On/Off) | | Sync | Internal Lock/Line Lock | | Video Output | BNC | | Audio Output | N/A | | Motion Detection | No | | Alarm I/O | No | | Control Ports | No | | Power Requirements | 24VAC or 12VDC | | Power Consumption | 3.3W | | Operating Temperature | 14 - 122°F (-10 ~ +50°C) | | Dimensions (WxHxD) | 2.5 x 2.5 x 2.1" (64 x 64 x 53mm) | | Weight | 0.6 lbs (250g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.4 x 8.5 x 6.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
